Simrad S5100 3-channel CHIRP Sonar Module User Manual

1. Introduction and Overview

The Simrad S5100 high-performance CHIRP sonar module is designed to deliver true simultaneous coverage of up to three different depth ranges at high resolution. This makes it an ideal sonar solution for offshore sportfishing. It offers simultaneous split-screen viewing and advanced processing technology for clear, noise-free sonar returns across all depth ranges, maintaining bottom depth tracking.

Users can mix and match transducer coverage and transmit power for wide and narrow beam-widths, allowing for better detection of fish, identification of thermoclines, and precise targeting of specific depths by adjusting CHIRP frequencies from 28 to 250 kHz.

Figure 1: The Simrad S5100 3-channel CHIRP Sonar Module, showing its robust casing and various connection ports.

2. Орнотуу жана орнотуу

Proper installation is crucial for optimal performance of your Simrad S5100 module. Ensure the module is mounted in a dry, protected location away from direct sunlight and excessive heat. Allow for adequate ventilation around the unit.

2.1 Кубат туташтыруу

Connect the power cable to a suitable 12V DC power source. Ensure the connection is secure and properly fused according to marine electrical standards. The S5100 requires a stable power supply for consistent operation.

2.2 Transducer Connections

The S5100 features three plug-and-play 9-pin transducer connectors. Connect your CHIRP transducers to these ports. Ensure each transducer is securely fastened and its cable is routed to prevent damage or interference. The module supports a variety of CHIRP transducers, allowing for flexible configurations.

2.3 Тармактык туташуу

Connect the S5100 module to your compatible Simrad NSS evo3, NSS evo2 multifunction displays, NSO evo2 systems, or S2000-series fishfinders via an Ethernet network cable. This connection enables data transfer and control between the module and your display unit.

3. Иштөө нускамалары

The Simrad S5100 offers advanced sonar capabilities. Once connected to a compatible display, you can access and configure its features through the display's menu system.

3.1 Sonar Channel Configuration

Utilize the three fully independent sonar channels to achieve high-resolution coverage. You can combine any three frequency ranges, including Ultra-Low, Low, Medium, or High CHIRP, to target multiple depths simultaneously. This allows for a comprehensive view of the water column.

3.2 Жыштыкты тууралоо

Adjust specific CHIRP frequencies from 28 to 250 kHz to precisely target specific depths. This fine-tuning helps in producing clear, crisp arches and excellent target separation, making it easier to identify fish and underwater structures.

3.3 Split-Screen Viewing

Алдын алаtage of the simultaneous split-screen viewing capability on your display. This feature allows you to monitor multiple depth ranges or different CHIRP frequencies side-by-side, providing complete control and understanding of the water column.

2-сүрөт: Мисample of a split-screen sonar display, showing High CHIRP and Low CHIRP views simultaneously at a depth of 50.9 meters.

3-сүрөт: Дагы бир мурункуample of a split-screen sonar display, illustrating High CHIRP and Low CHIRP views at a depth of 65.9 meters, demonstrating the module's ability to show detailed returns.

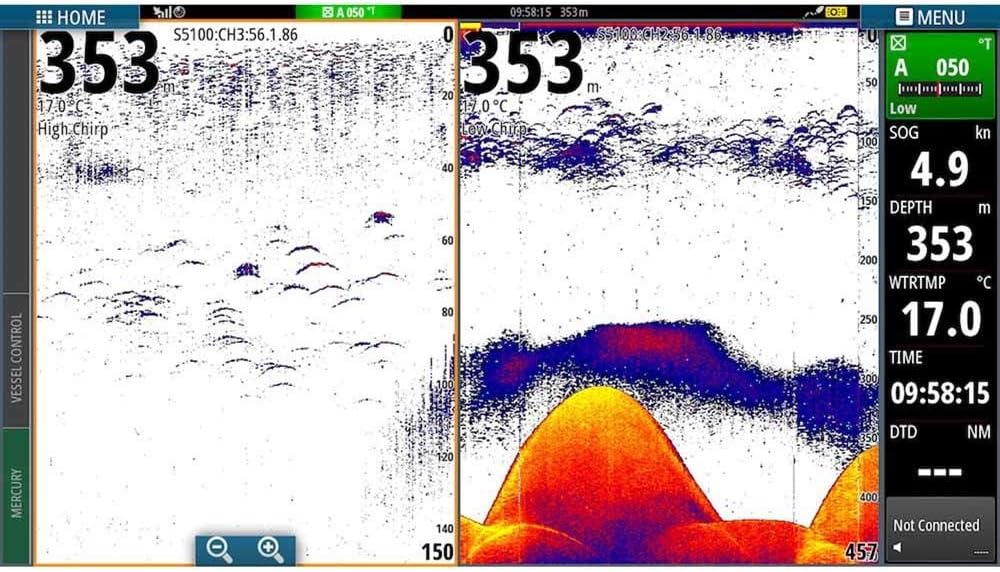

Figure 4: A sonar display showing a deeper CHIRP view at 353 meters, highlighting the module's capability for deep-water detection.

4. Техникалык тейлөө

Regular maintenance ensures the longevity and optimal performance of your Simrad S5100 module.

• Тазалоо: Periodically wipe the exterior of the module with a soft, damp кездеме. Керектүү кездемеге зыян келтириши мүмкүн болгон абразивдүү тазалоочу каражаттарды же эриткичтерди колдонуудан алыс болуңуз.asing.
• Туташуу текшерүүлөрү: Regularly inspect all cable connections (power, transducer, network) for corrosion, wear, or looseness. Ensure they are securely fastened.
• Вентиляция: Ensure that the module's ventilation fins are clear of obstructions to prevent overheating.
• Программалык камсыздоо жаңыртуулары: Check the Simrad website periodically for software updates for your S5100 module and connected display units. Keeping software updated can improve performance and add new features.

5. Кыйынчылыктарды

If you encounter issues with your Simrad S5100 module, refer to the following common troubleshooting steps:

• Кубат жок:
  • Check the power cable connection to the module and the power source.
  • Verify the fuse in the power circuit.
  • Ensure the boat's battery has sufficient charge.
• No Sonar Display/Poor Returns:
  • Confirm that the S5100 module is powered on and connected to your display unit via the network.
  • Check all transducer connections at the module and the transducer itself.
  • Ensure the correct transducer type is selected in your display unit's settings.
  • Verify that the transducer is properly mounted and free of marine growth or obstructions.
  • Adjust gain, range, and frequency settings on your display unit.
• Тармакка туташуу маселелери:
  • Check the Ethernet cable connection between the S5100 and the display unit.
  • Restart both the S5100 module and the display unit.

If problems persist after following these steps, contact Simrad customer support or a qualified marine electronics technician.

6. Техникалык шарттар

7. Кепилдик жана колдоо

7.1 Кепилдик маалыматы

Simrad products are manufactured to high standards and are typically covered by a limited warranty against defects in materials and workmanship. For specific warranty terms and conditions applicable to your S5100 module, please refer to the warranty card included with your product or visit the official Simrad webсайт.

7.2 Кардарларды колдоо

For technical assistance, product inquiries, or service requests, please contact Simrad customer support. You can find contact information, FAQs, and additional resources on the official Simrad webсайт:

Visit the Official Simrad Store on Amazon

Always provide your product model number (50.931.00) and serial number (if applicable) when contacting support to expedite assistance.
