1. Продукт бүтүп калдыview
The COOAU 4K Action Camera H9SE-SL is a versatile and durable device designed for capturing high-quality video and photos in various environments, including underwater. Featuring 4K video recording, a 170-degree wide-angle lens, and a Panasonic CMOS sensor, it is suitable for sports, outdoor activities, and everyday use. The camera is waterproof up to 30 meters with its protective case and includes Wi-Fi connectivity for easy sharing and control.
Image 1.1: COOAU 4K Action Camera H9SE-SL with its waterproof housing and a basic mount.
2. Пакеттин мазмуну
Төмөндө тизмеленген нерселердин баары пакетиңизге камтылганын текшериңиз:
- COOAU 4K Action Camera H9SE-SL
- Суу өткөрбөйт
- Заряддалуучу батарея
- Портативдик куту
- Instruction Manual
- USB кабели
- Линзаны тазалоочу кездеме
- Helmet Mounts (various types)
- Рутка/Уюлга орнотулган
- Mounting Clips and Bandages
- Коргоочу Backdoor
- Tethers
Сүрөт 2.1: Бүттүview of the camera and included accessories, such as mounts, clips, and cables.

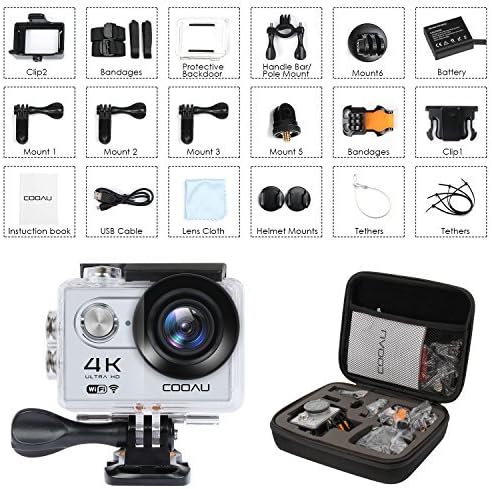

Image 2.2: A comprehensive display of all included accessories and mounting options.
Image 2.3: The camera and its dedicated portable carrying case, illustrating its suitability for various activities.
3. Орнотуу
3.1 Батареяны заряддоо
Before first use, fully charge the camera battery. Connect the camera to a USB power source using the provided USB cable. The charging indicator light will illuminate during charging and turn off when the battery is full.
3.2 MicroSD картасын салуу
The camera requires a MicroSD card (not included) for storing recordings. For optimal performance, use a Class 10 or UHS-I rated MicroSD card from a reputable brand. Insert the card into the MicroSD slot until it clicks into place. Ensure the card is formatted in the camera's settings before initial use.
3.3 Суу өткөрбөй турган корпусту колдонуу
The waterproof case allows the camera to be used underwater up to 30 meters. Before placing the camera inside, ensure the rubber seal around the case is clean and free of debris. Close the latch securely. It is recommended to test the waterproof case without the camera submerged in water first to confirm its seal integrity.
Image 3.1: The camera is designed for underwater use with its waterproof housing, enabling clear capture of aquatic scenes.
3.4 Камераны орнотуу
Utilize the various mounts provided to attach the camera to helmets, handlebars, or other surfaces. Ensure the camera is securely fastened to prevent accidental detachment during activity. Refer to the specific mount instructions for proper attachment methods.
4. Иштөө нускамалары
4.1 Күйгүзүү/өчүрүү
- Күйгүзүү үчүн: Күйгүзүү/Режим баскычын бир нече секунд басып туруңуз.
- Өчүрүү үчүн: Камера өчкөнгө чейин Күйгүзүү/Режим баскычын кайра басып, кармап туруңуз.
4.2 Режимди тандоо
Press the Power/Mode button repeatedly to cycle through the available modes: Video Recording, Photo Capture, Playback, and Settings.
4.3 Видео жаздыруу
In Video Recording mode, press the Shutter/OK button to start recording. Press it again to stop. The camera supports 4K resolution video. Additional video functions include loop recording, time-lapse recording, and slow-motion recording, which can be configured in the camera's settings menu.
Image 4.1: The camera offers multiple recording functions including loop recording, time-lapse, slow motion, and burst mode.
4.4 Сүрөткө тартуу
In Photo Capture mode, press the Shutter/OK button to take a picture. The camera captures 12-megapixel photos and supports burst mode for rapid photo sequences.
Image 4.2: Key features of the camera include 4K high-definition video, a 170-degree wide-angle lens, and 12-megapixel photo capability.
4.5 Wi-Fi байланышы
Enable Wi-Fi in the camera's settings. Download the compatible app on your smartphone or tablet. Connect to the camera's Wi-Fi network (SSID and password displayed on the camera screen). This allows for remote control, live preview, and content sharing.
Image 4.3: The camera features Wi-Fi connectivity, enabling seamless sharing of captured content to mobile devices.
4.6 Display and Lens Features
The camera is equipped with a 2-inch screen for easy navigation and playback. Its 170-degree wide-angle lens, combined with a Panasonic CMOS sensor and six layers of HD glass, ensures high-quality image capture with a broad field of view.
Image 4.4: The camera's optical system includes a Panasonic Sensor and a six-layer HD glass lens for superior image clarity.
5. Техникалык тейлөө
5.1 Камераны тазалоо
Use a soft, lint-free cloth to clean the camera body and screen. For the lens, use a specialized lens cleaning cloth and solution to avoid scratches. Do not use harsh chemicals or abrasive materials.
5.2 Waterproof Case Care
After using the waterproof case in saltwater, rinse it thoroughly with fresh water and allow it to air dry. Regularly inspect the rubber seal for any signs of wear or damage. Replace the seal if necessary to maintain waterproof integrity.
5.3 Сактоо
Store the camera and accessories in a cool, dry place away from direct sunlight and extreme temperatures. Remove the battery if the camera will not be used for an extended period.
6. Көйгөйлөрдү чечүү боюнча колдонмо
- Камера күйбөй жатат: Ensure the battery is fully charged. If the issue persists, try a different battery if available.
- Recording Issues / Poor Image Quality: Verify that a Class 10 or higher MicroSD card is inserted and properly formatted. Ensure the lens is clean and free from smudges or debris. Check camera settings for correct resolution and exposure.
- Wi-Fi туташуу көйгөйлөрү: Ensure Wi-Fi is enabled on the camera and your mobile device. Restart both devices. Confirm you are connecting to the correct SSID and entering the correct password.
- Water Leakage in Case: Immediately remove the camera from the case. Inspect the rubber seal for damage or debris. Ensure the case is properly closed and latched. Always test the case without the camera before underwater use.
7. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Модель номери | H9SE-SL |
| Видео тартуунун резолюциясы | 4K |
| Сүрөттүн резолюциясы | 12 мегапиксел |
| Объектив | 170° Wide Angle, 6-layer HD glass |
| Сенсор | Panasonic CMOS Sensor |
| Screen Size | 2 дюйм |
| Сактагыч медиа | Micro SD (Class 10/UHS-I recommended) |
| Байланыш | HDMI, Wi-Fi |
| Суу каршылык | 30M (with waterproof case) |
| Өзгөчөлүктөр | Portable, Waterproof, Loop Recording, Time-Lapse, Slow Motion, Burst Mode |
| Продукциянын өлчөмдөрү | 2.6 x 1.6 x 1.2 дюйм |
| Элемент Салмагы | 1.05 фунт |
8. Кепилдик жана Кардарларды колдоо
COOAU products are designed for reliability and performance. For warranty information, technical assistance, or any questions regarding your COOAU 4K Action Camera H9SE-SL, please refer to the contact details provided in your product packaging or visit the official COOAU webкардарларды колдоо ресурстары үчүн сайт.
