1. Продукт бүтүп калдыview
The Viking Fan Kit Part 013112-000 is a replacement fan assembly designed for cooling applications. This kit includes a brushless DC fan mounted on a metal plate, intended for integration into compatible systems requiring efficient air circulation.

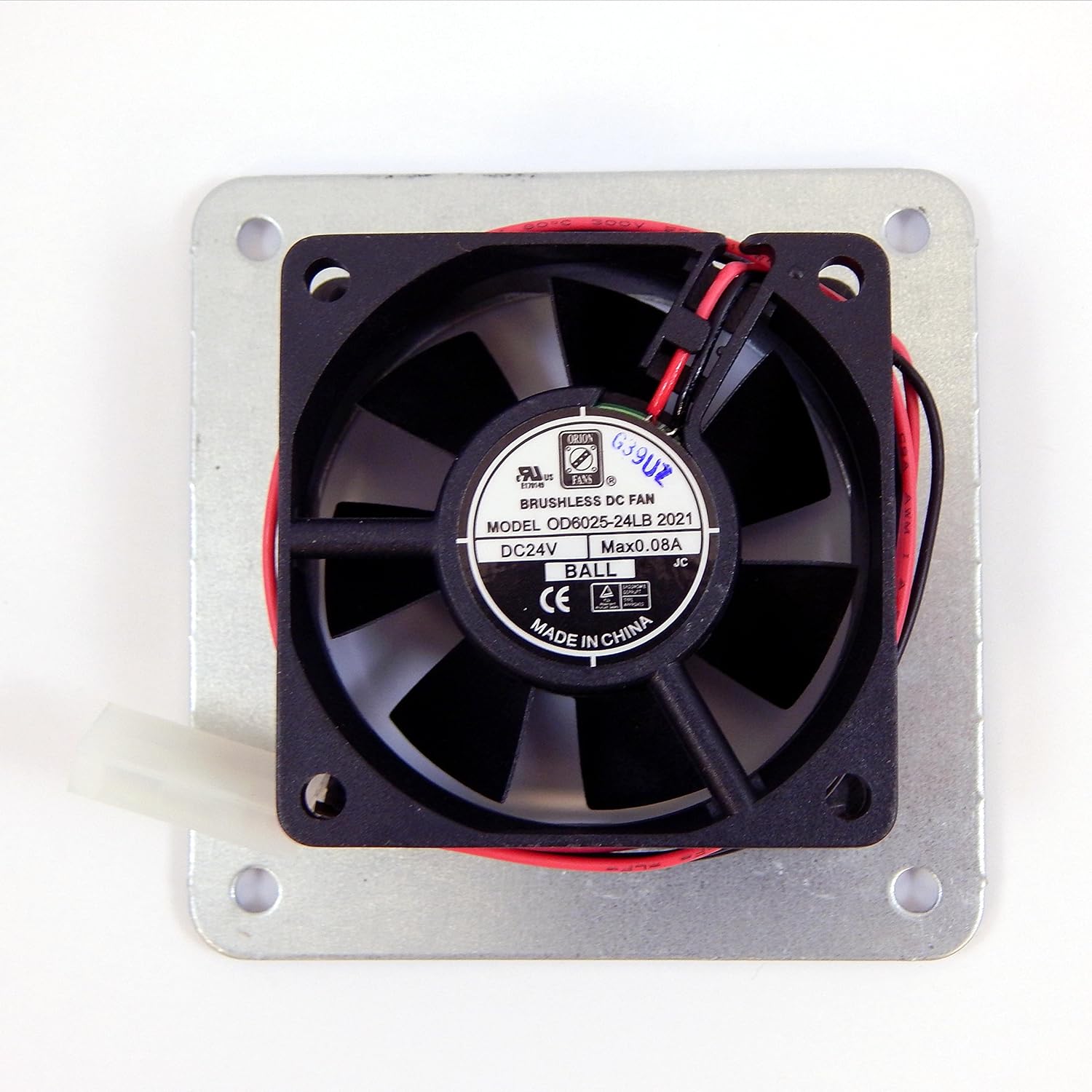

This image displays the Viking Fan Kit, model 013112-000. It features a black brushless DC fan mounted on a square metal plate. The fan has a 3-pin power connector with red and black wires. The label on the fan indicates it operates at DC24V and has a maximum current of 0.08A. The fan is designed for cooling and is made of metal.
2. Коопсуздук маалыматы
Please read and understand all safety instructions before installing or operating the fan kit. Failure to do so may result in injury or damage to the product.
- Ensure power is disconnected from the system before installation or maintenance.
- Handle the fan by its frame; avoid touching the fan blades.
- Туура томду текшериңизtage and polarity before connecting the fan to a power source. This fan operates on 12 Volts (DC).
- Keep fingers and loose objects away from moving fan blades during operation.
- Do not operate the fan in wet or excessively dusty environments.
3. Пакеттин мазмуну
Пакетти ачканда бардык компоненттер бар экенин жана бузулбаганын текшериңиз:
- 1 x Viking Fan Kit Part 013112-000 (Fan assembly with metal mounting plate and 3-pin connector)
4. Орнотуу жана орнотуу
This section provides instructions for the proper installation of your Viking Fan Kit.
Орнотуу кадамдары:
- Орнотуу аймагын даярдоо: Ensure the area where the fan will be installed is clean, dry, and free of obstructions. Confirm there is adequate space for airflow.
- Кубатты өчүрүү: Before beginning installation, ensure that the power supply to the system or device where the fan will be installed is completely disconnected.
- Желдеткичти орнотуу: Align the mounting holes on the fan's metal plate with the corresponding mounting points on your system. Secure the fan using appropriate screws or fasteners (not included) through the four corner holes. Ensure the fan is mounted securely to prevent vibration.
- Туташуу кубаты: Locate the 3-pin power connector on the fan. Connect this connector to the compatible 3-pin fan header on your system's motherboard or power supply. Ensure the connector is fully seated and the polarity is correct (red wire typically positive, black wire negative).
- Орнотууну текшерүү: Double-check all connections and mounting points to ensure everything is secure and properly installed.
- Күчтү калыбына келтирүү: Орнотуу аяктагандан жана текшерилгенден кийин, системаны кайра күйгүзүңүз.
5. Иштөө нускамалары
The Viking Fan Kit Part 013112-000 is designed for continuous operation once properly installed and powered. It functions by drawing air through its blades to create airflow for cooling purposes.
- Upon system power-up, the fan should begin rotating, indicating proper function.
- Monitor the fan's operation periodically to ensure it is spinning freely and quietly.
- Ensure that air intake and exhaust vents in your system are not obstructed to allow for optimal cooling performance.
6. Техникалык тейлөө
Regular maintenance helps ensure the longevity and optimal performance of your fan kit.
- Чаңды тазалоо: Periodically (e.g., every 3-6 months), disconnect power and use compressed air or a soft brush to gently remove dust buildup from the fan blades and frame. Accumulation of dust can impede airflow and reduce cooling efficiency.
- Зымдарды текшерүү: Occasionally check the power cable and connector for any signs of wear, fraying, or loose connections.
- Адаттан тыш үндөрдү угуңуз: If the fan starts making unusual noises (e.g., grinding, rattling), it may indicate a bearing issue or obstruction. Disconnect power and inspect the fan.
7. Кыйынчылыктарды
If you encounter issues with your Viking Fan Kit, refer to the table below for common problems and their solutions.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| желдеткич айланбайт | No power; Loose connection; Incorrect voltage; Fan failure | Ensure system power is on. Check 3-pin connector is fully seated. Verify power supply is providing 12V DC. If all checks fail, the fan may need replacement. |
| Желдетүүчү ызы-чуу | Dust buildup; Obstruction; Worn bearings; Loose mounting | Disconnect power and clean fan blades. Remove any obstructions. Ensure fan is securely mounted. If noise persists, bearings may be worn, requiring replacement. |
| Жетишсиз аба агымы | Dust buildup; Obstructed vents; Fan spinning too slowly | Clean fan and system vents. Ensure fan is receiving adequate voltage. |
8. Техникалык шарттар
| Бренд | VIKING |
| Модель номери | 013112-000 |
| Бөлүмдүн номери | 013112-000 |
| Тtage | 12 вольт (ток) |
| Кубат туташтыргычынын түрү | 3-Pin |
| Муздатуу ыкмасы | Аба |
| Шайкеш түзмөктөр | Gaming Console, Desktop |
| Материал | Металл |
| Элемент Салмагы | 4.3 унция |
| Продукциянын өлчөмдөрү | 5 x 5 x 2 дюйм |
| Батареялар камтылган | Жок |
| Батареялар талап кылынат | Жок |
9. Кепилдик жана колдоо
For warranty information or technical support regarding your Viking Fan Kit Part 013112-000, please refer to the original purchase documentation or contact the retailer from whom the product was acquired. You may also visit the official VIKING brand webкошумча жардам жана байланыш маалыматы үчүн сайт.
Сураныч, бул колдонмону келечектеги маалымат үчүн сактап коюңуз.
