Samsung WA50M7450AW Top Load Washer User Manual

Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Samsung WA50M7450AW Top Load Washer. Please read these instructions thoroughly before using your appliance and retain them for future reference.

Орнотуу жана орнотуу

Кир жуугуч машинаңыздын иштеши жана узак мөөнөттүү иштеши үчүн туура орнотуу абдан маанилүү. Бардык кадамдарды кылдаттык менен аткарыңыз.

Пакеттен чыгаруу

Remove all packaging materials, including the base packaging and any internal packing. Inspect the washer for any shipping damage. Keep packaging materials out of reach of children.

Жайгашуу талаптары

• Install the washer on a solid, level floor.
• Ensure adequate space for water inlet hoses, drain hose, and power cord.
• Avoid areas where the temperature may drop below freezing.

Кир жуугучту тегиздөө

The washer must be perfectly level to prevent excessive vibration and noise during operation.

1. Place the washer in its final position.
2. Use a level to check the top surface of the washer from front to back and side to side.
3. Adjust the leveling feet located at the bottom corners of the washer by turning them clockwise to lower or counter-clockwise to raise.
4. Once level, tighten the lock nuts on the leveling feet to secure them.

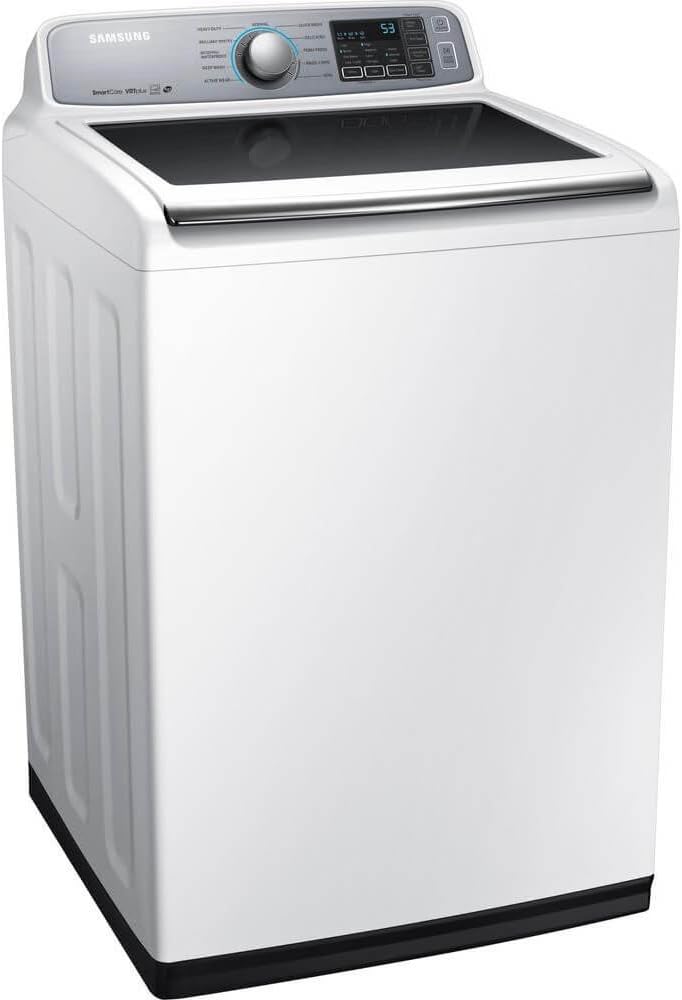

Сүрөт: алдыңкы view of the Samsung WA50M7450AW Top Load Washer. This image shows the overall design and the location of the control panel and lid.

Суу менен камсыздоо байланышы

Connect the hot and cold water inlet hoses to the corresponding hot and cold water faucets. Ensure rubber washers are inserted into the hose connectors to prevent leaks. Tighten connections firmly by hand, then an additional two-thirds turn with pliers.

Дренаждык түтүктү орнотуу

Securely attach the drain hose to the drain outlet at the back of the washer. Place the other end of the drain hose into a standpipe or laundry tub. Ensure the drain hose is properly secured to prevent it from dislodging during the wash cycle.

Power Connection

Plug the washer's power cord into a grounded 120V, 60Hz, 15 Amp electrical outlet. Do not use an extension cord.

Иштөө нускамалары

Follow these steps for optimal washing performance.

Кир жуугуч жүктөө

1. Кир жуугучтун капкагын ачыңыз.
2. Load items loosely into the tub, distributing them evenly around the agitator or impeller. Do not overload the washer.
3. Капкакты жабыңыз.

Сүрөт: Жогорку view of the Samsung WA50M7450AW Top Load Washer with the lid open, showing the interior tub and the detergent/bleach dispenser.

Кир жуугучтарды жана кошумчаларды кошуу

• Жуучу каражат: Add the recommended amount of HE (High-Efficiency) detergent to the detergent dispenser.
• Кездеме жумшарткыч: Pour liquid fabric softener into the fabric softener dispenser. Do not overfill.
• агартуучу: For liquid chlorine bleach, pour into the bleach dispenser. Do not exceed the MAX fill line.

Жуу циклин тандоо

Turn the Cycle Selector knob to choose the desired wash cycle. Common cycles include:

• Кадимки: For everyday cottons, linens, and mixed loads.
• Оор жүк: For sturdy fabrics, work clothes, and heavily soiled items.
• Тез жуу: For lightly soiled items that need a fast wash.
• Other cycles may include Delicates, Bedding, etc. Refer to the control panel for available options.

Adjusting Wash Options

Depending on the selected cycle, you may be able to adjust options such as:

• Температура: Hot, Warm, Cold.
• Айлануу ылдамдыгы: High, Medium, Low, No Spin.
• Топурак деңгээли: Heavy, Normal, Light.
• Жуууу параметрлери: Extra Rinse.

Press the corresponding buttons on the control panel to select or deselect options.

Жууну баштоо

Once the laundry is loaded, detergent added, and cycle/options selected, press the Баштоо/Пауза button to begin the wash cycle. The lid will lock, and the washer will start filling with water.

Техникалык тейлөө

Regular maintenance helps ensure your washer operates efficiently and extends its lifespan.

Сырты тазалоо

Кир жуугуч машинанын сырткы беттерин жумшак, d менен сүртүңүзamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.

Cleaning the Detergent Dispensers

Periodically remove and clean the detergent, fabric softener, and bleach dispensers to prevent residue buildup. Rinse them under warm water and dry thoroughly before reinserting.

Cleaning the Washer Tub

Run a "Self Clean" or "Tub Clean" cycle (if available on your model) monthly to remove detergent residue and odors. If not available, run an empty hot water cycle with a cup of white vinegar or a washing machine cleaner.

Суу киргизүү чыпкалары

Check the water inlet filters on the back of the washer periodically for clogs. Turn off the water supply, disconnect the hoses, and use pliers to pull out the filters. Rinse them under running water and reinsert.

Кыштоо

If the washer is to be stored in an area subject to freezing temperatures, drain all water from the hoses and internal components to prevent damage. Consult a service technician if unsure.

Кыйынчылыктарды табуу боюнча колдонмо

Before calling for service, refer to this guide for common issues and solutions.

Техникалык шарттар

Detailed technical specifications for the Samsung WA50M7450AW Top Load Washer.

Кепилдик жана колдоо

Кепилдик маалыматы үчүн продуктуңузга кошулган кепилдик картасын караңыз же расмий Samsung компаниясына баш багыңыз website. For technical support, service, or to order parts, please contact Samsung Customer Service.

Samsung кардарларды тейлөө: Сураныч, келиңиз www.samsung.com/us/support/ байланыш маалыматтары жана кошумча жардам алуу үчүн.
