1. Продукт бүтүп калдыview
This manual provides essential information for the installation, operation, and maintenance of your GROHE Lineare Single-Lever Bath Mixer, model 33849DC1. This bath mixer is designed for high-pressure water systems (over 1.0 bar) and features a durable, scratch-resistant, and easy-to-clean Super Steel finish. Its single-lever design allows for precise control of water flow and temperature.

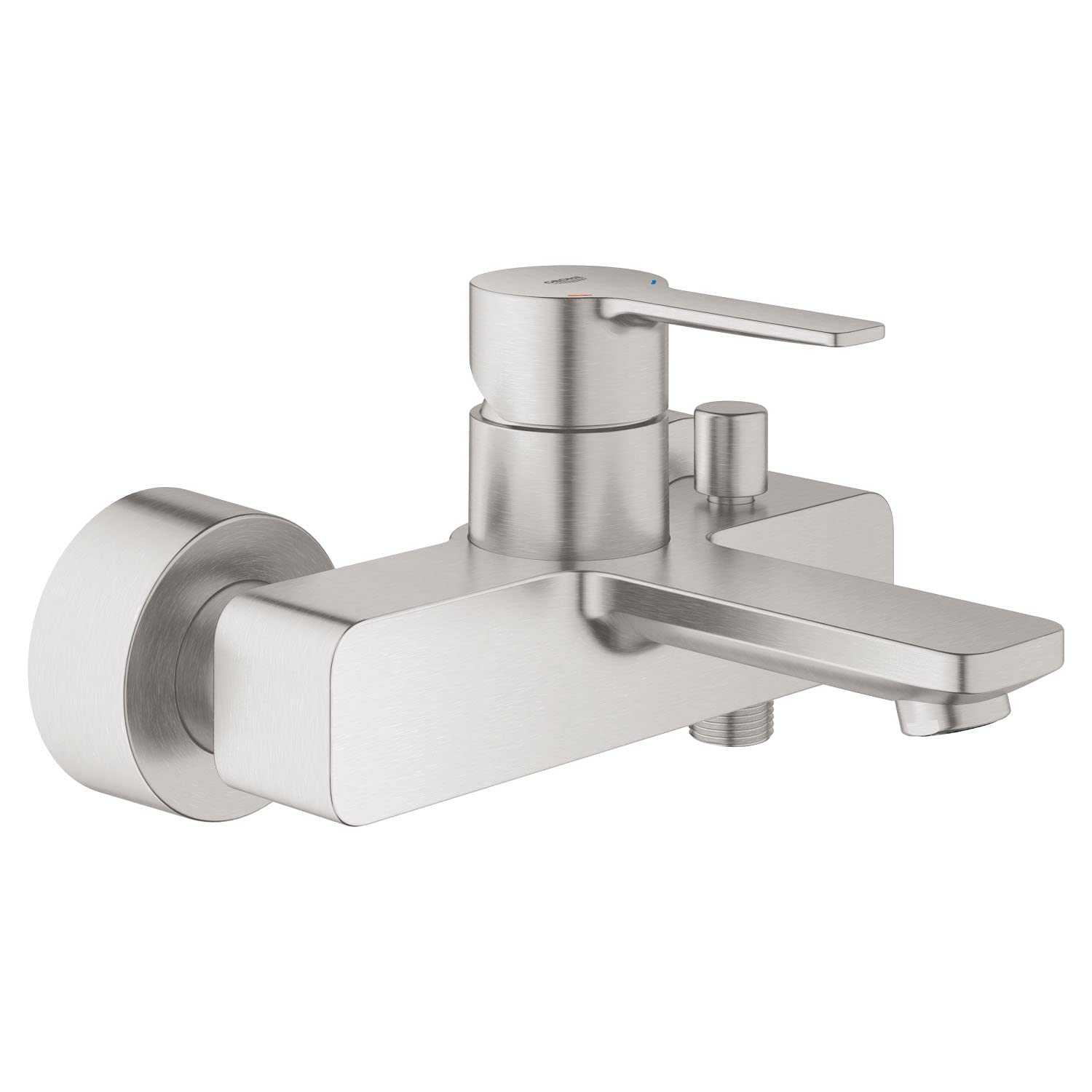

This image displays the GROHE Lineare Single-Lever Bath Mixer, showcasing its modern design, single lever handle for water flow and temperature control, and the integrated diverter for switching between bath spout and a hand shower (if connected). The Super Steel finish provides a durable and easy-to-clean surface.
2. Орнотуу жана орнотуу
Proper installation is crucial for the optimal performance and longevity of your bath mixer. It is recommended that installation be performed by a qualified professional plumber.
2.1 Орнотуудан мурун
- Ensure all necessary tools and components are available.
- Орнотуу аймагына негизги суу менен камсыздоону өчүрүңүз.
- Flush water lines thoroughly to remove any debris.
- Review the technical dimension diagram for precise measurements and clearances.
This technical diagram provides precise measurements and installation clearances for the GROHE Lineare Single-Lever Bath Mixer. It includes dimensions for the mixer body, spout reach, handle movement angles (55 degrees for hot and cold), and recommended wall mounting distances, crucial for proper installation.
2.2 Орнотуу кадамдары (Жалпы)
- Монтаждоо бетин даярдоо: Ensure the wall or deck surface is clean, level, and structurally sound for mounting.
- Монтаждоочу жабдыктарды орнотуу: Secure the eccentric connectors or mounting plate to the water supply lines according to the diagram.
- Суу линияларын туташтыруу: Attach the hot and cold water supply lines to the corresponding inlets on the mixer body. Ensure all connections are tight and sealed to prevent leaks.
- Миксерди орнотуу: Secure the bath mixer onto the mounting hardware.
- Install Diverter (if applicable): If a hand shower is to be connected, ensure the diverter mechanism is correctly installed and functional.
- Агышуу үчүн сыноо: Slowly turn on the main water supply and check all connections for leaks. Operate the mixer to ensure proper function.
3. Иштөө нускамалары
The GROHE Lineare Single-Lever Bath Mixer is designed for intuitive operation.
- Суу агымын көзөмөлдөө: Lift the single lever handle to increase water flow. Push down to decrease or stop the flow.
- Температураны көзөмөлдөө: Move the single lever handle to the left for hot water and to the right for cold water. Adjust the position to achieve the desired temperature.
- Кайтарым операция: To switch water flow from the bath spout to a connected hand shower, pull up the small knob located on the mixer body. Push it down to revert water flow to the bath spout.
4. Техникалык тейлөө
Regular cleaning and maintenance will preserve the appearance and functionality of your GROHE bath mixer.
- Аягын тазалоо: Clean the Super Steel finish with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for bathroom fixtures. Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots.
- Катуу тазалагычтардан качыңыз: Do not use abrasive cleaners, scouring pads, or cleaners containing alcohol, ammonia, bleach, or phosphoric acid, as these can damage the finish.
- Аэраторду тейлөө: Periodically unscrew and clean the aerator (at the end of the spout) to remove mineral deposits and maintain optimal water flow.
- агып текшерүүлөр: Regularly inspect connections for any signs of leaks. Tighten connections if necessary, but do not overtighten.
5. Кыйынчылыктарды
If you encounter issues with your bath mixer, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Төмөн суу агымы | тыгылып калган аэратор; жарым-жартылай жабык кран; төмөн суунун басымы. | Аэраторду тазалаңыз же алмаштырыңыз; токтотуучу клапандар толугу менен ачык экенин текшериңиз; үйдөгү суунун басымын текшериңиз. |
| Leaks from Spout/Handle | Loose connections; worn seals/cartridge. | Check and tighten connections; if problem persists, contact a professional for cartridge replacement. |
| Суунун ыраатсыз температурасы | Imbalance in hot/cold water pressure; faulty cartridge. | Check water supply pressures; if problem persists, professional inspection of the cartridge may be needed. |
| Кайтаруучу иштебей жатат | Mineral buildup; faulty diverter mechanism. | Clean diverter mechanism; if still not working, professional repair may be required. |
For issues not listed or if solutions do not resolve the problem, contact GROHE customer support or a qualified plumber.
6. Техникалык шарттар
Key technical specifications for the GROHE Lineare Single-Lever Bath Mixer (Model 33849DC1):
- Бренд: GROHE
- Модель номери: 33849DC1
- Монтаж түрү: Deck Mount
- Орнотуу түрү: Single Hole
- Бүткөн түрү: Жылмаланган
- Материал: Жез
- Түсү: Супер болот
- туткалардын саны: 1
- Камтылган компоненттер: Handle
- Өзгөчө өзгөчөлүгү: Чийүүгө туруктуу
- Элемент Салмагы: 4.75 фунт (2.16 килограмм)
- Продукциянын өлчөмдөрү: 9.84 x 8.66 x 5.91 дюйм
- басым рейтинги: High pressure, over 1.0 bar
7. Кепилдик маалыматы
Warranty details for your GROHE product are typically provided with your purchase documentation or can be found on the official GROHE webсайт. Сураныч, кепилдик дооматтар үчүн сатып алуу далилиңизди сактап коюңуз.
8. Кардарларды колдоо кызматы
For further assistance, technical support, or to inquire about spare parts, please visit the official GROHE webсайтына кириңиз же алардын кардарларды тейлөө бөлүмүнө кайрылыңыз. Байланыш маалыматын адатта GROHE сайтынан тапса болот webсайтында же продуктунун таңгагында.
GROHE расмий Webсайт: www.grohe.com
