Hansa Varox Pro Square Built-in Shower Mixer Instruction Manual

1. Киришүү

Thank you for choosing the Hansa Varox Pro Square Built-in Shower Mixer. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new shower mixer. Please read these instructions carefully before installation and retain them for future reference.

2. Коопсуздук маалыматы

Травматизмди же буюмга зыян келтирбөө үчүн ар дайым төмөнкү коопсуздук чараларын сактаңыз:

• Installation should only be performed by a qualified professional plumber in accordance with local plumbing codes and regulations.
• Кандайдыр бир орнотуу же тейлөө иштерин баштоодон мурун негизги суу менен камсыздоо өчүрүлгөнүн текшериңиз.
• Protect the product from frost. Freezing water can cause damage.
• Do not use abrasive cleaners, solvents, or scouring pads on the chrome finish, as this can cause irreparable damage.
• Check all connections for leaks after installation and before concealing the unit.

3. Пакеттин мазмуну

Сураныч, орнотууну улантуудан мурун бардык компоненттер бар экенин жана бузулбаганын текшериңиз.

• Hansa Varox Pro Built-in Shower Mixer Unit (Model: 40559173)
• Mounting hardware (screws, seals, etc.)
• Орнотуу шаблону (эгер бар болсо)
• Көрсөтмө (бул документ)

Note: The shower handle/trim kit is typically sold separately for built-in mixers.

4. Орнотуу жана орнотуу

This section outlines the general steps for installing your Hansa Varox Pro Built-in Shower Mixer. Due to the complexity of built-in plumbing, professional installation is highly recommended.

4.1 Орнотууга чейинки текшерүүлөр

• Ensure adequate space within the wall for the mixer body.
• Verify water supply lines (hot and cold) are accessible and correctly positioned.
• Flush water lines thoroughly to remove any debris before connecting the mixer.

4.2 Mounting the Mixer Body

1. Негизги суу менен камсыздоону өчүрүңүз.
2. Using the provided template (if any), mark the precise location for the mixer body within the wall.
3. Secure the mixer body firmly to the wall studs or a suitable mounting frame, ensuring it is level and at the correct depth for the finished wall surface.
4. Connect the hot and cold water supply lines to the designated inlets on the mixer body. Ensure proper sealing with appropriate plumbing tape or sealant.
5. Connect the outlet pipe(s) to the showerhead or other shower components.

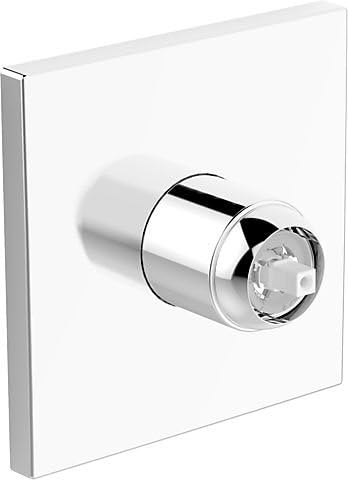

Image: The Hansa Varox Pro Square Built-in Shower Mixer, model 40559173, featuring its sleek chrome finish and square backplate, designed for concealed installation within a wall. The central cylindrical component houses the internal mixing mechanism.

4.3 Testing for Leaks

• Бардык туташуулар жасалгандан кийин, негизги суу менен камсыздоону акырындык менен күйгүзүңүз.
• Carefully inspect all connections for any signs of leaks. Tighten connections as necessary.
• Allow water to run through the mixer for a few minutes to flush out any air or debris.

5. Операция

The Hansa Varox Pro Built-in Shower Mixer is designed for intuitive control of water flow and temperature. While the handle is sold separately, the internal mechanism supports single-handle operation.

• Агымды башкаруу: Typically, pushing the handle towards the wall or rotating it controls the water flow.
• Температураны көзөмөлдөө: Rotating the handle left or right adjusts the water temperature. Left for hotter, right for colder (standard plumbing configuration).
• Familiarize yourself with the specific operation of your chosen trim kit and handle.

6. Техникалык тейлөө

Regular cleaning and maintenance will ensure the longevity and optimal performance of your shower mixer.

6.1 Chrome Finishти тазалоо

• Clean the chrome surfaces regularly with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for chrome fixtures.
• Таза суу менен жакшылап чайкап, суу тактарынын алдын алуу үчүн дароо жумшак чүпүрөк менен кургатыңыз.
• КОЛДОНБОЙТ: Abrasive cleaners, scouring pads, acids, ammonia-based cleaners, or harsh chemicals, as these will damage the chrome finish.

6.2 Тазалоо

• In areas with hard water, limescale buildup can affect performance.
• If water flow is reduced or temperature control becomes erratic, the internal cartridge may need descaling or replacement. This should be performed by a qualified professional.

7. Кыйынчылыктарды

Кардарларды тейлөө кызматына кайрылуудан мурун, төмөнкү жалпы көйгөйлөрдү жана аларды чечүү жолдорун караңыз:

If the problem persists after attempting these solutions, please contact a qualified plumber or Hansa customer support.

8. Техникалык шарттар

9. Кепилдик жана колдоо

For information regarding the product warranty, please refer to the warranty card included with your purchase or visit the official Hansa webсайт.

For technical support or spare parts inquiries, please contact Hansa customer service through their official channels. Keep your proof of purchase and model number (40559173) ready when contacting support.

Hansa Official Webсайт: www.hansa.com (Please note: This is a general placeholder link. Refer to your product documentation for the exact regional webсайт.)
