Greencut GM650X-9 9-in-1 көп функциялуу курал колдонуучусунун колдонмосу

1. Киришүү

This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your Greencut GM650X-9 9-in-1 Multifunction Tool. Please read this manual thoroughly before using the product to ensure proper handling and to prevent injury or damage.

The Greencut GM650X-9 is a versatile and powerful garden tool designed for various tasks including brushcutting, hedge trimming, and tree pruning. Its robust 65cc 2-stroke engine and interchangeable attachments make it suitable for a wide range of gardening needs.

2. Коопсуздук нускамалары

Электр шаймандарын иштетүүдө ар дайым коопсуздукка артыкчылык бериңиз. Бул нускамаларды аткарбоо олуттуу жаракатка же мүлккө зыян келтириши мүмкүн.

• Жеке коргонуу каражаттары (ЖКК): Always wear appropriate PPE, including safety glasses, hearing protection, gloves, long pants, and sturdy, non-slip footwear. A safety helmet is recommended when using the high lopper.
• Иш чөйрөсү: Жумушчу аймактын башка адамдардан, балдардан жана үй жаныбарларынан таза болушун камсыз кылыңыз. Башка адамдардан жана буюмдардан коопсуз аралыкты сактаңыз.
• Күйүүчү май иштетүү: Handle fuel in a well-ventilated area, away from open flames or sparks. Do not smoke while refueling. Allow the engine to cool before refueling.
• Ишке чейинки текшерүү: Before each use, inspect the tool for any loose parts, damage, or wear. Ensure all attachments are securely fastened.
• Мотордун иштеши: Never operate the tool indoors or in poorly ventilated areas due to exhaust fumes. Do not modify the engine or safety devices.
• Tool Control: Maintain a firm grip on the handles. Be aware of kickback when using cutting blades. Use the shoulder harness for balanced weight distribution and improved control.
• Тейлөө: Disconnect the spark plug wire before performing any maintenance or cleaning.
• Сактагыч: Куралды кургак, коопсуз жерде, балдар жетпеген жерде сактаңыз.

3. Продукттын компоненттери жана өзгөчөлүктөрү

The Greencut GM650X-9 is a versatile 9-in-1 tool system. Below are the main components and their features:

3.1-сүрөт: Бүттүview of the Greencut GM650X-9 multifunction tool, showcasing the main engine unit, divisible shaft, and all nine interchangeable attachments including various brushcutter blades, string trimmer head, hedge trimmer, and high lopper.

3.2-сүрөт: Illustration highlighting the tool's key specifications: 4.9 HP power, 65cc displacement, 10,000 RPM, and centrifugal clutch, emphasizing its 'All in One' capability as a brushcutter, pruner, and hedge trimmer.

3.1 Engine Unit

• Powerful 2-Stroke Engine: 65cc displacement, 4.9 HP, designed for demanding tasks.
• Easy-Start Manual Starting: Facilitates quick and effortless engine ignition.
• Эргономикалык тутка: Semi-circular handlebar for comfortable and precise control.
• Safety Lock Accelerator: Ensures safe operation by preventing accidental acceleration.

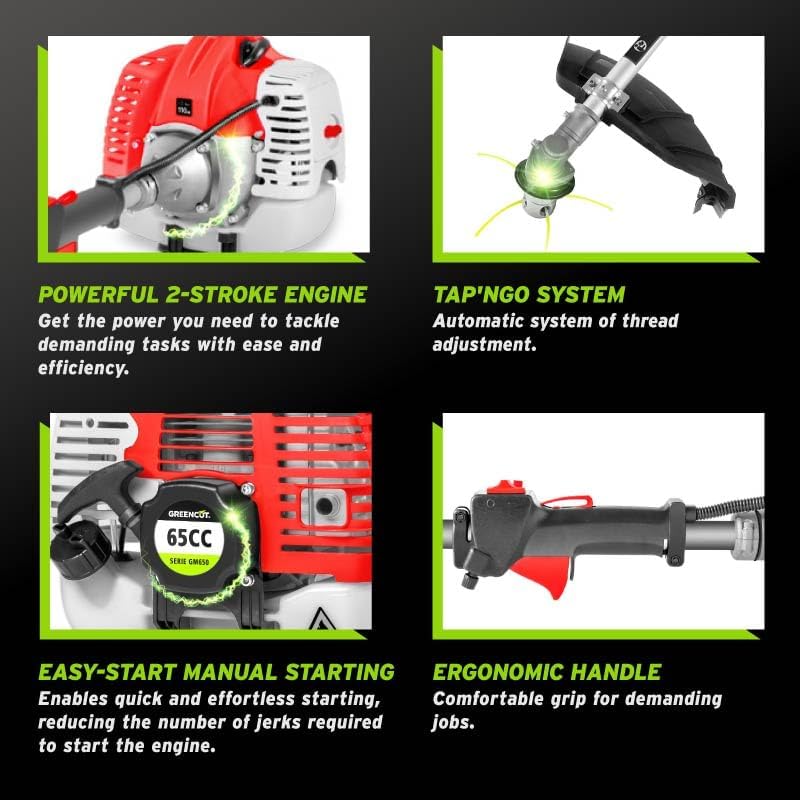

3.3-сүрөт: Деталдаштырылган view of the powerful 2-stroke engine, Easy-Start manual starting mechanism, Tap'n'Go system, and ergonomic handle, illustrating the user-friendly design of the Greencut GM650X-9.

3.2 Тиркемелер

• Brushcutter Heads: Includes various blades (e.g., 3-point disc, multi-thread head with 3.3mm thread) and a semi-automatic head for nylon string.
• Хедж триммер: For shaping and trimming hedges.
• High Lopper (Pruner): For pruning branches at height.
• Divisible Bar Structure: Facilitates easy transport and storage, and quick attachment changes.

3.4-сүрөт: Close-up of the semi-automatic head for nylon string, designed for continuous and effortless cutting of grass and light vegetation.

3.5-сүрөт: Деталдаштырылган view of the 3-point disc attachment, engineered to provide superior performance for cutting thicker brush and weeds.

3.6-сүрөт: Image showing the 12-foot high lopper with a 12-inch guide bar, demonstrating how it allows comfortable and effective tree pruning from the ground.

3.7-сүрөт: Close-up of the 12-foot high lopper with its 12-inch blade, highlighting its design for comfortable and efficient work from the ground.

4. Ассамблея

The Greencut GM650X-9 features a divisible bar for easy assembly and attachment changes.

4.1 Attaching the Shaft Sections

1. Align the male and female ends of the shaft sections.
2. Push them together until they click into place.
3. Secure with the locking mechanism (if applicable) to prevent separation during operation.

4.2 Attaching the Desired Tool Head

1. Мотор өчүрүлгөн жана муздатылганын текшериңиз.
2. Select the appropriate tool head (e.g., brushcutter, hedge trimmer, pruner).
3. Align the drive shaft of the tool head with the shaft of the main unit.
4. Push and twist until the head is securely seated and locked. Refer to the specific attachment's instructions for detailed locking procedures.
5. Verify that the attachment is firmly connected before starting the engine.

5. Иштөө нускамалары

Follow these steps for safe and effective operation of your multifunction tool.

5.1 Fueling the Engine

• Use a mixture of unleaded gasoline and 2-stroke engine oil at the ratio specified by the manufacturer (typically 25:1 or 50:1).
• Carefully pour the fuel mixture into the fuel tank, avoiding spills.
• Күйүүчү майдын капкагын бекем жабыңыз.

5.2 Starting the Engine (Easy-Start System)

1. Куралды тегиз, туруктуу бетке коюңуз.
2. Set the choke lever to the 'START' or 'CHOKE' position.
3. Кайтаруу сызыгында күйүүчү май көрүнгүчө, праймер лампочкасын бир нече жолу басыңыз.
4. Кыймылдаткыч күйгөнгө чейин (адатта 1-3 жолу тартылганга чейин) стартердин шнурун бекем жана жылмакай тартыңыз.
5. Once the engine fires, move the choke lever to the 'RUN' position.
6. If the engine does not start, repeat the process.

5.3 Куралды иштетүү

• Brushcutter/String Trimmer: Hold the tool firmly with both hands, using the shoulder harness for support. Swing the cutting head in a controlled motion, keeping it away from hard objects, rocks, and debris.
• Хедж триммер: Use a sweeping motion to trim hedges. Avoid cutting branches thicker than the recommended capacity.
• High Lopper: Extend the shaft to the desired length. Position the blade carefully before cutting. Ensure no one is standing directly below the cutting area.

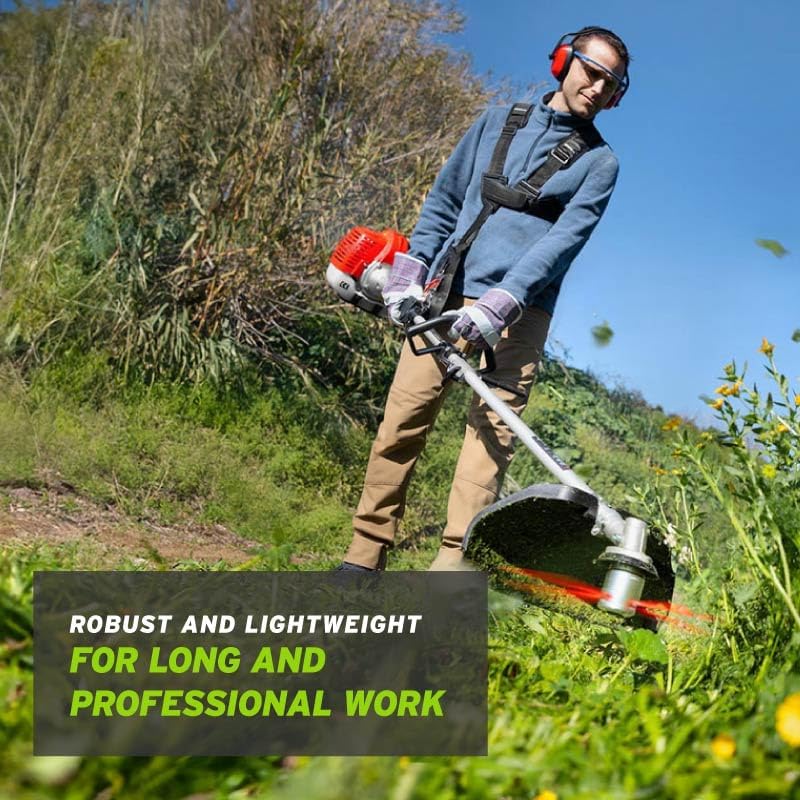

5.1-сүрөт: A user demonstrating the robust and lightweight design of the Greencut GM650X-9, suitable for long and professional work sessions, while operating it as a brushcutter.

5.4 Моторду токтотуу

Release the throttle trigger and press the engine stop switch to the 'OFF' position.

6. Техникалык тейлөө

Regular maintenance ensures the longevity and optimal performance of your Greencut GM650X-9.

6.1 Ар бир колдонуудан кийин

• Куралдын сыртын жарнама менен тазалаңызamp кездеме.
• Inspect cutting attachments for damage or dullness. Sharpen or replace as needed.
• Check for loose bolts or screws and tighten them.

6.2 Үзгүлтүксүз тейлөө

• Аба чыпкасы: Clean the air filter regularly (every 5-10 hours of operation) or more frequently in dusty conditions. Wash with soap and water, rinse, and allow to dry completely before re-installing.
• Свеча: Inspect the spark plug for wear and carbon buildup. Clean or replace if necessary. Ensure the gap is correct.
• Күйүүчү май чыпкасы: Check the fuel filter periodically and replace if clogged.
• Редуктордун майлоосу: Lubricate the gearbox of the attachments (e.g., hedge trimmer, high lopper) as per the manufacturer's recommendations.

6.3 Сактоо

• For long-term storage, drain the fuel tank and run the engine until it stops to clear the carburetor.
• Куралды кылдат тазалаңыз.
• Кургак, жакшы желдетилген жерде, тике күн нурунан жана экстремалдык температурадан алыс сактаңыз.

7. Кыйынчылыктарды

This section addresses common issues you might encounter with your Greencut GM650X-9.

If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact Greencut customer support.

8. Техникалык шарттар

9. Кепилдик жана колдоо

Greencut products are manufactured to high-quality standards. For information regarding warranty coverage, spare parts availability, or technical support, please refer to the official Greencut webсайтка же түздөн-түз кардарларды тейлөөгө кайрылыңыз.

Сураныч, кепилдик дооматтар үчүн сатып алуу далилиңизди сактап коюңуз.
