Sealey VS8812 EOBD Code Reader - Live Data User Manual

1. Киришүү

This user manual provides comprehensive instructions for the operation and maintenance of your Sealey VS8812 EOBD Code Reader. This device is designed to provide fast and easy access to On-Board Diagnostics (EOBD) codes for petrol vehicles manufactured from 2001 onwards and diesel vehicles from 2004 onwards. It helps identify the cause of the illuminated Malfunction Indicator Lamp (MIL), commonly known as the engine check light.

The VS8812 is a CAN-enabled tool capable of retrieving generic P0, P2, P3, and U10 codes related to engine emissions, as well as manufacturer-specific P1, P3, and U1 codes. It can turn off the MIL light, clear diagnostic trouble codes (DTCs), and reset monitors. The device supports the new extended sensor list (SAE J1979 2007) and provides access to live data streams from engine and transmission modules, including O2 sensor data. It also stores freeze-frame data for later evaluation and includes I/M Readiness functionality with color-coded LEDs to assist with emissions testing preparation.

2. Коопсуздук маалыматы

Always observe the following safety precautions when using the Sealey VS8812 EOBD Code Reader:

• Унаанын коопсуздугу: Ensure the vehicle is parked on a level surface with the parking brake engaged. The ignition should be off before connecting or disconnecting the tool.
• Электр коопсуздугу: Do not connect or disconnect the tool while the ignition is on or the engine is running, as this may damage the tool or the vehicle's electronic system.
• Жеке коопсуздук: Wear appropriate personal protective equipment, such as safety glasses, when working on vehicles. Avoid contact with hot engine components or moving parts.
• Tool Care: Keep the tool dry and clean. Do not expose it to extreme temperatures or direct sunlight for prolonged periods.
• Туура колдонуу: Use the tool only for its intended purpose as an EOBD code reader. Misuse may lead to inaccurate readings or damage.

3. Продукт бүтүп калдыview

The Sealey VS8812 EOBD Code Reader is a compact, handheld device designed for automotive diagnostics. It features a clear display screen and intuitive button controls.

3.1-сүрөт: Фронт view of the Sealey VS8812 EOBD Code Reader, showing the display screen, "ENTER/Exit" button, "SCROLL" button, and "Fn" button. The device is red with a black screen and buttons.

Негизги компоненттер:

• Дисплей экраны: Shows diagnostic information, menus, and live data.
• ENTER/Exit Button: Confirms selections or returns to the previous menu.
• SCROLL Button: Navigates through menu options and data lists.
• Fn (Function) Button: Provides access to additional functions or shortcuts.
• OBD-II Connector Cable: Permanently attached cable for connecting to the vehicle's OBD-II port.

3.2-сүрөт: The Sealey VS8812 EOBD Code Reader shown with its integrated OBD-II diagnostic cable, which connects to the vehicle's diagnostic port.

4. Орнотуу

Setting up your Sealey VS8812 EOBD Code Reader is a straightforward process:

1. OBD-II портун табыңыз: The OBD-II port is typically located under the dashboard on the driver's side, though its exact position may vary by vehicle model. Refer to your vehicle's owner's manual if you cannot locate it.
2. От алдырууну өчүрүү: Унаанын от алдыруу системасы "OFF" абалында экенин текшериңиз.
3. Куралды туташтыруу: Plug the OBD-II connector cable from the VS8812 into the vehicle's OBD-II port. Ensure a secure connection.
4. Күйгүзүү: Once connected, the VS8812 will typically power on automatically, drawing power from the vehicle's battery. If it does not power on, turn the vehicle's ignition to the ON position (engine off).
5. Баштапкы экран: The device will display the main menu or a welcome screen.

5. Иштөө нускамалары

The Sealey VS8812 offers various diagnostic functions. Navigate through the menus using the SCROLL button and confirm selections with the ENTER/Exit button.

5.1-сүрөт: The main menu screen of the Sealey VS8812, displaying options such as "OBD/EOBD", "Ready Test", "Setup", and "About".

5.1. Диагностикалык ката коддорун окуу жана тазалоо (DTCs)

1. Негизги менюдан тандаңыз "OBD/EOBD" жана ENTER басыңыз.
2. Тандоо "Коддорду окуу" to display current, pending, and historic DTCs. The screen will show the code and its definition.
3. Коддорду тазалоо үчүн, тандаңыз "Коддорду өчүрүү" from the OBD/EOBD menu. Confirm your choice when prompted. This action will turn off the Malfunction Indicator Lamp (MIL) and reset all monitors.

5.2. Түз эфирдеги маалымат агымы

The VS8812 can display real-time data from various vehicle sensors and modules.

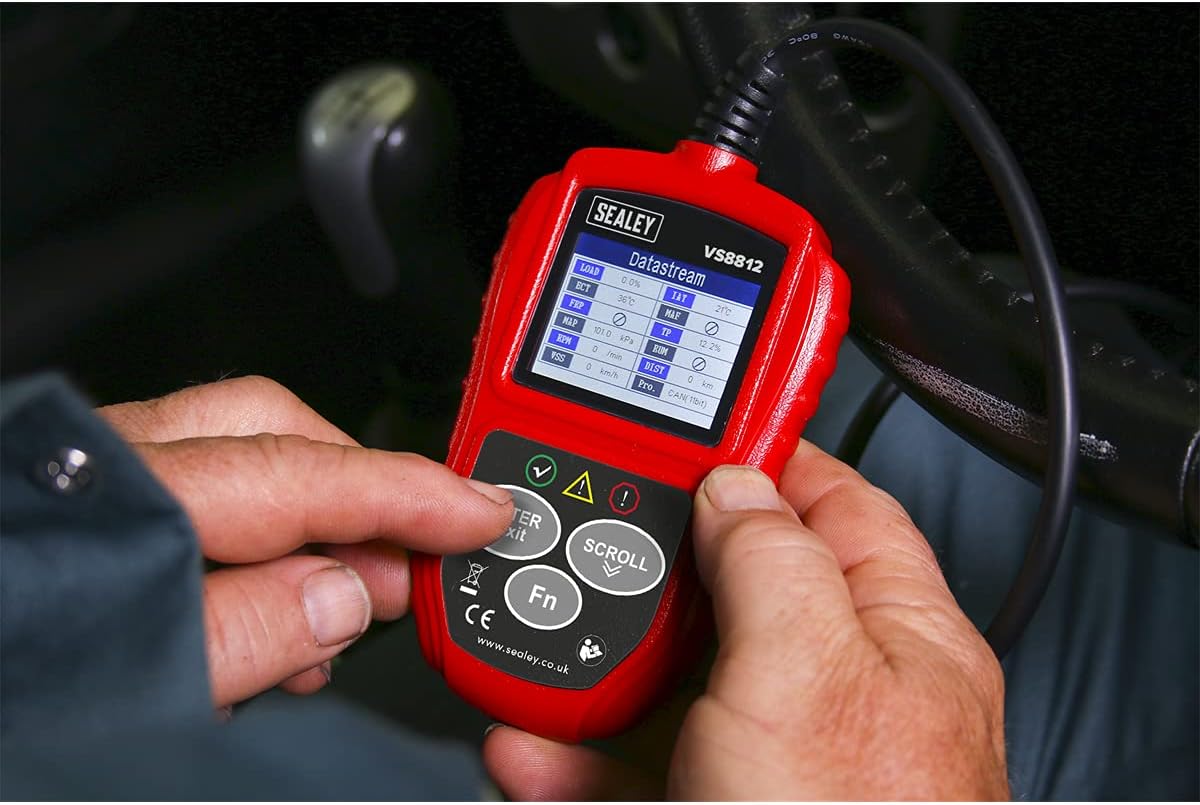

5.2-сүрөт: The Sealey VS8812 being used to display live data streams, showing various engine parameters such as LOAD, ECT, RPM, and vehicle speed.

1. From the OBD/EOBD menu, select "Түз эфирдеги маалыматтар".
2. КОЛДОНУУ баскычын колдонуңуз view different parameters such as engine RPM, vehicle speed, coolant temperature, O2 sensor readings, and more.
3. The tool also stores freeze-frame data, which captures engine conditions at the moment a fault code was set.

5.3. I/M даярдыгы

This function checks the readiness of the emission-related monitoring systems on the vehicle, which is crucial for emissions testing.

• Негизги менюдан тандаңыз "Ready Test".
• The screen will display the status of various monitors (e.g., O2 Sensor Monitor, Catalyst Monitor). Color-coded LEDs on the device may also indicate readiness status (e.g., green for ready, yellow for incomplete).

6. Техникалык тейлөө

Proper maintenance ensures the longevity and accuracy of your Sealey VS8812 EOBD Code Reader:

• Тазалоо: Куралды жумшак менен сүртүңүз, гamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
• Сактагыч: Store the tool in a clean, dry environment, away from direct sunlight and extreme temperatures.
• Кабельге кам көрүү: Do not bend or crimp the diagnostic cable excessively. Store it neatly to prevent damage.
• Программалык камсыздоо жаңыртуулары: Check the official Sealey website periodically for any available software updates for your model to ensure compatibility with newer vehicles and improved functionality.

7. Кыйынчылыктарды

If you encounter issues with your Sealey VS8812, refer to the following common troubleshooting steps:

If problems persist, contact Sealey customer support or a qualified technician.

8. Техникалык шарттар

9. Кепилдик жана колдоо

For warranty information, technical support, or service inquiries regarding your Sealey VS8812 EOBD Code Reader, please refer to the official Sealey webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.

Сили расмий Webсайт: www.sealey.co.uk
