Introduction
The StarTech.com Thunderbolt 3 Dock transforms your Thunderbolt 3 equipped laptop into a powerful dual-4K workstation. Designed for efficiency, this docking station supports 40Gbps speeds and 4K resolution on two monitors, enabling you to run resource-demanding applications without draining system resources. It offers a comprehensive solution for connectivity, power delivery, and display expansion, making it ideal for video editing and other Ultra HD tasks.
Кутуда эмне бар
1-сүрөт: Пакеттин мазмуну
- Dual 4K Monitor Thunderbolt 3 Dock with 3x USB 3.0 Ports
- Thunderbolt 3 кабели
- USB-C - DisplayPort кабели
- Universal Power Adapter
- Электр шнурлары
- Көрсөтмө (бул документ)
Орнотуу жана Байланыштар
Баштапкы орнотуу
The Thunderbolt 3 Dock features a driverless setup for plug-and-play installation. Simply connect the universal docking station to your laptop using the included Thunderbolt 3 cable to begin operation. No time-consuming driver installations are required.
Түзмөктөрдү туташтыруу
The dock provides a variety of ports for connecting your peripherals and displays.
Figure 2: Front Ports (USB-A, USB-C)
Figure 3: Rear Ports (Ethernet, USB-A, Audio, Thunderbolt 3, DisplayPort, Power)
Figure 4: Rear Port Functionality Diagram
- DisplayPort: Connect one 4K monitor via the DisplayPort.
- Thunderbolt 3 USB-C Port: Connect a second 4K monitor via the Thunderbolt 3 USB-C Port (1.8 m cable included). Alternatively, a 5K monitor can be connected using both the DisplayPort and the Thunderbolt 3 USB-C port.
- USB 3.0 порттору: Three USB 3.0 ports are available for connecting various USB devices like flash drives, external hard drives, or keyboards/mice. Two are Type-A ports, and one is a USB-C port (5Gbps - data only). The front USB-A port supports Fast-Charge and sync for mobile devices.
- Гигабит Ethernet: Connect to a wired network for reliable internet access.
- 3.5mm Headset Port: Наушниктерди же гарнитураны туташтыруу үчүн.
- Микрофон киргизүү: Тышкы микрофонду туташтыруу үчүн.
Power Delivery
The Thunderbolt 3 port replicator features a 170W power adapter, supporting Power Delivery up to 85W. This allows the dock to power and charge your laptop (e.g., MacBook Pro 13 & 16, MacBook Air, HP, Lenovo ThinkPad, & Dell XPS) while simultaneously powering all connected devices. This eliminates the need for separate power adapters for your laptop and the dock.
Шайкештик
This docking station is compatible with a wide range of operating systems, including Windows, macOS, and Ubuntu. It supports laptops with Thunderbolt or USB4 ports. Dual display is supported on M1, M2, M3 Max/Pro, M4 Pro/Max MacBooks, and single display on base M-series MacBooks and iPad Pro M1 & later.
Докту иштетүү
Dual 4K Workstation
The dock enables the creation of a dual-4K workstation, perfect for demanding tasks such as video editing, graphic design, and other Ultra HD applications. You can extend your desktop across two independent 4K displays at 60Hz, enhancing productivity and multitasking capabilities.
Маалыматтарды өткөрүү
Benefit from high-speed data transfer with up to 40Gbps bandwidth through the Thunderbolt 3 connection. This allows for rapid transfer of large files and efficient operation of high-bandwidth peripherals.
Аудио байланыштар
Utilize the dedicated 3.5mm headset port for audio output to headphones or speakers, and the microphone input for voice communication or recording. Ensure your system's audio settings are configured to use the dock's audio output.
Daisy-Chaining
The downstream Thunderbolt 3 port offers versatile functionality, allowing you to daisy-chain up to five additional Thunderbolt 3 devices. This includes monitors, external hard drive bays, card readers, or even an external GPU, expanding your workstation's capabilities significantly.
Техникалык тейлөө
To ensure the longevity and optimal performance of your StarTech.com Thunderbolt 3 Dock, follow these maintenance guidelines:
- Тазалоо: Use a soft, dry cloth to clean the exterior of the dock. Avoid using abrasive cleaners or solvents, as they may damage the finish.
- Вентиляция: Ашыкча ысып кетүүнүн алдын алуу үчүн док жакшы желдетилген жерге жайгаштырылышын камсыз кылыңыз. Эч кандай желдетүүчү тешиктерди жаап албаңыз.
- Сактагыч: Узак мөөнөткө пайдаланылбаганда, док түз күн нурунан жана экстремалдык температурадан алыс салкын, кургак жерде сактаңыз.
- Кабелдик башкаруу: Avoid sharp bends or excessive tension on connected cables to prevent damage to the cables or ports.
Проблемаларды чечүү
If you encounter issues with your Thunderbolt 3 Dock, refer to the following common troubleshooting steps:
- Дисплей чыгышы жок:
- Ensure all cables (Thunderbolt 3, DisplayPort, USB-C to DisplayPort) are securely connected to both the dock and your devices.
- Verify that your laptop's Thunderbolt 3 port supports video output.
- Check your display settings on your laptop to ensure the external monitors are detected and configured correctly.
- Some monitors may be limited to 4K at 30Hz when connecting through DisplayPort. Adjust the monitor's resolution if necessary.
- No Power Delivery to Laptop:
- Confirm the dock's power adapter is securely connected to a working power outlet and to the dock.
- Ensure your laptop supports Power Delivery via its Thunderbolt 3 port.
- Use the included Thunderbolt 3 cable, as some USB-C cables may not support Power Delivery.
- USB түзмөктөрү таанылбайт:
- Try connecting the USB device to a different USB port on the dock.
- Ensure the USB device is functioning correctly by testing it directly with your laptop.
- Жаркылдаган дисплей:
- This can sometimes occur with certain monitor models or cable quality. Try using different DisplayPort or USB-C to DisplayPort cables.
- Ensure your monitor's firmware is up to date.
- Аудио жок:
- Check your laptop's sound settings to ensure the dock's audio output is selected as the default playback device.
- Verify that your speakers or headphones are properly connected to the dock's audio ports.
Техникалык шарттар

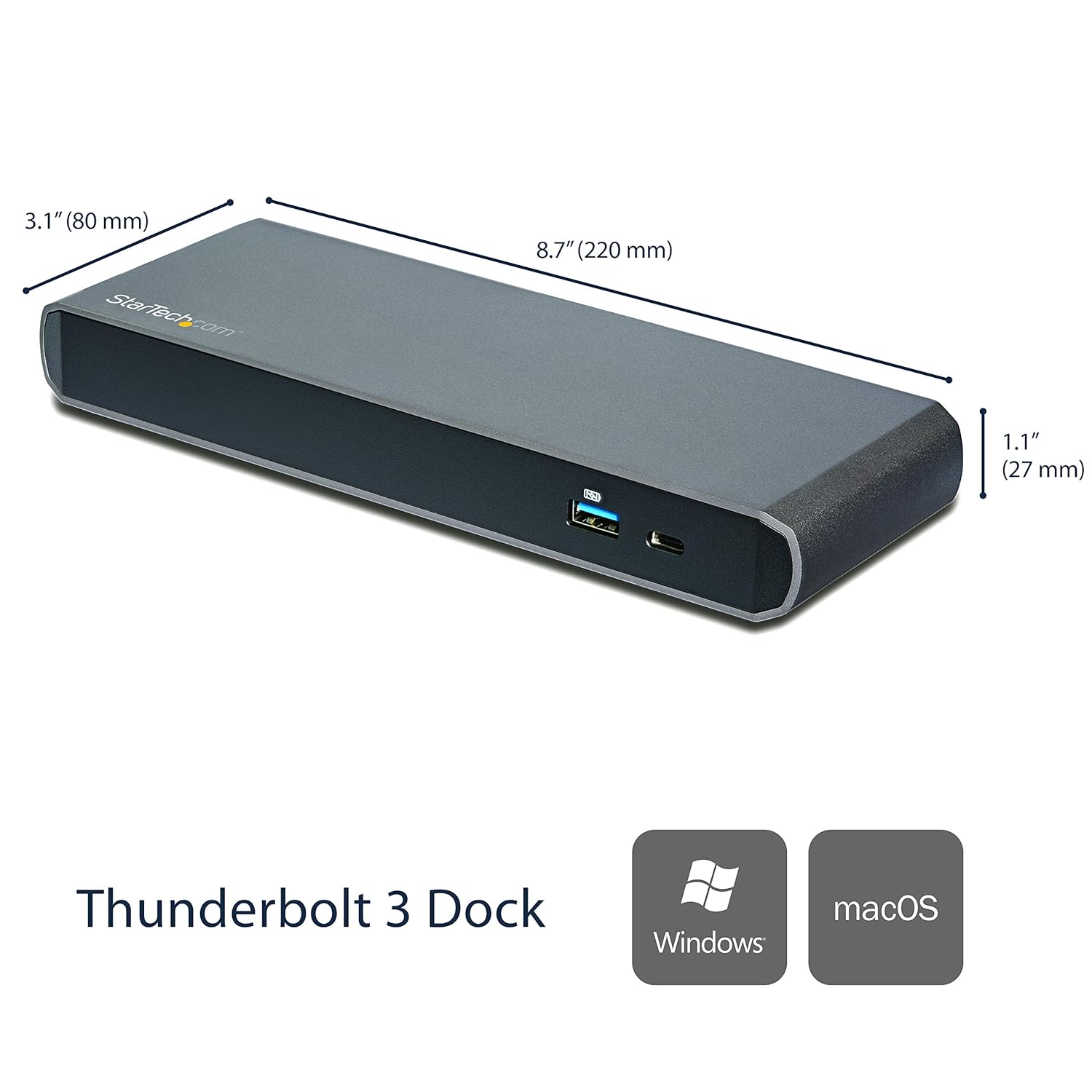

Сүрөт 5: Продукциянын өлчөмдөрү
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | TB3DK2DPPD |
| Өлчөмдөрү (L x W x Y) | 8.7 x 3.1 x 1.1 дюйм (220 x 80 x 27 мм) |
| Элемент Салмагы | 15.8 унция (447.9 грамм) |
| Маалыматтарды өткөрүү ылдамдыгы | 40 Гбит/сек чейин (Thunderbolt 3) |
| Power Delivery | 85 Вт чейин |
| Video Output | Dual 4K @ 60Hz (DisplayPort, Thunderbolt 3 USB-C) or Single 5K |
| USB порттору | 2x USB 3.0 Type-A, 1x USB-C (data only) |
| Аудио порттор | 3.5mm Headset, Microphone Input |
| Network | Гигабит Ethernet |
| Материал | Алюминий Casing |
| Шайкештик | Windows, macOS, Ubuntu (Thunderbolt/USB4 laptops) |
Кепилдик жана колдоо
The StarTech.com Thunderbolt 3 Dock (TB3DK2DPPD) is backed by a STARTECH.COM 3-YEAR WARRANTY and FREE LIFETIME TECHNICAL SUPPORT.
For additional support or to download the official PDF user manual, please visit the StarTech.com webсайтына өтүңүз же берилген шилтемеге өтүңүз:
