Weiser Saten Nickel тегерек кулпусу бар колдонуучунун колдонмосу

1. Киришүү

Thank you for choosing the Weiser Safelock Satin Nickel Round Deadbolt Lock. This manual provides essential information for the proper installation, operation, and maintenance of your new deadbolt lock. Designed with a focus on quality, dependability, and security, this single cylinder deadbolt offers reliable protection for your exterior doors.

The lock features a crisp, clean Satin Nickel finish, providing a modern aesthetic that complements various home styles. It can be locked or unlocked using a key from the outside or a convenient turn piece from the inside.

Сүрөт: алдыңкы view of the Weiser Safelock Satin Nickel Round Deadbolt Lock.

2. Камтылган компоненттер

Орнотууну баштоодон мурун, пакетиңизде бардык компоненттер бар экенин текшериңиз:

• Door Deadbolt Assembly
• Лач механизми
• Strike Plate
• Монтаждоо бурамалар
• Keys (typically 2)

Image: All components of the Weiser Safelock deadbolt, including the main assembly, latch, strike plate, and screws.

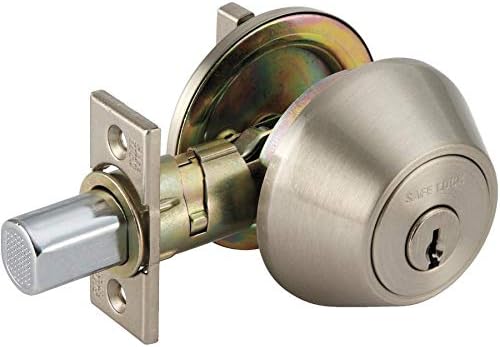

Сүрөт: Жакын план view of the Weiser Safelock deadbolt, showing the internal latch mechanism and exterior cylinder.

3. Продукттун спецификациялары

4. Орнотуу жана орнотуу

The Weiser Safelock deadbolt is designed for easy installation, typically requiring only a screwdriver. Follow these general steps for installation:

1. эшикти даярдоо: Ensure your door meets the specified dimensions: thickness between 1-3/8" and 1-3/4", and a cross bore of 2-1/8".
2. Latch орнотуу: Insert the latch into the door edge. The latch is adjustable to fit standard door operations. Ensure the latch bolt faces the correct direction for your door swing.
3. Тышкы цилиндрди орнотуу: Place the exterior portion of the deadbolt through the cross bore, aligning it with the latch.
4. Ички ассамблеяны орнотуу: Position the interior turn piece assembly over the exterior cylinder and latch. Secure both parts with the provided mounting screws.
5. Strike Plate орнотуу: Attach the strike plate to the door frame, ensuring it aligns perfectly with the deadbolt latch when the door is closed.
6. Сыноо операциясы: Once installed, test the deadbolt operation with both the key from the outside and the turn piece from the inside to ensure smooth locking and unlocking.

Image: The Weiser Safelock deadbolt installed on a dark-colored door, demonstrating its appearance in a home setting.

5. Иштөө нускамалары

The Weiser Safelock is a single cylinder deadbolt, offering straightforward operation:

• To Lock from the Outside: Insert the key into the exterior cylinder and turn it to extend the deadbolt. Remove the key.
• To Unlock from the Outside: Insert the key into the exterior cylinder and turn it to retract the deadbolt. Remove the key.
• To Lock from the Inside: Rotate the turn piece on the interior side of the lock to extend the deadbolt.
• To Unlock from the Inside: Rotate the turn piece on the interior side of the lock to retract the deadbolt.

This product also features SmartKey Security, allowing you to re-key your lock yourself in minutes. This feature provides convenience and enhanced security, enabling you to match your lock to an existing key or re-key it if keys are lost or stolen. A reset tool is typically included for this process.

Image: Illustration demonstrating the SmartKey Security feature, showing how to easily re-key the lock using a reset tool and a new key.

6. Техникалык тейлөө

To ensure the longevity and smooth operation of your Weiser Safelock deadbolt, follow these simple maintenance guidelines:

• Тазалоо: Clean the exterior finish with a soft, damp cloth. Avoid abrasive cleaners or solvents, as they can damage the finish.
• Майлоо: Periodically apply a small amount of graphite lubricant or a silicone-based spray to the keyway and the latch mechanism to ensure smooth operation. Do not use oil-based lubricants, as they can attract dirt.
• Бурама тыгыздыгы: Check and tighten all mounting screws periodically to ensure the lock remains securely fastened to the door.

7. Кыйынчылыктарды

If you encounter issues with your Weiser Safelock deadbolt, consider the following common solutions:

• Ачкычты киргизүү же буруу кыйын:
  • Ensure the key is fully inserted and is the correct key for the lock.
  • Apply a small amount of graphite lubricant into the keyway.
  • Check for any debris in the keyway.
• Deadbolt does not extend or retract fully:
  • Check if the strike plate on the door frame is properly aligned with the deadbolt. Adjust if necessary.
  • Ensure the mounting screws are not overtightened, which can cause binding. Loosen slightly if needed.
  • Verify that the latch mechanism is installed correctly and moves freely.
• Эшиктин кулпусу бошоп калгандай сезилет:
  • Tighten the mounting screws on both the interior and exterior assemblies.

Бул чечимдерди колдонууга аракет кылгандан кийин көйгөйлөр чечилбесе, кардарларды колдоо кызматына кайрылыңыз.

8. Кепилдик маалыматы

The Weiser Safelock Satin Nickel Round Deadbolt Lock comes with a Өмүр бою кепилдик. This warranty covers defects in material and workmanship under normal use. For specific details regarding coverage and claims, please refer to the warranty documentation included with your purchase or visit the official Weiser webсайт.

9. Кардарларды колдоо кызматы

For further assistance, technical support, or warranty claims, please contact Weiser customer service. You can find contact information on the official Weiser webсайты же продуктуну сатып алган сатуучу аркылуу.
