1. Продукт бүтүп калдыview
The CASIO G-SHOCK GAW-100B-1AJF is a robust and feature-rich timepiece designed for durability and precision. It combines the legendary G-SHOCK shock resistance with advanced Tough Solar power and Multi-Band 6 atomic timekeeping, ensuring reliable performance in various conditions. This model features both analog and digital displays, offering versatility and clear readability.
2. Орнотуу жана алгачкы колдонуу
2.1 Баштапкы кубаттоо (Күн энергиясы менен иштегенде)
Your G-SHOCK GAW-100B-1AJF is equipped with Tough Solar technology, which converts light into power. Before first use, or if the watch has been stored in darkness, ensure it receives sufficient light exposure to charge the internal battery. Place the watch in a location where it can receive direct sunlight or strong artificial light for several hours. The charge level indicator on the digital display will show the current battery status.
- Заряддоо көрсөтмөлөрү: For optimal performance, expose the watch to light regularly. Avoid prolonged storage in dark places.
- Энергияны үнөмдөө: The watch features a power-saving function that automatically enters a sleep state when left in darkness to conserve energy.
2.2 Убакытты коюу (Көп тилкелүү 6 атомдук убакытты эсептөө)
The Multi-Band 6 feature allows your watch to automatically receive time calibration signals from six transmission stations around the world, ensuring accurate timekeeping. The watch will attempt to receive a signal automatically overnight.
- Автоматтык кабыл алуу: For best reception, place the watch near a window at night. Ensure the watch face is oriented towards the nearest signal transmission station if possible.
- Кол менен кабыл алуу: To manually initiate time signal reception, refer to the detailed instructions in the full user manual (Module 5067) available on the official CASIO webсайт.
- Үй шаарын жөндөө: Ensure your Home City is correctly set. This is crucial for proper time calibration signal reception and World Time functionality.
3. Иштөө режимдери

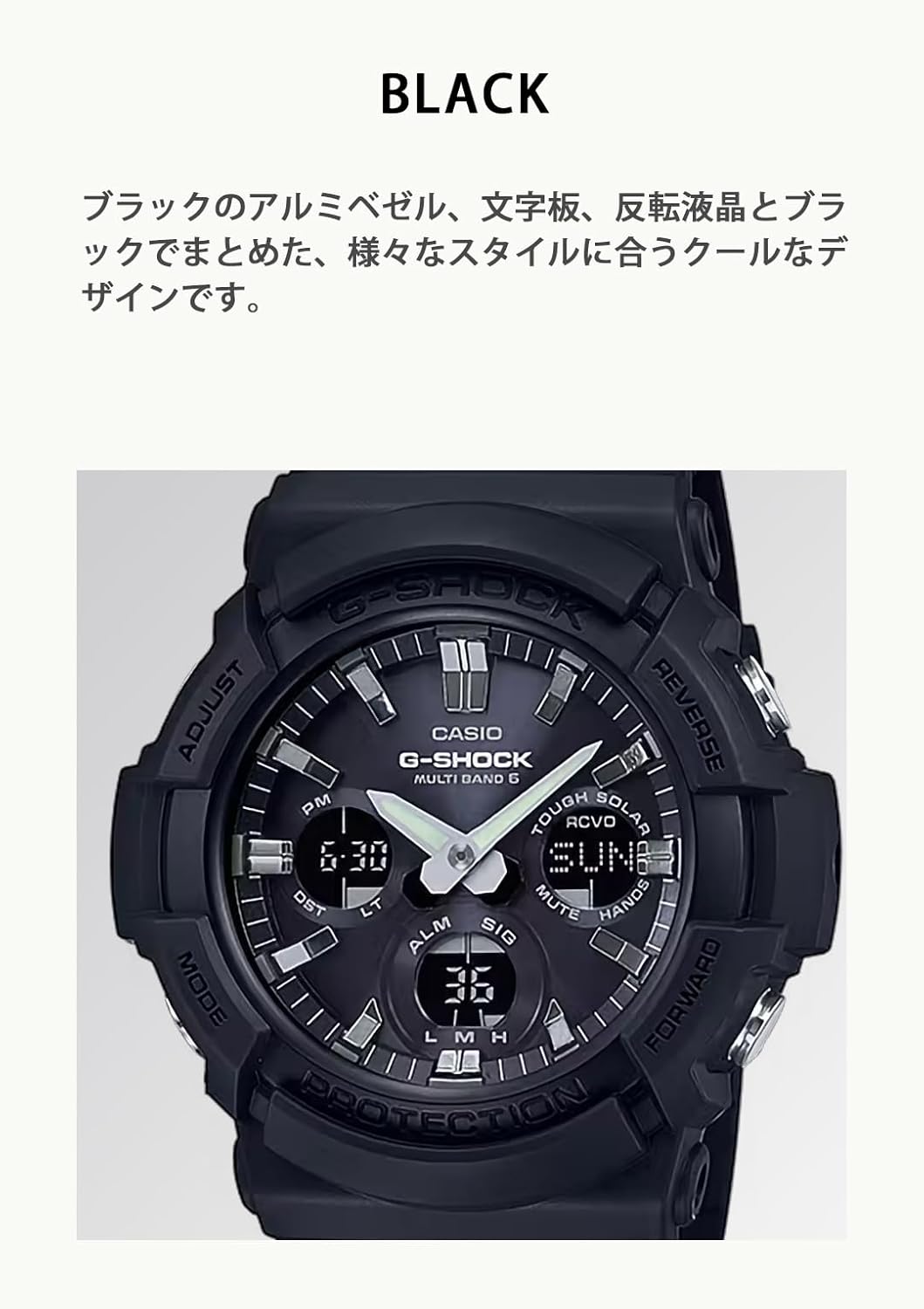

The GAW-100B-1AJF offers several modes accessible via the 'MODE' button (bottom left). Pressing the 'MODE' button cycles through the different functions.
- Убакытты эсепке алуу режими: Учурдагы убакытты, жуманын күнүн жана датаны көрсөтөт. Бул демейки режим.
- Дүйнөлүк убакыт режими: мүмкүндүк берет view the current time in 48 cities (31 time zones) around the world. Use the 'FORWARD' and 'REVERSE' buttons to navigate cities.
- Секундомер режими: Measures elapsed time with 1/100-second accuracy. Features include split times and 1st-2nd place times.
- Артка таймер режими: A countdown timer that can be set up to 100 minutes. An alarm sounds when the countdown reaches zero.
- Ойготкуч режими: Күнүмдүк 5 ойготкучту жана бир чакты орнотуңузurly убакыт сигналы.
- Illumination (LED Light): Press the 'LIGHT' button (top right) to illuminate the digital display and watch face. The watch features a Full Auto LED Light, which can be configured to activate automatically in low light conditions when the watch is tilted towards your face.
- Колду которуу өзгөчөлүгү: Temporarily moves the analog hands away from the digital display for unobstructed viewing of digital information. Activate by pressing the 'MODE' and 'LIGHT' buttons simultaneously.
4. Техникалык тейлөө
- Заряддоо: Regularly expose the watch to light to maintain optimal battery charge. Avoid covering the watch face for extended periods.
- Water Resistance (20 Bar): The watch is water resistant to 20 Bar (200 meters), suitable for swimming, showering, and snorkeling. Do not operate buttons underwater. After exposure to saltwater, rinse the watch with fresh water and wipe it dry.
- Тазалоо: Wipe the watch with a soft, dry cloth to remove dirt and moisture. For stubborn dirt, use a soft brush with mild soap and water, then rinse thoroughly and dry.
- Группага кам көрүү: The resin band can be cleaned with mild soap and water. Avoid using harsh chemicals or solvents, as these can damage the material.
5. Кыйынчылыктарды
- Убакыт синхрондоштурулбай жатат: Ensure the watch is placed in a location with good signal reception, especially overnight. Verify your Home City setting is correct. Check the battery charge level.
- Digital Display Blank: The watch may be in power-saving mode due to prolonged darkness or low battery. Expose it to light for charging.
- Hands Not Matching Digital Time: This can occur after strong impact or magnetic exposure. Use the Hand Home Position Correction function (refer to the full manual for Module 5067) to realign the hands.
- Баскычтар жооп бербейт: Ensure the watch is not in a locked mode. If the issue persists, a full reset may be required (consult the full manual).
6. Техникалык шарттар
| Өзгөчөлүк | Description |
|---|---|
| Модель номери | GAW-100B-1AJF |
| Power Source | Tough Solar (Solar Powered) with secondary CR2 battery (included) |
| Убакытты сактоо | Multi-Band 6 Atomic Timekeeping (Auto time adjustment) |
| Суу каршылык | 20 бар (200 метр) |
| Сокку каршылык | Yes (G-SHOCK structure) |
| Корпусу/Безелдин материалы | Resin/Aluminum |
| Топтун материалы | чайыр |
| Айнек | Минералдык айнек |
| Жарык | Full Auto LED Light (Super Illuminator) |
| Дүйнөлүк убакыт | 31 убакыт алкагы (48 шаар + UTC) |
| Секундомер | 1/100 секунд, өлчөө жөндөмдүүлүгү: 59'59.99'' |
| Артка эсептөө таймери | Measuring unit: 1 second, countdown range: 100 minutes |
| Ойготкучтар | 5 кунделук сигнализация, хоurly убакыт сигналы |
| Өлчөмдөр | Болжол менен. 55.1 x 52.5 x 16.7 мм |
| Салмагы | Болжол менен 72 г |
7. Кепилдик жана колдоо
For warranty information, please refer to the warranty card included with your product or contact your point of purchase. For detailed operational guides and further support, please visit the official CASIO G-SHOCK website and search for Module Number 5067.
Онлайн ресурстар: CASIO Official Manuals
