Stayer PLASMA MULTI 40 Inverter Industrial Plasma Cutter User Manual

1. Киришүү

The Stayer PLASMA MULTI 40 is an advanced electronic inverter equipment designed for electric arc welding and cutting. This versatile unit offers three primary functions: MMA (Shielded Metal Arc Welding), high-quality TIG welding, and plasma cutting for various metals. Engineered for both light and medium maintenance and construction tasks, it prioritizes maximum quality, ease of use, and reliability.

Key features include intelligent STAYER WELDING control with Hot Start, Arc Force, and Anti Stick for optimized arc ignition and stability, robust construction exceeding European specifications, and high-quality components like 600V IGBT switches. Weighing only 7kg, it is among the lightest in its category, offering maximum power density.

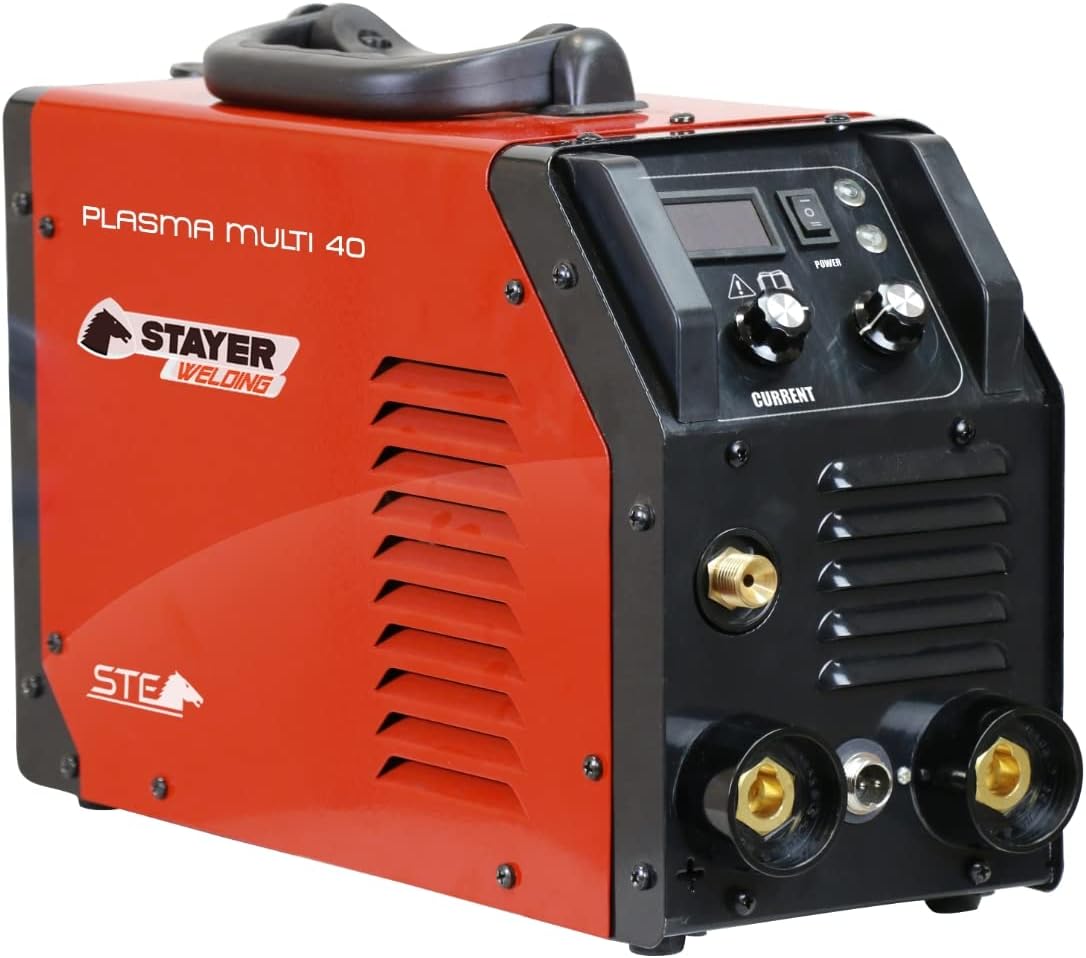

Сүрөт 1: Алдыңкы view of the Stayer PLASMA MULTI 40 unit.

2. Коопсуздук маалыматы

Always prioritize safety when operating welding and cutting equipment. Failure to follow safety guidelines can result in serious injury or death.

• Электр Шок: Өлтүрүшү мүмкүн. Абадагы электр бөлүктөрүнө тийбеңиз. Кургак, изоляциялык кол каптарды жана коргоочу кийимдерди кийиңиз. Иштетилген бөлүктүн туура жерге туташтырылганын текшериңиз.
• Түтүн жана газдар: Can be hazardous to your health. Keep your head out of the fumes. Use ventilation or exhaust to remove fumes from the breathing zone.
• Арк нурлары: Can burn eyes and skin. Wear a welding helmet with a proper shade filter. Wear appropriate eye protection with side shields. Wear protective clothing to cover exposed skin.
• Өрт жана жарылуу: Welding and cutting can cause fire or explosion. Keep flammable materials away from the work area. Have a fire extinguisher readily available.
• Ысык бөлүктөрү: Can cause severe burns. Allow equipment to cool before touching.
• Ызы-чуу: Ашыкча ызы-чуу угууга зыян келтириши мүмкүн. Кулак коргоочу каражаттарды тагыныңыз.
• Кардиостимулятор: Persons with pacemakers should consult their doctor before operating this equipment.
• Тейлөө: Disconnect power before servicing. Only qualified personnel should perform repairs.

3. Пакеттин мазмуну

Upon unpacking, verify that all components are present and undamaged. The standard equipment includes:

• Stayer PLASMA MULTI 40 Inverter Unit
• Плазма шамы
• TIG Torch with consumables
• Electrode Holder Cable with Clamp (for MMA welding)
• Cl менен жер кабелиamp
• Power Cable (2m x 2.5mm²)

Figure 2: Stayer PLASMA MULTI 40 unit with standard accessories.

Figure 3: Plasma Torch.

Figure 4: TIG Torch.

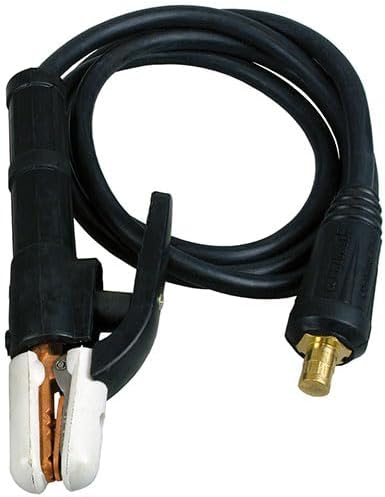

Figure 5: Electrode Holder Cable.

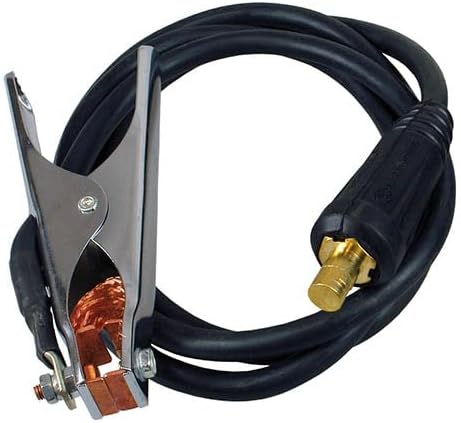

Figure 6: Ground Cable with Clamp.

4. Продукт бүтүп калдыview

The Stayer PLASMA MULTI 40 features a user-friendly control panel and robust connection points for various welding and cutting operations.

Алдыңкы панелдин башкаруу элементтери жана туташуулары:

• Кубат которгучу: Аппаратты КҮЙГҮЗҮП/ӨЧҮРӨТ.
• Санариптик дисплей: Учурдагы жөндөөлөрдү көрсөтөт.
• Режим тандагыч: Allows selection between MMA, TIG, and Plasma modes.
• Токту жөндөө баскычы: Controls the welding/cutting ampөчүрүү.
• Аксессуар байланыштары: Dedicated ports for plasma torch, TIG torch, electrode holder, and ground clamp.

5. Орнотуу

Before operating the PLASMA MULTI 40, ensure proper setup to guarantee safety and optimal performance.

1. Жайгашкан жери: Place the unit on a stable, level surface, ensuring adequate ventilation around the machine. Do not block air vents.
2. Кубат туташуу: Connect the power cable to a suitable 230V power outlet. Ensure the power supply is stable and can handle the unit's requirements (8 KVA generator recommended if not directly from mains). The unit is designed to tolerate overvoltages of +17%.
3. Жерге туташуу: Securely attach the ground clamp to the workpiece or a clean, bare metal part of the work table. A good ground connection is crucial for safety and arc stability.
4. Аксессуар туташуу: Connect the appropriate torch (MMA electrode holder, TIG torch, or Plasma torch) to its designated port on the front panel. Ensure all connections are tight and secure.
5. Gas Connection (for TIG/Plasma): For TIG welding and Plasma cutting, connect the appropriate gas supply (e.g., Argon for TIG, compressed air for Plasma) to the unit's gas inlet. Ensure the gas pressure is set according to the specific process requirements.

6. Операция

The Stayer PLASMA MULTI 40 offers three distinct operating modes: MMA, TIG, and Plasma Cutting.

6.1. General Operating Principles

• Кубат өчүргүчтү колдонуп бирдикти күйгүзүңүз.
• Select the desired operating mode (MMA, TIG, or Plasma) using the mode selector.
• Adjust the current (amperage) using the adjustment knob according to the material thickness and process.
• Ensure proper personal protective equipment is worn at all times.

6.2. MMA Welding (Shielded Metal Arc Welding)

This mode is suitable for welding with coated electrodes, including cellulosic types. The intelligent STAYER WELDING control enhances performance:

• Hot Start: Provides an initial boost of current to ensure easy arc ignition.
• Арк күчү: Automatically increases current when the arc length shortens, preventing the electrode from sticking and improving arc stability.
• Таякка каршы: Reduces the current to a minimum if the electrode sticks to the workpiece, allowing for easy removal without damaging the electrode or workpiece.

Connect the electrode holder cable and ground clamp. Insert the appropriate electrode into the holder. Set the current based on electrode diameter and material. Initiate the arc by striking the electrode against the workpiece.

6.3. TIG Welding (Tungsten Inert Gas Welding)

The PLASMA MULTI 40 provides high-quality TIG welding with high-frequency (HF) arc ignition, eliminating the need for scratch starting and reducing tungsten contamination.

Connect the TIG torch and ground clamp. Ensure the inert gas (e.g., Argon) supply is connected and flowing. Install a suitable tungsten electrode in the torch. Select TIG mode and adjust the current. Use the torch trigger to initiate the HF arc and begin welding.

6.4. Plasma Cutting

This mode allows for cutting all types of metals with non-contact HF ignition, providing clean and precise cuts up to 12mm thickness.

Connect the plasma torch and ground clamp. Ensure the compressed air supply is connected and flowing at the correct pressure. Select Plasma mode and adjust the cutting current. Position the torch nozzle close to the workpiece without touching (non-contact HF ignition) and press the trigger to initiate the plasma arc and begin cutting.

7. Техникалык тейлөө

Regular maintenance ensures the longevity and optimal performance of your PLASMA MULTI 40 unit.

• Тазалоо: Periodically clean the exterior of the unit with a dry, soft cloth. Use compressed air to blow out dust and debris from the ventilation openings. Ensure the unit is disconnected from power before cleaning.
• Кабелдик текшерүү: Regularly inspect all cables (power, welding, ground, torch) for cuts, cracks, or damaged insulation. Replace any damaged cables immediately.
• Факелдин чыгымдалуучу материалдары: For plasma and TIG torches, regularly check and replace worn consumables (nozzles, electrodes, diffusers, collets) to maintain cutting/welding quality.
• Байланыштары: Бардык электр жана газ туташууларынын бекем жана дат баспагандыгын текшериңиз.
• Сактагыч: Store the unit in a clean, dry environment when not in use.

8. Кыйынчылыктарды

This section addresses common issues you might encounter with your PLASMA MULTI 40.

9. Техникалык шарттар

Technical specifications for the Stayer PLASMA MULTI 40:

10. Кепилдик жана колдоо

For warranty information, technical support, or service inquiries, please refer to the official Stayer website or contact your authorized Stayer dealer. Keep your purchase receipt as proof of purchase for any warranty claims.
