Introduction
The beyerdynamic Impacto Essential is a compact high-resolution converter designed to provide a digital edge to beyerdynamic's high-end headphones. It enables impeccable digital transmission for an exceptional sound experience.
Пакеттин мазмуну
- Impacto Essential DAC/Headphone Ampөмүрлүү
- 0.4 m headphone cable with 2 x 3.5 mm jack plug (hard-wired)
- 0.8 m Micro-USB cable (On-The-Go)
- 0.8 м USB-C кабели
- 1.4 m USB-A cable
- Quick Start Guide
Жайгашуу
Follow these steps to connect your Impacto Essential to your headphones and audio source.
Наушниктерге туташуу
Connect the hard-wired 0.4m headphone cable from the Impacto Essential to your compatible beyerdynamic headphones. Ensure the 3.5mm jack plugs are fully inserted into the headphone's input ports.
Connecting to Android Devices

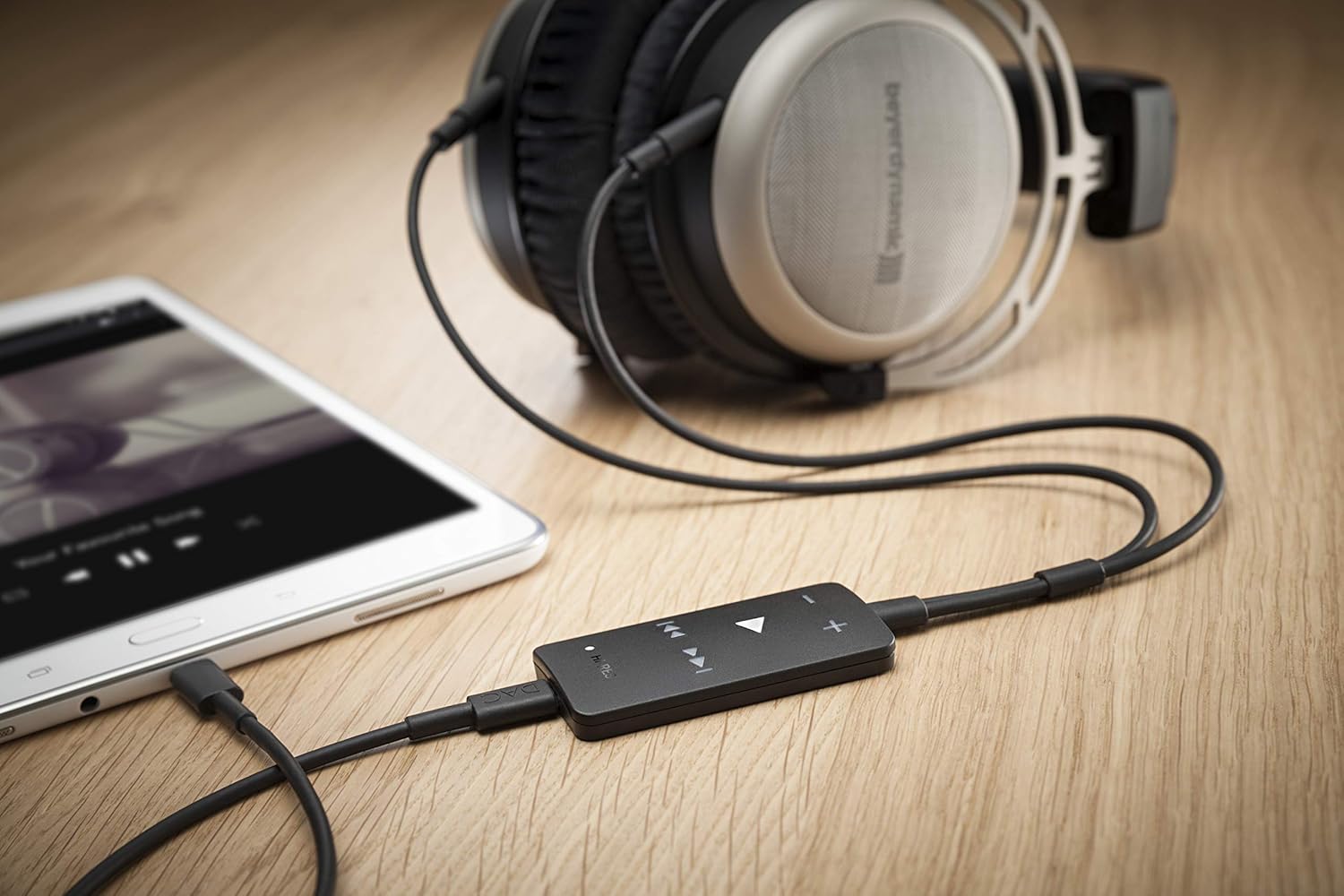

Use the provided 0.8m Micro-USB (On-The-Go) or 0.8m USB-C cable to connect the Impacto Essential to your Android smartphone or tablet. The device will draw power directly from your Android device.
Компьютерге/ноутбукка туташуу
For PC or laptop connection, use the 1.4m USB-A cable. Connect one end to your computer's USB port and the other to the Impacto Essential. Your computer should automatically recognize the device.
Cable Overview
The Impacto Essential comes with various cables to ensure compatibility with different devices. Always use the appropriate cable for your connection type.
Иштөө нускамалары
Once connected, the Impacto Essential is ready for use. The device features intuitive controls for audio playback.
Ойнотуу башкаруулары
The Impacto Essential features dedicated buttons for volume control and media playback:
- + / - баскычтары: Үндү жогору же ылдый тууралаңыз.
- Ойнотуу/тындыруу баскычы: Press the central triangular button to play or pause audio.
- Алдыга/Артка өткөрүп жиберүү баскычтары: Use the arrow buttons to skip to the next or previous track.
Hi-Res Audio Indicator
A 'HI-RES' indicator light on the device illuminates when high-resolution audio is being processed, confirming optimal audio quality.
Техникалык тейлөө
To ensure the longevity and optimal performance of your Impacto Essential, follow these maintenance guidelines:
- Тазалоо: Use a soft, dry cloth to wipe the device. Avoid using abrasive cleaners or solvents.
- Сактагыч: Аппаратты түз күн нурунан жана экстремалдык температурадан алыс салкын, кургак жерде сактаңыз.
- Кабельге кам көрүү: Кабелдерди акырын кармаңыз. Зыян келтирбөө үчүн курч ийилгенден же ашыкча тартылуудан качыңыз.
Проблемаларды чечүү
If you encounter issues with your Impacto Essential, refer to the following common problems and solutions:
Үн чыгышы жок
- Ensure all cables are securely connected to both the Impacto Essential, your headphones, and your audio source.
- Verify that the volume on both the Impacto Essential and your audio source (smartphone, PC) is turned up.
- Check if your headphones are properly connected to the Impacto Essential's 3.5mm jacks.
- Confirm that your audio source is playing media.
Device Not Recognized by Computer/Smartphone
- Try connecting the Impacto Essential to a different USB port on your computer or a different compatible smartphone.
- Ensure you are using the correct USB cable (Micro-USB OTG, USB-C, or USB-A) for your device.
- Компьютериңизди же смартфонуңузду өчүрүп күйгүзүңүз.
- For PC, check your sound settings to ensure the Impacto Essential is selected as the default playback device.
Overheating or Unexpected Shutdown
- Ensure the device is used in a well-ventilated area and not covered during operation.
- If the device becomes excessively hot and shuts down, disconnect it immediately and allow it to cool down before attempting to use it again.
Шайкештик маселелери
- The Impacto Essential is compatible with specific beyerdynamic high-end headphones: T 1 (2nd generation), T 5 p (2nd generation), Amiron home, and Aventho wired.
- It is suitable for use with Android smartphones and tablets (with USB-OTG) as well as with PC and notebook. It is not designed for iOS devices.
Техникалык мүнөздөмөлөр
| Өзгөчөлүк | Деталь |
|---|---|
| Модел | Impacto Essential |
| Frequency Response | 15 Гц - 20 000 Гц |
| Импеданс | 11.5 Ом |
| Байланыш технологиясы | Зымдуу |
| Наушник уясы | 3.5 мм Джек |
| Өлчөмдөрү (L x W x Y) | 9.1 x 2.3 x 5.6 дюйм |
| Элемент Салмагы | 9.6 унция (0.6 фунт) |
| Шайкеш кулакчындар | beyerdynamic T 1 (2nd generation), T 5 p (2nd generation), Amiron home, Aventho wired |
| Шайкеш түзмөктөр | Android smartphones/tablets (with USB-OTG), PC, Notebook |
Кепилдик жана колдоо
Кепилдик жөнүндө маалымат жана техникалык колдоо алуу үчүн, расмий beyerdynamic сайтына кайрылыңыз webсайтка же кардарларды тейлөөгө кайрылыңыз. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
