Everlasting Comfort Humidifier

Everlasting Comfort 6L Ultrasonic Humidifier Instruction Manual

Model: Humidifier

Бренд: Түбөлүктүү Жубатуу

1. Киришүү

The Everlasting Comfort 6L Ultrasonic Humidifier is designed to provide optimal humidity levels in large rooms up to 500 sq ft. This filterless cool mist humidifier features a 6-liter water tank, offering up to 50 hours of continuous operation. It includes an integrated essential oil diffuser for aromatherapy and operates quietly, making it suitable for bedrooms, nurseries, offices, and plant care. The unit is designed for easy use and maintenance.

2. Маанилүү коопсуздук нускамалары

WARNING: Always unplug the humidifier before filling, cleaning, or performing any maintenance. Do not add essential oils directly into the water tank; use the designated essential oil tray.

  • Place the humidifier on a firm, flat, waterproof surface at least 6 inches (15 cm) away from walls and appliances.
  • Do not place the humidifier on carpet or near heat sources.
  • Балдар жана үй жаныбарлары жетпеген жерде сактаңыз.
  • Таза, муздак кран суусун гана колдонуңуз. Минералдык заттардын топтолушун алдын алуу үчүн дистилденген суу сунушталат.
  • Базаны сууга батырбаңыз.
  • Ensure the mist nozzle is not directed at furniture, walls, or electronics.
  • Unplug the unit when not in use for extended periods.

3. Пакеттин мазмуну

Таңгактан чыгарганда, бардык буюмдардын бар экенине ынаныңыз:

  • Everlasting Comfort 6L Ultrasonic Humidifier Unit
  • Instruction Manual
  • Тазалоочу щетка
  • Essential Oil Tray (pre-installed or separate)
Everlasting Comfort 6L Ultrasonic Humidifier

Image: The Everlasting Comfort 6L Ultrasonic Humidifier unit.

4. Продукт бүтүп калдыview

Нымдандыргычтын компоненттери менен таанышып алыңыз:

  • A. Суу резервуары: Узак иштөө үчүн 6 литрлик сыйымдуулук.
  • B. Base Unit: Contains the ultrasonic transducer and control panel.
  • C. Mist Nozzle: Туманды багыттоо үчүн 360° айлануучу.
  • D. Control Knob: Adjusts mist output from minimum to maximum, and turns the unit ON/OFF.
  • E. LED көрсөткүчү: Shows power status (green for ON, blue for water level indicator).
  • F. Essential Oil Tray: Located at the base for adding essential oils.
  • G. Water Level Window: Transparent strip on the side of the tank to monitor water level.
Humidifier components with mist output

Сүрөт: алдыңкы view of the humidifier showing mist output and control knob.

5. Орнотуу

  1. Таңылганын ачуу: Carefully remove all packaging materials from the humidifier unit and accessories.
  2. Жайгашкан жери: Place the humidifier on a flat, stable, and waterproof surface. Ensure it is at least 6 inches (15 cm) away from walls and furniture.
  3. Өзүнчө компоненттер: Суу куюлган идиштин түбүн негизги блоктон көтөрүңүз.
  4. Сууну толтуруу: Unscrew the cap at the bottom of the water tank. Fill the tank with clean, cool tap water. Distilled water is recommended to minimize mineral buildup. Securely screw the cap back on.
  5. Кайра чогултуу: Толтурулган суу резервуарын анын туура орнотулганын текшерип, кайра базалык блоктун үстүнө коюңуз.
  6. Плагин: Электр шнурын ылайыктуу электр розеткасына туташтырыңыз.
Man filling the humidifier water tank

Image: A person demonstrating how to fill the humidifier's water tank.

6. Операция

6.1 Power On/Off and Mist Control

  1. Күйгүзүү: Turn the control knob clockwise from the "OFF" position. The LED indicator will light up green.
  2. Туман чыгарууну тууралоо: Continue turning the control knob clockwise to increase mist output (towards "MAX") or counter-clockwise to decrease it (towards "MIN").
  3. Өчүрүү: Башкаруу баскычын саат жебесине каршы "OFF" абалына өткөнгө чейин буруңуз.
Humidifier with adjustable mist settings (low, medium, high)

Image: Three humidifiers demonstrating different mist output levels (low, medium, high).

6.2 Эфир майы диффузору

  1. Access Tray: Gently pull out the essential oil tray located at the base of the humidifier.
  2. Майларды кошуу: Apply a few drops of your preferred essential oil onto the aroma pad within the tray.
  3. Салгычты кайра салыңыз: Slide the essential oil tray back into its slot.
  4. Ырахаттануу: The mist will now carry the aroma throughout your room.

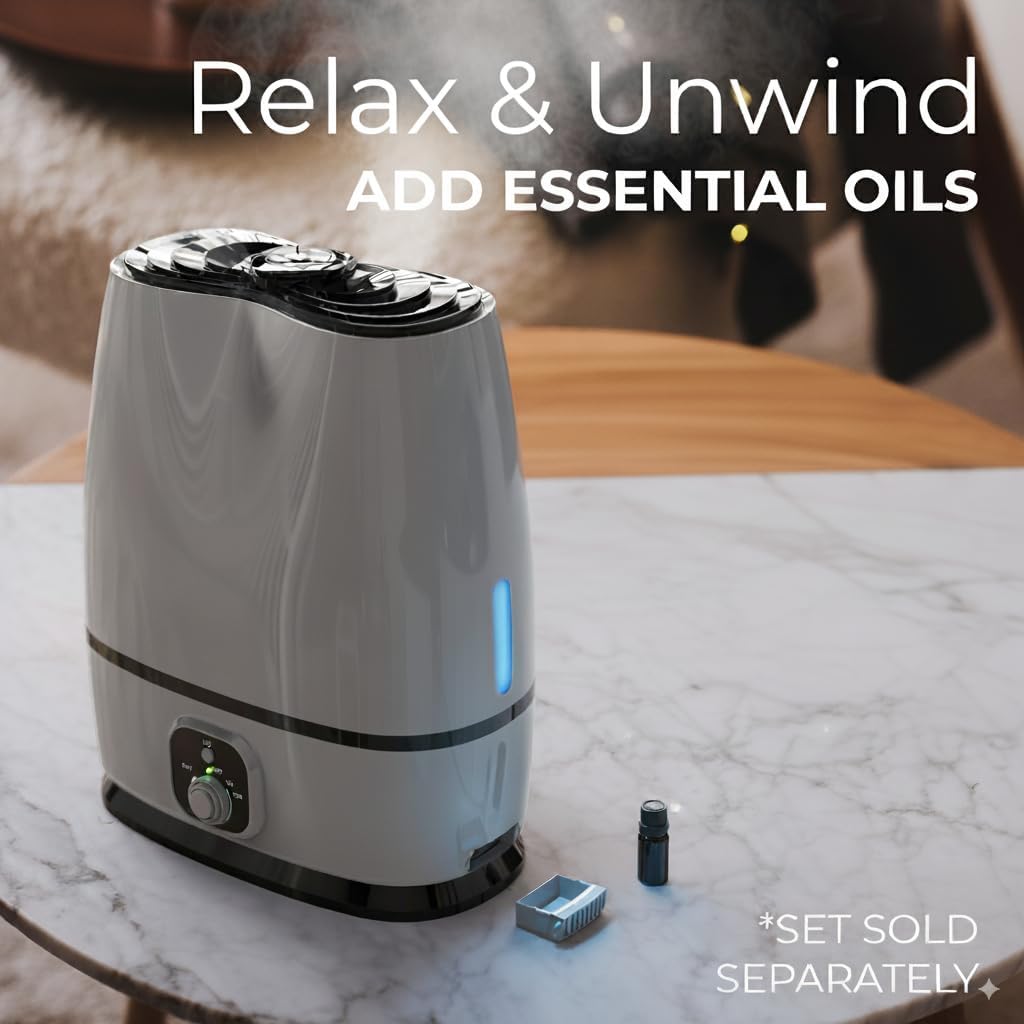

Humidifier with essential oil tray and essential oil bottle

Image: The humidifier with its essential oil tray pulled out, next to an essential oil bottle.

6.3 360° Rotatable Mist Nozzle

The mist nozzle on top of the humidifier can be rotated 360 degrees to direct the mist in any desired direction, ensuring even distribution in your space.

Humidifier with 360 degree adjustable mist nozzle

Image: A humidifier with an illustration showing the 360-degree rotation capability of its mist nozzle.

6.4 Түнкү жарык функциясы

The humidifier features a soft night light. The LED indicator on the control panel will glow blue when the unit is operating and has sufficient water.

7. Техникалык тейлөө

Regular cleaning is essential for optimal performance and hygiene. This filterless design simplifies maintenance.

  1. Күнүмдүк тейлөө: Empty the water tank and base unit daily. Rinse both with fresh water.
  2. Жумалык тазалоо:
    • нымдаткычты розеткадан ажыратыңыз.
    • Суу резервуарын чыгарып, калган сууну бошотуңуз.
    • Fill the water tank with a mixture of equal parts white vinegar and water. Let it sit for 30 minutes to an hour to loosen mineral buildup.
    • Empty the vinegar solution. Use the provided cleaning brush or a soft cloth to gently scrub the inside of the tank and the base unit, paying attention to the ultrasonic transducer.
    • Уксустун жыты кеткенге чейин бардык компоненттерди таза суу менен жакшылап чайкаңыз.
    • Wipe all surfaces dry with a clean cloth before reassembling.
  3. Эфир майы үчүн табак: Clean the essential oil tray and replace the aroma pad as needed.
Humidifier disassembled for cleaning with dish soap and water

Image: Humidifier components laid out for cleaning, emphasizing the ease of maintenance with dish soap and warm water.

8. Кыйынчылыктарды

КөйгөйМүмкүн себепЧечим
Туман жок же аз туман чыгарууLow water level; mineral buildup on transducer; mist nozzle blocked.Refill water tank; clean the transducer and mist nozzle; ensure proper seating of the tank.
Суунун агып чыгышыWater tank cap not tightened; tank not seated correctly; crack in tank.Tighten water tank cap; re-seat the tank; contact support if tank is damaged.
Жагымсыз жытStagnant water; dirty water tank or base.Суу куюлган идиштин түбүн жана анын түбүн жакшылап бошотуп, тазалаңыз. Күн сайын таза суу колдонуңуз.
Түзмөк күйбөй жататрозеткага кошулбаган; күч уtage; control knob not turned to ON.Check power connection; ensure power is available; turn control knob clockwise to ON.

9. Техникалык шарттар

Humidifier dimensions with measurements

Image: The humidifier with its dimensions clearly labeled.

10. Кепилдик жана колдоо

The Everlasting Comfort 6L Ultrasonic Humidifier comes with a Two-Year Replacement Warranty. For any product inquiries, troubleshooting assistance, or warranty claims, please contact Everlasting Comfort customer support.

Webсайт: everlastingcomfort.net

Электрондук почта: support@upperechelonproducts.com
