Dyson Soft Roller Cleaner Head Instruction Manual

Introduction

This manual provides essential information for the proper use, maintenance, and care of your Dyson Soft Roller Cleaner Head. This accessory is designed to enhance the cleaning capabilities of compatible Dyson vacuum models, specifically the Dyson V8, V8 Absolute, SV10, and V8 Animal cordless electric vacuums. It is engineered to effectively clean delicate surfaces such as hard floors, sofas, and beds, efficiently picking up fine dust and pet hair.

Please read this manual thoroughly before installation and operation to ensure optimal performance and longevity of your cleaner head.

Жайгашуу

The Dyson Soft Roller Cleaner Head is designed for easy attachment to your compatible Dyson vacuum cleaner wand. Ensure your vacuum is turned off and unplugged before attaching or detaching any accessories.

1. Identify the Connection Point: Locate the connection point at the end of your Dyson vacuum's wand.
2. Align the Cleaner Head: Align the male end of the cleaner head with the female receptacle on the vacuum wand.
3. Коопсуз тиркеме: Push the cleaner head firmly onto the wand until it clicks securely into place. A click indicates a proper connection.

Сүрөт 1: Алдыңкы view of the Dyson Soft Roller Cleaner Head, showing the main roller brush and connection point.

2-сүрөт: астыңкы жагы view of the cleaner head, highlighting the electrical connection and attachment mechanism.

Иштөө нускамалары

The Soft Roller Cleaner Head is specifically designed for optimal performance on hard floors and delicate surfaces. Its soft, woven nylon and anti-static carbon fiber filaments work together to capture both large debris and fine dust without scratching the floor.

• Беттик шайкештиги: Ideal for hardwood, tile, laminate, and other hard floor types. It is also highly effective for cleaning upholstery, such as sofas and beds, and for removing pet hair.
• Кыймыл: Glide the cleaner head smoothly across the surface. The soft roller brush will gently agitate and collect debris.
• Үй жаныбарларынын жүнүн жок кылуу: The design of the brush bar is particularly effective at capturing pet hair from various surfaces, including furniture.

3-сүрөт: Төмөнкү view of the cleaner head, showing the soft roller brush and its bristles.

4-сүрөт: Side profile of the cleaner head, illustrating the soft roller mechanism.

Техникалык тейлөө

Regular maintenance ensures the optimal performance and longevity of your Dyson Soft Roller Cleaner Head.

1. Щетка тилкесин тазалоо: Periodically inspect the soft roller brush bar for tangled hair or debris. To remove, locate the release mechanism (often a coin-slot screw or a latch) on the side of the cleaner head, unlock it, and slide out the brush bar. Remove any accumulated hair or debris, then reinsert the brush bar and secure the mechanism.
2. Washing the Brush Bar: The soft roller brush bar can be washed with cold tap water. Do not wash the motor unit. Allow the brush bar to dry completely for at least 24 hours before reassembling.
3. Checking Wheels: Inspect the small wheels on the underside of the cleaner head for any obstructions or wear.

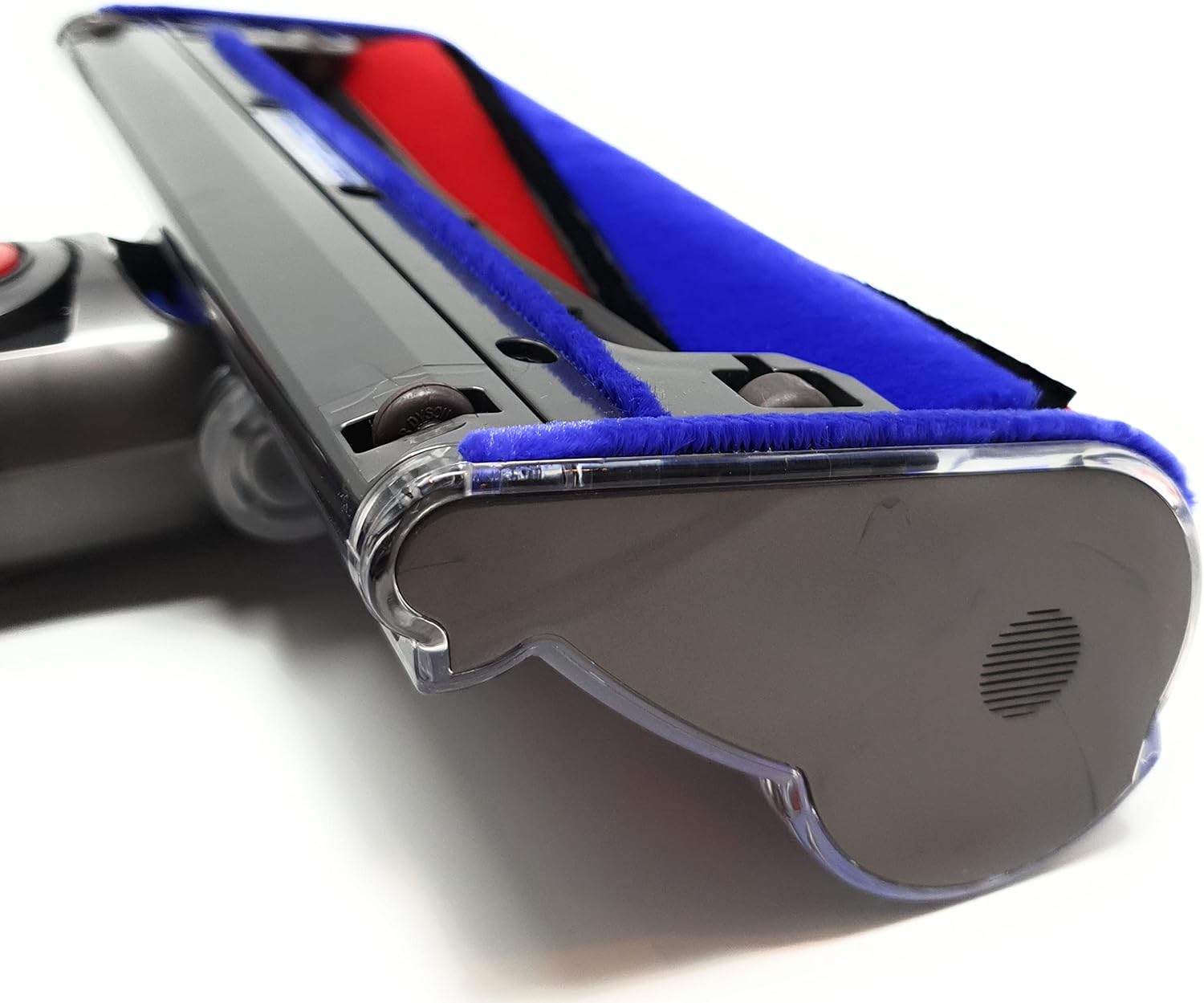

5-сүрөт: View of the cleaner head, showing how the brush bar can be accessed for cleaning.

Figure 6: Close-up of a wheel on the cleaner head, important for smooth operation.

Проблемаларды чечүү

This section addresses common issues you might encounter with your Dyson Soft Roller Cleaner Head.

• Кыскартылган соргуч/өндүрүш: Check the brush bar for obstructions (tangled hair, large debris). Ensure the cleaner head is securely attached to the vacuum wand. Verify that the vacuum's dustbin is not full and its filters are clean.
• Brush Bar Not Spinning: Ensure the cleaner head is properly connected and the vacuum is powered on. Check for any blockages preventing the brush bar from rotating freely.
• Продукттун аныктыгы: Be aware that counterfeit or used items without a genuine Dyson sticker (as pictured on original packaging) may not perform as original and could potentially damage your machine. Always ensure you are using an authentic Dyson product.

Техникалык шарттар

Figure 7: Close-up of the product label, showing model and manufacturing details.

Кепилдик жана колдоо

Specific warranty details and direct customer support information for this Dyson Soft Roller Cleaner Head are not provided in this manual. For comprehensive warranty information, product registration, and technical support, please refer to the official Dyson website or contact Dyson customer service directly. Keep your proof of purchase for warranty claims.

Дайсон расмий Webсайт: www.dyson.com
