1. Киришүү
This manual provides detailed instructions for the proper use, setup, and maintenance of your Flysky FS-A6 2.4G 6CH receiver. The FS-A6 is designed for use with various RC models, including airplanes, gliders, and helicopters, utilizing Flysky's advanced AFHDS 2A system for reliable communication.
2. Негизги өзгөчөлүктөрү
- 2.4GHz AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) technology for enhanced anti-interference capabilities.
- 6 Channels for comprehensive control of your RC model.
- GFSK modulation for robust signal transmission.
- Compact and lightweight design, suitable for a wide range of RC applications.
- Compatible with Flysky i4, i6, i10, GT2E, GT2F, and GT2G series transmitters.
- Designed for fixed-wing aircraft, gliders, and helicopters.
3. Пакеттин мазмуну
Пакетиңизде бардык буюмдар бар экенин текшериңиз:
- 1 x FlySky FS-A6 Receiver
- 1 x Remote Control (Note: This refers to the transmitter required for operation, not included with the receiver itself unless specified in the product bundle.)
- 1 x Charger (Note: This refers to a charger for the transmitter or receiver battery, if applicable, and may not be included with the receiver unit alone.)
Image: The Flysky FS-A6 receiver being weighed on a digital scale, indicating a weight of 0.010kg (10 grams). This highlights the lightweight nature of the receiver.
4. Продукт бүтүп калдыview
The Flysky FS-A6 receiver features a compact design with clearly labeled ports for easy connection.
Сүрөт: жогорудан ылдыйга view of the Flysky FS-A6 receiver, showing its compact black casing, the integrated antenna wire, and a separate binding plug. The labels for channels CH1 through CH6, BAT, and B/V are visible on the receiver's surface.

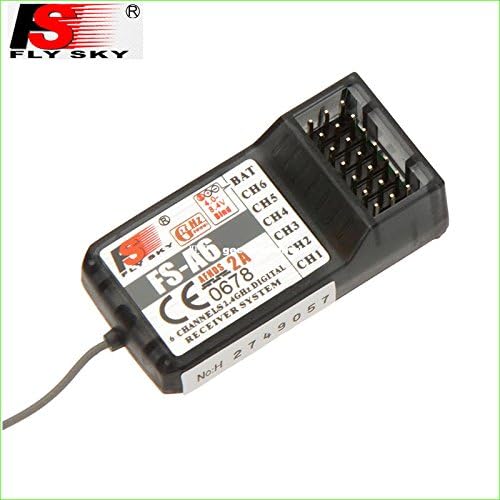

Сүрөт: бурчтуу жакын план view of the Flysky FS-A6 receiver, highlighting the six channel ports (CH1-CH6) and the battery/voltage port (BAT/B/V) on the side. The receiver's model number FS-A6 and certification marks are clearly visible.
5. Орнотуу жана байланыштыруу
Before operating your RC model, the FS-A6 receiver must be properly connected and bound to a compatible Flysky transmitter.
5.1 Кабыл алгычты туташтыруу
- Connect your servos and ESC (Electronic Speed Controller) to the corresponding channels on the receiver (CH1-CH6). Refer to your model's specific wiring diagram.
- Connect the battery or power source to the 'BAT' port. Ensure correct polarity. The receiver operates on 4.0-6.5V DC.
- Position the antenna for optimal signal reception, away from metal objects and carbon fiber structures.
5.2 Милдеттүү жол-жобосу
Binding links the receiver to your specific transmitter, preventing interference from other radio signals.
- Ensure your compatible Flysky transmitter (e.g., i6, i10) is turned off.
- Insert the binding plug (often included with the receiver or transmitter) into the 'B/V' (Bind/Voltage) port on the FS-A6 receiver.
- Connect power to the receiver. The receiver's LED should start flashing rapidly, indicating it is in binding mode.
- Turn on your transmitter while holding down the 'BIND' button (location varies by transmitter model). Refer to your transmitter's manual for exact binding button location.
- The receiver's LED should stop flashing and become solid, indicating successful binding.
- Release the 'BIND' button on the transmitter, then turn off both the receiver and the transmitter.
- Байланыштыруучу сайгычты кабыл алгычтан чыгарыңыз.
- Turn on the transmitter first, then power on the receiver. The receiver's LED should be solid, confirming the link. Test all controls before flight.
6. Иштөө нускамалары
Once the FS-A6 receiver is successfully bound to your transmitter and installed in your RC model, operation is straightforward.
- Always power on your transmitter first, then the receiver. Power off the receiver first, then the transmitter. This sequence prevents unintended control inputs.
- Ensure all control surfaces (ailerons, elevator, rudder) and throttle respond correctly to transmitter inputs before each use.
- Regularly check the receiver's power supply to ensure it is within the specified voltage range (4.0-6.5V DC) for stable operation.
- Maintain line of sight with your RC model during operation to ensure continuous signal reception.
7. Техникалык тейлөө
Proper maintenance will extend the lifespan of your FS-A6 receiver.
- Keep the receiver clean and free from dust, dirt, and moisture. Use a soft, dry cloth for cleaning.
- Ресиверди экстремалдык температурага же түз күн нуруна узак убакытка калтыруудан сактаңыз.
- Inspect the antenna wire regularly for any damage or kinks. A damaged antenna can significantly reduce range.
- Ensure all connections to the receiver ports are secure and free from corrosion.
- Колдонулбаган учурда кабыл алгычты кургак, салкын жерде сактаңыз.
8. Кыйынчылыктарды
If you encounter issues with your FS-A6 receiver, refer to the following common problems and solutions:
- No Signal / Receiver LED Off:
- Check power connections to the receiver. Ensure the battery is charged and connected with correct polarity.
- Verify the transmitter is turned on and fully charged.
- Re-perform the binding procedure.
- Ensure the receiver is within range of the transmitter.
- Intermittent Signal / Glitching:
- Check for sources of interference (e.g., other 2.4GHz devices, large metal objects).
- Inspect the receiver antenna for damage or improper routing. Ensure it is not shielded by carbon fiber or metal.
- Verify the receiver's power supply is stable and not dropping voltage жүк астында.
- Ensure the transmitter and receiver are properly bound.
- Башкаруу элементтери туура эмес жооп берүүдө:
- Check servo and ESC connections to the correct receiver channels.
- Verify servo and ESC functionality independently.
- Ensure transmitter settings (e.g., channel mapping, sub-trims, endpoints) are correctly configured for your model.
9. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Каналдар | 6 |
| Модель түрү | Fixed-Wing / Glider / Helicopter |
| RF диапазону | 2.4055-2.475 ГГц |
| RF каналы | 140 |
| RF кабылдагычтын сезгичтиги | -105дБм |
| өткөрүү жөндөмдүүлүгү | 500KHz |
| Модуляция түрү | GFSK |
| Power Input | 4.0-6.5В DC |
| Антеннанын узундугу | 26мм |
| Түс | Grey (Transparent) |
| Өлчөмдөрү (L*W*H) | 45mm * 22mm * 13mm (excluding cable length) |
| Кабелдин узундугу | 180мм |
| Сертификация | CE0678, FCC |
10. Коопсуздук маалыматы
Adhering to safety guidelines is crucial when operating RC equipment.
- Always operate RC models in open areas, away from people, animals, and property.
- Иштөө алдында бардык компоненттердин бекем бекитилишин текшериңиз. Бош бөлүктөрү кырсыкка алып келиши мүмкүн.
- Never operate RC equipment near power lines, roads, or bodies of water.
- Disconnect the battery from the receiver when not in use to prevent accidental activation.
- Children operating RC models should always be supervised by an adult. Recommended age for this product is 14 years and up.
- Be aware of your surroundings and local regulations regarding RC model operation.
11. Кепилдик жана колдоо
For warranty information or technical support regarding your Flysky FS-A6 receiver, please refer to the official Flysky webсайтка же ыйгарым укуктуу дилериңизге кайрылыңыз. Сатып алганыңыздын далили катары сатып алуу дүмүрчөгүңүздү сактаңыз.
