Thank you for choosing the ENERMAX PlatiGemini 1200W Power Supply. This unit is designed to provide stable and efficient power for high-performance computing systems, supporting both Intel ATX 3.1 and ATX12VO standards. It features 80 PLUS Platinum certification, a fully modular design with a native 600W 12V-2x6 connector, and advanced Dust-Free Rotation (D.F.R.) technology for enhanced longevity and maintenance. Please read this manual thoroughly before installation and operation to ensure proper usage and safety.

Image 1.1: ENERMAX PlatiGemini 1200W Power Supply Overview

2. Коопсуздук маалыматы

WARNING: Improper installation or use can lead to serious injury or damage to your system. Always follow these safety guidelines:

• Орнотуудан же тейлөөдөн мурун кубат булагы AC розеткадан ажыратылганын текшериңиз.
• Электр жабдыгын ачпаңыз casinг. Жогорку томtages ичинде бар жана колдонуучу тейлей турган бөлүктөр жок.
• Электр менен жабдууну жакшы желдетилген жерге, жылуулук булактарынан, тике күн нурунан жана нымдан алыс орнотуңуз.
• Use only the modular cables provided with this power supply. Using incompatible cables can damage the unit and connected components.
• Тутумду күйгүзүүдөн мурун бардык туташтыргычтар бекем орнотулганын текшериңиз.
• This product is designed for use in personal computers. Do not use it for any other application.

3. Пакеттин мазмуну

Пакетиңизде бардык буюмдар бар экенин текшериңиз:

• ENERMAX PlatiGemini 1200W Power Supply Unit
• Модулдук кабель топтому:
  • 1x ATX Motherboard 24 (20+4)pin cable [60cm]
  • 1x 12VO Motherboard 10pin cable [60cm]
  • 2x CPU 4+4 Pin cables [70cm each]
  • 1x 12V-2x6 12+4 pin (600W) cable [60cm]
  • 3x PCIe 6+2 pin cables [65cm each]
  • 8x SATA power cables [60cm each]
  • 4x 4P Molex cables [60cm each]
• AC Power Cord
• Монтаждоо бурамалар
• User Manual

Image 3.1: Fully Modular Cables Included

4. Негизги өзгөчөлүктөрү

• Dual-Standard Compatibility: Integrated with both Intel ATX 3.1 and ATX12VO standards for broad system compatibility.
• 80 PLUS Platinum тастыкталган: Achieves up to 94% efficiency at typical load and 74% efficiency at 2% load, reducing energy waste and operating costs.
• Толугу менен модулдук дизайн: Allows for clean cable management and improved airflow within the PC case.
• Native 600W 12V-2x6 Connector: Directly supports high-power PCIe 5.0 graphics cards without the need for additional adapters.
• Өнөр жай классынын компоненттери: Utilizes 100% Japanese 105°C-rated capacitors for superior stability, reliability, and extended lifespan.
• Semi-Fanless Technology: The fan remains off under 60% load, providing silent operation during low-power tasks.
• Dust-Free Rotation (D.F.R.) Technology: An innovative self-cleaning mechanism that reverses fan rotation to blow away accumulated dust, enhancing system longevity and reducing maintenance.
• Up to 235% Power Excursion: Designed to handle transient power spikes for high-end systems.

Image 4.1: PlatiGemini Feature Highlights

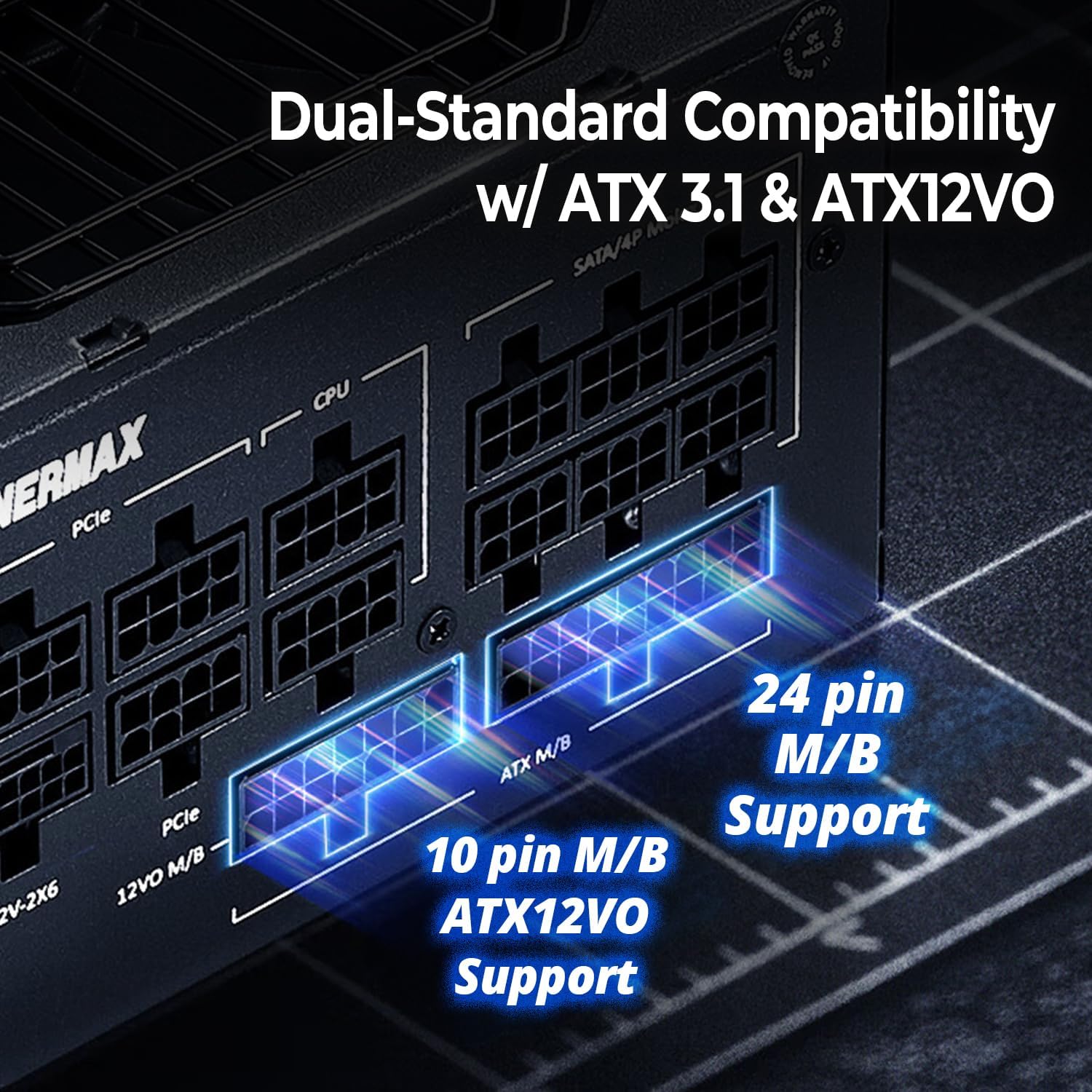

Image 4.2: Dual-Standard Compatibility (ATX 3.1 & ATX12VO)

Image 4.3: 100% Japanese Industrial-Grade Capacitors

Image 4.4: Semi-Fanless Technology Fan Curve

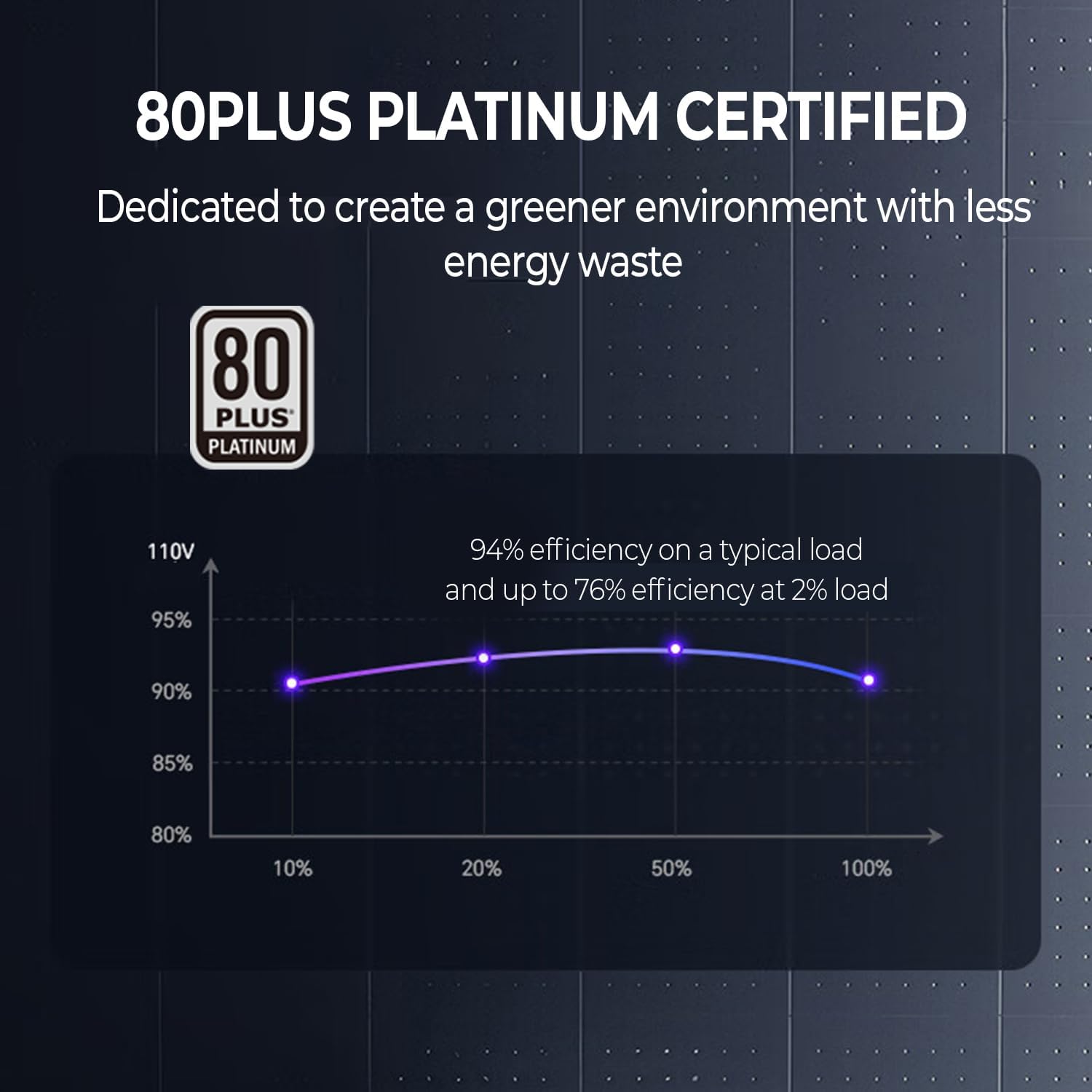

Image 4.5: 80 PLUS Platinum Efficiency

5. Орнотуу жана орнотуу

1. Системаңызды даярдаңыз: Компьютериңиздин өчүрүлгөнүн жана розеткадан суурулганын текшериңиз. Кубат булагынын орнотулган жерине жетүү үчүн компьютериңиздин корпусун ачыңыз.
2. Кубат менен жабдууну орнотуу: Insert the ENERMAX PlatiGemini 1200W into the power supply bay of your PC case. Secure it with the provided mounting screws.
3. Модулдук кабелдерди туташтыруу: Identify the necessary cables for your motherboard, CPU, graphics card(s), and other peripherals. Connect them to the corresponding modular ports on the power supply. Ensure firm connections.
   • For motherboards, use either the 24-pin ATX cable or the 10-pin ATX12VO cable, depending on your motherboard's standard.
   • For PCIe 5.0 graphics cards, use the native 600W 12V-2x6 cable.
4. Кабелдик башкаруу: Route the cables neatly to improve airflow and aesthetics within your case.
5. Ишти жабуу: Once all connections are secure and cables are managed, close your PC case.
6. AC кубатына туташтыруу: AC шнурду кубат булагына, андан кийин розеткага сайыңыз.

6. Иштөө нускамалары

6.1. Semi-Fanless Operation

The PlatiGemini 1200W features a semi-fanless mode. The power supply fan will remain off when the system load is below 60% and the internal temperature is low. This ensures silent operation during light workloads. The fan will automatically activate and adjust its speed as the load and temperature increase to maintain optimal cooling.

6.2. Dust-Free Rotation (D.F.R.) Technology

The D.F.R. function helps to prevent dust accumulation inside the power supply by reversing the fan's rotation direction for a short period. This self-cleaning mechanism can be activated in two ways:

1. Upon Power On: When you power on your PC, the D.F.R. function will automatically activate for 20 seconds. The fan will spin in reverse (clockwise) to expel dust, then return to its regular counter-clockwise direction for another 20 seconds before stopping (if under 60% load) or continuing normal operation.
2. Using the D.F. Switch Button: If the power supply is under 60% load and the fan is not spinning, press the D.F. Switch button on the power supply. The fan will spin clockwise for 20 seconds, then return to counter-clockwise for 20 seconds, and then stop. If the power supply is over 60% load or the fan is already spinning, pressing the D.F. Switch will immediately stop the fan, spin it clockwise for 20 seconds, and then return to its regular counter-clockwise direction.

Image 6.1: D.F. Switch Button

7. Техникалык тейлөө

The ENERMAX PlatiGemini 1200W power supply is designed for minimal maintenance thanks to its Dust-Free Rotation (D.F.R.) technology. This feature helps to keep the fan and internal components free from dust accumulation, which is crucial for maintaining optimal performance and extending the lifespan of the unit and other PC components.

• Regularly activate the D.F.R. function using the D.F. Switch button, especially if your PC operates in a dusty environment or if you notice increased fan noise.
• Periodically inspect the power supply's exterior for any visible dust buildup. While D.F.R. helps with internal cleaning, external surfaces may still require occasional wiping with a soft, dry cloth.
• Ensure adequate airflow around the power supply by keeping the PC case free of obstructions.

8. Кыйынчылыктарды

If you encounter issues with your ENERMAX PlatiGemini 1200W power supply, please refer to the following common troubleshooting steps:

• Кубат жок: Ensure the AC power cord is securely plugged into both the power supply and the wall outlet. Check the power switch on the back of the PSU is in the 'ON' position. Verify all modular cables are correctly and firmly connected.
• Системанын туруксуздугу/бузуулар: This could be due to various factors. Ensure your system's power requirements do not exceed the PSU's capacity. Check all cable connections, especially to the motherboard and graphics card. If issues persist, test components individually if possible.
• желдеткич айланбай жатат: The power supply features a semi-fanless mode, meaning the fan will not spin under low load (below 60%) or low temperature. This is normal operation. If the fan does not spin under heavy load or high temperature, ensure the D.F.R. switch is not stuck and contact support.
• Ашыкча ызы-чуу: While the D.F.R. technology helps, if you experience unusual or excessive fan noise, activate the D.F.R. function to clear any potential dust. If the noise persists, it may indicate an issue with the fan.

For further assistance, please contact ENERMAX customer support.

9. Техникалык шарттар

10. Кепилдик жана колдоо

The ENERMAX PlatiGemini 1200W power supply comes with a 10 жылдык кепилдик, ensuring long-term reliability and peace of mind. For warranty claims, technical support, or any product-related inquiries, please contact ENERMAX USA directly.

ENERMAX USA Support: Visit Enermax USA Webсайт

Кепилдик тейлөө үчүн сатып алуу далилиңизди сактап коюңуз.
