CarAudio Systems TF-NTG5 Video-in-Motion интерфейсинин колдонуучу колдонмосу

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of the CarAudio Systems TF-NTG5 Video-in-Motion Interface. This device is designed to enable video playback and display of auxiliary media menus (e.g., from retrofitted DVD players or rear cameras) on Mercedes Benz vehicles equipped with Comand Online NTG5, NTG5.1, and NTG5.5 navigation systems while the vehicle is in motion.

The TF-NTG5 interface is a Plug & Play solution, manufactured in Germany, and supports updates via USB.

Коопсуздук маалыматы

Please read all safety instructions carefully before installation and use. Failure to follow these instructions may result in damage to the device, vehicle, or personal injury.

• Installation should only be performed by qualified personnel to avoid damage to the vehicle's electrical system.
• Орнотууну баштоодон мурун унаанын от алдыруу өчүрүлгөнүн жана батареянын ажыратылганын текшериңиз.
• Do not attempt to modify or disassemble the interface.
• This device is intended for passenger use only. The driver must always maintain full attention to the road and traffic conditions. Viewing dynamic images while driving can be distracting and may lead to accidents.
• Adhere to all local laws and regulations regarding in-car entertainment systems.

Пакеттин мазмуну

Пакетте бардык буюмдар бар экенин текшериңиз:

• 1x CarAudio Systems TF-NTG5 Video-in-Motion Interface Module
• 1x Plug & Play Wiring Harness
• 1x USB Cable (for updates)
• 1x Колдонуучунун колдонмосу (бул документ)

Орнотуу жана орнотуу

The TF-NTG5 interface is designed for Plug & Play installation. No coding is required.

Орнотууга чейинки кадамдар

• Унааны түз жерге токтотуп, токтоочу тормозду коюңуз.
• Отту өчүрүп, ачкычты алып салыңыз.
• Электр зымдарынын кыска төшөлүшүнө жол бербөө үчүн унаанын аккумуляторун ажыратыңыз.
• Access the rear of the Comand Online head unit in your Mercedes Benz vehicle. This typically involves removing trim panels and the head unit itself. Refer to your vehicle's service manual for specific instructions on head unit removal.

Интерфейсти туташтыруу

1. Locate the main wiring harness connected to the back of your Comand Online unit.
2. Disconnect the original harness from the Comand Online unit.
3. Connect the supplied Plug & Play wiring harness from the TF-NTG5 interface in-line with the original harness. The interface harness will have connectors that match the original vehicle connectors and the Comand Online unit.
4. Connect the main module of the TF-NTG5 interface to the new wiring harness. Ensure all connections are secure.

DIP которуу конфигурациясы

The TF-NTG5 module features DIP switches for specific configurations. Refer to the image below for the location of the DIP switches.

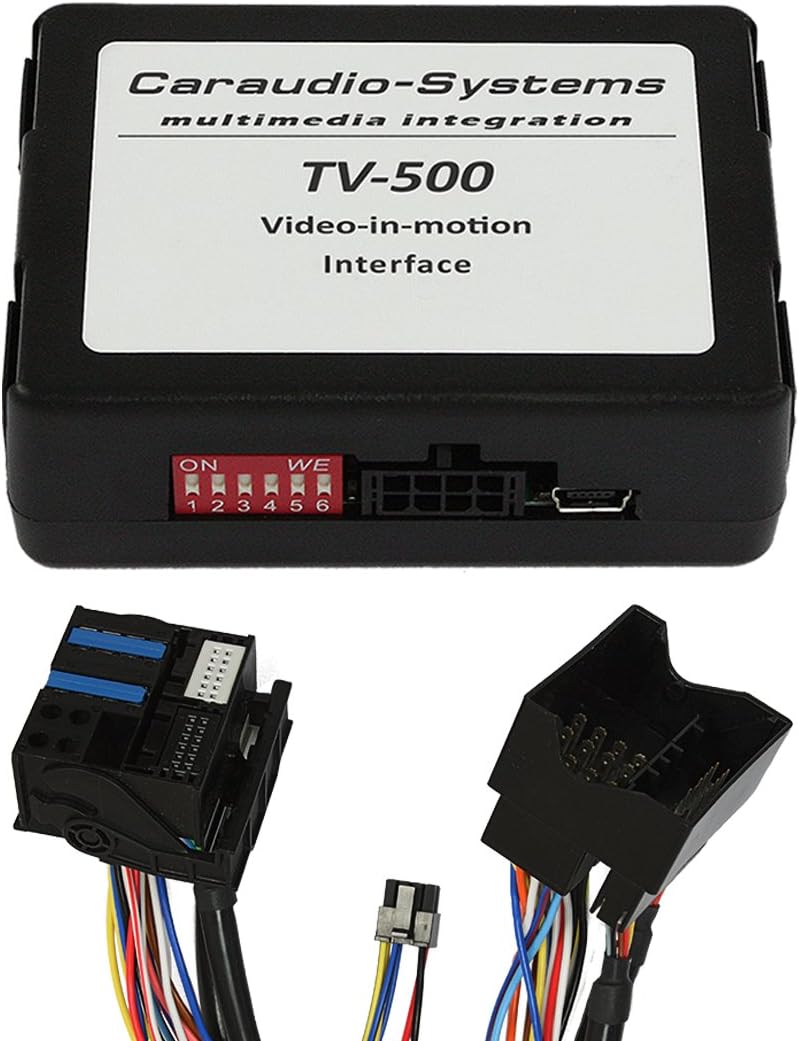

1-сүрөт: CarAudio Systems TF-NTG5 Interface Module and Wiring. The module features a label indicating "TV-500 Video-in-motion Interface" and a set of red DIP switches (1-6) for configuration. The accompanying wiring harness includes various connectors for integration with the vehicle's Comand Online system.

The default configuration for video-in-motion activation is usually pre-set. Consult the specific instructions provided with your unit or the manufacturer's website for detailed DIP switch settings if custom functionality is desired. For standard video-in-motion, typically all switches are in the 'OFF' position or as specified by the manufacturer for your specific vehicle model.

Орнотуудан кийин

• Secure the TF-NTG5 module and wiring harness in a safe location behind the head unit, ensuring no wires are pinched or interfere with moving parts.
• Унаанын аккумуляторун кайра туташтырыңыз.
• Reinstall the head unit and trim panels.

Иштөө нускамалары

Once installed, the TF-NTG5 interface automatically activates the video-in-motion function for your Mercedes Benz Comand Online system.

• Turn on the vehicle's ignition and the Comand Online system.
• Navigate to the desired video source (e.g., DVD player, auxiliary input, or rear camera feed) on your Comand Online display.
• The video or auxiliary menu should now be viewable even when the vehicle is in motion.

USB Update Functionality

The interface supports firmware updates via its USB port.

1. Download the latest firmware from the official Caraudio-Systems webсайт.
2. Микропрограмманы көчүрүү file USB флэш-дискине.
3. Connect the USB flash drive to the USB port on the TF-NTG5 module (if accessible without disassembly, otherwise temporary removal of the head unit may be required).
4. Follow the specific update procedure outlined in the firmware download instructions.

Техникалык тейлөө

The CarAudio Systems TF-NTG5 interface requires minimal maintenance.

• Keep the module and connections free from dust and moisture.
• Do not use harsh chemicals or abrasive cleaners on the unit.
• Periodically check connections to ensure they remain secure.
• Ensure the vehicle's electrical system is in good working order to prevent damage to the interface.

Проблемаларды чечүү

If you experience issues with your TF-NTG5 interface, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Caraudio-Systems customer support.

Техникалык шарттар

Кепилдик жана колдоо

For warranty information and technical support, please refer to the official Caraudio-Systems webсайтка же ыйгарым укуктуу дилериңизге кайрылыңыз. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
