Introduction
Сатып алганыңыз үчүн рахматasing the PIONEER TS-G1330F 13cm 3-Way Coaxial Speakers. This manual provides essential information for the proper installation, operation, and maintenance of your new car audio speakers. Please read this manual thoroughly before installation and retain it for future reference.
Коопсуздук маалыматы
Always observe the following safety precautions to prevent injury or damage to the product and vehicle.
- Кесиптик орнотуу сунушталат: For optimal performance and safety, professional installation by a qualified technician is highly recommended.
- Батареяны ажыратыңыз: Before starting any electrical work, disconnect the negative terminal of your vehicle's battery to prevent short circuits and electrical hazards.
- Туура зымдар: Ensure all wiring is correctly connected according to the vehicle's electrical system and speaker polarity. Incorrect wiring can damage the speakers or your car's audio system.
- Коопсуз орнотуу: Mount the speakers securely to prevent them from becoming loose during vehicle operation, which could cause injury or damage.
- Тоскоолдуктан качуу: Динамиктерди айдоочуга тоскоол болгон жерлерге орнотпоңуз view or interfere with the operation of safety devices like airbags.
- Үндү көзөмөлдөө: Prolonged exposure to high volume levels can cause hearing damage. Adjust the volume to a safe and comfortable level.
Пакеттин мазмуну
Пакетте бардык буюмдар бар экенин текшериңиз:
- 2 x PIONEER TS-G1330F 13cm 3-Way Coaxial Speakers
- 2 x Speaker Grills
- Монтаждоо бурамалар (саны ар кандай болушу мүмкүн)
- Speaker Cables (quantity may vary)
Өзгөчөлүктөрү
- Кубат менен иштөө: 250 Watts Max (35 Watts Nominal)
- Конус материалы: IMPP (Injection Molded Polypropylene) Composite Cone for enhanced durability and bass response.
- Жыштык жообу: 33 - 24,000 Hz, providing a wide range of audio reproduction.
- Midrange Size: 30 мм
- Твиттердин көлөмү: 10 мм
- Динамик түрү: 3-Way Coaxial design for clear separation of highs, mids, and lows.
- Камтылган: Supplied as a pair and with protective grills.
Техникалык шарттар
| Спецификация | Нарк |
|---|---|
| Модел | TS-G1330F |
| Динамик түрү | Коаксиалдык, 3-жол |
| Динамик өлчөмү | 13 см (5.12 дюйм) |
| Максималдуу чыгаруу күчү | 250 Ватт |
| Номиналдуу чыгаруу кубаттуулугу | 35 Ватт |
| Frequency Response | 33 - 24,000 Гц |
| Эң төмөнкү резонанстык жыштык | 101 Гц |
| Cut-out Hole Diameter | 121 мм |
| Монтаждоо тереңдиги | 44 мм |
| Элемент Салмагы | 0.97 Kilograms (per speaker) |
| Камтылган компоненттер | 2 Баяндамачылар |
| Өзгөчө өзгөчөлүк | Bass Boost |
| Байланыш технологиясы | Коаксиалдуу |
Орнотуу жана орнотуу
Careful installation is crucial for optimal sound quality and speaker longevity. If you are unsure about any step, consult a professional installer.
1. Орнотуудан мурун
- Унаа шайкештиги: Ensure the speakers are compatible with your vehicle's speaker openings and mounting depth. The TS-G1330F requires a 121 mm cut-out hole and 44 mm mounting depth.
- Керектүү куралдар: Gather necessary tools such as screwdrivers, wire strippers, crimping tools, and a drill (if new holes are needed).
- Кубатты өчүрүү: Always disconnect the negative terminal of your car battery before beginning any electrical work.
2. Баяндамачыларды орнотуу
- Бар болгон динамиктерди алып салуу: Carefully remove the factory speakers from their mounting locations.
- Монтаждоо ордун даярдоо: If necessary, enlarge the speaker opening to the required 121 mm diameter. Ensure there is sufficient depth (44 mm) for the speaker magnet.
- Зымдарды туташтыруу: Connect the speaker wires from your car's audio system to the terminals on the PIONEER speakers. Pay close attention to polarity (positive to positive, negative to negative) to ensure correct phase and sound reproduction.
- Коопсуз динамиктер: Place the speaker into the opening and align the mounting holes. Use the provided screws to securely fasten the speaker to the vehicle's panel. Do not overtighten.
- Install Grills: If desired, attach the speaker grills over the installed speakers for protection.
Сүрөт: алдыңкы view of the PIONEER TS-G1330F speaker without its protective grille, showing the cone and tweeter assembly.
Сүрөт: алдыңкы view of the PIONEER TS-G1330F speaker with its protective grille installed, providing a finished look.

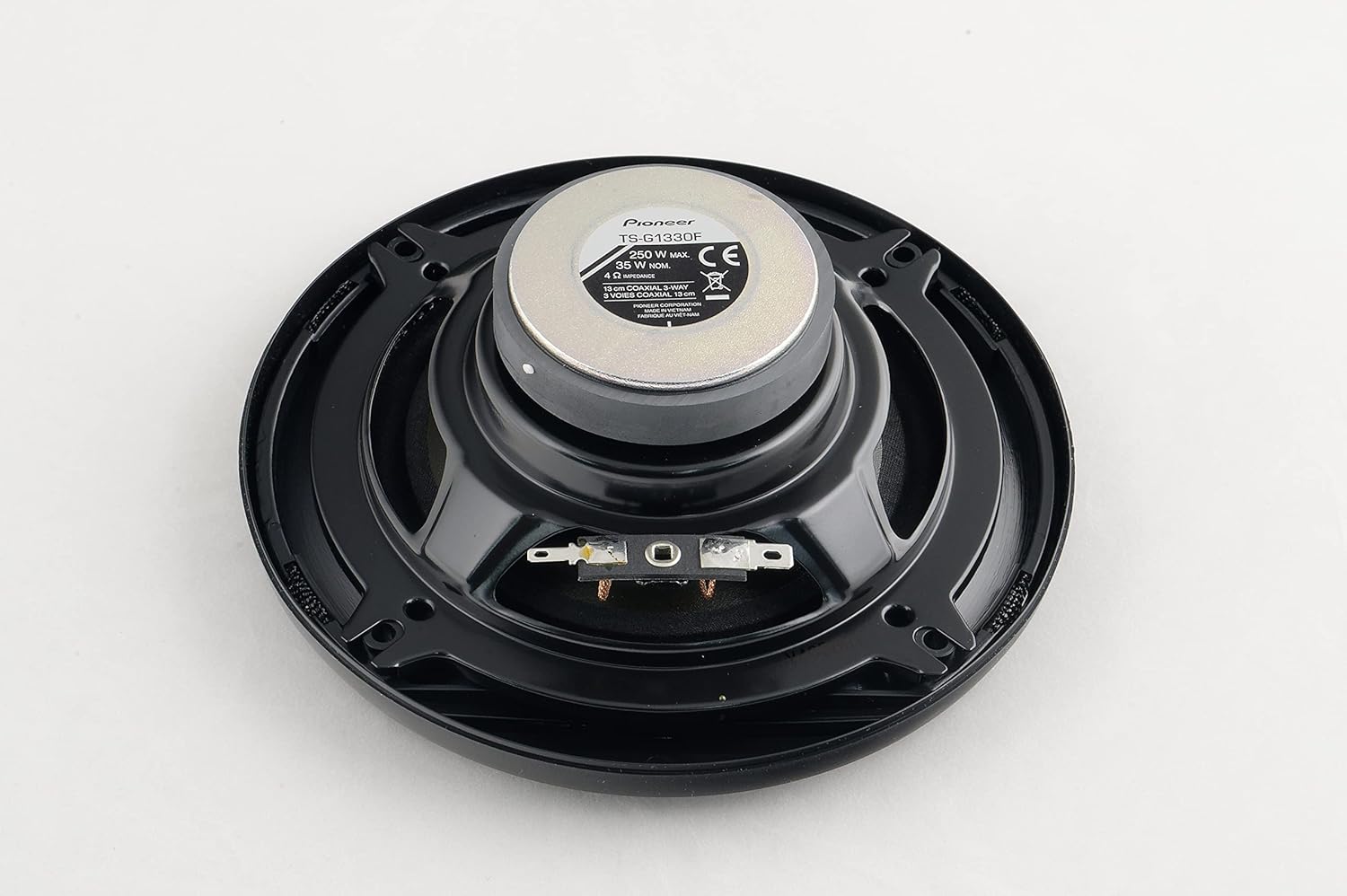

Сүрөт: Арткы view of the PIONEER TS-G1330F speaker, showing the magnet structure and wiring terminals.
3. Акыркы кадамдар
- Батареяны кайра туташтыруу: Once all speakers are securely installed and wired, reconnect the negative terminal of your car battery.
- Сыноо системасы: Turn on your car's audio system and test the speakers at a low volume. Gradually increase the volume to ensure proper function and sound quality.
Операция
The PIONEER TS-G1330F speakers are designed to work with your car's existing head unit or aftermarket car stereo. Once installed, their operation is controlled directly by your audio source.
- Аудио булагы: Play audio from your car stereo (radio, CD, USB, Bluetooth, etc.).
- Үндү көзөмөлдөө: Башкы блоктун башкаруу элементтерин колдонуп, үндү тууралаңыз.
- Tone Adjustments: Utilize your head unit's equalizer, bass, treble, and balance/fader controls to fine-tune the sound to your preference.
- Тыныгуу мезгили: Allow a short break-in period (typically 10-20 hours of normal use) for the speaker components to loosen up and achieve their optimal sound performance.
Техникалык тейлөө
Your PIONEER TS-G1330F speakers require minimal maintenance to ensure long-lasting performance.
- Тазалоо: Gently wipe the speaker grills and surrounds with a soft, dry cloth to remove dust. Avoid using harsh chemicals or abrasive cleaners.
- Нымдуулуктан качыңыз: While the speakers are designed for car environments, avoid direct exposure to excessive moisture or liquids.
- Байланыштарды текшерүү: Periodically check the wiring connections to ensure they remain secure.
Проблемаларды чечүү
Эгерде сиз динамиктериңизде көйгөйлөргө туш болсоңуз, төмөнкү жалпы көйгөйлөрдү жана чечимдерди караңыз:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Динамиктерден үн жок | Loose or incorrect wiring; Head unit off or muted; Blown fuse in head unit or vehicle. | Check all wiring connections for security and correct polarity; Ensure head unit is on and not muted; Check vehicle and head unit fuses. |
| Бурмаланган же начар үн сапаты | Incorrect wiring polarity; Over-driving speakers (volume too high); Damaged speaker; Poor audio source. | Verify correct wiring polarity; Reduce volume; Test with a different audio source; Inspect speakers for physical damage. |
| Бир динамик иштебейт | Loose connection to that speaker; Balance/fader setting on head unit; Damaged speaker. | Check wiring for the specific speaker; Adjust balance/fader settings on head unit; Swap speakers to determine if the issue is with the speaker or wiring. |
| Ызы-чуу же ызы-чуу | Ground loop issue; Interference from other electrical components; Loose wiring. | Ensure proper grounding of head unit and amplifier (if applicable); Check for loose wiring; Consider installing a ground loop isolator. |
If the problem persists after attempting these solutions, please contact PIONEER customer support or a qualified car audio technician.
Кепилдик жана колдоо
PIONEER products are manufactured to high-quality standards. For information regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your purchase or visit the official PIONEER website. For technical support or service inquiries, please contact PIONEER customer service through their official channels.
