Vax ECGLV1B1

Vax Rapid Power Pro Carpet Cleaner User Manual

Model: ECGLV1B1

Introduction

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Vax Rapid Power Pro Carpet Cleaner, model ECGLV1B1. Please read this manual thoroughly before first use and retain it for future reference.

Vax Rapid Power Pro Carpet Cleaner

Image: The Vax Rapid Power Pro Carpet Cleaner, a grey and red upright carpet cleaner with clear water tanks.

Коопсуздук маалыматы

Өрт, электр шок же жаракат алуу коркунучун азайтуу үчүн электр шаймандарын колдонууда ар дайым негизги коопсуздук чараларын сактаңыз. Буга төмөнкүлөр кирет:

  • Шайманды розеткага сайганда кароосуз калтырбаңыз. Колдонбогондо жана тейлөөгө чейин розеткадан сууруп алыңыз.
  • Бузулган шнур же сайгыч менен колдонбоңуз. Эгерде шайман керектелип иштебесе, кулап, бузулуп, сыртта калып же сууга түшүп кетсе, аны тейлөө борборуна кайтарыңыз.
  • Тартпаңыз же шнур менен көтөрүп жүрбөңүз, шнурду тутка катары колдонбоңуз, шнурга эшикти жаппаңыз же шнурду курч четтеринен же бурчтарынан тартпаңыз. Шайманды шнурдун үстүнөн иштетпеңиз. Шнурды ысытылган беттерден алыс кармаңыз.
  • шнурду тартып сууруп албаңыз. Электр розеткасынан сууруп алуу үчүн шнурдан эмес, сайгычтан кармаңыз.
  • Штепсель же шайманды нымдуу кол менен кармабаңыз.
  • Тешиктерге эч кандай нерсени салбаңыз. Бөгөттөлгөн ачуу менен колдонбоңуз; чаңдан, түктөн, чачтан жана аба агымын азайта турган нерселерден алыс болуңуз.
  • Чачты, кенен кийимдерди, манжаларды жана дененин бардык бөлүктөрүн тешиктерден жана кыймылдуу бөлүктөрдөн алыс кармаңыз.
  • Бензин сыяктуу күйүүчү же күйүүчү суюктуктарды алуу үчүн колдонбоңуз же алар болушу мүмкүн болгон жерлерде колдонбоңуз.
  • Тамеки, ширеңке, ысык күл сыяктуу күйүп жаткан же чылым чеккен нерселерди албаңыз.
  • Тепкичтерде тазалоодо өзгөчө этият болуңуз.
  • Ордунда бак жок колдонбоңуз.
  • Туура жерге туташтырылган розеткага гана туташтырыңыз. Жерге салуу көрсөтмөлөрүн караңыз.

Пакеттин мазмуну

Таңгактан чыгарганда, бардык буюмдардын бар экенине ынаныңыз:

  • Vax Rapid Power Pro Carpet Cleaner Unit
  • Мебель жуугуч курал
  • 2.5 м шланг
  • 1 x 250ml Ultra+ Carpet Cleaning Solution
  • Колдонуучунун Колдонмосу (бул документ)

Жайгашуу

1. Ассамблея

The Vax Rapid Power Pro is designed for easy assembly. Ensure the handle is securely clicked into place. Refer to the diagrams on the packaging for visual guidance if needed.

2. Таза суу куюлган бактын ичин толтуруу

Locate the clean water tank, typically positioned at the top of the unit. The RapidPower Pro features an auto-mix system, simplifying the process of preparing your cleaning solution.

  1. Негизги блоктон таза суу сактагычты алып салыңыз.
  2. Fill the tank with warm tap water up to the indicated "Water Fill" line.
  3. Add the Vax Ultra+ Carpet Cleaning Solution to the designated "Solution Fill" line. The auto-mix system will ensure the correct dilution.
  4. Securely replace the tank cap and re-insert the tank into the unit until it clicks into place.
Filling the clean water tank of the Vax Rapid Power Pro

Image: A hand adjusting the wash/rinse dial on the Vax Rapid Power Pro, with the clear clean water tank visible above.

Иштөө нускамалары

1. Selecting Cleaning Mode

The Vax Rapid Power Pro offers different cleaning modes for varying needs:

  • Тез тазалоо: For lighter cleaning and faster drying times.
  • Терең тазалоо: For heavily soiled areas requiring a more thorough wash.

Rotate the "Clean Mode" dial on the base of the unit to select your desired setting.

Clean Mode dial on Vax Rapid Power Pro

Image: A close-up of a hand turning the "Clean Mode" dial on the carpet cleaner, showing options for "Quick Clean" and "Deep Clean".

2. Carpet Cleaning

Before cleaning, vacuum the area thoroughly to remove loose dirt and debris.

  1. Plug the carpet cleaner into a grounded electrical outlet.
  2. Аспапты күйгүзүү үчүн кубат баскычын басыңыз.
  3. For washing, push the machine forward slowly while pressing the trigger to release cleaning solution.
  4. Release the trigger and pull the machine backward slowly over the same area to extract dirty water. Overlap passes slightly.
  5. Алынган суу таза болуп көрүнгүчө өтүүнү кайталаңыз.
  6. For rinsing, switch the dial to the "Rinse" setting (if available on your model) and repeat steps 3-5 using only water.
Woman operating Vax Rapid Power Pro on carpet

Image: A woman operating the Vax Rapid Power Pro carpet cleaner on a light-colored carpet in a living room.

Vax Rapid Power Pro cleaning a carpet

Image: The Vax Rapid Power Pro carpet cleaner in use, showing the cleaning head on a light carpet.

Dirty water tank filling during carpet cleaning

Image: The Vax Rapid Power Pro carpet cleaner in operation, with the clear dirty water tank visibly collecting brown, soiled water.

3. Using the Upholstery Wash Tool

The included upholstery wash tool and stretch hose allow for cleaning of furniture, stairs, and car interiors.

  1. Attach the stretch hose to the designated port on the main unit.
  2. Connect the upholstery wash tool to the end of the hose.
  3. Ensure the clean water tank is filled with solution.
  4. Press the trigger on the upholstery tool to spray solution onto the fabric, then scrub gently.
  5. Release the trigger and pull the tool over the wet area to extract the dirty water.
  6. Test on an inconspicuous area first to ensure colorfastness.

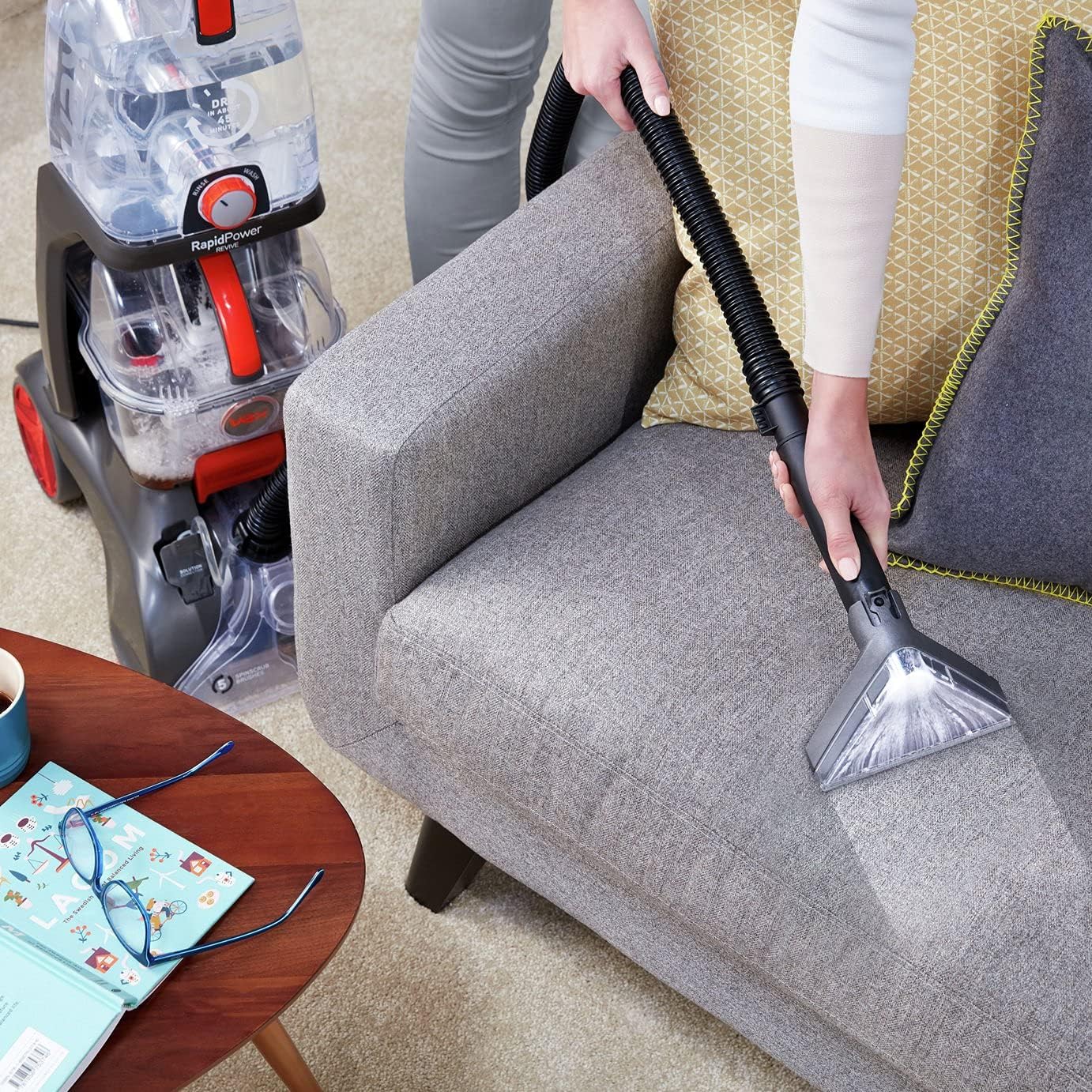

Woman using upholstery tool on a sofa

Image: A woman using the Vax Rapid Power Pro's upholstery tool to clean a grey sofa.

4. Drying Time

The RapidPower Pro is designed to significantly reduce drying times. Carpets can dry in approximately one hour, depending on humidity and airflow.

Vax Rapid Power Pro dries in about one hour

Image: A graphic indicating the Vax Rapid Power Pro dries carpets in about one hour, with the cleaner visible in the background.

Woman inspecting cleaned carpet after using Vax Rapid Power Pro

Image: A woman kneeling to inspect a freshly cleaned carpet, demonstrating the results of using the Vax Rapid Power Pro.

Техникалык тейлөө

1. Emptying and Cleaning Tanks

Ар бир колдонуудан кийин же кир суу куюлган бак толгондо, аны бошотуп, тазалоо керек.

  1. Агрегатты өчүрүп, розеткадан ажыратыңыз.
  2. Кир суу сактагычты алып салыңыз.
  3. Pour out the dirty water into a sink or drain.
  4. Rinse the dirty water tank thoroughly with clean water.
  5. Clean the filter located within the dirty water tank, if applicable.
  6. Allow both tanks to air dry before reassembling or storing the unit.

2. Cleaning Brush Bars

Regularly inspect and clean the SpinScrub brush bars to ensure optimal performance.

  • Агрегатты өчүрүп, розеткадан ажыратыңыз.
  • Access the brush bar area (refer to your unit's specific design for removal instructions).
  • Remove any hair, threads, or debris wrapped around the brush bars.
  • Rinse the brush bars under running water if necessary.
  • Allow to dry completely before reassembling.

3. Сактоо

Store the Vax Rapid Power Pro in a dry, indoor area, away from extreme temperatures. Ensure all tanks are empty and clean before storage.

Проблемаларды чечүү

This section addresses common issues you might encounter. For problems not listed here, contact Vax customer support.

КөйгөйМүмкүн себепЧечим
Түзмөк күйбөйтNot plugged in; power outlet fault; circuit breaker tripped.Ensure plug is fully inserted; test outlet with another appliance; reset circuit breaker.
No solution dispensingClean water tank empty; tank not seated correctly; nozzle clogged.Refill clean water tank; re-seat tank firmly; clean nozzle.
Poor water extractionDirty water tank full; tank not seated correctly; suction path blocked.Empty dirty water tank; re-seat tank firmly; check for blockages in the suction nozzle or hose.
Brush bars not rotatingDebris wrapped around brushes; belt broken.Clean brush bars of debris; contact service for belt replacement.

Техникалык шарттар

  • Модел: ECGLV1B1
  • Бренд: Vax
  • Power/Wattage: 1200 air watts
  • Таза суу резервуарынын сыйымдуулугу: 4.7 литр
  • Кир суу резервуарынын сыйымдуулугу: 4.7 литр
  • Электр шнурунун узундугу: 8m
  • Шлангдын узундугу: 2.5 м
  • Brush Bars: 5 rotating SpinScrub brush bars
  • Салмагы: 8.4 кг
  • Өзгөчөлүктөр: Auto-mix system, Safety cut out indicator when tank is full, Edge to edge cleaning, Sucks up spills, Carry handle.

Кепилдик жана колдоо

The Vax Rapid Power Pro Carpet Cleaner comes with a manufacturer's 2-year guarantee. Please retain your proof of purchase for warranty claims.

For technical support, spare parts, or warranty inquiries, please visit the official Vax website or contact their customer service department. Contact details can typically be found on the Vax webсайтында же продуктунун таңгагында.
