Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Quantum QPCD200 1 Inch VC Die Cast Compression Driver. Please read these instructions carefully before use to ensure optimal performance and longevity of the product. The Quantum QPCD200 is designed for high-fidelity audio applications, offering precise sound reproduction.
Продукт бүттүview
The Quantum QPCD200 is a 1-inch voice coil die-cast compression driver. It is engineered to deliver clear and powerful high-frequency audio. Key features include:
- High-quality die-cast construction for durability and acoustic performance.
- Designed for precise and sophisticated sound reproduction.
- Suitable for various car audio and professional sound applications.

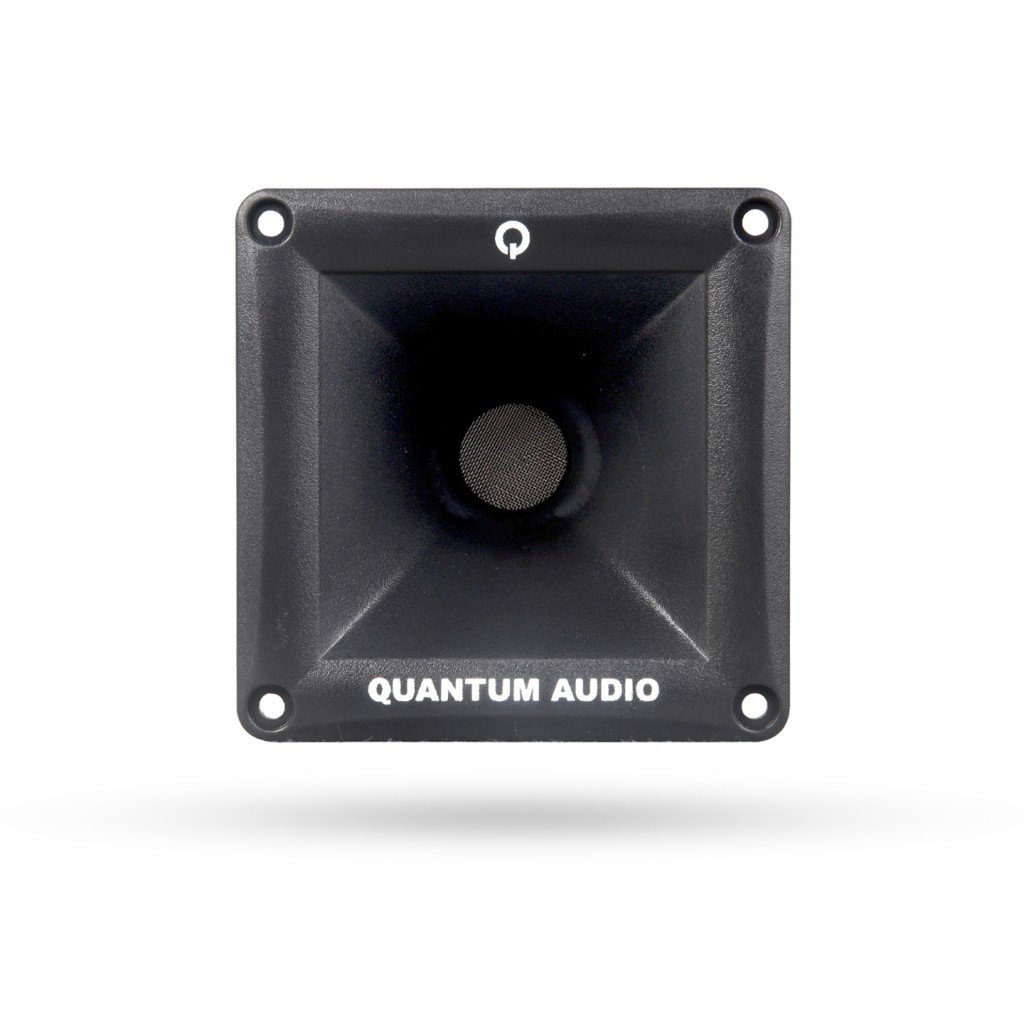

1-сүрөт: Фронт view of the Quantum QPCD200 1 Inch VC Die Cast Compression Driver. This image shows the driver's robust construction and design.
Орнотуу жана орнотуу
Proper installation is crucial for the performance and safety of your compression driver. It is recommended that installation be performed by a qualified professional.
- Биринчи коопсуздук: Кыска туташуулардын же бузулуулардын алдын алуу үчүн ар кандай электр иштерин баштоодон мурун унаанын аккумуляторун сууруп алыңыз.
- Монтаждоо жери: Choose a secure and appropriate mounting location that allows for proper sound dispersion and protects the driver from physical damage and moisture. Ensure there is adequate clearance behind the mounting surface.
- Зымдар: Connect the positive (+) terminal of the compression driver to the positive output of your amplifier or crossover, and the negative (-) terminal to the negative output. Use appropriate gauge wiring for the power requirements. Ensure all connections are secure and insulated to prevent short circuits.
- Crossover Integration: A passive or active crossover network is essential to protect the compression driver from low frequencies and optimize its performance. Refer to your amplifier and crossover manual for proper settings. Do not connect the compression driver directly to a full-range amplifier output without a suitable crossover.
- Сыноо: After installation, reconnect the battery. Start with the amplifier volume at its lowest setting and gradually increase it, listening for clear sound and proper operation.
Иштөө нускамалары
Once installed, the Quantum QPCD200 operates as part of your audio system. Follow these guidelines for optimal performance:
- Үндү көзөмөлдөө: Always adjust the volume gradually. Avoid operating the system at excessively high volumes for extended periods, as this can cause damage to the driver and other audio components.
- Теңдөө: Сиздин колдонуңуз amplifier or head unit's equalizer settings to fine-tune the sound. Avoid extreme boosts in the high-frequency range, which can lead to distortion or damage.
- Системанын шайкештиги: Ensure that the power output of your amplifier matches the power handling capabilities of the QPCD200 to prevent underpowering or overpowering, both of which can cause damage.
Техникалык тейлөө
The Quantum QPCD200 is designed for durability and requires minimal maintenance. However, following these simple steps can help ensure its longevity:
- Тазалоо: Periodically wipe the exterior of the driver with a soft, dry cloth to remove dust. Do not use harsh chemicals, solvents, or abrasive cleaners.
- Текшерүү: Occasionally inspect the wiring connections to ensure they remain secure and free from corrosion.
- Курчап турган чөйрөнү коргоо: While robust, avoid exposing the driver to extreme temperatures, direct moisture, or excessive vibrations.
Проблемаларды чечүү
If you experience issues with your Quantum QPCD200, refer to the following common troubleshooting steps:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| No sound from driver | Бошоң же туура эмес зымдар; amplifier off or in protect mode; faulty crossover setting; damaged driver. | Check all wiring connections; verify amplifier status; review crossover settings; if driver is damaged, professional repair or replacement may be needed. |
| Бурмаланган үн | Volume too high; improper gain settings on amplifier; incorrect crossover frequency; damaged driver. | Reduce volume; adjust amplifier gain settings; verify crossover frequency is appropriate for the driver; inspect driver for physical damage. |
| Үзүлбөгөн үн | Loose connections; intermittent short circuit; ampкөтөрүүчү маселелер. | Check and secure all wiring connections; inspect for frayed wires or exposed conductors; consult amplifier manual for troubleshooting. |
If these steps do not resolve the issue, contact Quantum customer support or a qualified audio technician.
Техникалык шарттар
The following are the technical specifications for the Quantum QPCD200 Compression Driver:
- Бренд: Квант
- Модель аты: QPCD200
- Вуфердин диаметри: 1 дюйм
- Продукт Салмагы: 2 фунт (болжол менен 0.91 кг)
- Камтылган компоненттер: Car Speakers - Coaxials (Note: This refers to the general category, the product itself is a compression driver)
- Элементтердин саны: 1
- Өндүрүүчү: Квант
- UPC/GTIN: 810219020030
Кепилдик жана колдоо
Quantum products are manufactured to high-quality standards. For information regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your purchase or visit the official Quantum website. For technical support, service, or replacement parts, please contact Quantum customer service through their official channels. Keep your purchase receipt as proof of purchase for warranty claims.
