Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Hansgrohe 15310180 RainSelect 2 Outlets Basic Set. Please read these instructions carefully before beginning installation to ensure proper function and safety. This basic set is designed for concealed installation of a RainSelect thermostatic mixer with two outlets, providing a foundation for your shower system.
Коопсуздук маалыматы
- Installation must be carried out by qualified personnel in accordance with local plumbing and building codes.
- Ensure the main water supply is turned off before commencing any installation work.
- Продукцияны үшүктөн сактаңыз.
- Оңдоо үчүн чыныгы Hansgrohe запастык бөлүктөрүн гана колдонуңуз.
- Avoid using abrasive cleaners or solvents on the product surfaces.
Пакеттин мазмуну
Орнотуудан мурун бардык компоненттер бар экендигин текшериңиз:
- Hansgrohe RainSelect Basic Set for 2 Outlets
- Монтаждоо боюнча колдонмо
- Sealing Gaiter

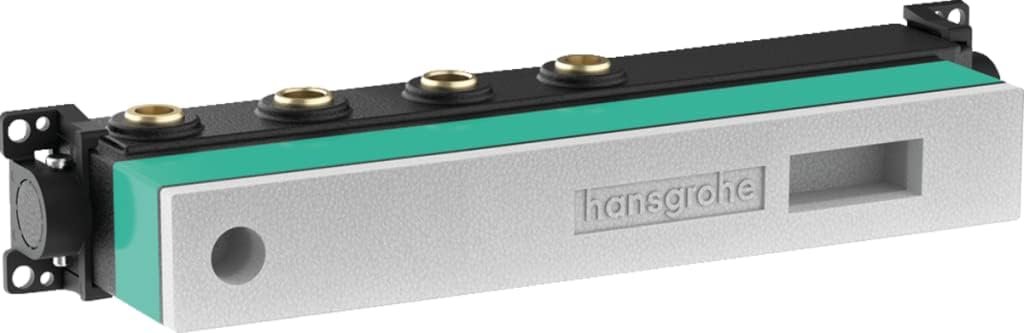

1-сүрөт: The Hansgrohe 15310180 RainSelect 2 Outlets Basic Set. This image displays the main component of the basic set, which is installed concealed within the wall, featuring connection points for water supply and outlets.
Орнотуу жана орнотуу
The Hansgrohe RainSelect Basic Set is designed for concealed installation. Adhere to the following guidelines:
- Жашыруун орнотуу: This basic set is intended for safe concealed installation within the wall.
- Багыты: Install the unit in a horizontal position.
- Орнотуу тереңдиги: The required installation depth is between 87 mm and 122 mm.
- Байланыштары: The connection size is DN15/DN20 with Rp ¾ connection threads. A sealing gaiter is included to ensure watertight connections.
- Суу менен камсыздоо: Ensure hot and cold water lines are correctly identified and connected to the appropriate inlets on the basic set.
- Розетка туташуулары: Connect the two desired shower outlets (e.g., overhead shower, hand shower) to the designated ports.
2-сүрөт: Technical drawing showing the dimensions and connection points of the Hansgrohe RainSelect Basic Set. This diagram provides critical measurements for precise installation within the wall cavity.
3-сүрөт: Installation diagram illustrating the concealed mounting of the basic set and connections to a shower system with two outlets. This visual guide helps in understanding the plumbing layout.
4-сүрөт: Alternative installation diagram for the Hansgrohe RainSelect Basic Set, showing another configuration for connecting to a shower system. This provides additional context for various setup scenarios.
Операция
The Hansgrohe 15310180 RainSelect Basic Set serves as the core component for a RainSelect thermostatic mixer. Once the trim set (sold separately) is installed, the operation will involve:
- Температураны көзөмөлдөө: The thermostatic mixer (not included in this basic set) will allow precise control over water temperature.
- Розетка тандоо: The RainSelect system enables easy switching between the two connected water outlets (e.g., overhead shower, hand shower, bath filler) via intuitive buttons or selectors on the trim set.
- Агымды башкаруу: Adjust water flow as desired through the corresponding controls on the trim set.
Техникалык тейлөө
Proper maintenance ensures the longevity and optimal performance of your Hansgrohe product:
- Тазалоо: Clean the visible parts of the installed system regularly with a soft cloth and a mild, non-abrasive cleaning agent. Avoid cleaners containing alcohol, hydrochloric acid, formic acid, acetic acid, or phosphoric acid.
- Тазалоо: If hard water is an issue, use a descaling agent specifically designed for bathroom fixtures, following the manufacturer's instructions.
- Текшерүү: Periodically check for any leaks or unusual operation. Address any issues promptly.
Проблемаларды чечүү
Should you encounter issues, consider the following common solutions:
- Суу агымынын кыскарышы: Check for blockages in the water supply lines or aerators (if applicable to the trim set). Ensure stopcocks are fully open.
- Температуранын өзгөрүшү: Verify that hot and cold water supplies are stable. If using a thermostatic mixer, ensure it is correctly calibrated.
- Агышуулар: Turn off the main water supply immediately. Check all connections for proper sealing. If a sealing gaiter is damaged, replace it.
- No Water from an Outlet: Ensure the outlet selection mechanism on the trim set is functioning correctly and not stuck.
For persistent problems, contact a qualified plumber or Hansgrohe customer support.
Техникалык шарттар
| Бренд: | hansgrohe |
| Модель аты: | Hansgrohe RainSelect Basic Set for 2 Outlets |
| Бөлүмдүн номери: | 15310180 |
| Сунушталган колдонуулар: | Ванна |
| Монтаж түрү: | Wall Mount (Concealed) |
| Бүткөн түрү: | Polished (for visible components, basic set is concealed) |
| Материал: | Жез |
| туткалардын саны: | 2 (referring to outlets, not physical handles on basic set) |
| Камтылган компоненттер: | Assembly instruction, basic set, seal |
| Орнотуу тереңдиги: | 87-122 мм |
| Туташуу өлчөмү: | DN15/DN20, Rp ¾ thread |
| Элемент Салмагы: | 4.72 килограмм (10.38 фунт) |
| Продукциянын өлчөмдөрү: | 5.2 x 19.84 x 3.23 дюйм |
| Өзгөчө өзгөчөлүгү: | Sound insulation (reduces water sound) |
Кепилдик жана колдоо
Кепилдик: This Hansgrohe product comes with a 5-year warranty, covering manufacturing defects and material faults. Please retain your proof of purchase for warranty claims.
Колдоо: For technical assistance, spare parts, or warranty inquiries, please visit the official Hansgrohe webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз. Байланыш маалыматын адатта Hansgroheден тапса болот webсайтында же сатып алуу документтеринде.
Көбүрөөк маалымат жана колдоо таба аласыз Amazonдагы Hansgrohe дүкөнү.
