Introduction
Thank you for choosing the ClearClick Retro AM/FM Radio with Bluetooth. This classic wooden vintage-style speaker combines nostalgic aesthetics with modern functionality, allowing you to enjoy both traditional radio broadcasts and contemporary digital audio. This manual provides essential information for setting up, operating, and maintaining your new radio.
Продукт бүттүview

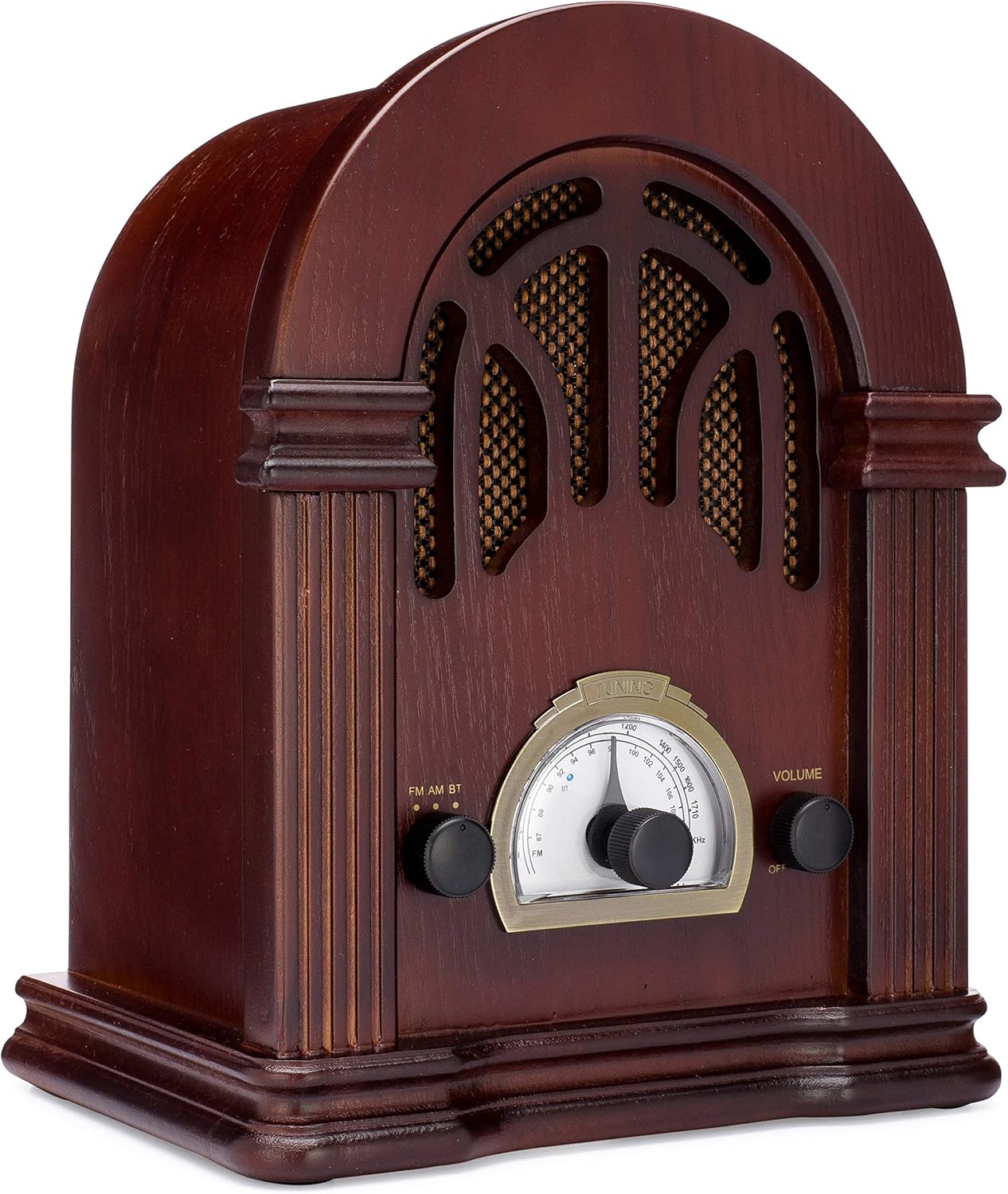

Сүрөт 1: Алдыңкы view of the ClearClick Retro AM/FM Radio, showcasing its classic wooden design and central tuning dial.
Figure 2: Close-up of the tuning dial and control knobs for FM/AM/BT selection and volume.
The ClearClick Retro Radio features a beautiful, handmade wooden exterior, an easy-to-use tuning dial, and dedicated knobs for mode selection and volume control. It is designed to be powered by a standard North American power plug.
Жайгашуу
- Пакеттен чыгаруу: Carefully remove the radio from its packaging. Ensure all components, including the power cord, are present.
- Жайгашкан жери: Place the radio on a stable, flat surface away from direct sunlight, heat sources, and excessive moisture.
- Кубат туташуу: Insert the included power cord into the AC input on the back of the radio. Plug the other end into a standard North American wall outlet (120V AC, 60Hz).
- Антеннаны орнотуу: For optimal FM reception, extend the built-in wire antenna fully. For AM reception, the radio utilizes an internal antenna; repositioning the radio may improve signal strength.
Иштөө нускамалары
Кубатты күйгүзүү / өчүрүү жана үнүн көзөмөлдөө
- To power on the radio, rotate the right-side VOLUME knob clockwise until you hear a click.
- Үндү тууралоо үчүн бургулоону улантыңыз VOLUME баскыч.
- To power off, rotate the VOLUME баскычын сааттын жебесине каршы чыкылдаган үн чыкканга чейин басыңыз.
AM/FM радиосу
- Rotate the left-side FM AM BT knob to select either FM or AM режими.
- Turn the central TUNING knob to scan for radio stations. The tuning backlight will illuminate in AM/FM mode.
- тууралаңыз TUNING knob carefully for clear reception.
Bluetooth операциясы
- Rotate the left-side FM AM BT тандоо үчүн баскыч BT mode. The radio will enter Bluetooth pairing mode, indicated by a blue LED.
- On your Bluetooth-enabled device (e.g., smartphone, tablet), search for available Bluetooth devices.
- Select "Vintage Radio" or "ClearClick Radio" from the list to pair.
- Once paired, the blue LED will remain solid, and you can play audio from your device through the radio.
- The radio's tuning backlight stays on even in Bluetooth mode (NEW 2019 feature).
Техникалык тейлөө
- Тазалоо: Use a soft, dry cloth to wipe the exterior of the radio. Do not use abrasive cleaners or solvents, as they may damage the wooden finish.
- Сактагыч: When not in use for extended periods, store the radio in a cool, dry place, away from extreme temperatures and humidity.
- Вентиляция: Ensure the radio has adequate ventilation to prevent overheating. Do not block the ventilation holes on the back.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Күч жок | Электр зымы туташкан эмес; розетка активдүү эмес. | Ensure power cord is securely plugged into the radio and a working wall outlet. Check if the volume knob is turned on. |
| Радио кабыл алуу начар | Алсыз сигнал; антенна узартылган эмес. | Fully extend the FM wire antenna. For AM, try repositioning the radio. Adjust the tuning knob slowly. |
| Bluetooth туташпай жатат | Radio not in BT mode; device too far; device already paired. | Ensure radio is in BT mode. Move your device closer to the radio. Unpair "Vintage Radio" from your device's Bluetooth settings and try pairing again. |
| Bluetoothдон үн жок | Volume too low on radio or device. | Increase volume on both the radio and your connected Bluetooth device. |
Техникалык шарттар
- Продукциянын өлчөмдөрү: 10.5" (бийиктиги) x 8" (туурасы) x 6" (туурасы)
- Элемент Салмагы: 4.74 фунт
- Байланыш технологиясы: Bluetooth
- Тюнер технологиясы: AM, FM (2-Band)
- Кубат булагы: Corded Electric (Standard North American Power Plug)
- Камтылган компоненттер: Электр кабели
- Сууга туруктуулук деңгээли: Сууга чыдамдуу эмес
- Дисплей технологиясы: LCD (for tuning dial backlight)
3-сүрөт: Каптал view illustrating the dimensions of the radio.
Кепилдик жана колдоо
The ClearClick Retro AM/FM Radio with Bluetooth comes with a Толук 5 жылдык кепилдик. ClearClick is a USA-Based Small Business committed to providing excellent customer support.
For warranty claims or technical assistance, please refer to the contact information provided with your product packaging or visit the official ClearClick webсайт. Кепилдикти текшерүү үчүн сатып алуу дүмүрчөгүңүздү сактаңыз.
Маанилүү коопсуздук маалыматы
Please read and follow all safety instructions provided in the original product packaging. Do not expose the unit to rain or moisture. Do not disassemble the unit; refer all servicing to qualified personnel. Ensure proper ventilation to prevent overheating.
