1. Киришүү
This manual provides essential information for the safe operation, maintenance, and troubleshooting of your Craftsman Model 315.220100 Radial Arm Saw. Please read this manual thoroughly before operating the saw to ensure proper use and to prevent injury or damage. Keep this manual for future reference.

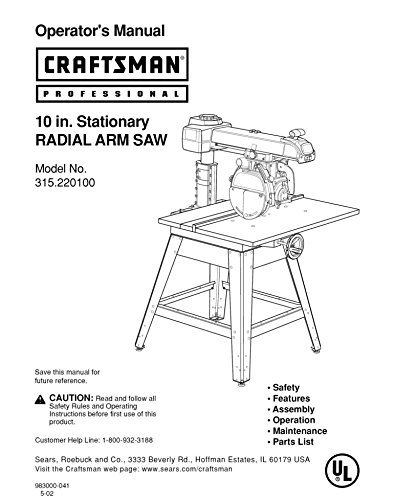

1.1-сүрөт: Cover of the Craftsman 315.220100 Radial Arm Saw Instruction Manual Reprint. This image displays the front cover of the physical instruction manual reprint, which contains important information regarding the saw's operation and maintenance.
2. Коопсуздук нускамалары
Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury when operating power tools. This section outlines critical safety guidelines specific to radial arm saws.
- Колдонмону окуу: Understand all instructions and warnings before operating the saw.
- Көздү коргоону кийүү: Always wear safety goggles or a face shield.
- Угууну коргоону колдонуңуз: Узакка созулган ызы-чуу угууга зыян келтириши мүмкүн.
- Сакчыларды ордунда кармоо: Never operate the saw without all guards properly installed.
- Таза иш аянтын сактоо: Башаламан жерлер кырсыкка чакырат.
- Ашыкча жетпе: Ар дайым туура бутту жана тең салмактуулукту сактаңыз.
- Коопсуз жумуш бөлүгү: Ар дайым clamp or hold the workpiece firmly against the fence.
- Кайрадан качуу: Ensure the blade is sharp and the workpiece is properly supported.
- Кубатты өчүрүү: Жөндөөлөрдү жасоодон, бычактарды алмаштыруудан же техникалык тейлөө жүргүзүүдөн мурун ар дайым арааны сууруп алыңыз.
3. Орнотуу
Proper setup is crucial for safe and accurate operation of your radial arm saw.
3.1 Таңгактан чыгаруу жана текшерүү
- Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз.
- Inspect for any shipping damage. If damage is found, contact your retailer immediately.
- Таңгактоо тизмесинде көрсөтүлгөн бардык бөлүктөрдүн бар экенин текшериңиз.
3.2 Арааны орнотуу
Mount the radial arm saw securely to a sturdy workbench or stand using appropriate hardware. Ensure the mounting surface is level and capable of supporting the saw's weight and operational forces.
3.3 Чачты орнотуу
- Араны кубат булагынан ажыратыңыз.
- Raise the saw arm and lock it in the up position.
- Бычактын коргоочусун алып салыңыз.
- Use the provided wrench to loosen the arbor nut and remove the old blade (if applicable).
- Install the new blade, ensuring the teeth are pointing in the correct direction for cutting.
- Арбор гайкасын бекем бекитиңиз.
- Reinstall the blade guard.
4. Иштөө нускамалары
Familiarize yourself with the controls and functions before beginning any cutting operations.
4.1 Күйгүзүү/өчүрүү
- To turn on, press the green 'ON' button.
- To turn off, press the red 'OFF' button.
4.2 Basic Crosscutting
- Position the workpiece firmly against the fence.
- Adjust the saw arm to the desired cutting position.
- Арааны күйгүзүп, бычакты толук ылдамдыкка жеткириңиз.
- Slowly pull the saw carriage forward through the workpiece.
- Once the cut is complete, push the saw carriage back to its resting position.
- Арааны өчүрүңүз.
4.3 Angle and Bevel Adjustments
The radial arm saw allows for various angle and bevel cuts. Refer to the specific adjustment knobs and levers on your saw for precise settings. Always ensure adjustments are locked securely before operating.
5. Техникалык тейлөө
Regular maintenance ensures the longevity and safe operation of your radial arm saw.
5.1 Тазалоо
- Тазалоодон мурун электрди өчүрүңүз.
- Remove sawdust and debris from the motor vents, table, and arm assembly using a brush or vacuum.
- Clean the saw blade regularly to remove pitch and resin buildup.
5.2 Майлоо
Apply a light coat of machine oil to moving parts, such as the carriage bearings and arm pivot points, as recommended in the original manufacturer's guidelines (typically every 6 months or as needed).
5.3 Бычакты курчутуу/алмаштыруу
A dull blade can cause kickback and poor cuts. Sharpen or replace the blade when it becomes dull or damaged. Always use blades appropriate for your saw's specifications.
6. Кыйынчылыктарды
This section addresses common issues you might encounter with your radial arm saw.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Сау башталбайт | No power; tripped circuit breaker; faulty switch | Check power connection; reset breaker; contact service |
| Начар кесүү сапаты (орой, майдаланган) | Dull blade; incorrect blade type; improper feed rate | Sharpen/replace blade; use appropriate blade; adjust feed rate |
| Ашыкча термелүү | Loose mounting; unbalanced blade; worn bearings | Tighten mounting bolts; replace blade; inspect bearings |
| Араа байлап же артка тепкилейт | Dull blade; improper workpiece support; forcing cut | Sharpen/replace blade; ensure proper support; reduce feed pressure |
7. Техникалык шарттар
The following are general specifications for the Craftsman 315.220100 Radial Arm Saw. Actual specifications may vary slightly based on manufacturing revisions.
- Модел: 315.220100
- Мотор: Universal, 120V AC, 60 Hz (typical)
- Бычактын диаметри: 10 inches (typical)
- Арбордун көлөмү: 5/8 inch (typical)
- Crosscut Capacity: Approximately 15-1/2 inches at 90 degrees (typical)
- Rip сыйымдуулугу: Approximately 24 inches (typical)
- Салмагы: Approximately 150-200 lbs (typical, varies by model year)
8. Кепилдик жана колдоо
For specific warranty information, please refer to the original purchase documentation or contact Craftsman customer service. Typically, Craftsman power tools come with a limited warranty covering defects in materials and workmanship.
For technical support, replacement parts, or service inquiries, please visit the official Craftsman website or contact their customer service department. When contacting support, have your model number (315.220100) and serial number ready.
Craftsman Official Webсайт: www.craftsman.com
