Introduction
Thank you for choosing the Altec Lansing ALP-L2200PK Lightning Series Speaker. This powerful Bluetooth speaker is designed for both indoor and outdoor use, featuring a robust audio system, dynamic party lights, and a built-in media player. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your speaker to ensure optimal performance and longevity.
Сүрөт 1: Алдыңкы view of the ALP-L2200PK speaker, showcasing the main woofer and integrated party lights.
Продукт өзгөчөлүктөрү
- Өтө көчмө дизайн: Equipped with a built-in trolley handle and wheels for easy transport.
- Жогорку кубаттуулугу: Features 2,200 watts peak power with a 15-inch high excursion woofer and a 3.5-inch horn tweeter.
- Ар тараптуу байланыш: Supports Bluetooth streaming with a range of up to 100 feet, USB and SD card media playback, FM radio, XLR, RCA, and AUX inputs.
- Dynamic Party Lights: User-controlled multi-color light show with 5 built-in modes to enhance your audio experience.
- Стерео жупташуу: Ability to wirelessly pair with a second Lightning speaker for an immersive stereo sound experience.
- Камтылган аксессуарлар: Comes with a microphone and speaker stand.
Орнотуу колдонмосу
1. таңгактан чыгаруу
Carefully remove the speaker and all accessories from the packaging. Retain the packaging for future transport or storage.
2. Физикалык жайгаштыруу
- Place the speaker on a stable, flat surface. For optimal sound dispersion, consider using the included speaker stand.
- Ensure adequate ventilation around the speaker to prevent overheating.
- The speaker is designed for both indoor and outdoor use, but it is not waterproof. Avoid exposure to rain or excessive moisture.
3. Power Connection
Connect the power cable to the AC input on the rear panel of the speaker and then to a standard electrical outlet.

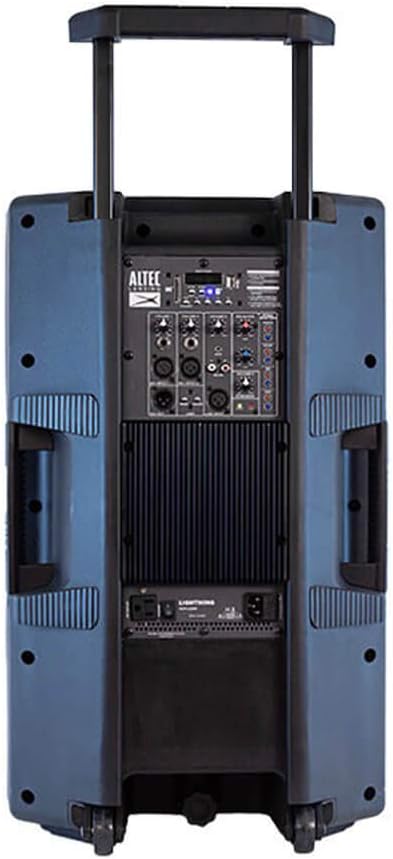

Figure 2: Rear panel of the ALP-L2200PK, illustrating the various input and output connections.
4. Баштапкы күйгүзүү
Locate the power switch on the rear panel and turn the speaker ON. The display will illuminate, indicating the speaker is ready for operation.
Иштөө нускамалары
1. Bluetooth Жупташтыруу
- Ensure the speaker is powered on and in Bluetooth mode (usually indicated on the display).
- Мобилдик түзмөгүңүздө (смартфон, планшет, ноутбук) Bluetooth иштетиңиз жана жеткиликтүү түзмөктөрдү издеңиз.
- Select "ALP-L2200PK" from the list of devices. Once connected, a confirmation sound may play.
2. Media Player (USB/SD Card)
Insert a USB drive or SD card containing audio files into the respective slot on the control panel. The speaker will automatically detect the media and begin playback. Use the control panel buttons to navigate tracks and adjust volume.
3. FM радиосу
Switch to FM radio mode using the mode button on the control panel. Use the tuning controls to scan for and select radio stations.
4. Wired Audio Inputs (XLR, RCA, AUX)
- XLR киргизүү: For professional audio equipment like microphones or mixers.
- RCA киргизүү: For connecting devices with RCA outputs (e.g., DVD players, older audio equipment).
- AUX киргизүү: For connecting devices with a 3.5mm audio jack (e.g., smartphones, MP3 players).
Connect your audio source to the appropriate input on the rear panel. Select the corresponding input mode on the speaker's control panel.
5. Stereo Pairing (BT-LINK)
To create a wireless stereo pair with another Altec Lansing Lightning Series speaker (e.g., GSP-L2200PK), ensure both speakers are powered on and in Bluetooth mode. Follow the BT-LINK instructions provided with your second speaker to establish the connection. Once paired, audio will play in stereo across both units.
6. Кече чырактарын башкаруу
Use the dedicated light control buttons on the speaker's panel to cycle through the 5 built-in light modes, adjust colors, or turn the lights off. The lights can pulse with the beat of the music or maintain a steady glow.
7. Микрофонду колдонуу
Connect the included microphone to the designated microphone input on the rear panel. Adjust the microphone volume using the dedicated control.
Техникалык тейлөө
- Тазалоо: Динамиктин сыртын тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз. Абразивдүү тазалагычтарды, момдорду же эриткичтерди колдонбоңуз.
- Сактагыч: Узак мөөнөткө колдонулбаганда, динамикти салкын, кургак жерде, тике күн нурунан жана экстремалдык температурадан алыс сактаңыз.
- Вентиляция: Ensure the speaker's vents are not blocked during operation to prevent overheating.
- Электр кабели: Электр шнурунун бузулушуна дайыма текшерип туруңуз. Эгерде бузулса, колдонууну токтотуп, кардарларды колдоо кызматына кайрылыңыз.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Күч жок | Power cable not connected; Power switch off; Blown fuse; Power outlet issue. | Ensure power cable is securely connected. Turn power switch ON. Check the fuse (refer to specifications for type). Test the power outlet with another device. |
| Үн жок | Volume too low; Incorrect input mode selected; Audio source issue; Damaged speaker component. | Increase master volume and input volume. Select the correct input mode (Bluetooth, AUX, USB, etc.). Verify audio source is playing. If only tweeter works and subwoofer does not, contact customer support. |
| Bluetooth жупташуу катасы | Speaker not in pairing mode; Device too far; Interference; Device's Bluetooth off. | Ensure speaker is in Bluetooth pairing mode. Move device closer to speaker. Avoid strong electromagnetic interference. Turn Bluetooth on/off on your device. |
| Кеченин жарыктары иштебейт | Lights turned off; Mode selected does not show lights. | Press the light control button to cycle through modes or turn lights on. |
| Динамиктин ысып кетиши | Blocked ventilation; Prolonged high volume use. | Ensure vents are clear. Reduce volume and allow speaker to cool down. If issue persists, discontinue use and contact customer support. |
Техникалык шарттар
Figure 3: Dimensions of the ALP-L2200PK speaker.
| Өзгөчөлүк | Деталь |
|---|---|
| Модель аты | ALP-L2200PK |
| Бренд | Altec Lansing |
| Динамик түрү | Woofer (15 Inches), Horn Tweeter (3.5 Inches) |
| Эң жогорку кубаттуулук | 2200 Ватт |
| Байланыш технологиясы | Bluetooth, USB, SD Card, XLR, RCA, AUX |
| Bluetooth диапазону | 100 фут чейин |
| Аудио чыгаруу режими | Stereo (with BT-LINK pairing) |
| Өлчөмдөрү (L x W x Y) | 36D x 43W x 71H сантиметр (14.17D x 16.93W x 27.95H дюйм) |
| Элемент Салмагы | 20 кг (44.09 фунт) |
| Материал | ABS |
| Түс | Blue (referring to woofer color) |
| Камтылган компоненттер | Speaker, Microphone, Speaker Stand |
| Сунушталган колдонуу | Ички, сырткы |
| Суу өткөрбөйт | Жок |
Кепилдик жана колдоо
Кепилдик боюнча толук маалымат алуу үчүн, өнүмүңүз менен кошо берилген кепилдик картасын караңыз же расмий Altec Lansing дүкөнүнө баш багыңыз. webсайт.
If you encounter any issues not covered in the troubleshooting section or require further assistance, please contact Altec Lansing customer support. Contact details can typically be found on the product packaging or the official brand webсайт.
Altec Lansing расмий сайты Webсайт: https://alteclansing.com/
