This manual provides detailed instructions for the installation, operation, and maintenance of your Alla Lighting H8 H11 LED Bulbs. These bulbs are designed as a high-performance replacement for stock fog light lamps or daytime running lights (DRL) in cars and trucks, offering enhanced brightness and a distinct 8000K ice blue light.
Each H8 H11 LED bulb is equipped with 36 high-power 3030 SMD LED chips, delivering approximately 1500 lumens per bulb, totaling 3000 lumens for the pair. They operate within a 12V-18VDC range and feature advanced bright LED circuitry technology. The bulbs are designed for plug-and-play installation in most vehicles and are IP67 waterproof. Please note that for some European vehicles with a CAN-Bus system, additional LED resistors may be required to prevent error codes or flickering.
Figure 1: Alla Lighting H8 H11 LED Bulbs, packaged as a set of two.
Негизги өзгөчөлүктөрү
- Жогорку жарыктык: Equipped with 36pcs high power 3030 SMD LED chips per bulb, providing approximately 1500 lumens each, for a total of 3000 lumens per pair.
- Оңой орнотуу: Designed for plug-n-play setup in most vehicles.
- Суу өткөрбөйт рейтинги: IP67 ар кандай аба ырайынын шарттарында ишенимдүү иштөө үчүн бааланган.
- Түс температурасы: Produces an 8000K ice blue light.
- Тtage Шайкештик: Operates on 12V~18VDC.
- Колдонмо: Suitable for upgrading fog lights or daytime running lights (DRL) for improved visibility and aesthetic appeal.
- Кайчылаш шилтеме: Compatible with H11, H8, H16, H11LL, H8LL, and similar bulb types.
Figure 2: Visual comparison demonstrating the difference in light output and color between standard OEM incandescent bulbs and Alla Lighting LED bulbs.
Техникалык шарттар
| Спецификация | Нарк |
|---|---|
| Бренд | All Lighting |
| Модель номери | Alla-H11-3030-36IB-Ice-Blue |
| Продукт үчүн атайын колдонуу | Front Fog Lights only |
| Жарыктык | 3000 Lumen (total for 2 bulbs) |
| Элементтин пакетинин саны | 2 |
| Түс | 8000K Ice Blue |
| Operating Life | 30000 саат |
| Иштөө күчү | 8.0W/bulb |
| Working Voltage | 12V~18VDC |
| Суу өткөрбөйт рейтинги | IP67 |
| Элемент Салмагы | 2.08 унция |
| Продукциянын өлчөмдөрү | 2.4 x 0.8 x 1.6 дюйм |
| Келип чыккан өлкө | Кытай |

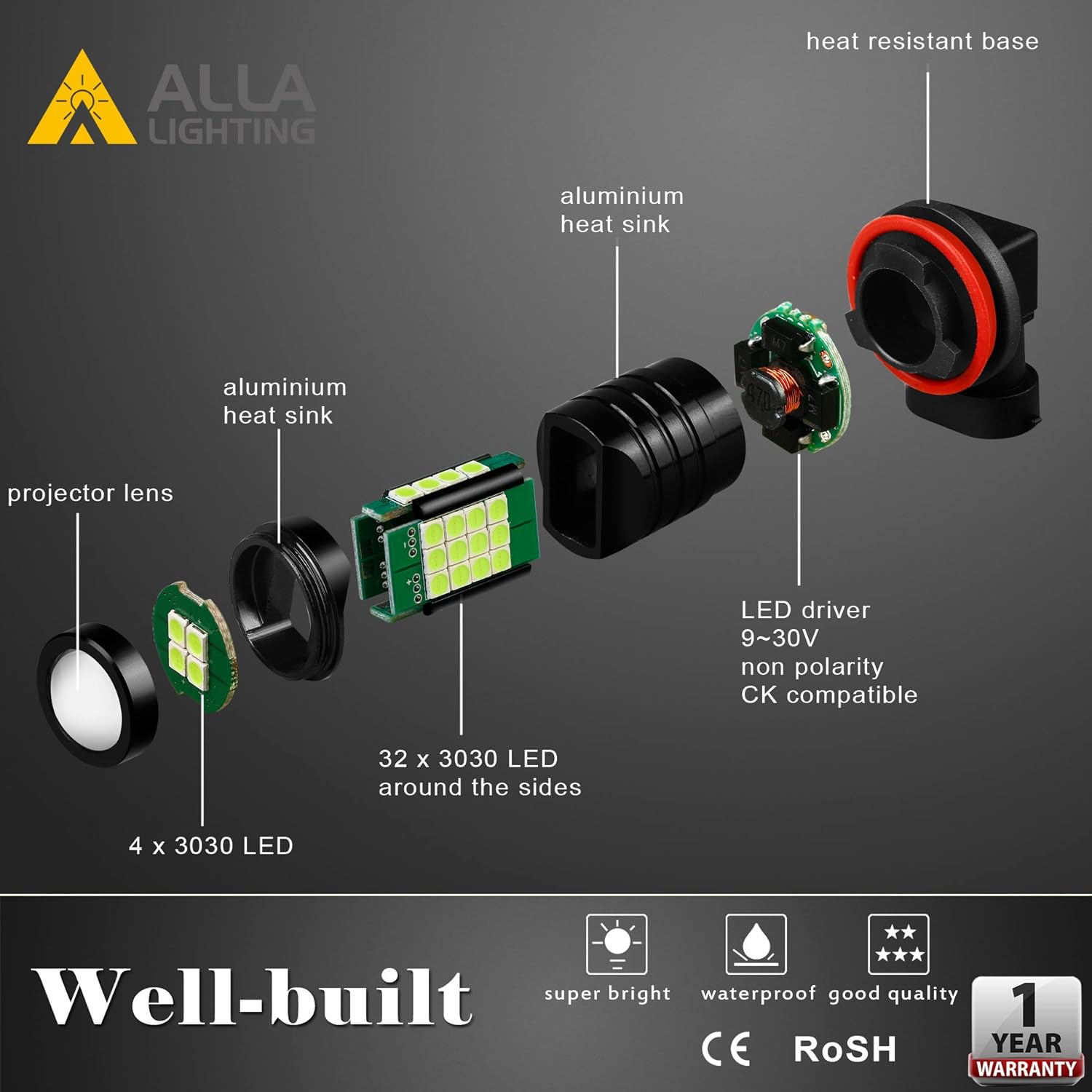

Figure 3: Detailed breakdown of the LED bulb's internal components, including the aluminum heat sink, LED driver, and 3030 SMD chips.
Орнотуу & Орнотуу
The Alla Lighting H8 H11 LED Bulbs are designed for a straightforward plug-and-play installation. Follow these steps for proper setup:
- Унааны даярдоо: Turn your vehicle's wheel inwards to gain better access to the fog light housing.
- Учурдагы лампочканы алып салуу:
- Locate the fog light bulb housing.
- Turn the bulb counter-clockwise to unlock it from the housing.
- Push down the locking tab on the wire connector and unplug the wire connector from the old bulb.
- Жаңы LED лампасын орнотуу:
- Plug the vehicle's wire connector into the new Alla Lighting LED bulb. Ensure it clicks securely into place.
- Line up the locking tabs on the LED bulb with the slots in the fog light housing.
- Insert the LED bulb into the housing and turn it clockwise to lock it securely in place.
- Сыноо функциясы: Жаңы LED лампалары туура иштеп жатканын текшерүү үчүн унааңыздын туманга каршы фараларын күйгүзүңүз.
- Башка тарап үчүн кайталаңыз: Perform the same steps for the other fog light bulb.
Note: For some European vehicles equipped with a CAN-Bus system, an extra LED resistor (load resistor) may be necessary to prevent hyper-flashing, flickering, or error messages on the dashboard. This is not a defect of the bulb but a characteristic of the vehicle's electrical system.
Video 1: An official Alla Lighting video demonstrating the installation process for replacing a stock halogen fog lamp with an Alla Lighting LED bulb.
Иштөө нускамалары
Once installed, the Alla Lighting H8 H11 LED Bulbs operate like your vehicle's standard fog lights or daytime running lights. Simply use your vehicle's existing light controls to turn them on or off.
- Туманга каршы жарыктар: Activate your vehicle's fog light switch to illuminate the LED bulbs. These are designed to provide enhanced visibility in foggy, rainy, or snowy conditions.
- Күндүзгү жарыктар (DRL): If used as DRLs, the bulbs will illuminate automatically when the vehicle is running, depending on your vehicle's DRL system configuration.
The 8000K ice blue color provides a modern and distinct appearance. These bulbs are not intended for use as high or low beam headlights as they do not provide a beam function suitable for primary illumination.
Video 2: An official Alla Lighting video showcasing the super bright 8000K ice blue LED fog lights in operation on a vehicle.
Техникалык тейлөө
Alla Lighting LED bulbs are designed for long-lasting performance with minimal maintenance. To ensure optimal light output and longevity:
- үзгүлтүксүз тазалоо: Periodically clean the exterior of your vehicle's fog light lenses to remove dirt, dust, or road grime that may obstruct light output. Use a soft cloth and a mild cleaning solution.
- Байланыштарды текшерүү: Occasionally check the electrical connections to the bulbs to ensure they remain secure and free from corrosion.
- Катуу химиялык заттардан алыс болуңуз: Do not use abrasive cleaners or solvents on the bulbs or lenses, as this can damage the materials.
Given their solid-state design, LED bulbs typically do not require bulb replacement like traditional halogen bulbs.
Проблемаларды чечүү
If you encounter issues with your Alla Lighting H8 H11 LED Bulbs, consider the following common troubleshooting steps:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Bulbs are flickering or hyper-flashing. | CAN-Bus system incompatibility in some European vehicles. | Install additional LED load resistors (sold separately) to resolve CAN-Bus related issues. |
| Dashboard error message (e.g., "bulb out"). | CAN-Bus system detecting lower power draw from LED bulbs. | Install additional LED load resistors (sold separately) to simulate the power draw of original halogen bulbs. |
| Bulb not lighting up. | Loose connection, incorrect installation, or faulty bulb/vehicle wiring. | Check all connections to ensure they are secure. Re-install the bulb, ensuring it is properly seated and locked. Verify vehicle's fuse for the fog lights. If issues persist, contact support. |
If these steps do not resolve the issue, please contact Alla Lighting customer support for further assistance.
Кепилдик жана колдоо
Alla Lighting H8 H11 LED Bulbs come with a one-year manufacturer defect warranty сатып алынган күндөн тартып. Бул кепилдик нормалдуу колдонуудагы материалдардагы жана жасалгадагы кемчиликтерди камтыйт.
For warranty claims, technical support, or any product-related inquiries, please contact Alla Lighting customer service. You can find more information and contact details by visiting the official Alla Lighting store:
