1. Продукт бүтүп калдыview
The JBL Multi System 69QD9TA is a pair of 6x9 inch quadriaxial car speakers designed for high-performance audio reproduction across the full audio spectrum. These speakers are engineered for durability and are suitable for installation in original vehicle speaker locations.
Негизги өзгөчөлүктөр төмөнкүлөрдү камтыйт:
- Quadriaxial design for comprehensive frequency reproduction.
- High performance and durability.
- Optimized for installation in standard 6x9 inch vehicle openings.
- Номиналдуу Импеданс: 4 Ом.
Image 1.1: A pair of JBL Multi System 69QD9TA 6x9 inch car speakers, showcasing their design and grille. These speakers are designed for full-range audio reproduction in vehicles.
2. Пакеттин мазмуну
Пакетте бардык буюмдар бар экенин текшериңиз:
- 1 x Pair of JBL Multi System 69QD9TA 6x9 inch speakers
- 1 x Warranty Leaflet
3. Орнотуу жана орнотуу
Proper installation is crucial for optimal performance and safety. If you are unsure about any step, it is recommended to seek professional assistance.
- Биринчи коопсуздук: Disconnect the vehicle's battery before beginning any electrical work to prevent short circuits and electrical hazards.
- Динамиктин жайгашкан жери: Identify the designated 6x9 inch speaker locations in your vehicle. These are typically in the rear deck or door panels.
- Бар болгон динамиктерди алып салуу: Carefully remove any existing speakers or grilles. This may involve unscrewing fasteners and disconnecting wiring.
- Спикерлерди орнотуу:
Сүрөт 3.1: Алдыңкы view of a single JBL 69QD9TA speaker, showing the cone and tweeter arrangement. This view is important for understanding the speaker's orientation during installation.
Place the JBL 69QD9TA speakers into the openings. Ensure they fit securely. Use the provided screws or appropriate fasteners to mount the speakers firmly. Avoid overtightening, which can damage the speaker frame.
- Зымдарды туташтыруу:

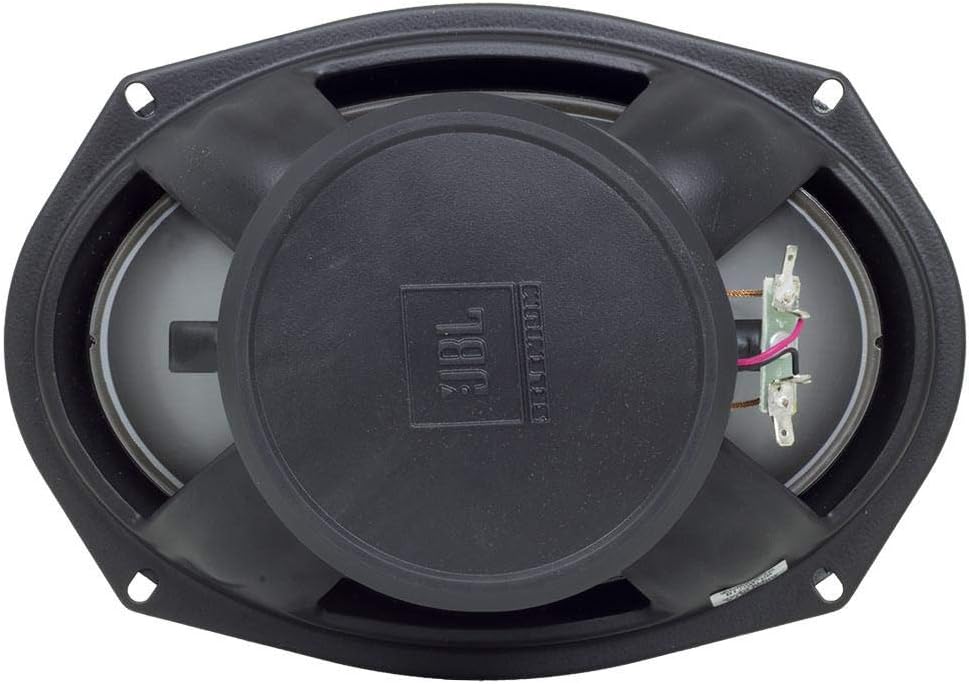

Сүрөт 3.2: Арткы view of a JBL 69QD9TA speaker, highlighting the magnet structure and wiring terminals. Proper connection to these terminals is essential for speaker function.
Connect the speaker wires from your vehicle's audio system to the terminals on the back of the JBL speakers. Ensure correct polarity: positive (+) to positive and negative (-) to negative. Incorrect polarity can lead to poor sound quality.
- Системаны сыноо: Before reassembling interior panels, reconnect the vehicle's battery and test the audio system to ensure both speakers are functioning correctly and producing clear sound.
- Кайра чогултуу: Once confirmed, carefully reassemble any removed interior panels or grilles.
4. Иштөө нускамалары
The JBL Multi System 69QD9TA speakers are passive components and operate in conjunction with your vehicle's head unit or external amplifier. No direct user operation is required for the speakers themselves.
- Аудио булагы: Select your desired audio source (radio, CD, Bluetooth, etc.) from your car's head unit.
- Үндү көзөмөлдөө: Adjust the volume to a comfortable listening level. Avoid excessively high volumes for prolonged periods to prevent speaker damage and hearing loss.
- Тон көзөмөлү: Use your head unit's equalizer or tone controls (bass, treble, balance, fader) to fine-tune the sound to your preference.
5. Техникалык тейлөө
To ensure the longevity and optimal performance of your JBL speakers, follow these simple maintenance guidelines:
- Тазалоо: Чаңды кетирүү үчүн динамиктин торчолорун жана айланасын жумшак, кургак чүпүрөк менен акырын сүртүңүз. Катуу химиялык заттарды же абразивдүү тазалоочу каражаттарды колдонуудан алыс болуңуз.
- Коргоо: Ensure the speakers are protected from direct exposure to water, extreme temperatures, and direct sunlight, which can degrade materials over time.
- Текшерүү: Periodically check the speaker mounts and wiring connections to ensure they remain secure.
6. Кыйынчылыктарды
If you encounter issues with your JBL 69QD9TA speakers, consider the following common troubleshooting steps:
- Динамиктерден үн жок:
- Check all wiring connections for looseness or incorrect polarity.
- Verify that the car's head unit is powered on and functioning.
- Ensure the fader/balance settings on your head unit are correctly adjusted.
- текшерүү amplifier (if used) for power and proper connections.
- Бурмаланган үн:
- Reduce the volume level on your head unit.
- Check for loose speaker mounts or vibrations.
- Динамик конустарын кандайдыр бир физикалык зыянга учурагандыгын текшериңиз.
- камсыз кылуу amplifier gain (if used) is not set too high.
- Бир динамик иштебей жатат:
- Check the wiring connection for that specific speaker.
- Adjust the balance control on your head unit.
- Swap the non-working speaker with a working one (if possible and safe) to determine if the issue is with the speaker or the wiring/head unit.
If these steps do not resolve the issue, contact JBL customer support or a qualified car audio technician.
7. Техникалык шарттар
Detailed technical specifications for the JBL Multi System 69QD9TA speakers:
| Өзгөчөлүк | Спецификация |
|---|---|
| Модель аты | 69QD9TA |
| Динамик түрү | Quadriaxial |
| Динамик өлчөмү | 6x9 inches (9 inches) |
| Номиналдуу импеданс | 4 Ом |
| Чыгуу күчү (RMS) | 200 Watts (Total for pair, 100W RMS per speaker) |
| Ampлификация түрү | Пассивдүү |
| Монтаж түрү | Flush тоосу |
| Продукт Салмагы | 3 Kilograms (approx. 3000 Grams) |
| Продукциянын өлчөмдөрү | 18 x 12 x 23 см |
| Өндүрүүчү | JBL |
8. Кепилдик жана колдоо
Кепилдик: This product comes with a manufacturer's warranty of 12 months. Please refer to the included Warranty Leaflet for detailed terms and conditions.
Кардарларды колдоо: For technical assistance, warranty claims, or further inquiries, please contact JBL customer support through their official webсайт же ыйгарым укуктуу тейлөө борборлору. Колдоо кызматына кайрылганда, сатып алганыңызды тастыктаган документти колуңузда кармаңыз.
Көбүрөөк маалымат алуу үчүн JBL расмий дүкөнүнө кайрылсаңыз болот: JBL расмий дүкөнү
