1. Киришүү
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Gainsborough Non-Locking Bisque Porcelain & Satin Nickel Door Knob Set, Model 88577. Please read these instructions carefully before installation and retain for future reference. This product is designed for interior passage doors where a locking mechanism is not required.
2. Продукт бүтүп калдыview
2.1 Компоненттер
- Two (2) Bisque Porcelain Knobs
- Two (2) Satin Nickel Rosettes
- One (1) Latch Mechanism
- One (1) Spindle
- Монтаждоо бурамалар жана аппаратура
2.2 Өзгөчөлүктөрү
- Non-Locking Design: Ideal for hallway, closet, or other interior doors not requiring a lock.
- Genuine Porcelain Knobs: Bisque (Off-White) finish for a classic aesthetic.
- Satin Nickel Rosettes: Provides a durable and tarnish-resistant finish.
- Коррозияга туруктуу: Engineered for longevity and consistent performance.
- Оңой орнотуу: Designed for straightforward setup on compatible doors.
3. Орнотуу жана орнотуу
Before beginning installation, ensure you have the necessary tools: Phillips head screwdriver, measuring tape, and a pencil. This knob set is designed for interior doors with a thickness of 1 3/8 inches and a standard backset of 2 3/8 inches.
3.1 Орнотууга чейинки текшерүү
- Verify door thickness is 1 3/8 inches.
- Confirm the backset (distance from the door edge to the center of the bore hole) is 2 3/8 inches.
- 2.1-бөлүмдө саналып өткөн бардык компоненттер бар экендигин текшериңиз.
3.2 Орнотуу кадамдары
- Install the Latch Mechanism: Insert the latch mechanism into the bore hole on the edge of the door. Secure it with the provided screws, ensuring the latch bolt faces the correct direction for door closure.
- Assemble Knobs and Rosettes: Attach one rosette to each knob. Insert the spindle through the latch mechanism from one side of the door.
- Mount the Knob Sets: Place one knob assembly onto the spindle on each side of the door, aligning the mounting holes.
- Ассамблеяны камсыз кылуу: Insert the long mounting screws through the rosette on one side and thread them into the corresponding posts on the other side's rosette. Tighten screws evenly until the knob set is secure, but do not overtighten.
- Сыноо операциясы: Turn both knobs to ensure the latch retracts smoothly and fully.

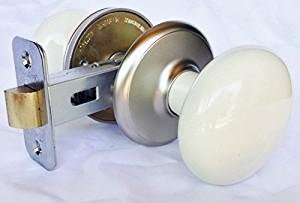

Figure 1: Disassembled components of the Gainsborough Non-Locking Door Knob Set, showing the bisque porcelain knob, satin nickel rosette, and the latch mechanism.
4. Операция
The Gainsborough Non-Locking Door Knob Set is designed for simple passage door functionality. To open the door, simply turn either knob. The latch bolt will retract, allowing the door to open. This knob set does not feature a locking mechanism and is intended for use on interior doors where privacy or security is not required.
5. Техникалык тейлөө
Regular maintenance will help preserve the appearance and functionality of your door knob set.
- Тазалоо: Clean the porcelain knobs and satin nickel rosettes with a soft, damp Абразивдүү тазалоочу каражаттарды, катуу химиялык заттарды же жылтыраткычтарды колдонуудан алыс болуңуз, анткени алар капталга зыян келтириши мүмкүн.
- Катуулоо: Periodically check all mounting screws for tightness. If any screws are loose, gently tighten them with a Phillips head screwdriver. Do not overtighten.
- Майлоо: If the latch mechanism becomes stiff, apply a small amount of silicone-based lubricant to the moving parts of the latch bolt. Avoid oil-based lubricants, which can attract dust and debris.
6. Кыйынчылыктарды
If you encounter issues with your door knob set, refer to the following common problems and solutions:
- Тумшугу бошоп калды:
- Чечим: The mounting screws may have loosened over time. Tighten the screws that connect the two rosettes through the door.
- Latch Does Not Retract Smoothly:
- Чечим: The latch mechanism may require lubrication. Apply a small amount of silicone-based lubricant to the moving parts of the latch bolt. Ensure no debris is obstructing the latch.
- Эшик туура жабылбай жатат:
- Чечим: Check if the strike plate on the door frame is properly aligned with the latch bolt. Adjust the strike plate if necessary.
7. Техникалык шарттар
| Модель номери | 88577 |
| Продукт түрү | Non-Locking Door Knob Set |
| Бренд | Гейнсборо |
| Баскыч материалы | Genuine Porcelain |
| Аяктоо/Түс | Bisque (Off-White) Porcelain, Satin Nickel Rosettes |
| Knob Diameter | 2 1/4 дюйм (болжол менен 5.7 см) |
| Rosette Diameter | 2 1/2 дюйм (болжол менен 6.35 см) |
| Эшиктин калыңдыгынын шайкештиги | 1 3/8 дюйм (болжол менен 3.5 см) |
| Backset Compatibility | Standard 2 3/8 inches (approx. 6 cm) |
| Элемент Салмагы | 1.45 фунт (болжол менен 0.66 кг) |
| Продукциянын өлчөмдөрү (жалпы) | 10 x 10 x 4 дюйм (болжол менен 25.4 x 25.4 x 10.16 см) |
8. Кепилдик маалыматы
Specific warranty details for the Gainsborough Non-Locking Bisque Porcelain & Satin Nickel Door Knob Set, Model 88577, are not provided in the product information. For warranty inquiries, please contact the retailer from whom you purchased the product or the Gainsborough manufacturer directly.
9. Колдоо
Should you require further assistance with the installation, operation, or maintenance of your Gainsborough door knob set, please refer to the following:
- Чекене колдоо: Продукцияны сатып алган дүкөнгө же онлайн сатуучуга кайрылыңыз.
- Өндүрүүчү колдоо: Visit the official Gainsborough webбайланыш маалыматы жана кошумча ресурстар үчүн сайт.
