1. Киришүү
This manual provides essential instructions for the setup, operation, and maintenance of your Korg PA700 61-Key Arranger Keyboard bundle. This bundle includes the Korg PA700 keyboard, an adjustable X-style keyboard bench, and an adjustable double X keyboard stand. Please read this manual thoroughly before using the product to ensure proper and safe operation.
The Korg PA700 features KORG’s advanced EDS-X (Enhanced Definition Synthesis-eXpanded) sound engine, offering over 1,700 ready-to-play sounds. It includes a capacitive TouchView display for intuitive control and 2x25 Watt amplifiers driving two loudspeakers in a bass-reflex enclosure for a rich sound experience. The instrument also provides 148 studio-quality effect types for sound customization.
2. Пакеттин мазмуну
Төмөндө тизмеленген нерселердин баары пакетиңизде бар экенин текшериңиз:
- Korg PA700 61-Key Arranger Keyboard
- Жөнгө салынуучу X стилиндеги клавиатура отургучу
- Жөнгө салынуучу кош X баскычтоп стенди
- Электр кабели
- Музыкалык эс алуу

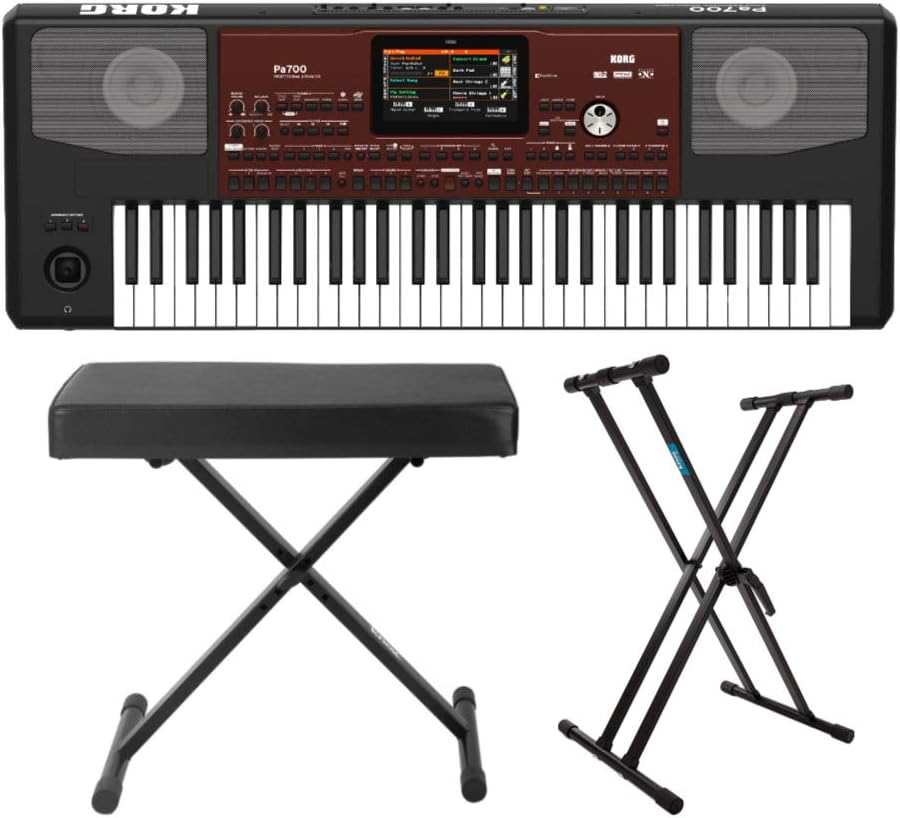

Figure 2.1: ашыкview of the Korg PA700 Arranger Keyboard, adjustable bench, and double X stand included in the bundle.
3. Орнотуу нускамалары
3.1 Assembling the Keyboard Stand
- Unfold the adjustable double X keyboard stand.
- Adjust the height to your preferred playing position using the locking mechanism. Ensure the stand is stable before placing the keyboard.
Figure 3.1: The adjustable double X keyboard stand, ready for assembly and height adjustment.
3.2 Assembling the Keyboard Bench
- Unfold the adjustable X-style keyboard bench.
- Ensure all legs are securely locked into place for stability.
Figure 3.2: The adjustable X-style keyboard bench in its unfolded, ready-to-use state.
3.3 Connecting the Korg PA700 Keyboard
- Place the Korg PA700 keyboard securely on the assembled stand.
- Insert the power cable into the AC IN port on the rear panel of the keyboard.
- Электр кабелинин экинчи учун ылайыктуу розеткага туташтырыңыз.
- If using external audio equipment, connect audio cables to the appropriate output jacks (e.g., L/MONO, R) on the rear panel.
- For headphones, connect to the headphone jack on the front left side of the keyboard.
Figure 3.3: The rear panel of the Korg PA700, showing various input and output ports including AC IN, audio outputs, and USB connections.
4. Иштөө нускамалары
4.1 Күйгүзүү/өчүрүү
- To power on, press the POWER button located on the left side of the keyboard.
- Өчүрүү үчүн, түзмөк өчкөнгө чейин POWER баскычын басып, кармап туруңуз.
4.2 Navigating the TouchView Дисплей
The Korg PA700 features a capacitive TouchView display. Interact with the display by touching icons and menus directly with your finger. The redesigned graphical interface is designed for ease of use and readability.
4.1-сүрөт: Жогорку view of the Korg PA700, highlighting the central TouchView display and surrounding control panel.
4.3 Sound Selection and Customization
The PA700 includes over 1,700 ready-to-play sounds, powered by the EDS-X sound engine. These include a wide range of instruments from classic keyboards to orchestral sounds. Use the TouchView display to browse and select sounds.
4.4 Using Studio-Quality Effects
The keyboard offers 148 effect types. For accompaniment tracks, two insert effects and two master effects can be applied. For real-time keyboard tracks, one insert effect and two master effects are available. Access and adjust these effects through the TouchView display's effect section.

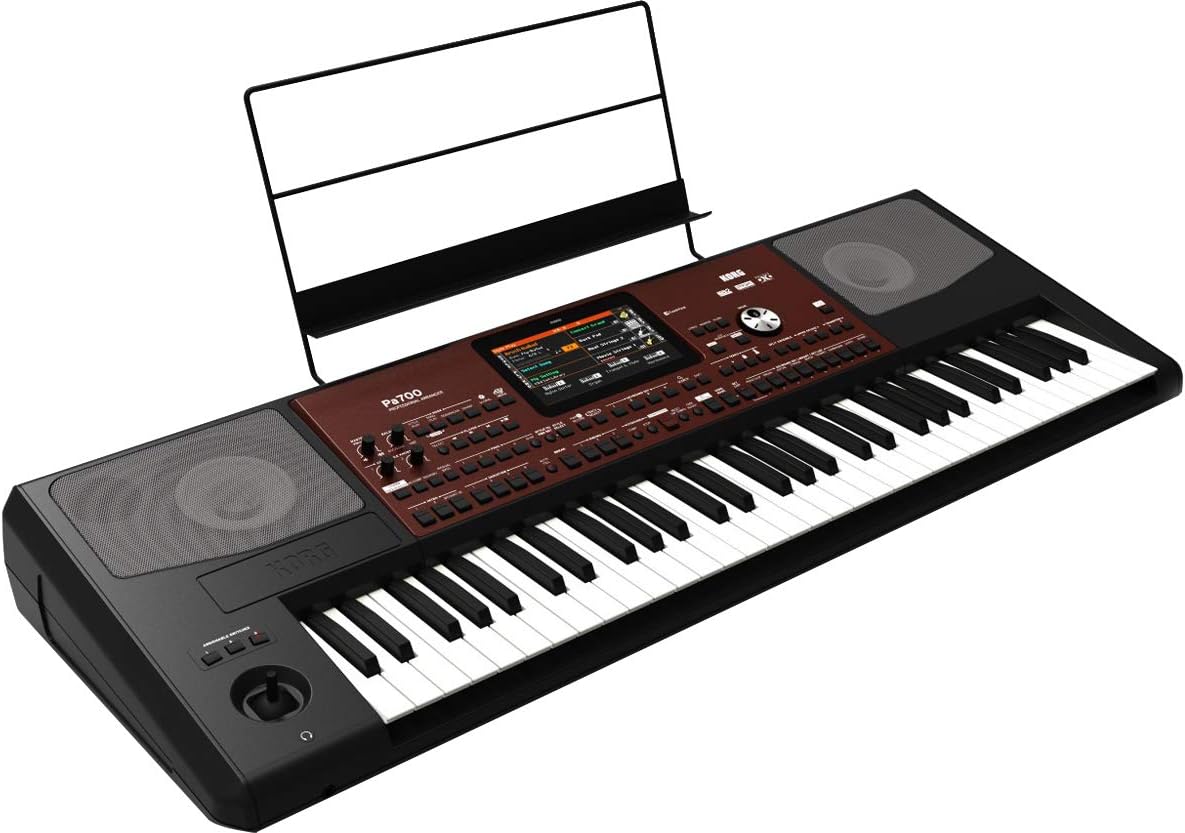

4.2-сүрөт: Бурчтуу view of the Korg PA700, showing the keyboard, control panel, and an installed music rest.
5. Техникалык тейлөө
5.1 Тазалоо
- Use a soft, dry cloth to clean the surface of the keyboard, stand, and bench.
- өжөр кир үчүн, бир аз гampen the cloth with water and a mild, non-abrasive cleaner, then wipe dry immediately.
- Абразивдүү тазалоочу каражаттарды, эриткичтерди же момдорду колдонуудан алыс болуңуз, анткени алар жасалгасына зыян келтириши мүмкүн.
5.2 Сактоо
- Клавиатураны күн нурунан жана экстремалдык температурадан алыс, салкын, кургак жерде сактаңыз.
- If storing for extended periods, cover the keyboard to protect it from dust.
6. Кыйынчылыктарды
6.1 Күч жок
- Ensure the power cable is securely connected to both the keyboard and a working power outlet.
- Башка аспапка туташтыруу менен электр розеткасынын иштешин текшериңиз.
6.2 Үн жок
- Verify that the master volume knob is turned up.
- If using headphones, ensure they are properly plugged in and test with another audio source.
- If using external speakers, check their power and connections.
6.3 Дисплей жооп бербейт
- Try restarting the keyboard by powering it off and on again.
- Ensure your fingers are clean and dry when interacting with the TouchView көрсөтүү.
7. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Модель аты | PA700 |
| Бренд | КОРГ |
| Ачкычтардын саны | 61 |
| Инструмент түрү | Electronic Keyboard (Arranger) |
| Sound Engine | EDS-X (Жакшыртылган аныктама синтези-кеңейтилген) |
| Үндөр | Over 1,700 ready-to-play sounds |
| Эффекттер | 148 types (2 Insert/2 Master for accompaniment, 1 Insert/2 Master for real-time) |
| Ampаман калгандар | 2 x 25 Ватт |
| Баяндамачылар | 2 loudspeakers in bass-reflex enclosure |
| Дисплей | Capacitive TouchView көрсөтүү |
| Байланыш технологиясы | Auxiliary, 3.5mm Jack (Headphone) |
| Power Source | Электр зымдары |
| Элемент Салмагы | 30.8 pounds (Keyboard only) |
| Продукциянын өлчөмдөрү | 9.1 x 9.1 x 9.1 inches (Packaging/Shipping dimensions, actual keyboard dimensions may vary) |
| Түс | Black, Wine Red |
| UPC | 657379010538 |
8. Кепилдик жана колдоо
Кепилдик жөнүндө маалымат жана техникалык колдоо алуу үчүн, расмий Korg компаниясына кайрылыңыз website or contact Korg customer service directly. Specific warranty terms may vary by region and retailer.
You can find more information and support resources by visiting the official KORG store online: KORG Official Store.
