1. Киришүү
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your GROHE Bau Ceramic Urinal, model 39438000. Please read these instructions carefully before beginning installation or use, and retain them for future reference.

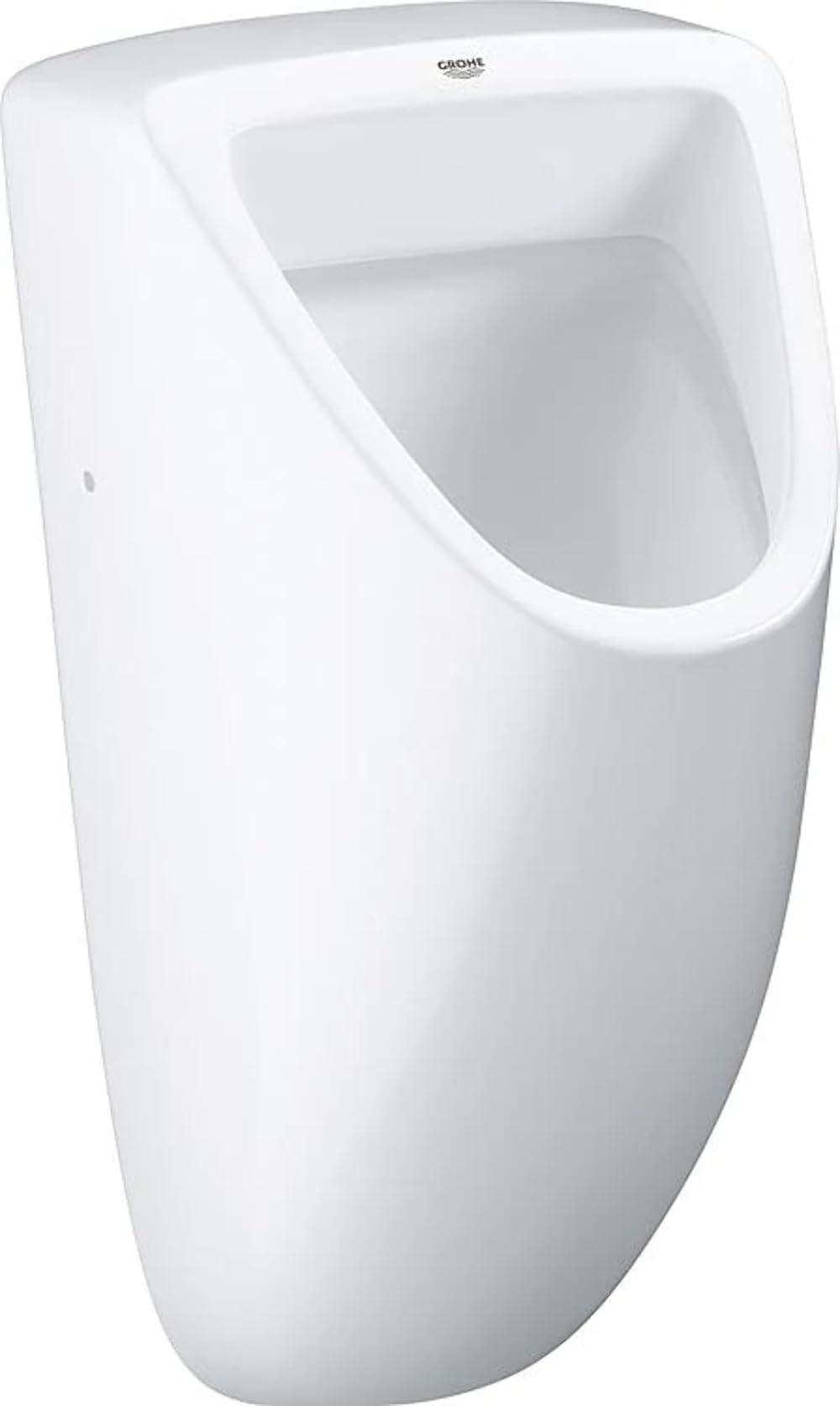

The GROHE Bau Ceramic Urinal is a wall-hung unit designed for modern washroom environments, featuring a 1-liter flush volume and durable vitrified porcelain construction in an Alpine White finish.
2. Коопсуздук маалыматы
- Always ensure the water supply is turned off before commencing any installation or maintenance work.
- Орнотуу учурунда кол кап жана көздү коргоо сыяктуу тиешелүү жеке коргонуу шаймандарын (ЖКБ) кийиңиз.
- Керамикалык буюмдарды сынуудан же чирип кетүүдөн сактоо үчүн этияттык менен кармаңыз.
- Орнотуу процессинин кандайдыр бир бөлүгүнө ишенбесеңиз, квалификациялуу сантехникке кайрылыңыз.
- Do not use harsh abrasive cleaners or chemicals that could damage the ceramic surface.
3. Пакеттин мазмуну
Орнотууну улантуудан мурун бардык компоненттер бар экенин жана бузулбаганын текшериңиз.
- GROHE Bau Ceramic Urinal (Alpine White)
- Fixation set for wall mounting
Эскертүү: The siphon (waste trap) for the urinal is sold separately. Please order GROHE siphon 39 732 000 (for horizontal outlet) or 39 733 000 (for vertical outlet) as required for your installation.
4. Орнотуу жана орнотуу
The GROHE Bau Ceramic Urinal is designed for wall-hung installation with a bottom water inlet. Professional installation is recommended to ensure proper function and compliance with local plumbing codes.
4.1 Орнотууга чейинки текшерүүлөр
- Ensure the wall structure is adequate to support the weight of the urinal when filled.
- Confirm that the water supply and waste connections are correctly positioned according to the urinal's dimensions.
- Have the appropriate siphon (horizontal or vertical outlet) ready for connection.
4.2 Орнотуу кадамдары
- Mark the drilling points on the wall using the provided template or measurements from the fixation set.
- Drill holes and insert appropriate wall plugs suitable for your wall type.
- Secure the mounting bolts or frame components into the wall.
- Connect the water supply line to the bottom inlet of the urinal. Ensure all connections are watertight.
- Attach the siphon to the urinal's waste outlet and connect it to the main waste pipe.
- Carefully lift and position the urinal onto the mounting bolts.
- Secure the urinal firmly using the provided fixation set, ensuring it is level and stable. Do not overtighten.
- Turn on the water supply and check for any leaks at all connection points.
5. Иштөө нускамалары
The GROHE Bau Ceramic Urinal is designed for efficient water usage with a flush volume of 1 liter. After use, activate the flush mechanism (if applicable to your specific flush system, which is typically a separate component) to rinse the bowl. Ensure the flush is sufficient to clear the bowl and maintain hygiene.
6. Техникалык тейлөө
Regular cleaning and maintenance will ensure the longevity and hygienic performance of your urinal.
6.1 Керамикалык бетти тазалоо
- Clean the vitrified porcelain surface regularly with a soft cloth or sponge and a mild, non-abrasive bathroom cleaner.
- Тазалоочу калдыктарды тазалоо үчүн таза суу менен жакшылап чайкаңыз.
- Avoid using abrasive powders, scouring pads, or strong chemical cleaners (e.g., those containing hydrochloric acid, formic acid, or chlorine bleach) as these can damage the ceramic finish.
6.2 Siphon Maintenance
- Periodically check the siphon for any blockages or debris.
- If a blockage occurs, carefully remove the siphon (following manufacturer's instructions for the specific siphon model) and clean it.
7. Кыйынчылыктарды
This section addresses common issues you might encounter. For problems not listed here, please contact a qualified plumber or GROHE customer support.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Туташуулардан суу агып жатат | Loose connections, damaged seals, incorrect installation. | Turn off water supply. Check and tighten all connections. Replace damaged seals. If problem persists, consult a plumber. |
| Начар жууш аткаруу | Low water pressure, partial blockage in siphon or waste pipe, issue with flush valve (if separate). | Check water supply pressure. Clean the siphon. Inspect the flush valve mechanism. Consult a plumber if necessary. |
| Жагымсыз жыттар | Siphon dry, blockage in waste pipe, improper sealing. | Ensure the siphon always contains water. Clear any blockages. Check for proper sealing at the waste connection. |
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Өндүрүүчү | GROHE |
| Модель номери | 39438000 |
| Өлчөмдөрү (L x W x Y) | 87.7 x 35.5 x 33.7 см |
| Салмагы | 12 килограмм |
| Материал | Vitrified Porcelain |
| Түс | Альп ак |
| Flush Volume | 1 литр |
| Суу кириши | Төмөнкү кириш |
| Орнотуу түрү | Дубалга илинген |
9. Кепилдик маалыматы
For detailed warranty terms and conditions applicable to your GROHE Bau Ceramic Urinal, please refer to the official GROHE website or the warranty documentation included with your purchase. Warranty coverage typically includes manufacturing defects under normal use.
10. Колдоо
If you require technical assistance, have questions about installation, or need to report a product issue, please contact GROHE customer service or visit their official website. You can find contact details and support resources on the GROHE brand store page or by searching for 'GROHE support' online.
Official GROHE Webсайт: www.grohe.com
