1. Киришүү
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your YEELIGHT Motion Sensor Rechargeable LED Night Light, Model YLYD01YL. This device combines thoughtful design with practical functionality, featuring a flower-shaped soft light LED layout, Fresnel ultra-thin lens, and dual sensors for enhanced performance. It is designed to provide convenient, automatic illumination in various indoor environments.
Сүрөт 1.1: Бүттүview of the YEELIGHT Rechargeable LED Night Light highlighting 360° soft light, magnetic adsorption, USB chargeability, motion sensor, and light sensor.
2. Продукциянын өзгөчөлүктөрү
- Кыймыл сенсору: Automatically detects human movement within its range to illuminate your path.
- Жарык сенсору: Ensures the light only activates in dark conditions, conserving battery life.
- Кайра заряддалуучу батарея: Equipped with a built-in 750mAh lithium polymer battery, offering extended use between charges.
- жумшак жылуу ак жарык: Provides a comfortable 2700K warm white illumination, ideal for night use.
- Multiple Installation Options: Can be installed using magnetic attachment, 3M adhesive, or a built-in hook.
- Компакт дизайн: Small and unobtrusive, suitable for various indoor spaces.
Image 2.1: The YEELIGHT night light provides 360° soft light from 6 built-in LEDs, offering more comfortable illumination compared to other lights with 180° dim light from a single LED.
3. Пакеттин мазмуну
Пакетте бардык буюмдар бар экенин текшериңиз:
- YEELIGHT Motion Sensor LED Night Light (Model YLYD01YL)
- USB заряддоо кабели
- User Manual
4. Орнотуу
- Баштапкы төлөм: Before first use, fully charge the night light using the provided USB cable. Connect the cable to the charging port on the device and a standard USB power source (e.g., computer, USB wall adapter). The indicator light will show charging status.
- Иштөө режимин тандоо: Locate the switch on the side of the night light. It typically has three settings: ON, OFF, and AUTO.
- КҮЙҮК: The light will remain continuously on.
- ӨЧҮК: Жарык өчүк бойдон калат.
- АВТО: The light will activate automatically based on motion and ambient light conditions. This is the recommended mode for most uses.
Image 4.1: The night light offers both an automatic mode (Auto Mode) for motion and light sensing, and a continuous illumination mode (Always On Mode).
5. Операция
Once set to AUTO mode, the night light operates as follows:
- Жарыкты сезүү: The integrated light sensor detects ambient light levels. The night light will only activate when the environment is dark enough. It will remain off in well-lit conditions.
- Кыймылды активдештирүү: When in a dark environment, the motion sensor will detect movement within its range (up to 22 feet with a 120° detection angle). Upon detection, the light will turn on.
- Автоматтык түрдө өчүрүү: If no further motion is detected for approximately 15 seconds, the light will automatically turn off to conserve battery power.

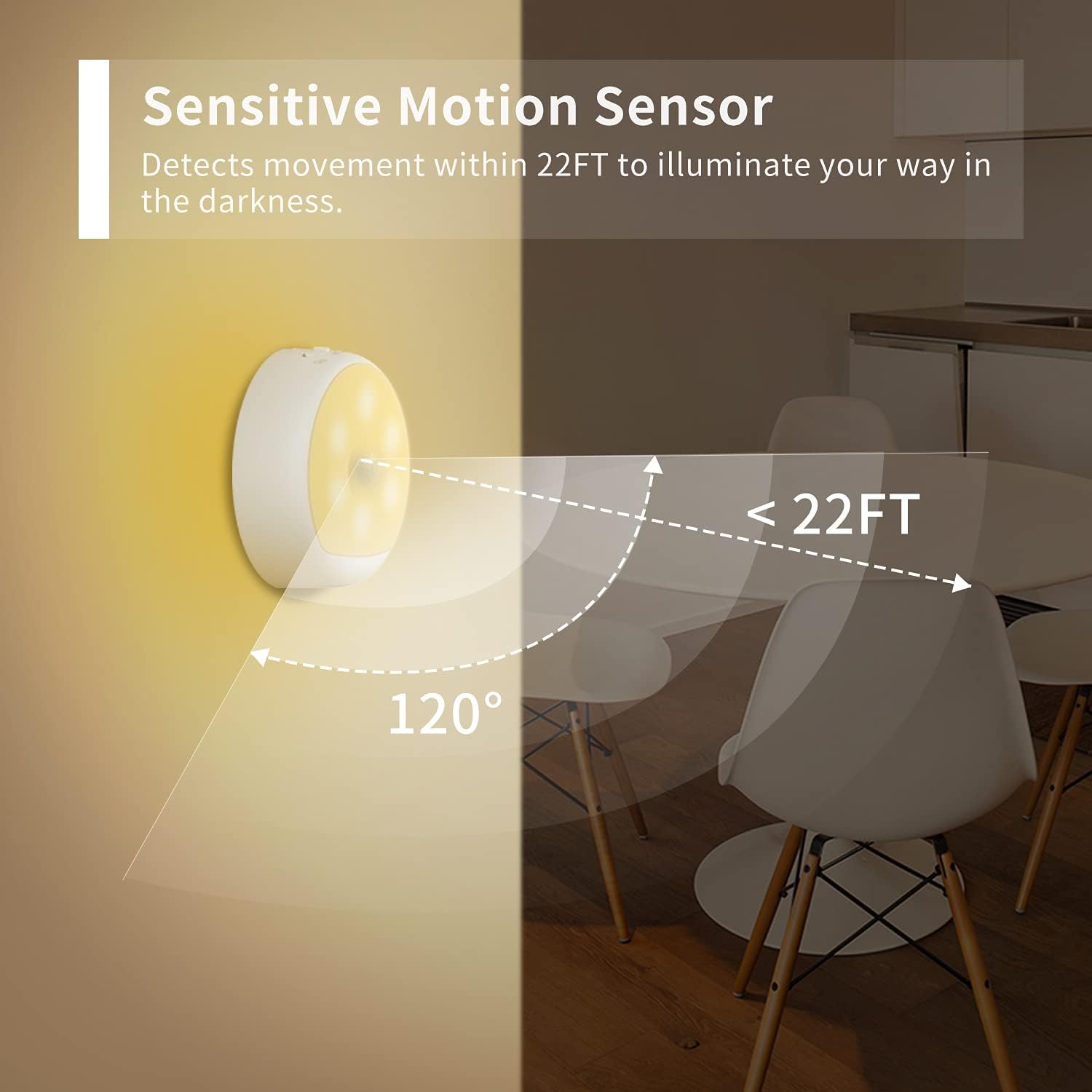

Image 5.1: The sensitive motion sensor detects movement within a 22-foot range and a 120-degree angle to illuminate your path in darkness.
Image 5.2: The night light automatically turns off in the daytime, turns on when motion is detected, and turns off after 15 seconds of inactivity.
6. Заряддоо
The YEELIGHT Motion Sensor LED Night Light features a built-in rechargeable battery. When the light output diminishes or the device stops responding, it is time to recharge.
- Connect the provided USB cable to the charging port on the night light.
- Plug the other end of the USB cable into a compatible USB power source (e.g., computer, USB wall adapter, power bank).
- Адатта, кубаттоо индикатору кубаттоо учурунда күйүп, толук кубатталганда өчөт же түсүн өзгөртөт.
- A full charge provides a long standby time, up to 120 days in AUTO mode depending on usage frequency.
Image 6.1: The night light is rechargeable, featuring a built-in 750mAh battery that provides a long standby time of 120 days.
Image 6.2: The YEELIGHT night light utilizes convenient USB charging, eliminating the need for disposable AAA batteries found in some other models.
7. Орнотуу ыкмалары
The YEELIGHT Motion Sensor LED Night Light offers versatile installation options to suit various locations:
- Магниттик тиркеме: The light can be easily attached to any metallic surface using its integrated magnet. This allows for quick placement and removal.
- 3M Strong Adhesive: For non-metallic surfaces, use the included 3M adhesive pad. Attach the adhesive to the back of the light and then firmly press it onto a clean, dry surface.
- Бириктирүү: A built-in hook allows the light to be hung on a rod, nail, or other suitable fixture, such as inside a closet or on a shower curtain rod.
Image 7.1: The night light offers three easy installation methods: magnetic attachment, 3M strong adhesive, and hanging with a hook.
Сүрөт 7.2: Мисamples of installation using magnetic attachment (on a cabinet), 3M strong adhesive (on a wall), and the hook (inside a closet).
8. Техникалык тейлөө
- Тазалоо: Wipe the surface of the night light with a soft, dry cloth. Do not use abrasive cleaners or immerse the device in water.
- Батареяга кам көрүү: To prolong battery life, avoid fully discharging the battery frequently. Recharge the device when the light output noticeably decreases. If storing for an extended period, charge the battery to approximately 50% and recharge every few months.
- Экологиялык шарттар: Avoid exposing the night light to extreme temperatures, direct sunlight, or high humidity. This product is designed for indoor use only and is not water resistant.
9. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жарык AUTO режиминде күйбөйт. | 1. Environment is too bright. 2. No motion detected. 3. Батарея аз же түгөнүп калган. | 1. Караңгыраак чөйрөдө сынап көрүңүз. 2. Ensure movement is within detection range and angle. 3. Аппаратты кайра заряддаңыз. |
| Жарык AUTO режиминде үзгүлтүксүз күйүп турат. | 1. Детектордук аймактагы туруктуу кыймыл. 2. Device is set to ON mode. | 1. Relocate the light to an area with less frequent movement. 2. Verify the switch is set to AUTO. |
| Батарея заряддалбайт. | 1. Faulty USB cable or power source. 2. Charging port obstruction. | 1. Try a different USB cable and power source. 2. Check the charging port for debris and clean gently if necessary. |
10. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель аты | Rechargeable Motion Sensor LED Night Light |
| Модель номери | YLYD01YL |
| Бренд | YEELIGHT |
| Ачык түстүн температурасы | 2700K жылуу ак |
| Батарея түрү | Литий Полимер (750mAh) |
| Тtage | 5 вольт |
| Элемент Салмагы | 2.88 унция (0.18 фунт) |
| Продукциянын өлчөмдөрү | 2"D x 3"W x 2"H |
| Кыймылды аныктоо диапазону | 22 метрге чейин |
| Motion Detection Angle | 120 градус |
| Automatic Shut-off Time | Approx. 15 seconds of no motion |
| Ички/тышкы колдонуу | Ичинде гана |
| Материал | Металл |
11. Кепилдик жана колдоо
This YEELIGHT product comes with a 12 айлык кепилдик сатып алынган күндөн тартып. Бул кепилдик өндүрүш кемчиликтерин жана нормалдуу колдонуудан келип чыккан маселелерди камтыйт.
For technical support, warranty claims, or further inquiries, please visit the official YEELIGHT store or contact customer service through the retailer where the product was purchased.
Көбүрөөк маалымат жана колдоо булактарын бул жерден таба аласыз YEELIGHT Brand Store.
