1. Киришүү
This manual provides detailed instructions for the safe assembly, operation, maintenance, and troubleshooting of your UPPAbaby G-LITE Stroller. Please read all instructions carefully before use and retain this manual for future reference.
Коопсуздук маалыматы
- Балаңызды ар дайым 5 чекиттүү жип менен бекемдеңиз.
- Балаңызды коляскада эч качан кароосуз калтырбаңыз.
- Ensure the stroller is fully open and locked before placing a child inside.
- Do not overload the storage basket; maximum weight limit is 15 lbs.
- This stroller is suitable for children from 6 months up to 55 lbs.
2. Кутуда эмне бар
Бардык компоненттерди кылдаттык менен таңгактан чыгарып, төмөндөгү тизме менен текшериңиз:
- UPPAbaby G-LITE Stroller Frame with Seat Fabric
- Cup Holder
- Carry Strap (pre-attached)
3. Орнотуу
Колясканы ачуу
- Бүктөлгөн колясканы тегиз жерге коюңуз.
- Release the folding latch, if engaged.
- Lift the handle upwards until the frame clicks into place, indicating it is fully open and locked. Verify all locking mechanisms are secure before use.
Чөйчөк кармагычты бекитүү
- Locate the attachment point on the side of the stroller frame, near the handle.
- Slide the cup holder onto the attachment point until it clicks securely into place.
Image: UPPAbaby G-LITE Stroller in its fully unfolded position, viewed from the side, with the cup holder attached.
4. Иштөө нускамалары
Securing Your Child (5-Point Harness)
- Балаңызды отургучка отургузуңуз.
- Погондорду балаңыздын ийнине, бел боолорун жамбашына алып келиңиз.
- Insert the buckle tongues into the buckle housing until they click.
- Adjust the straps to ensure a snug, secure fit without being too tight.

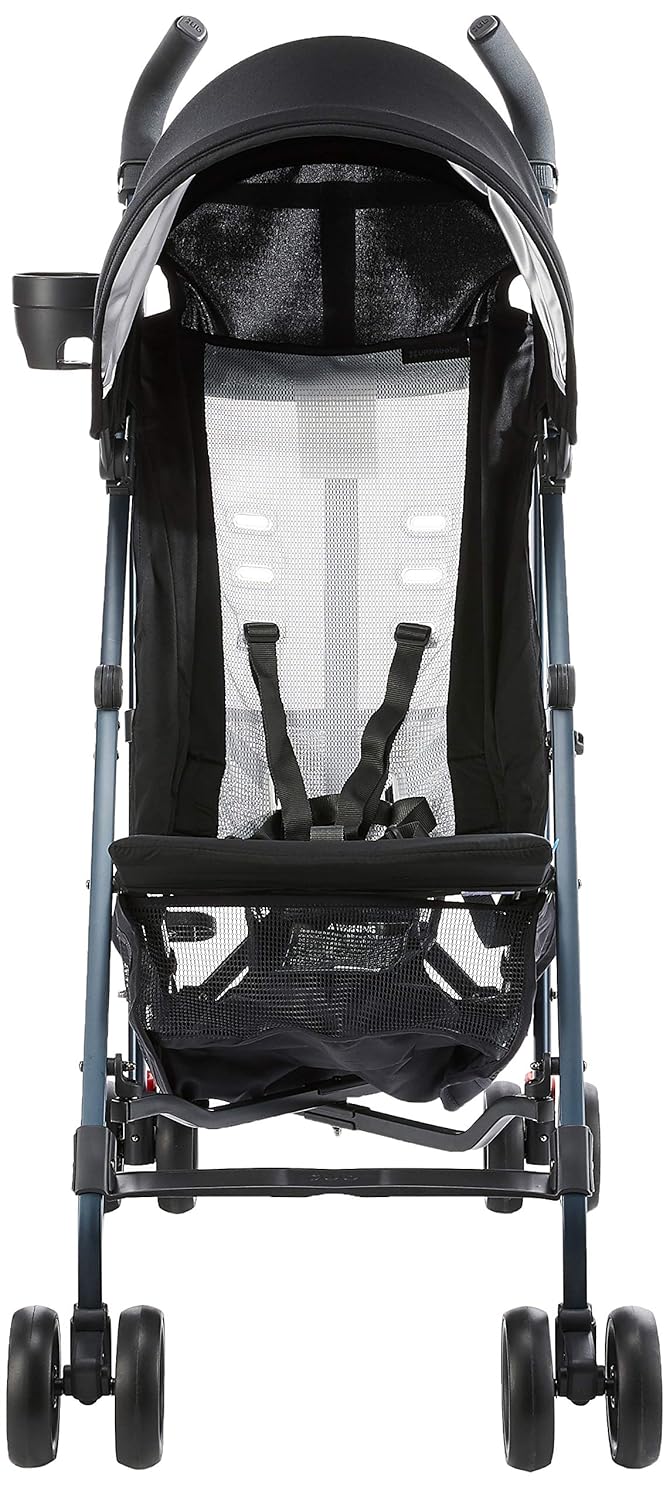

Сүрөт: алдыңкы view of the UPPAbaby G-LITE Stroller seat, showing the 5-point harness system and mesh backrest.
Отуруучу
The G-LITE Stroller features a zipper recline for added comfort. Locate the zipper on the back of the seat fabric. Unzip to recline the seat to a more relaxed position, and zip up to bring it back to an upright position.
Чатырды тууралоо
The multi-panel knit canopy provides sun protection. Extend the canopy forward for increased coverage. It also includes an extendable UPF 50+ sunshade for enhanced sun protection.
Engaging the Brakes
To engage the brakes, press down firmly on the brake levers located near the rear wheels until the stroller is stationary. Always engage the brakes when parking the stroller.
Колясканы бүктүрүү
- Ensure your child is removed from the stroller and the storage basket is empty.
- Engage the stroller brakes.
- Locate the hand-level triggers on the handles. Simultaneously pull these triggers upwards.
- Push the handles forward and down, allowing the stroller to collapse.
- Secure the folding latch to keep the stroller in its folded position.
Image: The UPPAbaby G-LITE Stroller shown in its compact, folded state, ideal for storage or transport.
Using the Carry Strap
The G-LITE Stroller is equipped with a convenient carry strap. Once folded, you can use this strap to easily carry the stroller over your shoulder.
5. Техникалык тейлөө
Тазалоо нускамалары
- Кездеме: The mesh seat fabric is stain and water-resistant. For cleaning, remove the fabric components if possible. Machine wash on a gentle cycle with cold water. Tumble dry low. Do not bleach or iron.
- кадр: Алюминий алкакты жумшак, d менен сүртүңүзamp кездеме. Абразивдүү тазалагычтарды колдонбоңуз.
- Дөңгөлөктөр: Periodically clean the wheels and axles to remove dirt and debris. Lubricate moving parts with a silicone-based lubricant if necessary.
Үзгүлтүксүз текшерүүлөр
Regularly inspect the stroller for loose fasteners, worn parts, or torn material. If any damage is found, discontinue use and contact UPPAbaby customer service for assistance.
6. Кыйынчылыктарды
- Бүктөөгө/жайылууга кыйын болгон коляска: Ensure all locking mechanisms are disengaged before folding. Apply even pressure to the hand-level triggers. Check for any obstructions in the folding mechanism.
- Дөңгөлөктөр тегиз жылбайт: Check for debris (e.g., hair, lint) wrapped around the axles. Clean and lubricate as needed. Ensure brakes are fully disengaged.
- Бөгөлүүгө/чечүүгө кыйын болгон жип: Ensure buckle tongues are aligned correctly. Clean any dirt or debris from the buckle mechanism.
If you encounter issues not listed here, please contact UPPAbaby customer support.
7. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Модель номери | 0618-GLT-US-JKE |
| Коляска түрү | Коляска коляскасы |
| Age Range Suitability | 6 айдан 55 фунтка чейин |
| Элементтин өлчөмдөрү (L x W x Y) | 13"L x 12"W x 45"H |
| Бүктөлгөн өлчөм (L x W x Y) | 15.7''L x 10.6''W x 42''H |
| Коляска отургучунун салмагы | 11 фунт |
| Себеттин салмагынын сыйымдуулугу | 15 фунт |
| Түрү | 5 Point |
| Дөңгөлөктөрдүн саны | 4 |
| Frame Material | Алюминий |
| Отуруучу материал | Тор |
| Чатырдын өзгөчөлүктөрү | Knit, Multi-panel, Extendable UPF 50+ Sunshade |
| Кошумча функциялар | Zipper Recline, Stroller Brake System, Included Cup Holder, Carry Strap |
8. Кепилдик жана колдоо
Өндүрүүчүнүн Кепилдиги
UPPAbaby offers a one-year extended (total of three years) manufacturer's warranty when registered on UPPAbaby.com within three months of purchase. Please refer to the UPPAbaby webтолук кепилдик шарттары үчүн сайт.
Кардарларды колдоо
For further assistance, spare parts, or warranty claims, please visit the official UPPAbaby webсайтка же түздөн-түз кардарларды тейлөө бөлүмүнө кайрылыңыз.
Webсайт: www.uppababy.com
