Compustar CS4900-S 2-Way Remote Start and Keyless Entry System User Manual

1. Киришүү

This manual provides detailed instructions for the installation, operation, and maintenance of your Compustar CS4900-S 2-Way Remote Start and Keyless Entry System. Please read this manual thoroughly before using the product to ensure proper function and safety. This system offers a 3000-ft range for remote start and keyless entry functionalities.

The Compustar CS4900-S system is designed for automatic transmission vehicles and is diesel-engine safe. Professional installation is highly recommended to ensure correct setup and optimal performance. Additional parts may be required for certain vehicle models and are sold separately.

2. Пакеттин мазмуну

The Compustar CS4900-S system includes the following components:

• 2 x 4-Button Remotes (one 2-Way G15 FM Remote, one 1-Way G15 FM 4-Button Remote)
• 1 x CM900-S Remote Start Control Module
• 1 x ANT-2WFMX 2-Way FMX Antenna
• Зымдардын бириктиргичтери жана туташтыргычтары

Сүрөт: бүттүview of the Compustar CS4900-S system components, showing the main box, two remote fobs, the antenna, and various wiring harnesses.

Image: Close-up of the two 2-Way G15 FM remote controls, highlighting their design and buttons.

Image: A visual breakdown of the main components included with the CS4900-S: the two remote types, the CM900-S control module, and the ANT-2WFMX antenna.

3. Орнотуу жана орнотуу

Кесиптик орнотуу сунушталат: Due to the complexity of vehicle electrical systems, professional installation by an authorized Compustar dealer is strongly advised. Incorrect installation can lead to vehicle damage or system malfunction.

3.1. Required Additional Components

Many vehicles require an immobilizer bypass module for remote start functionality. The Compustar CS4900-S is "Blade-AL Ready," meaning it is compatible with iDatalink Blade-AL or ADS-ALCA bypass modules, which are sold separately.

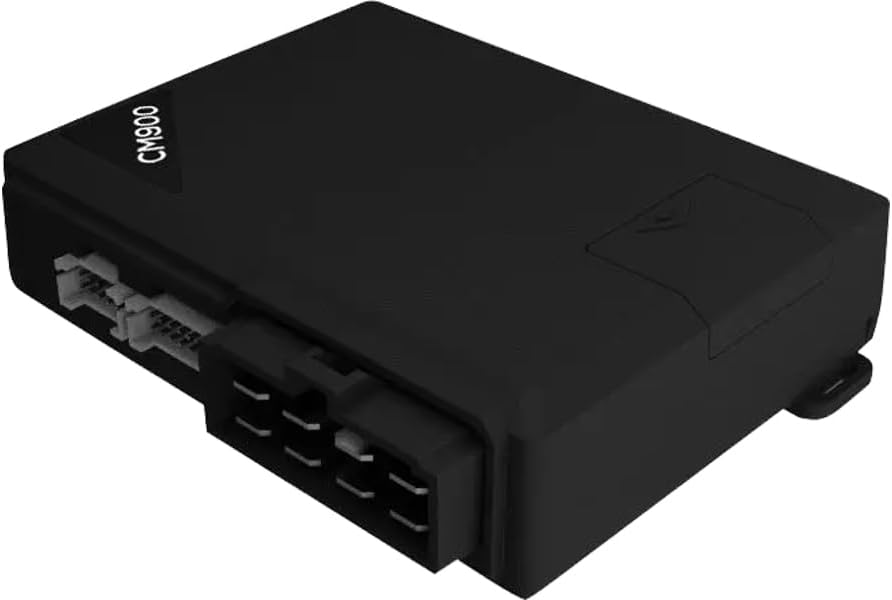

Image: The CM900-S control module showing the slot for the optional Blade-AL bypass module, which is sold separately.

Image: Packaging for the iDatalink Blade-AL module, an optional component for immobilizer bypass.

3.2. Wiring Schematic (Remote Start)

The following diagram illustrates the wiring connections for the CM900-S Remote Start Control Module. This is for reference and should be handled by a qualified installer.

Image: Detailed wiring schematic for the CM-900 Remote Start Control Module, indicating connections for main harness, Blade harness, antenna, temperature sensor, RS232 ports, and lock connector.

3.3. Module Flashing and Firmware Update

The Blade-AL bypass module and the Compustar controller may require flashing and firmware updates for compatibility with your specific vehicle. This process typically involves connecting the module to a computer via an ADS-USB cable and using the iDatalink Weblink software.

4. Иштөө нускамалары

The Compustar CS4900-S system utilizes 4-button remotes for various functions. The primary functions are Lock, Unlock, Trunk Release, and Remote Start/Stop.

4.1. Remote Control Functions (2-Way G15 FM Remote)

Image: A close-up of the Compustar 2-Way G15 FM remote control, highlighting the four main function buttons.

• Кулпу: Press the lock button once to lock the vehicle doors and arm the security system.
• Кулпуну ачуу: Press the unlock button once to unlock the vehicle doors and disarm the security system. Depending on your setup, a single press may unlock the driver's door, and a second press unlocks all doors.
• Магистралдык релиз: Press and hold the trunk release button for approximately 3 seconds to open the vehicle's trunk or hatch.
• Алыстан баштоо: Press and hold the remote start/stop button for approximately 3 seconds to start the vehicle's engine. The remote will provide confirmation once the engine has started.
• Алыстан токтотуу: While the vehicle is running via remote start, press and hold the remote start/stop button for approximately 3 seconds to turn off the engine.
• Текшерүү абалы: Tap the remote start/stop button once to check the vehicle's status (e.g., locked/unlocked, engine running, interior temperature).

4.2. Алыстан от алгандан кийин унаага кирүү

To enter and drive your vehicle after remote starting:

1. Unlock the vehicle using your remote.
2. Open the door and enter the vehicle. The engine will remain running.
3. Insert your vehicle's key into the ignition and turn it to the "ON" or "RUN" position (do not turn to "START").
4. Тормоз педалын басыңыз. Алыстан от алдыруу системасы өчүрүлөт жана унаа баскычты башкарууга өтөт.
5. You can now drive the vehicle as normal.

Маанилүү: If the brake pedal is pressed before the key is in the "ON" position, the engine will shut off. Simply restart the vehicle with the key as usual.

4.3. Smartphone Control (Optional)

For enhanced control, you can integrate your Compustar system with a smartphone app (e.g., DroneMobile). This allows you to control your vehicle from virtually anywhere, providing functions like remote start, lock/unlock, and vehicle tracking.

5. Техникалык тейлөө

5.1. Remote Battery Replacement

The 2-Way remote requires batteries for operation. When the battery level is low, the remote's display may indicate a low battery icon. Refer to your remote's specific guide for battery type and replacement instructions.

5.2. System Care

• Keep the remote controls away from extreme temperatures and moisture.
• Пульттарды түшүрүп алуудан же аларга катуу сокку уруудан алыс болуңуз.
• Clean the remote controls with a soft, dry cloth. Do not use harsh chemicals.

6. Кыйынчылыктарды

If you experience issues with your Compustar CS4900-S system, consider the following common troubleshooting steps:

• Алыстан жооп бербейт:
  • Пульттун батареясын текшерип, керек болсо алмаштырыңыз.
  • Ensure you are within the system's operating range (up to 3000 ft).
  • Verify that the vehicle's battery is not depleted.
• Алыстан ишке киргизүүдөгү каталар:
  • Ensure all vehicle doors, hood, and trunk are securely closed.
  • Confirm the vehicle is in park (automatic transmission only).
  • Check for any active warning lights on the vehicle's dashboard.
  • If your vehicle has a manual transmission, ensure the system is properly configured for manual transmission remote start (requires specific setup and safety procedures). The CS4900-S is designed for automatic transmission only.
• Door Locks Not Functioning Correctly:
  • Verify the remote control battery.
  • Check vehicle's door lock actuators for proper function.
  • Consult your installer if priority unlock or double pulse unlock features are not working as expected, as these are configurable options.

For complex issues or if troubleshooting steps do not resolve the problem, contact your authorized Compustar installer or Compustar technical support.

7. Техникалык шарттар

8. Кепилдик маалыматы

Compustar products are covered by a limited warranty. The specific terms and duration of the warranty may vary depending on the component and region. Please retain your proof of purchase and installation records for warranty claims.

For detailed warranty information, please refer to the official Compustar webсайтка же ыйгарым укуктуу дилериңизге кайрылыңыз.

9. Колдоо

For technical assistance, product inquiries, or to locate an authorized installer, please visit the official Compustar webсайтына кириңиз же алардын кардарларды колдоо кызматына кайрылыңыз:

• Официалдуу Webсайт: www.compustar.com
• iDatalink Webшилтеме: compustar.idatalink.com (for module flashing and firmware updates)
• Техникалык колдоо: Refer to your installation guide or the official webатайын байланыш номерлери үчүн сайт.

It is important to note that some advanced configurations and programming require specialized tools and access available only to authorized dealers.
