1. Киришүү
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Vulcan VC4ED-11D1 Electric Convection Oven. Please read this manual thoroughly before operating the appliance and retain it for future reference. This oven is designed for commercial use in professional kitchen environments.

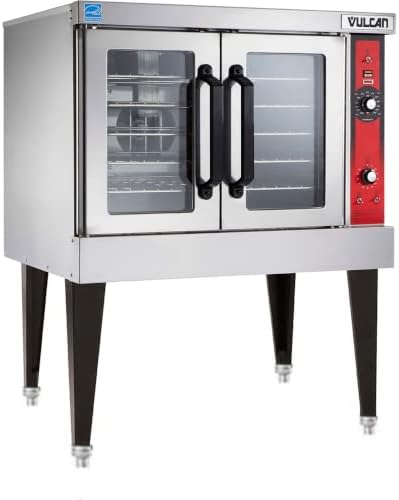

Сүрөт 1: Алдыңкы view of the Vulcan VC4ED-11D1 Electric Convection Oven with its stand.
2. Коопсуздук маалыматы
Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electrical shock, and injury to persons. This appliance is intended for commercial use only by qualified personnel.
- Электр коопсуздугу: Ensure the oven is connected to a properly grounded 208 Volt electrical supply as specified. Do not operate with a damaged cord or plug.
- Ысык беттер: The oven surfaces become hot during operation. Use caution and wear protective gloves when handling hot items or cleaning.
- Вентиляция: Мештин ашыкча ысып кетүүсүнө жол бербөө үчүн анын айланасында жетиштүү вентиляцияны камсыз кылыңыз.
- Тазалоо: Disconnect power before cleaning. Allow the oven to cool completely before cleaning.
- Тейлөө: All servicing should be performed by authorized service personnel.
3. Таңгактан чыгаруу жана орнотуу (орнотуу)
3.1 Пакеттен чыгаруу
Carefully remove the oven from its packaging. Inspect the unit for any shipping damage. Report any damage immediately to the carrier and your dealer. Retain all packaging materials for inspection.
3.2 Location and Clearance
Place the oven on a level, stable surface capable of supporting its weight. Ensure adequate clearance from combustible walls and materials as per local fire codes. Maintain sufficient space for air circulation and servicing.
3.3 Электрдик туташуу
The Vulcan VC4ED-11D1 oven requires a 208 Volt electrical supply. Connection must be performed by a qualified electrician in accordance with all applicable national and local electrical codes. Ensure the power supply matches the oven's specifications.
2-сүрөт: Каптал view of the convection oven, showing its compact design.
3.4 Initial Setup and Burn-Off
Before first use, it is recommended to perform a burn-off cycle to eliminate any manufacturing odors. Operate the oven empty at its maximum temperature for approximately 30-60 minutes with adequate ventilation. This process helps to cure internal components and remove residual oils.
Video: General 'Before First Use' guidelines from Vulcan. While this video specifically references 'EA Series Steamers', it provides useful general information applicable to initial setup and safety for various Vulcan commercial kitchen equipment, including considerations for electrical connections and initial cleaning.
4. Операция
4.1 Башкаруу панелинин үстүнөview
The control panel typically features a temperature control knob, a timer, and power switches. Familiarize yourself with the function of each control before operation.
3-сүрөт: Детальдуу view of the oven's control panel, featuring temperature and timer controls.
4.2 Алдын ала ысытуу
Turn the oven on and set the desired temperature. Allow the oven to preheat fully before placing food inside. The preheat indicator light will typically turn off or change color when the set temperature is reached.
4.3 Cooking with Convection
Convection ovens use a fan to circulate hot air, resulting in faster and more even cooking. Adjust cooking times and temperatures accordingly, often reducing them compared to conventional ovens. Utilize the included grill racks for optimal air circulation around food items.
4-сүрөт: Интерьер view of the oven demonstrating multiple racks in use for various food items.
4.4 Таймерди колдонуу
Set the timer for the desired cooking duration. An audible alarm will sound when the timer expires. The timer may or may not automatically shut off the oven, depending on the model; always verify the oven's status.
5. Тазалоо жана тейлөө
Regular cleaning and maintenance are crucial for the longevity and performance of your oven.
5.1 Күнүмдүк тазалоо
- Меш толугу менен муздаганга мүмкүнчүлүк бериңиз.
- Remove racks and interior components for separate cleaning.
- Wipe down interior surfaces with a mild detergent and a damp кездеме. Абразивдүү тазалагычтардан алыс болуңуз.
- Clean the exterior with a stainless steel cleaner or mild soap and water.
5.2 Үзгүлтүксүз тейлөө
- Inspect door gaskets for wear and tear; replace if damaged to maintain heat efficiency.
- Check the fan motor and fan blade for any obstructions or unusual noises.
- Ensure electrical connections are secure (to be checked by qualified personnel).
6. Кыйынчылыктарды
Кызматка чакыруудан мурун, кайраview төмөнкү жалпы маселелер жана аларды чечүү жолдору:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Меш ысыбайт | No power supply; tripped circuit breaker; faulty heating element. | Электр байланышын жана өчүргүчтү текшериңиз. Эгер көйгөй чечилбесе, кызматка кайрылыңыз. |
| Бирдей эмес тамак бышыруу | Improper rack placement; fan malfunction; dirty interior. | Ensure proper air circulation. Clean interior. Check fan for obstructions. |
| Excessive smoke/odor | Food spills; initial burn-off not completed; residue from cleaning agents. | Clean interior thoroughly. Ensure proper ventilation during burn-off. Rinse cleaning agents. |
7. Техникалык шарттар
Key technical specifications for the Vulcan VC4ED-11D1 Electric Convection Oven:
- Бренд: Vulcan
- Модель номери: 515-052-208В
- Орнотуу түрү: бурун
- Духовкада бышыруу режими: мантиядагы
- Тtage: 208 вольт
- Күйүүчү май түрү: Электр
- Башкаруу түрү: баскыч
- Камтылган компоненттер: Гриль
- Келип чыккан өлкө: АКШ
8. Кепилдик жана колдоо
For warranty information and technical support, please refer to the documentation provided with your purchase or contact Vulcan customer service directly. Keep your purchase receipt and model number readily available when contacting support.
Vulcan Customer Service: Refer to your product registration card or the official Vulcan webбайланыш маалыматы үчүн сайт.
