1. Киришүү
The Pyle PPHP1537UB is a versatile 15-inch powered PA loudspeaker system designed for robust sound reproduction. It features a built-in amplifier, Bluetooth wireless streaming, and multiple input options, making it suitable for various audio applications. This manual provides detailed instructions to ensure optimal performance and longevity of your device.
Негизги өзгөчөлүктөрү:
- High-Quality Sound Reproduction: Equipped with a 15-inch woofer and 1.75-inch tweeter for a full audio spectrum.
- Bluetooth зымсыз агымы: Seamlessly connect and stream audio from your Bluetooth-enabled devices.
- Көп булактан ойнотуу: Supports USB flash drives, SD memory cards, AM/FM radio, and Aux-In (3.5mm).
- Интегралдык Миксер: Fully featured 3-channel mixer with adjustable Mic Level, Input Level, Volume, Treble, and Bass controls.
- Audio Recording Ability: Record audio directly to USB or SD card from streamed content or microphone input.
- Ар тараптуу байланыш: Multiple input/output options including 1/4'' Microphone Input, 1/4'' Line Output, and XLR Input/Output jacks.
- Портативдик дизайн: Engineered with heavy-duty ABS housing, convenient carry handles, and a 35mm speaker stand mount.
2. Продукт бүтүп калдыview
Расмий продукт видеолору:
3. Орнотуу колдонмосу
3.1 Пакеттен чыгаруу
Carefully remove all components from the packaging. Verify that all items listed in the 'What's in the Box' section are present. Keep the packaging for future storage or transport.
3.2 Кубат туташтыруу
- Ensure the speaker's power switch is in the ӨЧҮРҮҮ позиция.
- Connect the included power cable to the AC INPUT port on the rear control panel.
- Plug the other end of the power cable into a standard wall outlet (110V/220V selectable, ensure correct voltage is selected on the unit).
3.3 Спикерди жайгаштыруу
- Динамикти туруктуу, жалпак бетке коюңуз.
- For optimal sound projection, utilize the built-in 35mm speaker stand mount to elevate the speaker on a compatible stand (sold separately).
- The speaker features convenient carry handles and wheels for easy transport.
3.4 Баштапкы күйгүзүү
Once connected to power and placed appropriately, flip the POWER switch on the rear panel to the ON position. The digital display will illuminate, indicating the unit is ready for operation.
4. Иштөө нускамалары
4.1 MP3 Control Digital Display

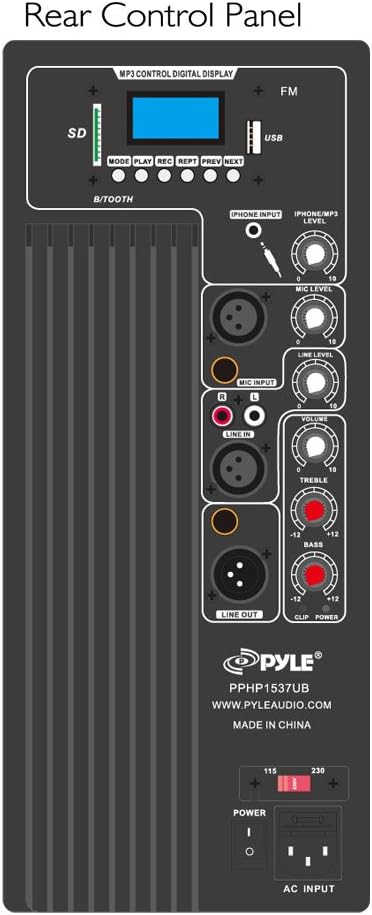

The top section of the rear control panel features a digital display and controls for various media playback options:
- РЕЖИМ: Press to cycle through input sources (Bluetooth, USB, SD, FM Radio, Aux).
- ОЙНОО/ТЫНДЫРУУ: Ойнотууну баштоо же тындыруу.
- РЕК: Initiate audio recording (to USB/SD).
- REPT: Учурдагы тректи же бардык тректерди кайталаңыз.
- АЛГА/КИЙИНКИ: Navigate between tracks or radio stations.
- USB/SD Slots: Insert USB flash drives or SD memory cards for MP3 playback and recording.
4.2 Bluetooth жупташтыруу
- басыңыз РЕЖИМ button until 'Bluetooth' is selected on the digital display.
- Тышкы түзмөгүңүздө (смартфон, планшет ж.б.) Bluetooth функциясын иштетиңиз.
- Издөө the Bluetooth network name 'Pyle Speaker' and connect.
- Жупташтырылгандан кийин, аудиону зымсыз түрдө динамикке агылта аласыз.
4.3 Аудио киргизүүлөр
- Microphone Inputs (1/4'' & XLR): Connect wired microphones or instruments. Adjust MIC LEVEL for individual microphone volume.
- Aux-In (3.5mm): Connect external audio devices like MP3 players or smartphones using a 3.5mm audio cable.
- RCA (L/R) Stereo Line Input: Connect devices with RCA outputs. Adjust LINE LEVEL for input volume.
4.4 Аудио чыгуулары
- 1/4'' Line Output & XLR Output: Use these to chain multiple speakers together or connect to other audio equipment.
4.5 Үндү тууралоо
- Көлөмү: Master volume control for overall output.
- ҮЧТҮҮ: Adjusts high-frequency sounds.
- Бас: Adjusts low-frequency sounds.
- ЭХО: Adds an echo effect to microphone inputs.
4.6 Жазуу функциясы
The PPHP1537UB allows you to record audio directly to a connected USB flash drive or SD memory card.
- Insert a USB flash drive or SD card into the appropriate slot.
- Ensure your desired audio source (microphone, line-in, or Bluetooth stream) is active.
- басыңыз REC button on the MP3 control panel to start recording.
- Басыңыз REC again to stop recording. Audio files are saved in .WAV format.
5. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Максималдуу кубаттуулук | 1200 Ватт |
| RMS Power Output | 600 Ватт |
| Ampжашоо класс | AB |
| Вуфердин өлчөмү | 15'' -inch |
| Woofer материалы | Stamped Steel Basket |
| Tweeter өлчөмү | 1.75'' -inch |
| Tweeter материалы | Титан |
| Frequency Response | 30Гц - 22кГц |
| Bluetooth версиясы | 2.1+EDR |
| Bluetooth зымсыз диапазону | 100 футтан жогору |
| Digital Audio File Шайкештик | MP3, WMA |
| Maximum SD/USB Flash Memory Support | 32 ГБ |
| THD | 1% |
| S/N катышы | 76дБ |
| Crossover Frequency | 2.2кГц |
| Тtage Тандалма | 110/220V |
| Өлчөмдөрү (L x W x Y) | 19.0'' x 15.7'' x 29.1'' |
| Элемент Салмагы | 39.7 фунт |
| Турак жай материалы | Heavy Duty ABS |
6. Техникалык тейлөө жана кам көрүү
6.1 Жалпы тазалоо
To maintain the appearance and performance of your speaker, regularly wipe the exterior with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners.
6.2 Батареяга кам көрүү
The PPHP1537UB uses a rechargeable battery. To maximize battery life:
- Заряддоодон мурун батарейканы толугу менен түгөтүп жибербеңиз.
- Charge the unit fully before extended storage.
- If the battery performance degrades significantly over time, it may need to be replaced. Refer to the warranty section or contact customer support for replacement options.
7. Кыйынчылыктарды
- Кубат жок:
Ensure the power cable is securely connected to both the speaker and a working power outlet. Check the power switch position. Verify the correct voltage (110V/220V) is selected. - Үн жок:
Check all volume controls (master, mic, line, MP3) and ensure they are not set to minimum. Verify the correct input source is selected (MODE button). Ensure audio cables are properly connected and functional. For Bluetooth, confirm successful pairing. - Bluetooth туташуу маселелери:
Ensure the speaker is in Bluetooth mode. Delete 'Pyle Speaker' from your device's Bluetooth list and attempt to re-pair. Move your device closer to the speaker (within 100 feet). - USB/SD Playback Problems:
Ensure the USB drive or SD card contains compatible audio files (MP3, WMA). Check that the media is inserted correctly. Try a different USB drive or SD card to rule out media issues. - Бурмаланган үн:
Reduce the volume levels of both the input source and the speaker. Check for damaged cables. Ensure microphone levels are not too high, causing feedback.
8. Кепилдик жана колдоо
8.1 Кепилдик маалыматы
This Pyle product typically comes with a 1-year limited warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions. Keep your purchase receipt as proof of purchase.
8.2 Кардарларды колдоо
For technical assistance, troubleshooting, or warranty claims, please visit the official Pyle webсайтында www.pyleaudio.com or contact their customer service department. Have your model number (PPHP1537UB) and purchase details ready.
