Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Pfister LG61TFY Traditional Tub Filler with 1.8 gpm Handshower. Please read this manual thoroughly before beginning installation or use to ensure proper function and longevity of your product. Keep this manual for future reference.
Коопсуздук маалыматы
- Always turn off the main water supply before installing or servicing the tub filler.
- Орнотуу учурунда коргоочу көз айнек жана кол кап сыяктуу тиешелүү жеке коргоочу шаймандарды кийиңиз.
- Орнотуу процессинин кандайдыр бир бөлүгүнө ишенбесеңиз, квалификациялуу сантехникке кайрылыңыз.
- Суу агып кетпеши үчүн бардык туташуулардын коопсуз экенин текшериңиз.
- Буюмдун сырткы бетине катуу химиялык заттарды же абразивдүү тазалоочу каражаттарды колдонбоңуз, анткени бул анын сырткы көрүнүшүнө зыян келтириши мүмкүн.
Пакеттин мазмуну
Орнотууну баштоодон мурун бардык компоненттер бар экендигин текшериңиз.
- Pfister LG61TFY Traditional Tub Filler Trim
- Matching Telephone Handshower
- Орнотуу боюнча колдонмо (бул документ)
- Монтаждоочу жабдык
- Note: Two ¾” supply lines are required for installation and are sold separately.

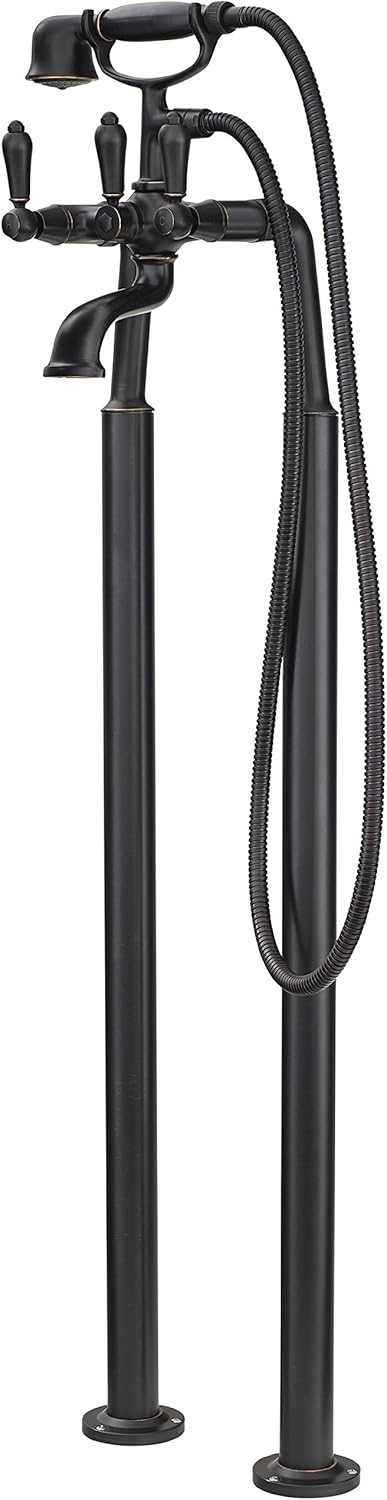

1-сүрөт: Pfister LG61TFY Traditional Tub Filler with Handshower in Tuscan Bronze finish. This image displays the complete unit, including the main spout, hot and cold handles, diverter, and the attached handshower with its hose.
Орнотуу жана орнотуу
This tub filler requires a 5-hole installation and is designed for floor mounting. Professional installation is recommended.
- Орнотуу аймагын даярдоо: Ensure the floor is properly prepared for a freestanding, floor-mounted fixture. Verify that the necessary plumbing rough-ins for hot and cold water supply lines are correctly positioned.
- Water Supply Lines: Connect two ¾” supply lines (sold separately) to the designated hot and cold water inlets on the tub filler base. Ensure these connections are tight and leak-free.
- Монтаждоо: Secure the tub filler to the floor using the provided superior mounting posts and hardware. Refer to the detailed dimension diagram for precise hole placement and spacing.
- Handshower Connection: Connect the handshower hose to the diverter outlet on the main body of the tub filler.
- Агышуу үчүн сыноо: Once all connections are made and the unit is securely mounted, slowly turn on the main water supply and check for any leaks at all connection points.
2-сүрөт: Detailed dimensions diagram for the Pfister LG61TFY tub filler, showing measurements in inches and millimeters for installation planning. This includes overall height, spout reach, handle spacing, and handshower dimensions.
Иштөө нускамалары
3-сүрөт: Pfister LG61TFY tub filler with labels indicating the hot water handle, cold water handle, and handshower diverter lever.
- Күйгүзүү/өчүрүү: Rotate the hot (left) and cold (right) handles to control water flow and temperature. Turning them clockwise typically reduces flow or turns off, while counter-clockwise increases flow.
- Температураны жөндөө: Mix hot and cold water by adjusting both handles until the desired temperature is achieved.
- Using the Handshower: To divert water from the main spout to the handshower, lift or pull the handshower lever (as indicated in Figure 3). Push or lower the lever to return water flow to the main spout.
- Агым ылдамдыгы: The main tub filler spout provides a flow rate of 9 Gallons Per Minute (GPM), while the handshower provides 1.8 GPM.
Техникалык тейлөө
- Аягын тазалоо: Clean the Tuscan Bronze finish with a soft, damp cloth. Avoid abrasive cleaners, harsh chemicals, or polishes that could damage the surface. Mild soap and water are generally sufficient.
- Аэраторду тейлөө: If water flow from the spout or handshower decreases, the aerator may be clogged. Unscrew the aerator, rinse it under running water to remove debris, and reattach.
- Агуунун алдын алуу: Агып кетпеши үчүн, бардык туташуулардын бекемдигин мезгил-мезгили менен текшерип туруңуз. Ашыкча бекемдебеңиз.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Төмөн суу агымы | Clogged aerator; partially closed supply valve. | Аэраторду тазалаңыз; жеткирүү клапандарынын толугу менен ачык экенин текшериңиз. |
| Байланыштардагы агып кетүүлөр | Loose connections; damaged O-rings/gaskets. | Tighten connections (do not overtighten); replace O-rings/gaskets if damaged. |
| Water Not Diverting to Handshower | Diverter lever not fully engaged; debris in diverter mechanism. | Ensure lever is fully actuated; inspect diverter for obstructions. |
If problems persist after attempting these solutions, please contact Pfister customer support.
Техникалык шарттар
- Модель номери: LG61TFY (also referred to as LG6-1TFY)
- Бүтүрүү: Тоскан коло
- Материал: Бардык металл курулуш
- Монтаж түрү: Freestanding, Floor Mounted
- туткалардын саны: 3
- Tub Filler Flow Rate: Мүнөтүнө 9 Галлон (GPM)
- Handshower Flow Rate: Мүнөтүнө 1.8 Галлон (GPM)
- Required Supply Lines: Two ¾” (sold separately)
- Орнотуу: 5-hole installation required
- Продукциянын өлчөмдөрү: Approximately 32.27 x 16.67 x 7.86 inches (refer to Figure 2 for detailed measurements)
- Элемент Салмагы: 16.37 фунт
Кепилдик маалымат
Pfister products are backed by a Limited Lifetime Warranty. This warranty covers defects in material and manufacturing workmanship for as long as the original purchaser owns their home. For complete warranty terms, conditions, and claim procedures, please visit the official Pfister webсайтка же кардарларды колдоо менен байланышыңыз.
Кардарларды колдоо
For further assistance, technical support, or to inquire about replacement parts, please contact Pfister Customer Service:
- Webсайт: www.pfisterfaucets.com
- Телефон: Refer to the Pfister webучурдагы байланыш номерлери үчүн сайт.
