Ikan EVF50 Monitor Cage менен ViewFinder Instruction Manual

1. Киришүү

The Ikan EVF50 transforms your DH5 or DH5e monitor into a 4K capable electronic viewfinder. This product includes a form-fitting aluminum cage that provides protection and additional mounting points. The integrated viewfinder features an adjustable diopter and a comfortable Ultrasuede eye cushion, designed to enhance your monitoring experience.

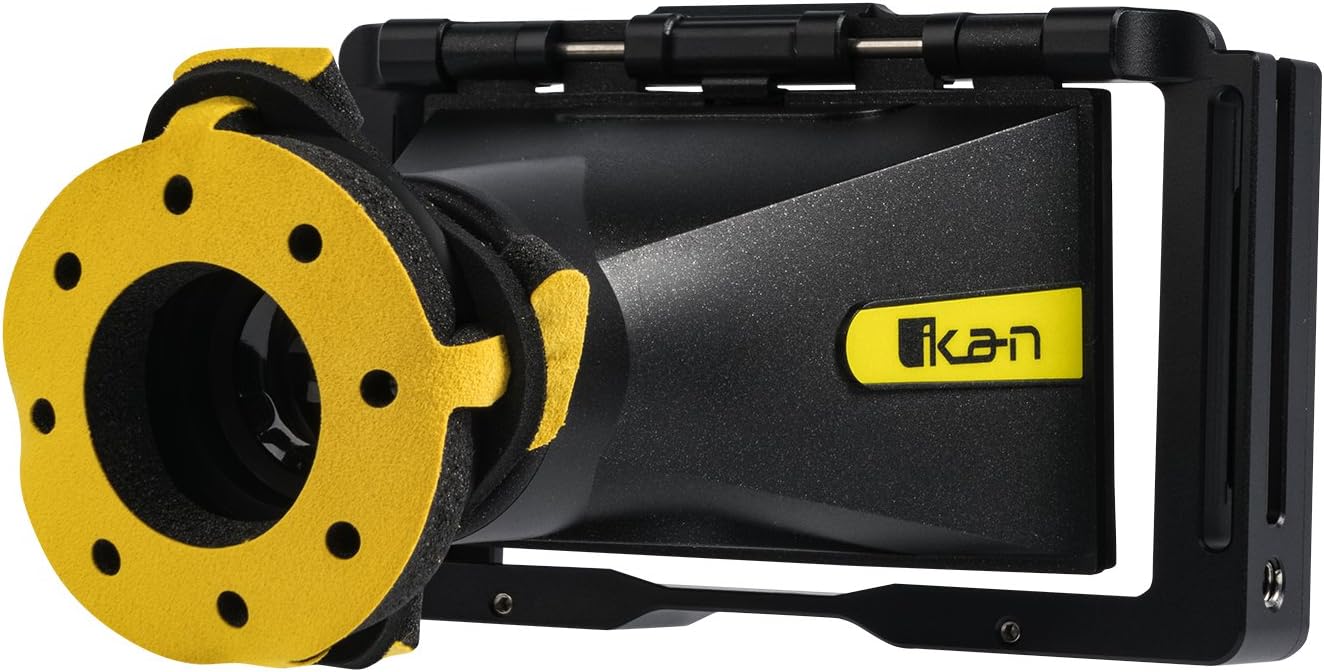

Figure 1: The Ikan EVF50 Monitor Cage with Viewтапкыч.

2. Кутуда эмне бар

Таңгакта бардык компоненттер бар экенин текшериңиз:

• Bluestar Eye Cushion
• EVF50 Cage
• EVF50 Viewтапкыч
• Hex куралы

3. Орнотуу

Follow these steps to assemble and prepare your Ikan EVF50 Monitor Cage with Viewтапкыч:

1. Insert the Monitor: Carefully slide your DH5 or DH5e monitor into the form-fitting EVF50 cage. Ensure it is seated securely within the cage's frame.


   2-сүрөт: Каптал view of the EVF50 cage, illustrating the monitor insertion slot.
2. тиркөө Viewтапкыч: The viewfinder component is designed to integrate with the cage. Align the viewfinder with the monitor's screen and secure it using the provided hardware and hex tool.


   3-сүрөт: Жогорку view көрсөтүү viewfinder attached to the cage.



   Figure 4: Detail of the viewfinder's hinge mechanism.



   Figure 5: Using the hex tool for assembly.
3. Install Eye Cushion: Place the Bluestar Ultrasuede eye cushion onto the viewfinder eyepiece for comfortable viewing.
4. Кабелдерди туташтыруу: Utilize the cage's cable locks to manage and secure any necessary cables connected to your monitor, preventing accidental disconnections.


   6-сүрөт: Арткы view of the cage, highlighting cable management features.

5. Монтаждоо: The cage features multiple 1/4-20 mounting points for attaching to camera rigs or other accessories.

4. иштетүү Viewтапкыч

Once assembled, the EVF50 provides an enhanced viewing experience for your DH5/DH5e monitor:

• Viewing: Look through the eyepiece to view your monitor's display. The Ultrasuede eye cushion provides comfort during extended use.
• Диоптрияны тууралоо: Rotate the diopter adjustment ring on the viewfinder to achieve a sharp, clear image tailored to your vision.
• Flip-Up Function: The viewfinder can be easily flipped up, allowing direct access to the monitor screen when the electronic viewfinder is not required.

5. Техникалык тейлөө

Proper maintenance ensures the longevity and optimal performance of your EVF50 Monitor Cage with Viewтапкыч:

• Капчаны тазалоо: Wipe the aluminum cage with a soft, dry cloth to remove dust and fingerprints. Avoid abrasive cleaners.
• тазалоо Viewfinder Lens: Use a lens cleaning solution and a microfiber cloth specifically designed for optical surfaces. Gently wipe the lens to avoid scratches.
• Eye Cushion Care: The Ultrasuede eye cushion can be gently cleaned with a damp cloth and mild soap if necessary. Allow it to air dry completely before reattaching.
• Сактагыч: When not in use, store the EVF50 in a clean, dry environment, preferably in a protective case, to prevent dust accumulation and physical damage.

6. Кыйынчылыктарды

Төмөнкү жалпы маселелерди жана чечимдерди караңыз:

• Monitor Does Not Fit Securely:

  Ensure you are using a compatible Ikan DH5 or DH5e monitor. Verify that the monitor is inserted correctly and fully seated within the cage.

• Image Through Viewfinder is Blurry:

  Adjust the diopter ring on the viewfinder until the image appears sharp and in focus for your eyesight.
• Cables Are Loose or Disconnecting:

  Utilize the integrated cable locks on the cage to secure your monitor's cables, preventing accidental pulls or disconnections.

7. Техникалык шарттар

8. Кепилдик жана колдоо

For warranty information, technical support, or service inquiries regarding your Ikan EVF50 Monitor Cage with Viewfinder, please contact Ikan customer support directly. Refer to the official Ikan webакыркы байланыш маалыматтары жана кепилдик саясаты үчүн сайт.

Онлайн ресурстар: www.ikan.com
