1. Продукт бүтүп калдыview
The Viltrox VL 400T is a professional and ultrathin LED light designed for photography and videography. It offers adjustable brightness and color temperature, providing versatile lighting solutions for various shooting environments.
Негизги өзгөчөлүктөрү:
- Professional and ultrathin LED light design.
- Compatible with lenses with filter thread (referring to general use, not direct attachment).
- Constructed from high-quality durable aluminum with a matte finish.
- Жөнгө салынуучу жарыктык жана түс температурасы.
- Equipped with an LCD screen for accurate parameter display.
- Features 2.4G wireless control for convenient operation.
2. Продукциянын компоненттери
Familiarize yourself with the different parts of your Viltrox VL 400T LED light:
2.1-сүрөт: Арткы view of the Viltrox VL 400T LED light, highlighting key components such as the LCD screen, dimmer and color temperature knob, power switch, AC power interface, lithium battery sockets, battery release button, heat dissipation holes, and lamp кашаа.
- LCD экран: Displays current settings including brightness percentage, color temperature (Kelvin), and battery status.
- Dimmer and Color Temperature Knob: Used to adjust the light's brightness and switch between different color temperatures.
- Кубат которгучу: Turns the LED light on or off.
- AC Power Interface: Connects the included power adapter for continuous power supply.
- Lithium Battery Sockets: Accepts compatible lithium batteries (not included) for portable operation.
- Батареяны чыгаруу баскычы: Used to safely remove inserted batteries.
- Жылуулук таркатуучу тешиктер: Designed to prevent overheating during extended use.
- Lamp кашаа: Allows for mounting the light onto a stand or other support.
2.2-сүрөт: The Viltrox VL 400T LED light package contents, including the LED panel, power adapter, remote control, and user manual.
3. Орнотуу колдонмосу
3.1 Аппаратты кубаттоо
- AC кубатын колдонуу:
Connect the provided AC power adapter to the AC power interface on the back of the LED light. Plug the other end of the adapter into a suitable wall outlet. Ensure the connection is secure.
- Using Batteries (Not Included):
Insert two compatible lithium batteries (e.g., NP-F series) into the battery sockets on the back of the light. Ensure correct polarity. The battery release buttons will secure them in place.
3.2 Жарыкты орнотуу
The VL 400T comes with a standard adapter for flexible mounting options:
- l тиркеңизamp bracket to a compatible light stand or tripod.
- Align the adapter with the hickey of the LED light and tighten it clockwise until secure.
- Adjust the angle of the LED light as needed. The standard adapter allows for 180° forward and backward tilt, and 360° left and right rotation.
3.1-сүрөт: Illustration of the flexible usage modes and angle adjustment capabilities of the Viltrox VL 400T LED light using its standard adapter.
4. Иштөө нускамалары
4.1 Күйгүзүү/өчүрүү
Locate the power switch on the back panel of the LED light. Flip the switch to the "ON" position to power on the device. Flip it to the "OFF" position to power off.
4.2 Жарыктыкты жана түс температурасын жөндөө
The VL 400T features a multi-function knob for precise control:
- Жарыктыкты жөндөө: Rotate the dimmer and color temperature knob to increase or decrease the light's brightness. The current brightness percentage LCD экранында көрсөтүлөт.
- Түс температурасын жөндөө: Press the dimmer and color temperature knob to switch between brightness adjustment mode and color temperature adjustment mode. Once in color temperature mode, rotate the knob to change the color temperature (e.g., from 3300K to 5600K). The current Kelvin value will be shown on the LCD.

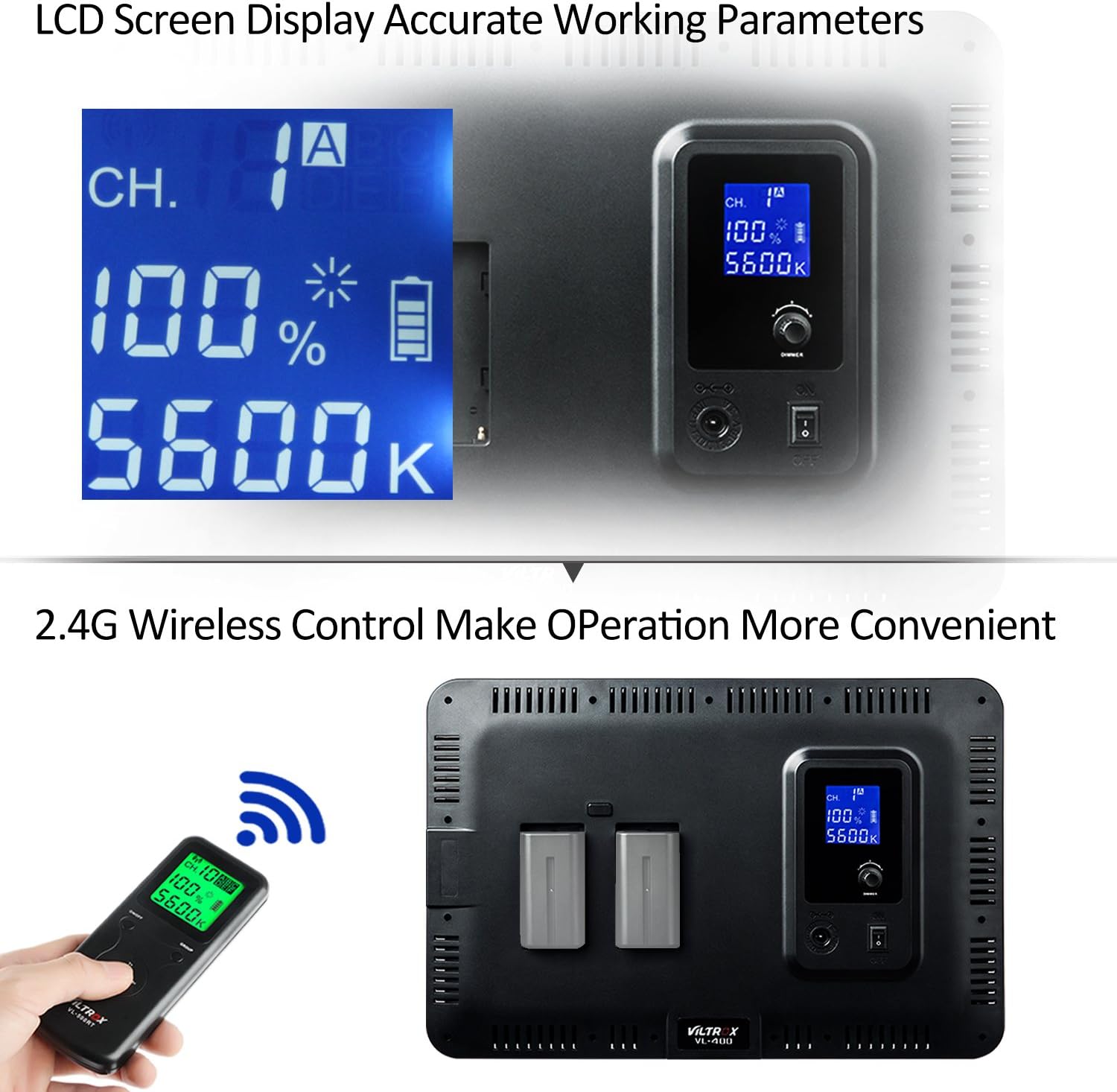

4.1-сүрөт: The LCD screen displaying accurate working parameters and the 2.4G wireless remote control for convenient operation.
4.3 Зымсыз алыстан башкаруу пультун колдонуу
The included 2.4G wireless remote control allows for convenient adjustment of the light's settings from a distance.
- Алыстан башкаруу пультунда иштеген батарейкалар бар экенин текшериңиз.
- Use the dedicated buttons on the remote to adjust brightness and color temperature. Refer to the remote's markings for specific functions.
- Note that some remote controls may require repeated presses for incremental adjustments rather than continuous holding.
5. Техникалык тейлөө
5.1 Тазалоо
- Before cleaning, ensure the LED light is powered off and unplugged from any power source.
- Use a soft, dry cloth to wipe the exterior of the light.
- өжөр белгилери үчүн, бир аз гamp жумшак, абразивдүү эмес тазалоочу каражат кошулган чүпүрөктү, андан кийин кургак чүпүрөктү колдонсо болот.
- Do not use harsh chemicals, solvents, or abrasive materials as they may damage the finish or internal components.
- Keep the heat dissipation holes clear of dust and debris to ensure proper airflow.
5.2 Сактоо
- When not in use, store the LED light in a cool, dry place, away from direct sunlight and extreme temperatures.
- If storing for an extended period, remove any batteries to prevent leakage.
- It is recommended to store the light in its original packaging or a protective case to prevent damage.
6. Кыйынчылыктарды
If you encounter issues with your Viltrox VL 400T LED light, please refer to the following common troubleshooting steps:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жарык күйбөйт. | No power, loose connection, or dead batteries. | Ensure the power switch is ON. Check AC adapter connection and wall outlet. If using batteries, ensure they are charged and correctly inserted. |
| Light flickers or turns off intermittently. | Unstable power connection, faulty cable, or low battery. | Verify the AC power cable is securely connected and not damaged. If using batteries, replace or recharge them. Avoid moving the light excessively while powered by AC if connection issues are suspected. |
| Алыстан башкаруу жооп бербей жатат. | Dead batteries in remote, out of range, or interference. | Replace batteries in the remote control. Ensure you are within the effective range of the remote. Minimize obstructions between the remote and the light. |
| Inaccurate color temperature or brightness. | Incorrect settings or environmental factors. | Check the LCD display to confirm current settings. Adjust the dimmer/color temperature knob or remote control to desired values. |
7. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | VL 400T |
| Бренд | VILTROX |
| Продукциянын өлчөмдөрү (L x W x Y) | 36 x 24 x 2.5 сантиметр |
| Пакеттин өлчөмдөрү (L x W x Y) | 40.8 x 28.2 x 7 сантиметр |
| Пакет Салмагы | 1.84 килограмм |
| Түс | Кара |
| Байланыш технологиясы | Wireless (for remote control) |
| Камтылган компоненттер | Viltrox VL 400T Professional & Ultrathin LED light |
| Биринчи жеткиликтүү күн | 24 январь 2018 жыл |
8. Кепилдик жана колдоо
8.1 Кепилдик маалыматы
VILTROX warrants this product against any and all defects in workmanship or performance for a period of 2 жыл from the date of purchase. Within the warranted period, all materials are free of charge for repair or replacement. Non-human damage is covered for free replacement within the first 6 months.
8.2 Кардарларды колдоо
For technical support, warranty claims, or any inquiries regarding your Viltrox VL 400T LED light, please contact VILTROX customer service. Refer to the official VILTROX webэң акыркы колдоо каналдары үчүн сайтка же сатып алууңуз менен бирге берилген байланыш маалыматына кайрылыңыз.
You can also visit the official VILTROX store for more information and resources: VILTROX расмий дүкөнү
