Introduction
This manual provides essential information for the installation, operation, and maintenance of your Gladiator Premium Alternator. Please read this manual thoroughly before installation and retain it for future reference. Proper installation and maintenance are crucial for optimal performance and longevity of the unit.
Продукт бүттүview
The Gladiator Premium Alternator is a high-quality replacement component designed to meet or exceed OEM specifications for various lift truck applications. It features an internal regulator and internal fan, operating at 12 Volts and providing 50 Ampбийликтин с.
Негизги өзгөчөлүктөрү:
- Designed to meet or exceed OEM specifications for reliable performance.
- Equipped with an internal regulator for stable voltage чыгаруу.
- Features an internal fan for efficient cooling and heat dissipation.
- Operates at 12 Volts with a 50 Amp чыгаруу.
- Durable construction for long service life.
Шайкештик
This alternator is compatible with a wide range of lift truck models from various manufacturers. Please verify your vehicle's specific requirements against the detailed compatibility list below:
шайкеш келет:
- Nissan Lift Trucks: AL30, AL35, AL50, CL30, CL35, CL40, CL50 (with K21 Eng. models from 2004-2006).
- Mitsubishi Lift Trucks: C3000, C3500, CC4000 (K21 Eng.), C4000, C5000, C5500, C6500 (K25 Eng.), P3000, P3500 (K21 Eng.), P4000, P5000, P5500, P6000, P6500 (K25 Eng.), PCC4000 (K21 Eng.) - All 2004-2009 models. Also FG15N K21, FG15ZN K15, FG18N K21, FG18ZN K15, FG20N K21, FG20N-HO K25, FG25N K21 Eng., FG33N K25, FGC15N K21, FGC18N K21, FGC20CN K21, FGC20N K21, FGC20N-HO K25, FGC25N K21, FGC25N-HO K25, FGC25NR K21, FGC28N K25, FGC30N K25, FGC33N K25 (2004-2009 and many more).
- Kalmar AC Lift Trucks: C30AX (K21 Eng. 2001-2005), C35AX, C35BX, C40BX, C50BX (K21 Eng. 2001-2005), C60BXH (K25 Eng.), P30AX (K21 Eng. 2001-2005), P35AX, P40BX (K21 Eng. 2001-2005), P50BX (K21 Eng.), P60BXH (K25 Eng. 2001-2005).
- Komatsu Lift Trucks: FG10-20 (K15), FG15-20, FG18-20HT (K15 Eng. 2004-2009), FG15HT-17, FG15HT-20 (K21 Eng. 2007-2009), FG18HT/SHT-17 (K21 Eng. 2004-2006), FG18SHT-20 (K21 Eng. 2007-2009), FG20C-14, FG20SHT-14 (K21 Eng. 2004-2006), FG20C-16, FG20SHT-16 (K21 Eng.), FG25C-14 (K21 Eng.), FG25SHT-14 (K21 Eng.), FG25T-14 (K21 Eng. 06-09), FG28HT-16, FG28SHT-16 (K25 Eng. 2006-2009), FG30C-14 (K21 Eng.), FG30HT-14 (K25 Eng. 2004-2005), FG30SHT/FG32SHT-16, FG32HT-16 (K25 Eng. 2006-2009).
- ТКМ жабдууларын көтөрүүчү жүк ташуучу унаалар: FCG15-4 (K21 Eng. 2007-2009), FCG15T-3 (K21 Eng. 2004-2007), FCG18T-3 (K21 Eng. 2004-2009), FCG20-4 (K21 Eng. 2007-2009), FCG20-4H (K25 Eng. 2007-2009), FCG20T-3 (K21 Eng. 2004-2007), FCG25-4 (K21 Eng. 2007-2009).
Орнотуу жана орнотуу
Installation of an alternator requires mechanical aptitude and appropriate tools. If you are not confident in your ability to perform this installation, it is recommended to seek assistance from a qualified mechanic or service professional.
Орнотуунун жалпы кадамдары (өзгөчө маалымат алуу үчүн Унааны тейлөө боюнча колдонмону караңыз):
- Биринчи коопсуздук: Электр зымдарынын кыска туташуусуна жол бербөө үчүн унаанын аккумуляторунун терс терминалын ажыратыңыз.
- Мүмкүнчүлүк: Locate the existing alternator. Depending on the vehicle, this may require removing other components.
- Зымдарды ажыратыңыз: Carefully disconnect all electrical connections from the old alternator. Note their positions for reinstallation.
- Белди алып салуу: Тарткычты бошотуп, генератордун шкивинен серпентин курун алып салыңыз.
- Бекитүүчү болтторду алып салыңыз: Unbolt the old alternator from its mounting brackets.
- Жаңы генераторду орнотуу: Position the new Gladiator alternator into place and secure it with the mounting bolts. Do not overtighten.
- Курду кайра орнотуу: Route the serpentine belt correctly around the new alternator pulley and tension it according to vehicle specifications.
- Зымдарды кайра туташтыруу: Reconnect all electrical connections securely. Ensure all terminals are clean and tight.
- Батареяны кайра туташтыруу: Терс батарея терминалын кайра туташтырыңыз.
- Сыноо: Start the vehicle and check the charging system indicator light. Verify proper voltage output with a multimeter.

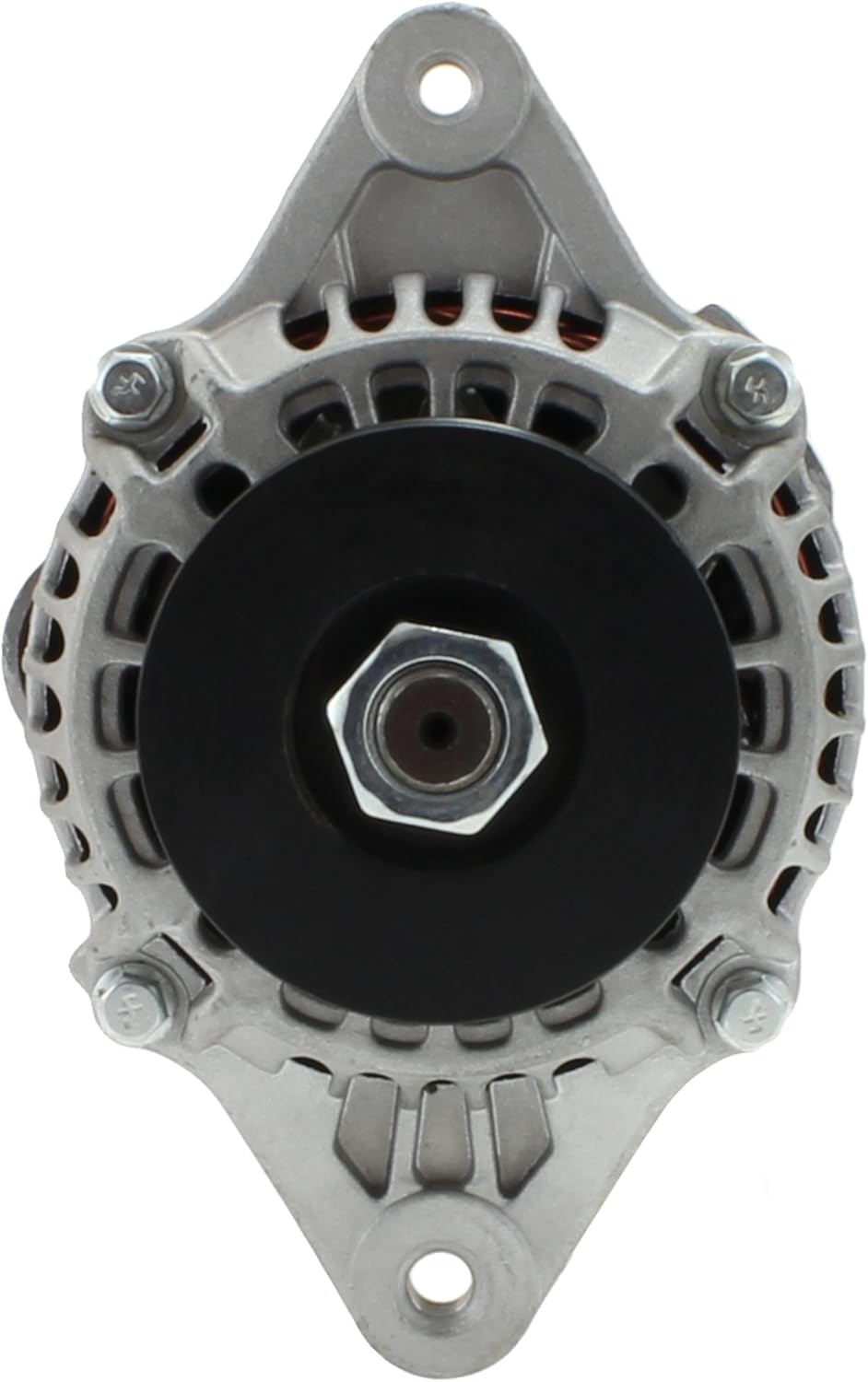

Сүрөт 1: Алдыңкы view of the Gladiator Premium Alternator, showing the pulley and mounting points. This view is typical for installation reference.
Операция
Once properly installed, the alternator operates automatically as part of the vehicle's electrical system. Its primary function is to convert mechanical energy from the engine into electrical energy to power the vehicle's electrical components and recharge the battery.
Кадимки операция:
- The alternator begins charging the battery and supplying power to electrical systems once the engine is running.
- The internal regulator maintains a consistent voltage output, typically between 13.5 and 14.8 volts, to prevent overcharging or undercharging the battery.
- The internal fan ensures the alternator remains within optimal operating temperatures during use.
Техникалык тейлөө
The Gladiator Premium Alternator is designed for durability and requires minimal direct maintenance. However, regular checks of related components can help ensure its long-term performance.
Сунушталган текшерүүлөр:
- Батареянын абалы: Ensure the vehicle's battery is in good condition and holds a charge. A failing battery can put undue strain on the alternator.
- Belt Tension and Condition: Periodically inspect the serpentine belt for cracks, fraying, or excessive wear. Ensure it has proper tension; a loose belt can cause slipping and reduce alternator output.
- Зымдарды туташтыруу: Check all electrical connections to the alternator for corrosion or looseness. Clean and tighten as necessary.
- Charging System Light: Pay attention to your vehicle's dashboard charging system warning light. If it illuminates during operation, it indicates a potential issue with the charging system.
2-сүрөт: Каптал view of the Gladiator Premium Alternator, highlighting the pulley and cooling fins.
Проблемаларды чечүү
If you experience issues with your vehicle's charging system, the following table outlines common symptoms and potential causes related to the alternator. Always consult a qualified technician for diagnosis and repair if you are unsure.
| Симптом | Мүмкүн себеп | Акция |
|---|---|---|
| Куралдар тактасында батареянын эскертүү жарыгы | Alternator not charging, loose belt, faulty wiring, dead battery. | Check belt tension, inspect wiring, test battery and alternator output. |
| Күңүрт фаралар же ички жарыктар | Insufficient power from alternator, failing battery. | Test alternator output and battery voltage. |
| Growling or whining noise from engine bay | Worn alternator bearings, loose or worn belt. | Inspect alternator for bearing noise, check belt condition and tension. |
| Battery constantly dead | Alternator not charging, parasitic drain, old battery. | Test charging system, check for electrical drains, test battery health. |
3-сүрөт: Арткы view of the Gladiator Premium Alternator, showing electrical connections and mounting points.
Техникалык шарттар
| Атрибут | Нарк |
|---|---|
| Бренд | Гладиатор |
| Модель номерлери | A7TA3377, 91H20-03270, 91H20-03271, 90-27-3325N, 90-27-3325, A7TA3377A, 8772271, 8775058, 23100-FU410 |
| Тtage | 12 вольт |
| Ampөчүрүү | 50 Amps |
| Ички жөнгө салуучу | Ооба |
| Ички желдеткич | Ооба |
| Элемент Салмагы | 10 фунт (болжол менен 4.54 кг) |
| Продукциянын өлчөмдөрү | 7.3 x 6.5 x 4.8 дюйм (болжол менен 18.5 x 16.5 x 12.2 см) |
4-сүрөт: Жогорку view of the Gladiator Premium Alternator, showing the overall shape and mounting points.
Кепилдик маалымат
The Gladiator Premium Alternator comes with a Бир жылдык кепилдик from the date of purchase. This warranty covers defects in materials and workmanship under normal use and service. For warranty claims or further details, please retain your proof of purchase and contact the seller or manufacturer directly.
This warranty does not cover damage resulting from improper installation, misuse, neglect, accident, alteration, or unauthorized repair.
Колдоо жана Байланыш
For technical assistance, troubleshooting guidance, or warranty inquiries, please contact the seller from whom you purchased this product. Ensure you have your product model number and purchase details ready when contacting support.
Сатуучу: Quality Solution
For general product information, you may refer to the Gladiator brand website or product listings.
