1. Киришүү
This manual provides essential information for the safe and efficient operation of your Fenton FT215LED Portable Speaker. Please read these instructions thoroughly before using the device and retain them for future reference. The FT215LED is a versatile portable sound system featuring Bluetooth connectivity, USB/SD playback, AUX input, two wireless microphones, and integrated LED lighting, designed for various audio applications.
2. Коопсуздук маалыматы
To prevent electric shock, fire, or injury, always observe the following safety precautions:
- Агрегатты жамгырга же нымдуулукка дуушар кылбаңыз.
- в ачпагылаasinг. Ичинде колдонуучу тейлей турган бөлүктөр жок. Бардык тейлөөлөрдү квалификациялуу кызматкерлерге тапшырыңыз.
- электр менен жабдууну камсыз кылуу voltage бирдикте көрсөтүлгөн талаптарга дал келет.
- Keep the unit away from heat sources, direct sunlight, and excessive dust.
- Агрегаттын үстүнө оор нерселерди койбоңуз.
- Өндүрүүчү тарабынан көрсөтүлгөн кошумча жабдууларды гана колдонуңуз.
- Чагылгандуу жаан учурунда же көпкө чейин колдонулбаган учурда электр шнурун сууруп коюңуз.
3. Орнотуу
3.1 Пакеттен чыгаруу
Carefully remove the speaker and all accessories from the packaging. Verify that all components are present:
- Fenton FT215LED Portable Speaker
- Wireless Microphones (x2)
- Алыстан башкаруу
- Электр кабели

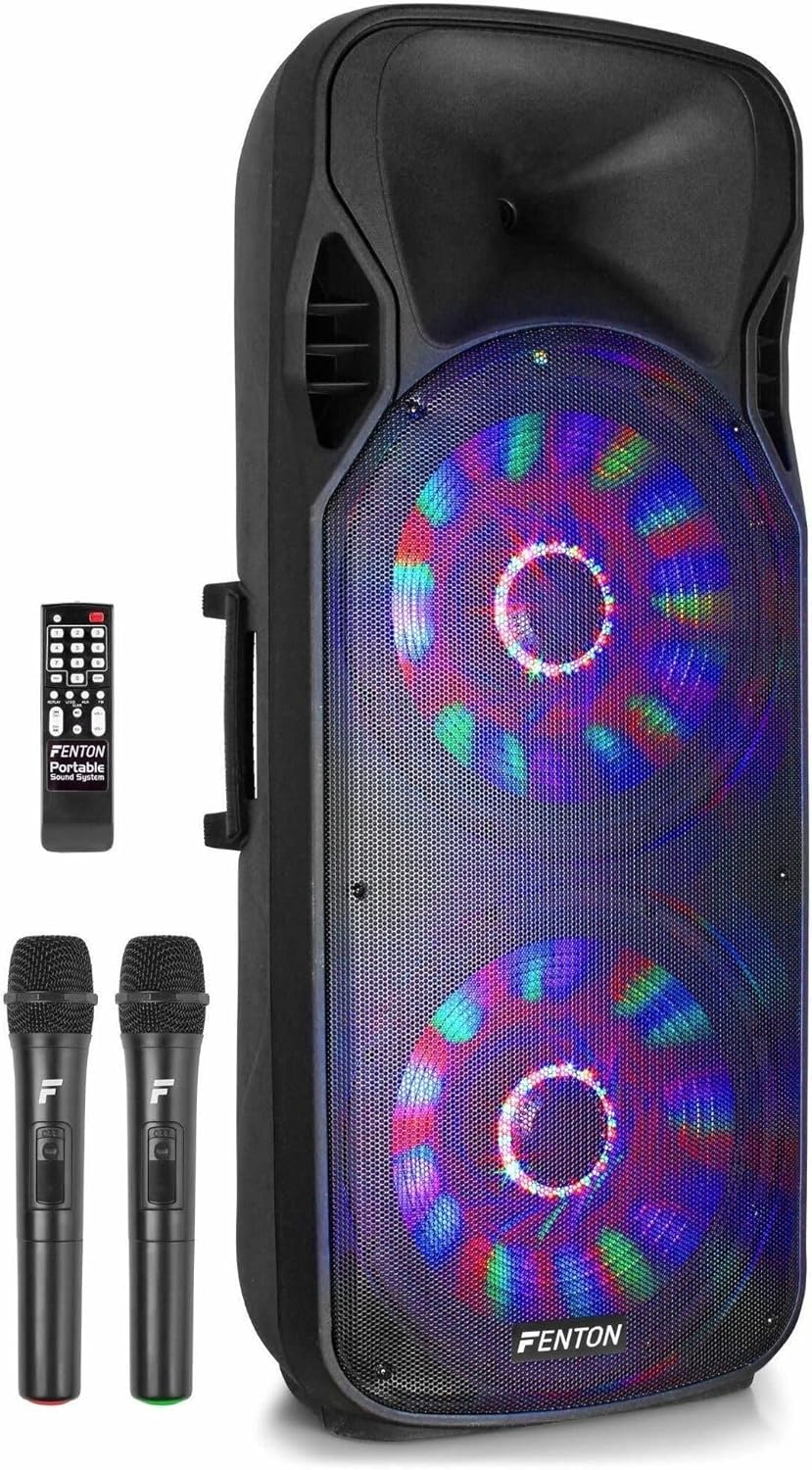

Figure 1: Fenton FT215LED Portable Speaker with included accessories.
3.2 Агрегатты кубаттоо
The FT215LED speaker features an integrated battery for portable use. Before first use, ensure the battery is fully charged. Connect the provided power cable to the speaker's power input and then to a suitable wall outlet. The charging indicator will illuminate. Once fully charged, the indicator may change color or turn off, depending on the model.
3.3 Баштапкы байланыштар
Locate the control panel on the rear of the speaker. This panel provides various input options.
Figure 2: Rear control panel of the FT215LED speaker.
- Микрофондор: The speaker comes with two wireless microphones. Ensure batteries are inserted correctly into the microphones. Turn on the microphones using their respective power switches.
- AUX киргизүү: For connecting external audio devices (e.g., CD player, laptop) via a 3.5mm or RCA cable.
- USB/SD карта: Insert a USB drive or SD card into the designated slots for media playback.
4. Иштөө нускамалары
4.1 Күйгүзүү/өчүрүү
Press the main power switch on the control panel to turn the speaker on or off.
4.2 Bluetooth жупташтыруу
- Ensure the speaker is powered on and in Bluetooth mode. The display will indicate 'BT' or a similar Bluetooth icon.
- Activate Bluetooth on your mobile device (smartphone, tablet, computer).
- Издөө available devices and select 'Fenton FT215LED' from the list.
- Once paired, the speaker will emit a confirmation sound, and you can stream audio wirelessly.
Figure 3: Connecting a smartphone via Bluetooth for audio streaming.
4.3 USB/SD ойнотуу
Insert a USB drive or SD card containing MP3 files into the corresponding slot. The speaker will automatically switch to USB/SD mode and begin playback. Use the control panel or remote control to navigate tracks, adjust volume, and pause/play.
4.4 AUX киргизүү
Connect your external audio device to the AUX input using an appropriate cable. Select AUX mode on the speaker's control panel or remote. Audio from your external device will now play through the speaker.
4.5 Микрофонду колдонуу
Turn on the wireless microphones. Adjust the microphone volume and echo effect using the dedicated knobs on the speaker's control panel. Ensure the microphones are within range for optimal performance.
Figure 4: The two wireless microphones included with the FT215LED speaker.
4.6 LED жарыктандыруу
The speaker features integrated LED lighting. Use the dedicated button on the control panel or remote control to activate or deactivate the LED effects.
4.7 Алыстан башкаруу
The included remote control provides convenient access to various functions, including power, mode selection, volume, track navigation, and LED control.
Figure 5: The remote control for the Fenton FT215LED speaker.
5. Техникалык тейлөө
5.1 Тазалоо
Wipe the speaker's exterior with a soft, dry cloth. Do not use abrasive cleaners, waxes, or solvents. Ensure no liquids enter the unit.
5.2 Сактоо
When not in use for extended periods, store the speaker in a cool, dry place, away from direct sunlight and extreme temperatures. If the unit has an integrated rechargeable battery, charge it periodically (e.g., every 3 months) to maintain battery health.
6. Кыйынчылыктарды
If you encounter issues with your Fenton FT215LED speaker, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Күч жок | Электр кабели туташкан эмес; Батареясы түгөнгөн; Кубат өчүк | Check power cable connection; Charge the battery; Ensure power switch is ON |
| Үн жок | Үн өтө төмөн; Туура эмес киргизүү режими; Түзмөк туура туташкан эмес | Increase volume; Select correct input mode (BT, USB, SD, AUX); Reconnect device |
| Bluetooth туташпай жатат | Speaker not in pairing mode; Device too far; Incorrect device selected | Ensure speaker is in BT mode; Move device closer; Select 'Fenton FT215LED' |
| Микрофон иштебей жатат | Microphone off; Batteries depleted; Volume too low | Turn on microphone; Replace batteries; Increase microphone volume |
7. Техникалык шарттар
The following are the technical specifications for the Fenton FT215LED Portable Speaker:
- Модель номери: 170.094
- Бренд: Фентон
- Чыгуу кубаттуулугу: 1600 Вт (чоку)
- Байланыш: Bluetooth, USB, SD, AUX (3.5mm, RCA)
- Аудио киргизүү: Микрофон, гитара
- Жыштык жообу: 19000 Гц чейин
- Өзгөчөлүктөр: USB Port, Portable design, Remote Control, LED Lighting
- Өлчөмдөрү (L x W x Y): 36 x 47 x 111 см
- Салмагы: 19.2 килограмм
- Материал: Жыгач
- Кубат булагы: Батарея менен иштейт
- Түсү: Кара
Figure 6: The FT215LED speaker delivers a powerful 1600W sound experience.
8. Кепилдик жана колдоо
Specific warranty details are not provided within the product information. For warranty claims or detailed support, please contact the retailer or the manufacturer, Fenton, directly. Information regarding spare parts availability and software updates is not available in the provided product data.
