Walfront BL-2000 Air Lubricator Instruction Manual

1. Продукт бүтүп калдыview

The Walfront BL-2000 Air Lubricator is a crucial component for pneumatic systems, designed to provide stable and accurate high-pressure lubrication to air-powered equipment. This device ensures the longevity and efficient operation of your pneumatic tools and machinery by introducing a controlled mist of oil into the compressed air stream.

Its robust construction and precise engineering make it suitable for various industrial settings and automation equipment, enhancing overall system performance and reducing maintenance requirements.

Сүрөт 1.1: Алдыңкы view of the Walfront BL-2000 Air Lubricator, showing the main body and transparent oil cup.

Figure 1.2: The BL-2000 Air Source Treatment Lubricator, highlighting key specifications such as Max. Pressure (1MPa), Pipe Connection (G1/4), and Filtration Precision (40UM).

2. Коопсуздук маалыматы

Please read and understand all safety instructions before installing, operating, or maintaining the Walfront BL-2000 Air Lubricator. Failure to follow these instructions may result in property damage, personal injury, or death.

• Always depressurize the air system before performing any installation, maintenance, or repair work.
• Кысылган аба системалары менен иштөөдө көздү коргоочу каражаттарды кошо алганда, тиешелүү жеке коргонуу каражаттарын (ЖКК) кийиңиз.
• Ensure all connections are secure and leak-free before operating the system.
• Do not exceed the maximum operating pressure specified for this device.
• Use only lubricants recommended for pneumatic systems. Do not use organic solvents, thinners, or alcohol for cleaning the polycarbonate bowl, as this can cause damage. Use dishwashing liquid for cleaning.
• Продукцияны жылуулук булактарынан жана түз күн нурунан алыс кармаңыз.

3. Пакеттин мазмуну

Upon opening the package, verify that all components are present and undamaged. If any items are missing or damaged, please contact customer support immediately.

• 1 x Walfront BL-2000 Air Lubricator

4. Техникалык шарттар

Refer to the table below for detailed technical specifications of the Walfront BL-2000 Air Lubricator.

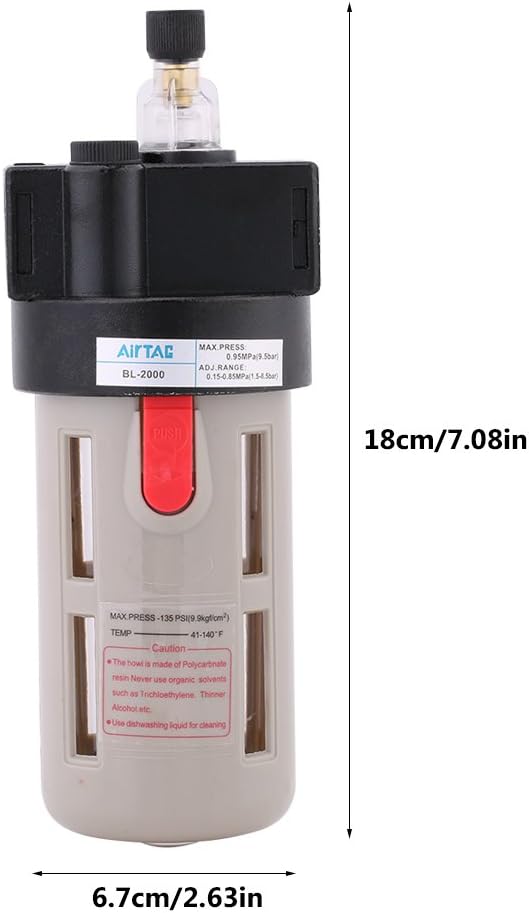

Figure 4.1: Dimensions of the Walfront BL-2000 Air Lubricator, showing a height of 18cm (7.08in) and a width of 6.7cm (2.63in).

5. Орнотуу

Proper installation is essential for the optimal performance and safety of your air lubricator.

5.1 Монтаждоо

• Select a suitable location for mounting the lubricator, ensuring it is easily accessible for maintenance and refilling.
• Mount the lubricator vertically with the oil cup facing downwards to allow for proper drainage and oil level monitoring.
• Ensure there is sufficient clearance around the unit for air connections and future servicing.

5.2 Connecting Air Lines

• Identify the inlet and outlet ports (G1/4 pipe connection). The air flow direction is typically indicated by an arrow on the lubricator body.
• Connect the compressed air supply line to the inlet port and the line leading to your pneumatic equipment to the outlet port.
• Use appropriate thread sealant (e.g., PTFE tape) on all threaded connections to prevent air leaks.
• Tighten connections securely but do not overtighten, which could damage the threads.

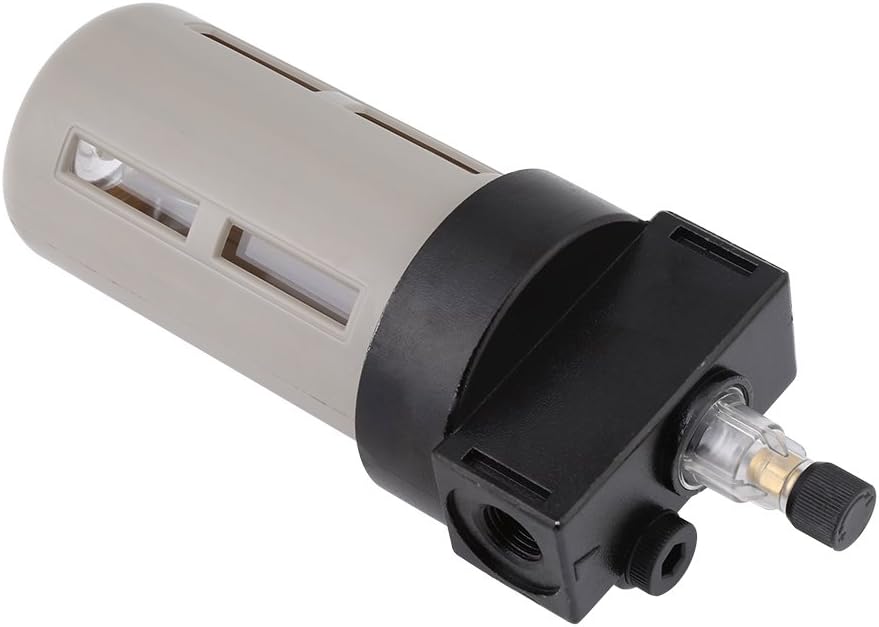

5.1-сүрөт: Төмөнкү view of the lubricator, showing the drain valve and the transparent oil cup for monitoring lubricant levels.

5.3 Filling Lubricant

• Ensure the air system is depressurized before filling the lubricator.
• Unscrew the top cap or filler plug on the lubricator.
• Fill the oil cup with a suitable pneumatic tool oil or compressor oil. Do not overfill; observe the maximum fill line if present.
• Securely replace the cap or plug.

6. Иштөө нускамалары

Once installed and filled, the Walfront BL-2000 Air Lubricator is ready for operation.

6.1 Баштапкы баштоо

• Slowly introduce compressed air into the system.
• Check all connections for leaks using a soapy water solution. Tighten any leaking connections.

6.2 Adjusting Lubrication Rate

The lubrication rate can be adjusted to suit the specific needs of your pneumatic equipment.

• Locate the adjustment knob on the top of the lubricator.
• Turn the knob clockwise to decrease the oil drip rate and counter-clockwise to increase it.
• Observe the oil drip indicator (if present) or the performance of your pneumatic tools to fine-tune the setting. A common recommendation is 1-2 drops per minute for general applications.

6.1-сүрөт: Жогорку view of the lubricator, showing the adjustment knob used to control the oil drip rate into the air stream.

7. Техникалык тейлөө

Regular maintenance ensures the longevity and efficient operation of your Walfront BL-2000 Air Lubricator.

7.1 Refilling Lubricant

• Monitor the oil level in the transparent cup regularly.
• When the oil level is low, depressurize the system and refill the lubricator as described in Section 5.3.

7.2 Draining Condensate

Although primarily a lubricator, some moisture may accumulate. The BL-2000 features a manual drain for convenience.

• Locate the red "PUSH" button or drain valve at the bottom of the oil cup.
• With the system depressurized, press the button or open the valve to drain any accumulated condensate.
• Close the valve securely after draining.

Figure 7.1: Close-up of the red "PUSH" button on the lubricator, which serves as the manual drain for condensate.

7.3 Тазалоо

• Майлоочу каражаттын сыртын мезгил-мезгили менен жарнама менен тазалап туруңузamp кездеме.
• If the oil cup requires internal cleaning, remove it (after depressurizing the system) and wash with mild dishwashing liquid and water. Rinse thoroughly and ensure it is completely dry before reassembling.
• Абайлаңыз: Do not use organic solvents, thinners, or alcohol to clean the polycarbonate bowl, as these chemicals can cause cracking or damage.

8. Кыйынчылыктарды

This section provides solutions to common issues you might encounter with your Walfront BL-2000 Air Lubricator.

9. Кепилдик жана колдоо

Walfront products are manufactured to high-quality standards. While specific warranty details may vary, we are committed to providing reliable products and customer satisfaction.

For technical support, warranty claims, or any questions regarding your Walfront BL-2000 Air Lubricator, please contact Walfront customer service through the retailer where the product was purchased or visit the official Walfront store page on Amazon.
