Jamara Mercedes Benz Arocs Container Truck (Model 405148) Instruction Manual

Маанилүү коопсуздук маалыматы

Please read this instruction manual carefully before operating the Jamara Mercedes Benz Arocs Container Truck. Failure to follow these instructions may result in injury or damage to the product.

• КӨҢҮЛ: Чоңдордун көзөмөлү астында гана колдонулушу керек.
• КӨҢҮЛ: Not suitable for children under 36 months! Contains small parts that can be swallowed. Choking hazard! Keep away from young children.
• Do not operate the model in public traffic areas.
• Колдорду, чачтарды жана бош кийимдерди кыймылдуу бөлүктөрдөн алыс кармаңыз.
• Always remove batteries from the model and remote control when not in use.
• Эски жана жаңы батарейкаларды же ар кандай типтеги батареяларды аралаштырбаңыз.
• Колдонулган батареяларды жоопкерчилик менен жок кылыңыз.

Продукт бүттүview

The Jamara Mercedes Benz Arocs Container Truck (Model 405148) is a highly detailed remote-controlled vehicle designed for realistic play. It features a 2.4 GHz control system for multi-player operation and a range of interactive functions.

Image: A child operating the Jamara Mercedes Benz Arocs Container Truck with the 2.4 GHz remote control.

Негизги өзгөчөлүктөрү:

• 2.4 GHz control for multi-player operation
• Realistic engine sound (can be switched off)
• Мүйүз функциясы
• Автоматтык күтүү режими
• Functional indicators (turn signals)
• Automatic trailer supports
• Trailers can be coupled and uncoupled via remote control
• Two selectable speeds
• Removable containers
• Manually opening container doors
• LED lights (front/rear)

Пакеттин мазмуну

Төмөндө көрсөтүлгөн бардык буюмдар пакетте бар экенине ынаныңыз:

• 1 x Jamara Mercedes Benz Arocs Container Truck Model
• 1 x 2.4 ГГц алыстан башкаруу
• 1 x Instruction Manual

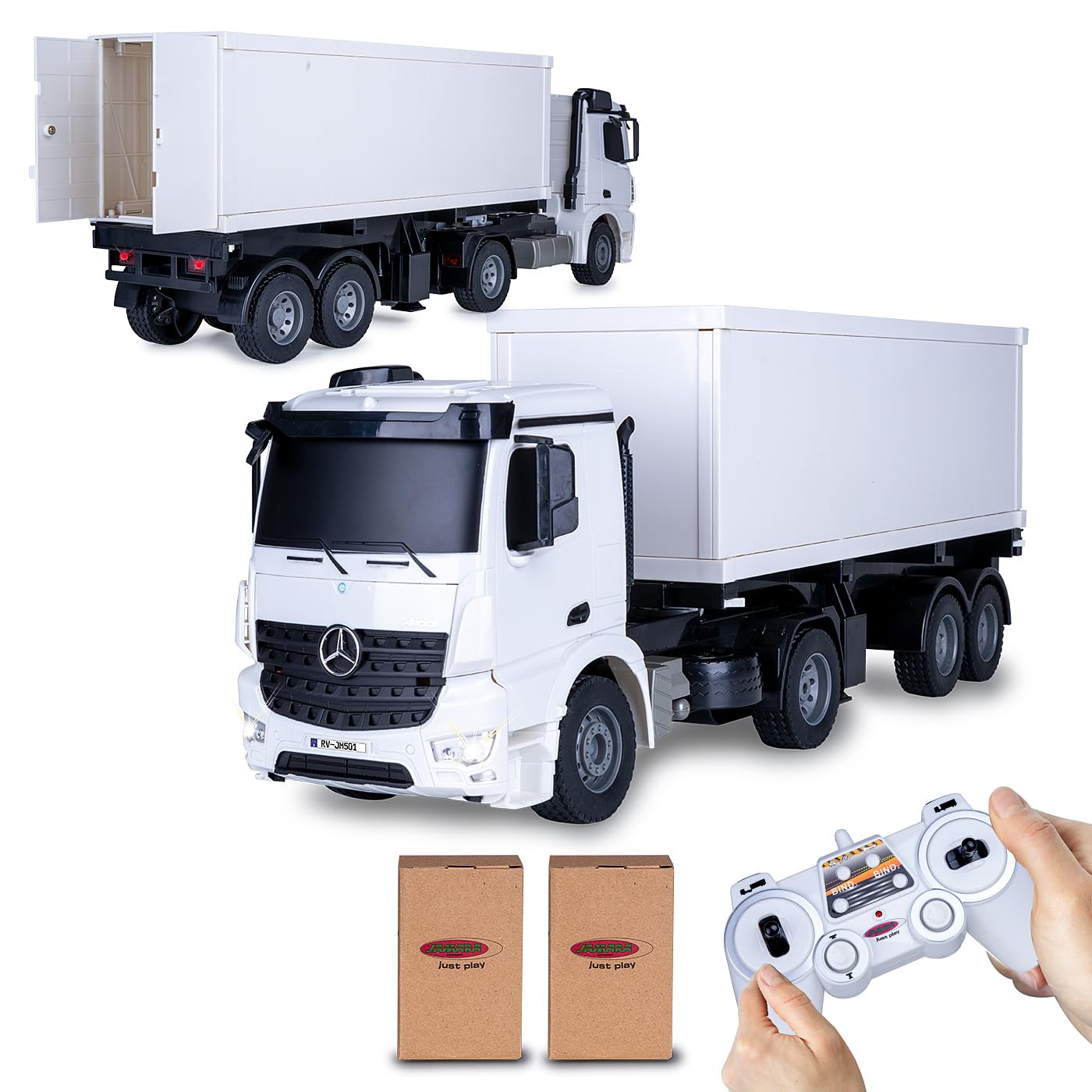

Image: The Jamara Mercedes Benz Arocs Container Truck and remote control as packaged.

Жайгашуу

1. Батареяны орнотуу

Батареялар камтылган эмес жана өзүнчө сатып алынышы керек.

• Алыстан башкаруу үчүн: Insert 2 x AA 1.5 V batteries into the battery compartment located on the back of the remote control. Ensure correct polarity (+/-).
• For the Truck Model: Insert 7 x AA 1.5 V batteries into the battery compartment of the truck. Ensure correct polarity (+/-).

Securely close all battery compartments after installation.

Image: The 2.4 GHz remote control unit.

2. Алыстан башкарууну жупташтыруу

The 2.4 GHz remote control system typically pairs automatically. Follow these steps:

1. Ensure both the truck and the remote control have fresh batteries installed.
2. Turn on the truck using its power switch.
3. Turn on the remote control. The indicator light on the remote should blink and then become solid, indicating a successful connection.
4. Эгерде жупташуу ишке ашпаса, эки түзмөктү тең өчүрүп, бир нече секунд күтө туруп, процессти кайталаңыз.

Операция

Негизги башкаруу элементтери:

• Алдыга артка: Use the left joystick (or corresponding button) to move the truck forward or backward.
• Сол оң: Use the right joystick (or corresponding button) to steer the truck left or right.
• Токтотуу: Release the controls to bring the truck to a stop.
• Ылдамдыгы: The truck has 2 selectable speeds, with a maximum speed of approximately 6 km/h. Refer to your remote control for the speed selection button.

Өзгөчөлүктөр:

• Engine Sound & Horn: Activate the realistic engine sound and horn using the dedicated buttons on the remote control. The engine sound can be switched off if desired.
• Көрсөткүчтөр: Use the remote control to activate the truck's turn signals.
• Automatic Trailer Supports: The trailer supports can be raised and lowered automatically via the remote control, allowing for easy coupling and uncoupling of the trailer.
• Алынуучу контейнерлер: The container unit can be manually removed from the trailer chassis.
• Manually Opening Container Doors: The rear doors of the container can be opened manually for loading and unloading.
• LED жарыктары: The truck features functional LED lights at the front and rear.

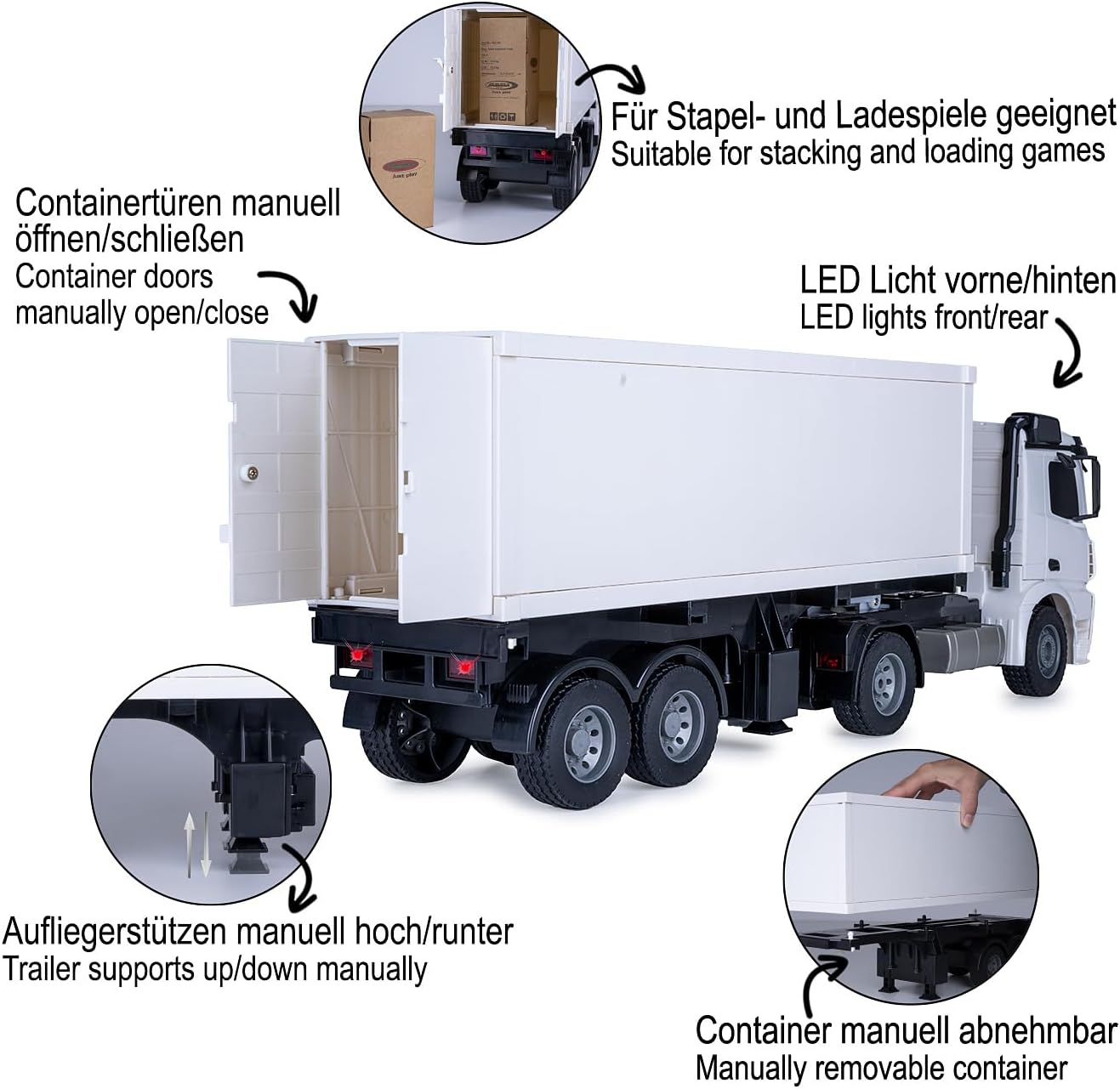

Image: Features of the truck including opening container doors and trailer supports.

Сүрөт: Арткы view of the truck with illuminated LED taillights.

Техникалык тейлөө

• Тазалоо: Wipe the truck and remote control with a soft, dry cloth. Do not use water or chemical cleaners.
• Сактагыч: Store the model in a cool, dry place away from direct sunlight when not in use.
• Батареяга кам көрүү: Always remove batteries from the model and remote control during long periods of storage to prevent leakage.
• Текшерүү: Regularly check for any loose parts or damage. Do not operate if damaged.

Проблемаларды чечүү

• Truck does not respond:
  • Check if batteries are correctly installed and charged in both the truck and remote control.
  • Ensure both the truck and remote control are switched ON.
  • Re-pair the remote control and truck (see Setup section).
• Short control range:
  • Replace batteries in both the truck and remote control.
  • Ensure there are no strong interference sources (e.g., other 2.4 GHz devices) nearby.
• Engine sound not working:
  • Check if the sound function is enabled via the remote control.

Техникалык шарттар

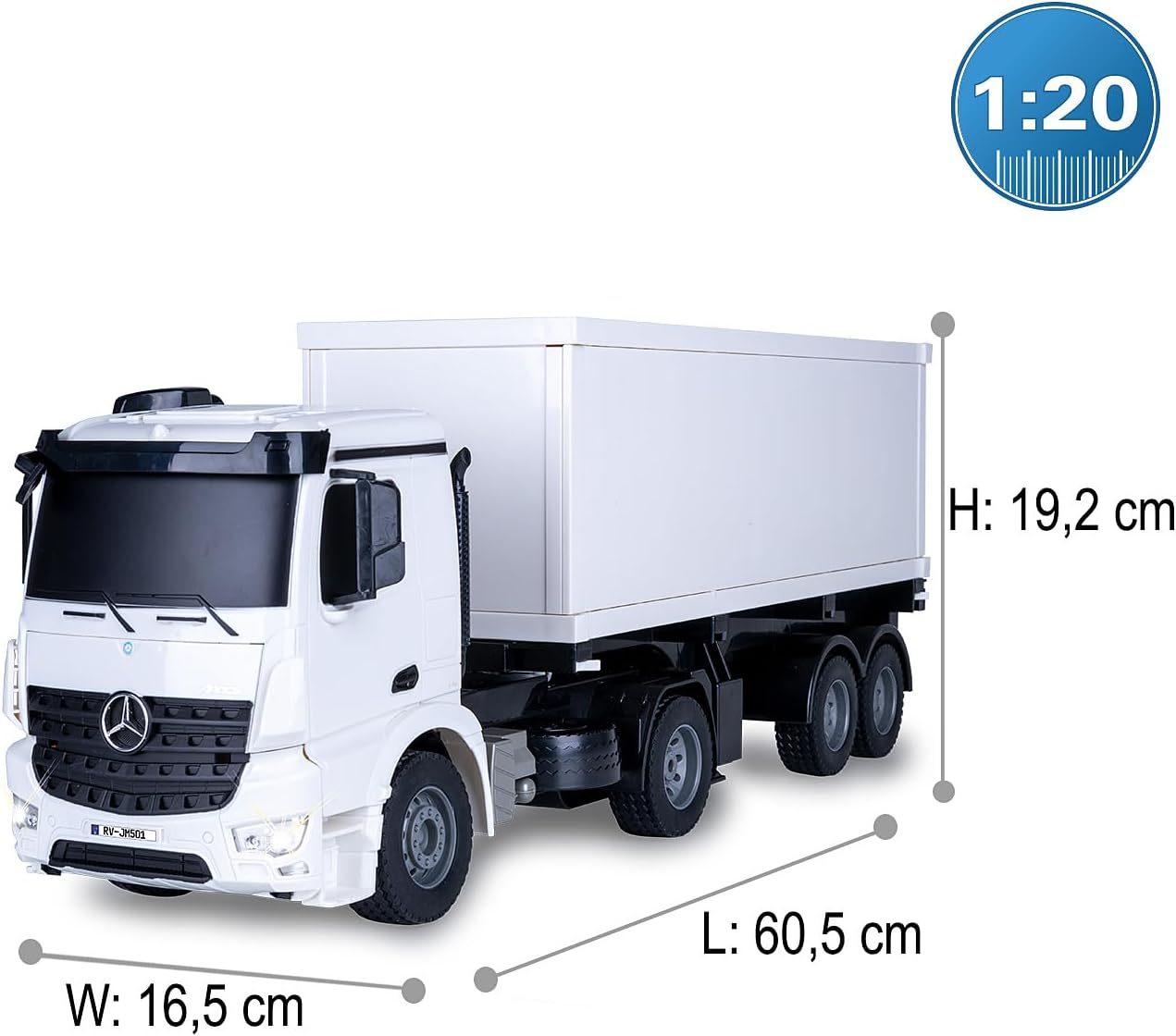

Image: Detailed dimensions of the Jamara Mercedes Benz Arocs Container Truck.

Кепилдик жана колдоо

For warranty information, technical support, or spare parts inquiries, please refer to the contact information provided on the product packaging or visit the official Jamara webсайт. Сатып алганыңыздын далили катары сатып алуу дүмүрчөгүңүздү сактаңыз.
