1. Киришүү
Thank you for choosing the Vax Platinum Power Max Carpet Cleaner. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.
2. Коопсуздук маалыматы
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury. This appliance is for domestic use only.
- Шайманды сууга же башка суюктуктарга батырбаңыз.
- Always unplug the cleaner from the power outlet before cleaning or performing maintenance.
- Чачты, кенен кийимдерди, манжаларды жана дененин бардык бөлүктөрүн тешиктерден жана кыймылдуу бөлүктөрдөн алыс кармаңыз.
- Use only Vax cleaning solutions recommended for this appliance.
- Do not use on wet surfaces or outdoors.
- Шайманды үй ичинде кургак жерде сактаңыз.
3. Продукт бүтүп калдыview
Familiarize yourself with the components of your Vax Platinum Power Max Carpet Cleaner.

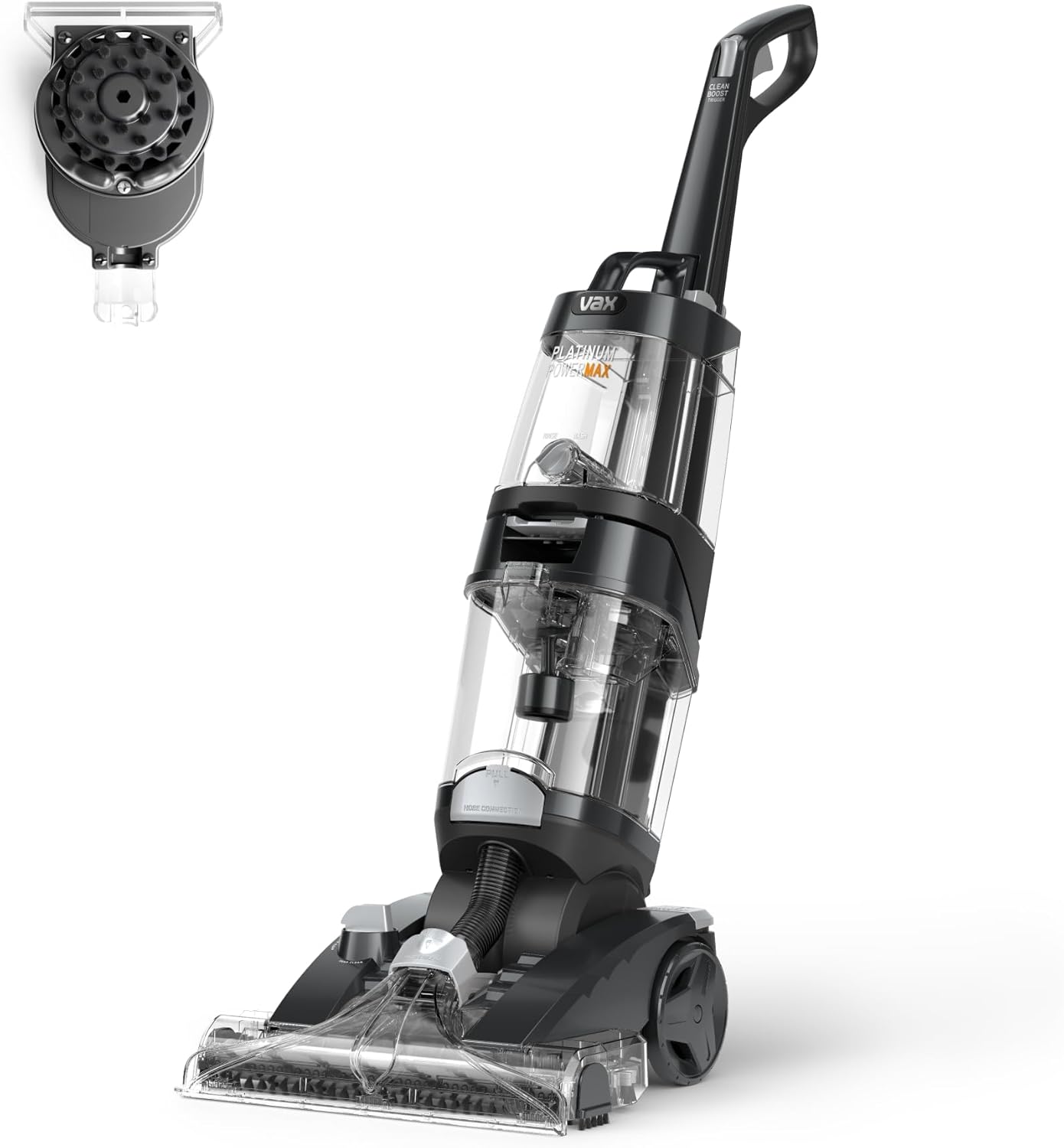

3.1-сүрөт: Негизги view of the Vax Platinum Power Max Carpet Cleaner, showcasing its upright design with clear water tanks and cleaning head.
3.2-сүрөт: Фронт view of the carpet cleaner, highlighting the transparent dirty water tank and the main cleaning nozzle.
4. Орнотуу
Before first use, assemble the cleaner and prepare it for operation.
4.1 Ассамблея
- Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз.
- Attach the handle to the main body of the cleaner, ensuring it clicks securely into place.
- Connect any hoses or attachments as per the quick start guide included in the box.
4.2 Резервуарларды толтуруу
The Vax Platinum Power Max features Auto-Mix Technology for hassle-free solution dispensing.
- Шаймандан таза суу сактагычты алып салыңыз.
- Fill the clean water tank with warm tap water up to the indicated fill line.
- Pour the recommended Vax cleaning solution into the solution compartment. The Auto-Mix system will automatically dispense the correct ratio.
- Securely reattach the clean water tank to the cleaner.
4.1-сүрөт: Diagram illustrating the Auto-Mix Technology, showing how water and cleaning solution are combined for optimal cleaning.
5. Иштөө нускамалары
Follow these steps for effective carpet cleaning.
5.1 Pre-Treatment (Optional)
For stubborn stains, use the Pre-Treatment Wand prior to deep cleaning.
- Fill the Pre-Treatment Wand with Vax Pre-Treatment Solution.
- Apply the solution directly to the stained area, allowing it to penetrate for a few minutes as per solution instructions.
5.1-сүрөт: A user applying pre-treatment solution to carpet stains using the dedicated wand, preparing the area for deeper cleaning.
5.2 Килем тазалоо
The cleaner offers 'Quick Clean' and 'Deep Clean' modes.
- Plug the cleaner into a suitable power outlet.
- Select your desired cleaning mode using the dial on the cleaning head. 'Quick Clean' provides faster drying, while 'Deep Clean' offers a more thorough wash.
5.2-сүрөт: A hand adjusting the cleaning mode dial on the carpet cleaner's base, switching between 'Quick Clean' and 'Deep Clean' settings.
- Шайманды иштетүү үчүн кубат баскычын басыңыз.
- Push the cleaner forward slowly, pressing the trigger to release cleaning solution.
- Pull the cleaner backward slowly over the same area without pressing the trigger to extract dirty water. Repeat until the water being extracted appears clean.
5.3-сүрөт: The Vax carpet cleaner in action, demonstrating its ability to remove deep-down dirt from carpets, with a dog resting on a nearby bed.
5.3 Quick Dry Time
Carpets can be dry in as little as an hour when using the Quick Clean function.
5.4-сүрөт: A person touching a carpet that has dried quickly after being cleaned, demonstrating the efficiency of the quick dry function.
5.4 Тиркемелерди колдонуу
The Vax Platinum Power Max comes with versatile tool attachments for various cleaning tasks, including the motorised SpinScrub Hand Tool and Wash Tool.
- Ensure the main unit is off and unplugged before attaching or detaching tools.
- Connect the hose to the designated port on the cleaner.
- Attach the desired tool (e.g., SpinScrub Hand Tool for upholstery, Wash Tool for stairs) to the end of the hose.
- Follow the same cleaning principles as for carpets, moving the tool slowly over the surface and extracting water.
5.5-сүрөт: A collage showing various attachments in use, including cleaning upholstery, stairs, pre-treating stains, and cleaning hard floors, demonstrating the cleaner's versatility.
6. Техникалык тейлөө жана тазалоо
Regular maintenance ensures optimal performance and longevity of your cleaner.
6.1 Резервуарларды бошотуу жана тазалоо
- After each use, turn off and unplug the cleaner.
- Remove the dirty water tank and empty its contents into a sink or drain.
- Rinse both the dirty water tank and the clean water tank thoroughly with clean water.
- Allow tanks to air dry before reassembling or storing.
6.2 Cleaning Brushes and Nozzle
The cleaner features an Antimicrobial Treatment for hygienic cleaning.
- Remove the nozzle cover and brush bar assembly.
- Remove any hair or debris tangled around the brush bar. A stiff brush or comb may be useful.
- Rinse the brush bar and nozzle cover under running water.
- Ensure all parts are dry before reattaching.
6.1-сүрөт: Жакын план view of the brush bar, illustrating the antimicrobial protection that helps maintain hygiene during and after cleaning.
7. Кыйынчылыктарды
Жалпы маселелер жана алардын чечимдери үчүн бул бөлүмдү караңыз.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Тазалоочу күйбөйт | Not plugged in; Power outlet fault; Blown fuse/tripped breaker | Check power cord connection; Test outlet with another appliance; Reset breaker/replace fuse |
| Poor suction/cleaning performance | Dirty water tank full; Clean water tank empty; Nozzle/hose clogged; Brush bar tangled | Empty dirty water tank; Refill clean water tank; Clear clogs from nozzle/hose; Clean brush bar |
| Solution not dispensing | Solution tank empty; Auto-Mix system blocked; Trigger not pressed | Refill solution tank; Check for blockages in Auto-Mix system; Ensure trigger is fully pressed |
| Ашыкча көбүк | Too much solution; Using non-Vax solution | Reduce solution amount; Use only Vax recommended solutions |
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Vax |
| Модель номери | CUR232403 |
| Түс | Кара |
| Продукциянын өлчөмдөрү | 15.35 x 15.35 x 43.7 см |
| Элемент Салмагы | 9.6 кг |
| Сыйымдуулугу (Таза суу) | 3.5 литр |
| Power / Wattage | 1200 ватт |
| Өзгөчөлүктөр | Corded, Auto-Mix Technology, Antimicrobial Protection |
9. Кепилдик жана колдоо
The Vax Platinum Power Max Carpet Cleaner comes with a 6 жылдык кепилдик for complete peace of mind. Please retain your proof of purchase for warranty claims.
For technical support, spare parts, or warranty inquiries, please visit the official Vax website or contact Vax customer service directly. Contact details can typically be found on the Vax webсайтында же продуктунун таңгагында.
