Introduction
This manual provides detailed instructions for the proper installation, operation, and maintenance of the ECHO EchoMatic Pro Trimmer Head Spool, part number P022006770. This spool is designed for use with ECHO Echomatic Pro Trimmer Heads, specifically model 21560031, and is compatible with various ECHO string trimmer models including SRM-210, SRM-230, SRM-265, and SRM-280 series. Adhering to these instructions will ensure optimal performance and longevity of your trimmer head spool.
Продукт бүттүview
The ECHO EchoMatic Pro Trimmer Head Spool (P022006770) is a genuine replacement component for ECHO Echomatic Pro Trimmer Heads. It features a unique design with a divider that facilitates winding two separate pieces of trimmer line. The spool integrates with a 6-point knob cam within the trimmer head's hub.

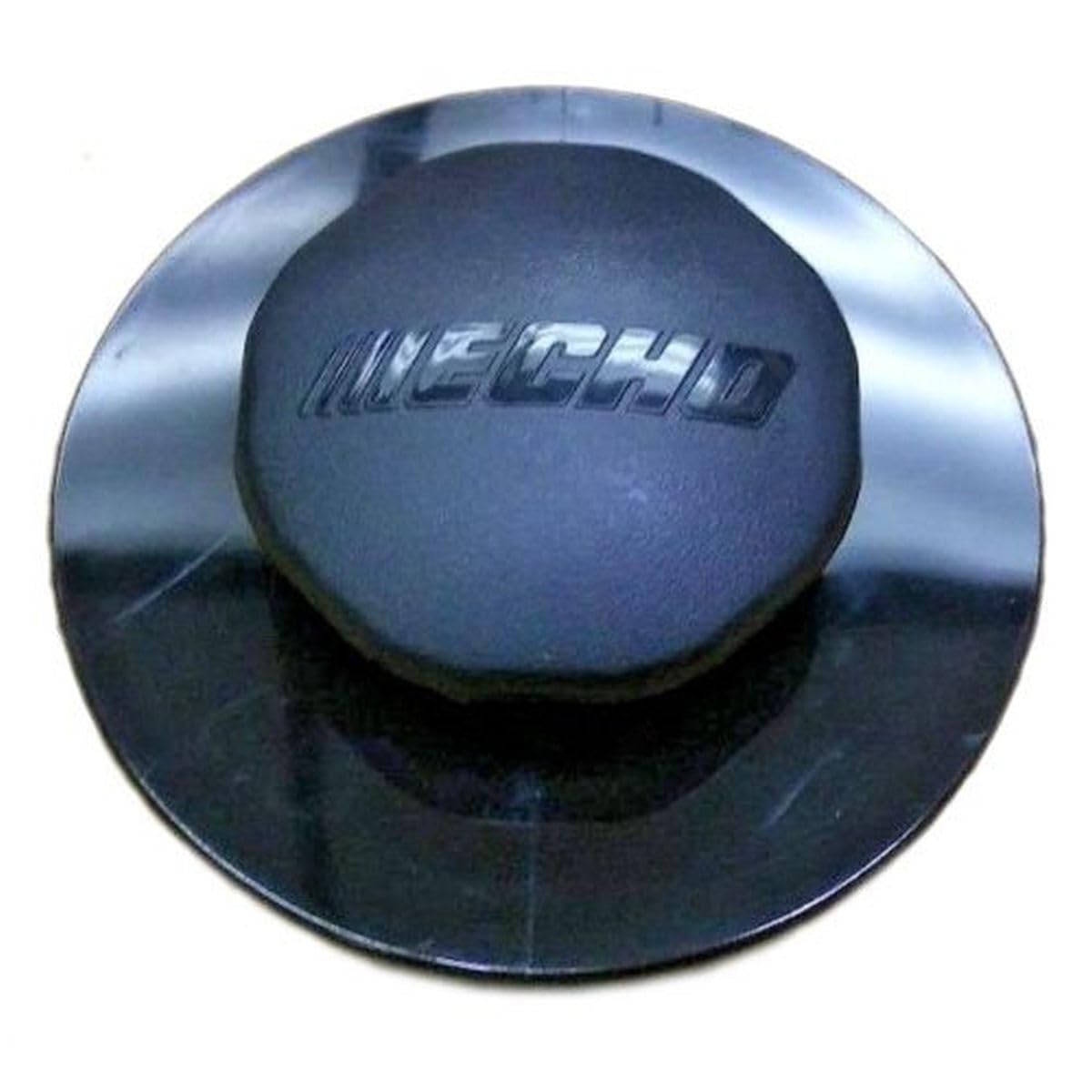

Image: The ECHO EchoMatic Pro Trimmer Head Spool, showing its black, circular design with the ECHO logo embossed on the central knob. This is the primary component for holding and dispensing trimmer line.
Орнотуу жана орнотуу
Before installation, ensure your trimmer is turned off and the spark plug cap is disconnected to prevent accidental starting. Always wear appropriate safety gear, including gloves and eye protection.
Installing the Spool:
- Remove the existing trimmer head cover: Depending on your specific Echomatic Pro head model, this may involve unscrewing or unlatching the cover.
- Remove the old spool: Carefully lift out the used or damaged spool from the trimmer head housing.
- Prepare the new spool: If the new spool is not pre-wound, wind two separate pieces of trimmer line onto the spool, utilizing the internal divider. Ensure the line is wound tightly and evenly. Refer to your trimmer's main manual for recommended line diameter.
- Insert the new spool: Align the new P022006770 spool with the hub and the 6-point knob cam inside the trimmer head. Ensure it seats properly.
- Feed the trimmer line: Thread the ends of the trimmer line through the eyelets on the trimmer head cover.
- Reattach the trimmer head cover: Securely fasten the cover back onto the trimmer head, ensuring all latches or screws are tightened.
Иштөө нускамалары
The Echomatic Pro Trimmer Head with the P022006770 spool operates as a bump-feed system. To advance the trimmer line, lightly tap the trimmer head against the ground while the engine is running at operating speed. This action releases a small amount of line from the spool.
- Сапты өркүндөтүү: When the trimmer line becomes short, gently tap the head on a firm surface. The centrifugal force will extend the line.
- Over-advancement: If too much line is advanced, the trimmer's line cutter blade (if equipped) will trim it to the correct length.
- Troubleshooting Line Feed: If line does not advance, ensure the engine is at full throttle during the bump. If issues persist, the spool may need to be re-wound or checked for tangles.
Техникалык тейлөө
Regular maintenance of your trimmer head spool ensures efficient operation and extends its lifespan.
- Тазалоо: Periodically remove the spool from the trimmer head and clean any accumulated debris, grass, or dirt from the spool and the inside of the trimmer head housing.
- Line Inspection: Before each use, inspect the trimmer line for wear, fraying, or damage. Replace the line if necessary.
- Spool Inspection: Check the spool itself for cracks, deformities, or excessive wear. A damaged spool can lead to poor line feeding or premature failure. Replace the spool if any damage is observed.
- Майлоо: No lubrication is required for the spool itself. Ensure the trimmer head's internal mechanisms are clean and free of obstructions.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Line does not advance when bumped. | Engine speed too low; Line tangled or fused; Spool damaged; Insufficient line on spool. | Increase engine RPM; Remove head, untangle/replace line; Inspect and replace spool if damaged; Rewind or add more line. |
| Сызыктардын тез-тез үзүлүшү. | Incorrect line diameter; Worn eyelets on head; Operating in abrasive conditions; Line old/brittle. | Use recommended line diameter; Inspect/replace head if eyelets are worn; Avoid hitting hard surfaces; Use fresh, quality line. |
| Spool difficult to remove or install. | Debris inside head; Spool not aligned correctly; Damaged spool or head components. | Clean out debris; Ensure proper alignment with hub and cam; Inspect for damage and replace parts as needed. |
Техникалык шарттар
- Бөлүмдүн номери: P022006770
- Compatible Trimmer Heads: ECHO Echomatic Pro Head (e.g., 21560031)
- Шайкеш келген триммер моделдери: SRM-210, SRM-230, SRM-265, SRM-280 series (and variants like SRM-230S, SRM-230U, SRM-265S, SRM-265U)
- Өлчөмдөрү: Болжол менен 3 x 3 x 2 дюйм (7.6 x 7.6 x 5.1 см)
- Салмагы: Болжол менен 2.24 унция (63.5 грамм)
- Материал: Бышык пластикалык композит
- Линиянын сыйымдуулугу: Designed for two separate pieces of trimmer line
Кепилдик жана колдоо
For specific warranty information regarding your ECHO EchoMatic Pro Trimmer Head Spool (P022006770), please refer to the documentation provided with your original trimmer head or contact ECHO customer support directly. Warranty terms typically cover manufacturing defects.
For additional support, parts, or product inquiries, please visit the official ECHO Store or contact an authorized ECHO service center.
