addlon Outdoor String Lights 48FT Instruction Manual

1. Киришүү

Thank you for choosing addlon Outdoor String Lights. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your 48-foot LED string lights. These lights are designed for outdoor use, featuring shatterproof bulbs and dimmable functionality, suitable for various outdoor environments.

2. Коопсуздук маалыматы

Орнотуудан жана колдонуудан мурун бардык коопсуздук көрсөтмөлөрүн кунт коюп окуп чыгыңыз. Келечекте колдонуу үчүн бул колдонмону сактап коюңуз.

• ETL тастыкталган: This product is ETL certified, ensuring compliance with North American safety standards.
• IP65 Суу өткөрбөйт: The string lights are rated IP65, indicating protection against dust and low-pressure water jets. They are designed to withstand rain, snow, and daily outdoor exposure.
• Кубат булагы: Use only with a 110-volt corded electric power source. Ensure the power outlet is protected by a Ground Fault Circuit Interrupter (GFCI) for outdoor use.
• Орнотуу: Do not install the string lights in locations where they may be submerged in water. Ensure all connections are secure before plugging into a power source.
• Лампаны иштетүү: Although bulbs are shatterproof, handle them with care. Do not overtighten bulbs into sockets.
• Ашыкча жүктөө: Do not exceed the maximum connectable length of 200 feet (four 50FT strings). Overloading can cause electrical hazards.
• Тейлөө: Disconnect power before performing any maintenance or bulb replacement.

3. Пакеттин мазмуну

Пакетте бардык компоненттер бар экенин текшериңиз:

• 1 x 48FT String Light Strand with 15 Sockets
• 18 x S14 LED Shatterproof Bulbs (15 for installation, 3 spare)
• 1 х Кубат кабели

Figure 3.1: Illustration of the string light components, including the power cord with 15 sockets and 18 individual 11W E26 base bulbs.

4. Орнотуу нускамалары

Follow these steps to set up your addlon Outdoor String Lights:

1. Планды жайгаштыруу: Determine the desired layout for your string lights. Ensure the total length does not exceed 200 feet if connecting multiple strings.
2. Hang the String: Securely hang the string light strand using appropriate hooks, guide wires, or other mounting hardware (not included). Ensure the sockets are facing downwards to prevent water accumulation.
3. Лампаларды орнотуу: Carefully screw each S14 LED bulb into the empty sockets. Hand-tighten until snug; do not overtighten.
4. Туташуу кубаты: Plug the power cord into a suitable 110-volt outdoor GFCI-protected outlet.
5. Connect Multiple Strings (Optional): If connecting multiple strings, ensure the male and female connectors are securely fastened and sealed. The maximum recommended connected length is 200 feet.

Figure 4.1: An illustration detailing the product's dimensions, including 4 spare bulbs, easy hanging design, a safer adapter, and the ability to connect multiple strings.

Figure 4.2: The string lights installed around a house, demonstrating their illumination in an outdoor setting.

5. Иштөө нускамалары

Your addlon Outdoor String Lights come with a remote control for convenient operation.

5.1 Алыстан башкаруу функциялары

• КҮЙГҮЗҮҮ/ӨЧҮРҮҮ: Жарыкты күйгүзүү же өчүрүү үчүн басыңыз.
• алсыздатуу: Adjust brightness to 25%, 50%, or 100% using the dedicated buttons.
• Жарык режимдери: Select from three modes:
  • Туруктуу КҮЙҮК: Үзгүлтүксүз жарыктандыруу үчүн.
  • Дем режими: Жарыктар акырын кирип-чыгышат.
  • Жаркыроо режими: Lights flash for a dynamic effect.
• Таймердин жөндөөлөрү: Set the lights to automatically turn off after 2, 4, 6, or 8 hours.

Figure 5.1: A remote control displaying options for dimming (25%, 50%, 100%), three lighting modes (Breath, Flash, Constant), and timer settings (2h, 4h, 6h, 8h).

Figure 5.2: An image depicting the string lights turning on at dusk (18:00 PM) and turning off at midnight (02:00 AM), with the remote control highlighting flexible timer options.

6. Техникалык тейлөө

Proper maintenance ensures the longevity and performance of your string lights.

• Тазалоо: Disconnect power before cleaning. Wipe bulbs and cords with a soft, damp кездеме. Катуу химиялык заттарды же абразивдүү тазалагычтарды колдонбоңуз.
• Лампаны алмаштыруу: If a bulb fails, disconnect the power, carefully unscrew the faulty bulb, and replace it with one of the provided spare bulbs or a compatible S14 LED bulb (11W, E26 base).
• Сезондук сактагыч: If storing the lights for an extended period, clean them thoroughly, coil the string neatly, and store in a cool, dry place away from direct sunlight.
• Кабелдик текшерүү: Periodically inspect the PVC cable jacket for any signs of wear, cuts, or damage. Replace the string if significant damage is found.

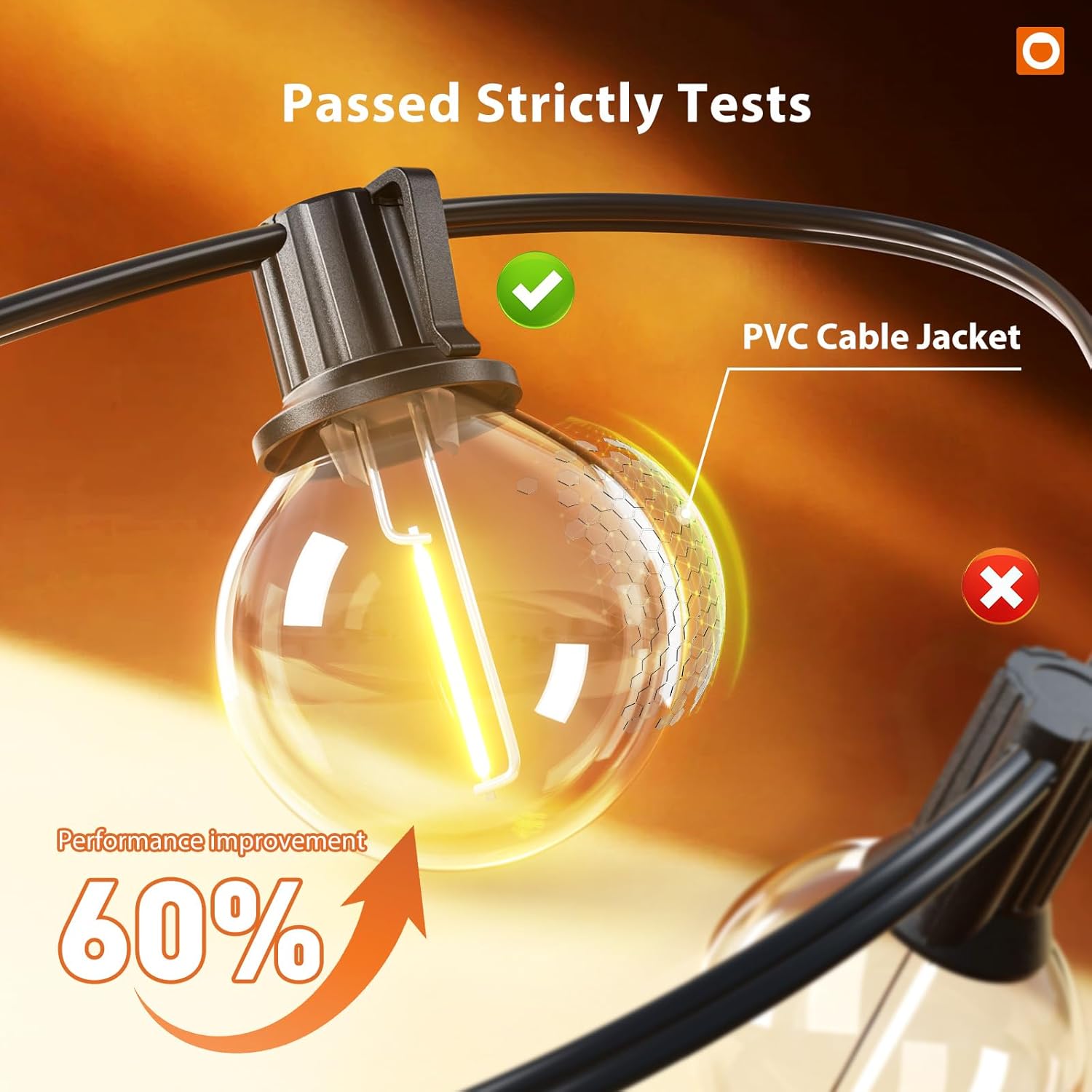

6.1-сүрөт: деталдуу view of a string light bulb connected to its socket, emphasizing the durable PVC cable jacket for improved performance.

7. Кыйынчылыктарды

If you encounter issues with your string lights, refer to the following common problems and solutions:

8. Техникалык шарттар

Figure 8.1: The main product image showing the 48-foot string lights with LED shatterproof bulbs.

Figure 8.2: An image illustrating the IP65 waterproof rating of the string lights, indicating their durability against various weather conditions like rain, wind, sun, and snow.

9. Кепилдик жана колдоо

addlon stands behind the quality of its products.

• 1 жылдык камтуу: Your addlon Outdoor String Lights are backed by a 1-year promise, ensuring reliable performance. This includes easy, no-cost replacement for covered issues.
• 30 күндүк кайтаруу жана алмаштыруу: You may return or exchange the product within 30 days of purchase.
• Кардарларды колдоо: For any questions, concerns, or support needs, please contact addlon customer service. Responses are typically provided within 24 hours.

For more information or to contact support, visit the official addlon store: addlon Store on Amazon

10. Продукт видеосу

Watch the official product video for a visual guide on features and usage.
