ASUS ROG Strix Hero II Gaming Laptop (GL504GM-DS74) User Manual

1. Киришүү

This manual provides essential information for setting up, operating, maintaining, and troubleshooting your ASUS ROG Strix Hero II Gaming Laptop (Model GL504GM-DS74). Designed for high-performance gaming and demanding tasks, this laptop combines powerful hardware with a sleek design to deliver an exceptional user experience.

The ASUS ROG Strix Hero II features a 15.6-inch 144Hz IPS-Type display, an Intel Core i7-8750H processor, NVIDIA GeForce GTX 1060 graphics, and a dual storage solution for speed and capacity. Please read this manual thoroughly to ensure proper use and longevity of your device.

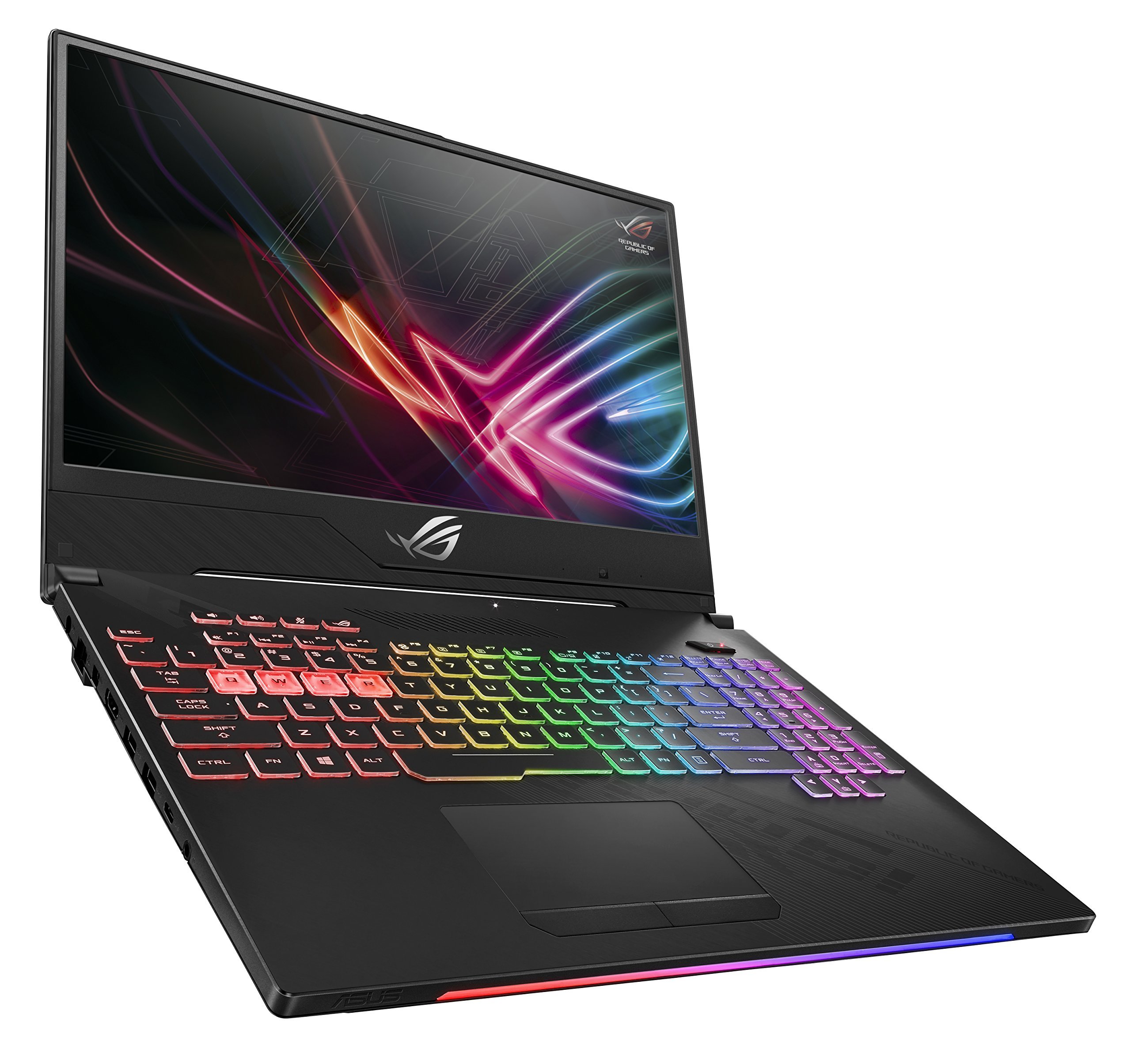

Figure 1: ASUS ROG Strix Hero II Gaming Laptop (GL504GM-DS74)

2. Орнотуу

2.1 Кутудан чыгаруу жана алгачкы текшерүү

Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз. Төмөнкү нерселердин бар экенин текшериңиз:

• ASUS ROG Strix Hero II Laptop (GL504GM)
• Кубат адаптери жана шнуры
• User E-Manual (digital copy)
• Кепилдик картасы

Inspect the laptop and accessories for any signs of damage. If any items are missing or damaged, contact your retailer or ASUS support immediately.

2.2 Кубатты туташтыруу

Connect the power adapter to the laptop's power input port and then plug the power cord into a wall outlet. It is recommended to fully charge the battery before initial use.

2.3 Initial Boot-up and Operating System Setup

Press the power button to turn on the laptop. Follow the on-screen instructions to complete the Windows 10 Home setup process. This includes setting up your user account, network connection, and basic preferences.

3. Ноутбукту иштетүү

3.1 Дисплейдин өзгөчөлүктөрү

The ROG Strix Hero II is equipped with a 15.6-inch IPS-Type display камтылган а 144 Гц жаңылоо ылдамдыгы жана а 3ms жооп убактысы. This combination ensures smooth visuals and reduced motion blur, crucial for fast-paced gaming. The slim bezel design maximizes screen real estate for an immersive viewтажрыйбасы.

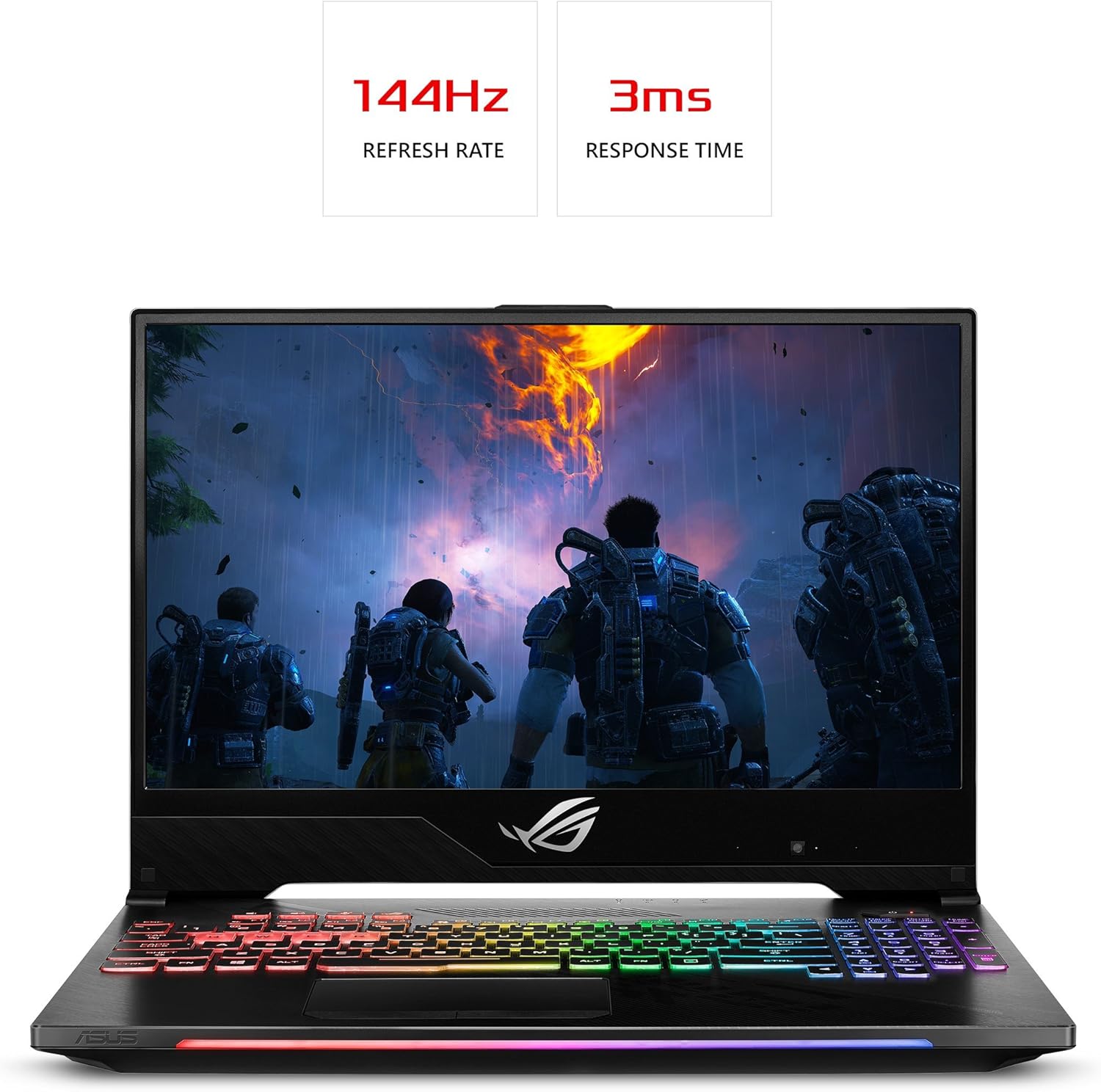

Figure 2: Display with 144Hz Refresh Rate and 3ms Response Time

3.2 Keyboard and RGB Lighting

The laptop features a desktop-inspired keyboard менен а 20-million-keystroke lifespan, designed for durability and responsiveness. The integrated RGB жарыктандыруу can be customized through ASUS Aura Sync software, allowing you to personalize the keyboard's appearance to match your gaming setup or mood.

3.3 Аткаруу көрсөткүчү жогоруview

The GL504GM-DS74 is powered by an Intel Core i7-8750H процессору (up to 3.9GHz) and an NVIDIA GeForce GTX 1060 6GB GDDR5 graphics card. Coupled with 16 ГБ DDR4 2666 MHz RAM, this configuration provides ample power for running modern games at high settings and handling demanding applications like video editing or 3D rendering. Storage includes a fast 256 ГБ PCIe NVMe SSD for the operating system and frequently used applications, alongside a 1TB HDD for larger game libraries and data storage.

3.4 Байланыш

The laptop offers a comprehensive set of ports for various peripherals and external displays:

• 4 x USB 3.0 порттору: For connecting external devices such as mice, keyboards, and external storage.
• 1 x USB 3.1 Type C Port: A versatile port for data transfer and display output.
• 1 x HDMI 2.0 порту: Тышкы мониторлорго же сыналгыларга туташуу үчүн.
• 1 x Mini DisplayPort: Another option for connecting to external displays.
• 1 x Ethernet порту: For stable wired network connections.

Wireless connectivity is enhanced with RangeBoost Technology, providing wider Wi-Fi coverage and improved signal stability.

3-сүрөт: Ноутбуктун тарабы View Байланыш порттору менен

4. Техникалык тейлөө

Regular maintenance helps ensure optimal performance and extends the lifespan of your laptop.

4.1 Тазалоо

• Экран: Бир аз жумшак, түксүз кездемени колдонуңуз dampсуу же экран тазалоочу менен бүттү. Катуу химиялык заттардан алыс болуңуз.
• Баскычтоп жана шасси: Use a soft brush or compressed air to remove dust and debris. Wipe surfaces with a slightly damp кездеме.
• Муздатуу желдеткичтери: Periodically clean the cooling vents with compressed air to prevent dust buildup, which can hinder airflow and lead to overheating. The HyperCool Pro system benefits from clear vents.

4.2 Программалык камсыздоо жаңыртуулары

Regularly update your Windows operating system, device drivers (especially graphics drivers), and ASUS utilities to ensure system stability, security, and performance. You can check for updates through Windows Update and the NVIDIA GeForce Experience application.

4.3 Батареяга кам көрүү

To prolong battery life, avoid fully discharging the battery frequently. If you primarily use the laptop while plugged in, consider using battery care software (if provided by ASUS) to limit the charge level to around 80%.

5. Кыйынчылыктарды

Эгерде сиз ноутбукта көйгөйлөргө туш болсоңуз, анда төмөнкү негизги көйгөйлөрдү чечүү кадамдарын колдонуп көрүңүз:

• Күч жок: Ensure the power adapter is securely connected to both the laptop and a working power outlet. Try a different outlet.
• Маселелерди көрсөтүү: If the screen is blank, try connecting an external monitor to check if the issue is with the laptop's display. Ensure graphics drivers are up to date.
• Аткаруучулуктун басаңдашы: Close unnecessary applications, check for background processes, and ensure the cooling vents are clear. Update drivers and scan for malware.
• Системанын туруксуздугу: Perform a system restart. If issues persist, check for recent software installations or updates that might be causing conflicts.

For more complex issues, refer to the comprehensive User E-Manual (digital copy) or visit the official ASUS support website for detailed troubleshooting guides and driver downloads.

6. Техникалык шарттар

7. Кепилдик жана колдоо

Your ASUS ROG Strix Hero II Gaming Laptop comes with a manufacturer's warranty. Please refer to the included Кепилдик картасы for detailed terms and conditions, including coverage period and service procedures.

Техникалык жардам, драйверлерди жүктөп алуу же андан аркы колдоо алуу үчүн, сураныч, расмий ASUS колдоо кызматына кайрылыңыз website or contact their customer service. Keep your product's serial number (found on the bottom of the laptop or packaging) handy when seeking support.

For the most up-to-date information, please visit the official ASUS webсайт.
