1. Киришүү
Thank you for choosing the HECHT 530 Electric Grass Trimmer. This powerful and lightweight tool is designed to help you maintain your lawn and garden with ease. To ensure safe and effective operation, please read this manual thoroughly before using the trimmer. Keep this manual for future reference.
This image shows the complete HECHT 530 Electric Grass Trimmer from a side angle, highlighting its red and black body, long shaft, and electric cord.
2. Маанилүү коопсуздук нускамалары
Өрт, электр тогуна урунуу жана жеке жаракат алуу коркунучун азайтуу үчүн электр шаймандарын колдонууда ар дайым негизги коопсуздук чараларын сактаңыз.
- Колдонмону окуу: Триммерди иштетүүдөн мурун бардык нускамаларды окуп, түшүнүңүз.
- Жеке коргонуу шаймандарын (ЖКК) кийиңиз: Always wear safety glasses or goggles, long pants, sturdy footwear, and hearing protection when operating the trimmer.
- Аймакты таза кармоо: Ensure the work area is clear of other people, children, and pets. Remove any debris or objects that could be thrown by the cutting line.
- Колдонуудан мурун текшерүү: Before each use, inspect the trimmer for any damage, loose parts, or worn cutting line. Do not use if damaged.
- Колдонулбаган учурда электр розеткасынан ажыратыңыз: Always unplug the trimmer from the power source before cleaning, performing maintenance, or when not in use.
- Нымдуу шарттардан качыңыз: Триммерди нымдуу чөптө же чөптө иштетпеңизamp шарттар.
- Туура кармоо: Иштеп жатканда триммерди эки колуңуз менен бекем кармаңыз.
- Ашыкча ысып кетүүдөн коргоо: The motor is protected by a robust plastic housing with ventilation slots. Ensure these slots are not blocked during operation to prevent overheating.
3. Продукциянын өзгөчөлүктөрү
The HECHT 530 Electric Grass Trimmer offers several features designed for user comfort and efficient performance:
- Жөнгө салынуучу кесүүчү баш: The angle of the cutting head can be easily adjusted to 2 positions, allowing flexible use for various trimming needs.
- Телескопиялык вал: The telescopic shaft extends by 180 mm, enabling adjustment to the user's height for comfortable operation.
- Күчтүү мотор: Equipped with a 550 W electric motor, providing 10,000 rpm for efficient cutting of grass and thicker weeds.
- Wide Cutting Circle: Features a 30 cm (300 mm) cutting circle for broader coverage.
- Жеңил дизайн: Weighing only 2.6 kg, the trimmer is easy to handle and allows for extended periods of work without fatigue.
- Автоматтык линияны узартуу: The cutting line, up to 1.4 mm thick, extends automatically with a simple tap, eliminating the need for manual pulling.
4. Components Overview
Familiarize yourself with the main components of your HECHT 530 Electric Grass Trimmer:
Бул сүрөт майда-чүйдөсүнө чейин камсыз кылат view of the HECHT 530 trimmer with numbered labels pointing to its key parts, along with a German legend. The following list translates and describes each component.
- Башкаруу менен башкаруу: The main grip area where the power switch is located.
- Кубат кабели: The electrical cord for connecting to a power outlet.
- Ийилген бурчту жөндөө: Mechanism to change the angle of the cutting head.
- Cutting Head with Line Spool: The rotating part that holds the cutting line.
- Дөңгөлөк: A small wheel for guiding the trimmer along edges.
- Телескопиялык уюл: The adjustable shaft that connects the handle to the cutting head.
- Auxiliary Handle, Adjustable: The secondary handle for improved grip and control.
5. Орнотуу
Before first use, some assembly and adjustments may be required.
5.1 Көмөкчү тутканы бекитүү
Attach the auxiliary handle (7) to the telescopic pole (6). Ensure it is securely fastened and can be adjusted to a comfortable position for your height and working posture.

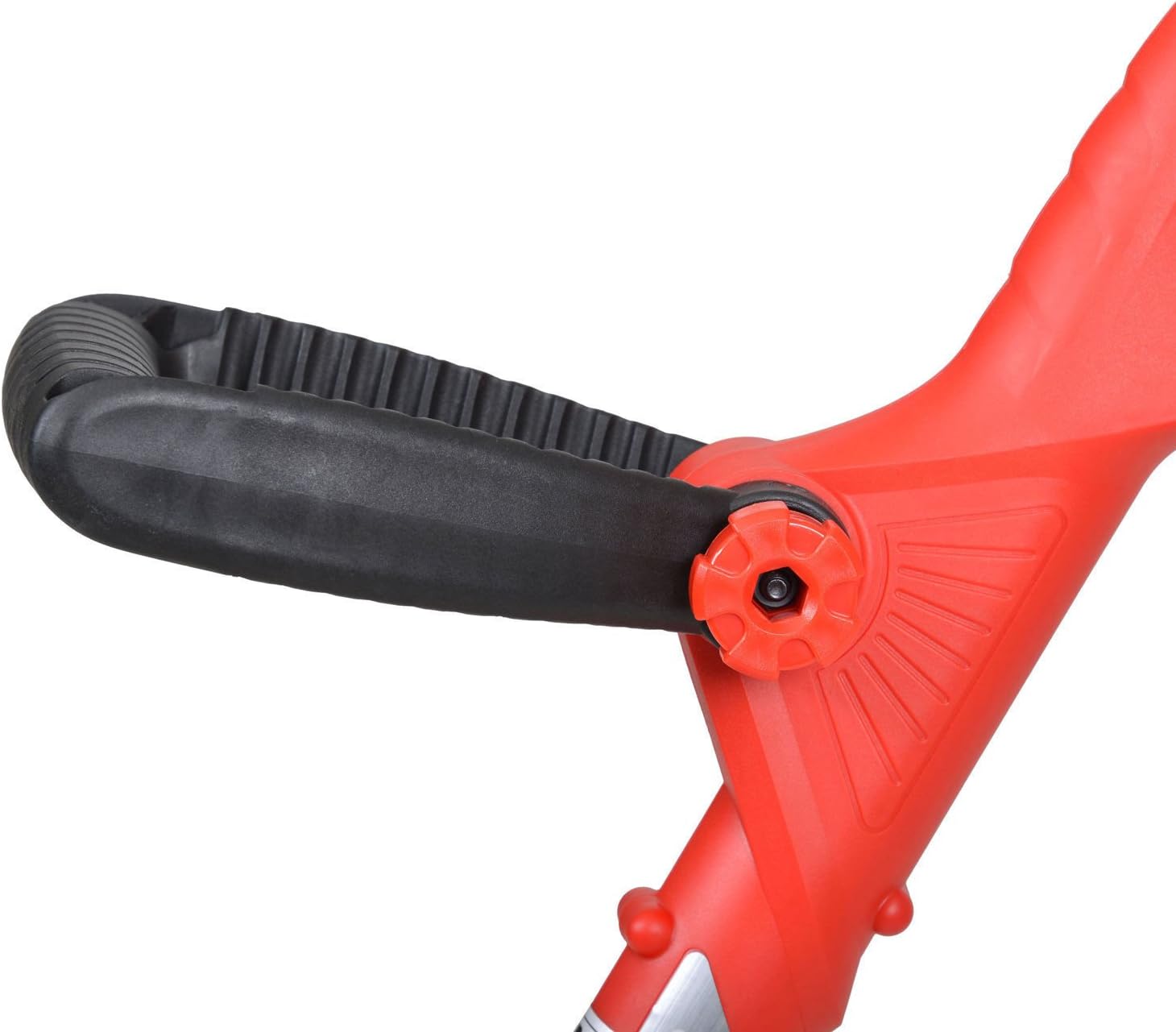

This image shows a close-up of the auxiliary handle and its adjustment mechanism on the trimmer's shaft.
5.2 Adjusting the Telescopic Pole
Extend or retract the telescopic pole (6) to match your height. This adjustment ensures comfortable operation and reduces strain. Secure the pole firmly once adjusted.
5.3 Кесүүчү баштын бурчун жөндөө
The cutting head's tilt angle (3) can be set to 2 positions. Adjust it according to the terrain and the type of trimming you are performing (e.g., edging vs. general trimming).
6. Иштөө нускамалары
Follow these steps for safe and effective operation of your grass trimmer.
6.1 Колдонуудан мурун
- Ensure the power cable (2) is in good condition and free from cuts or damage.
- Check the cutting line (4) for wear and ensure it is properly installed.
- Clear the area to be trimmed of any stones, sticks, or other debris that could be thrown by the trimmer.
6.2 Триммерди иштетүү
- Connect the power cable (2) to a suitable electrical outlet.
- Hold the trimmer firmly with both hands, one on the main handle (1) and the other on the auxiliary handle (7).
- Press the power switch on the main handle to start the motor. The cutting line will begin to rotate.
6.3 Кыркуунун ыкмалары
- Use a gentle sweeping motion to cut grass. Avoid forcing the trimmer into thick vegetation.
- Keep the cutting head slightly above the ground for an even cut.
- For edging, use the integrated wheel (5) to guide the trimmer along paths or flowerbeds.
6.4 Automatic Line Extension
If the cutting line becomes too short during operation, simply tap the cutting head (4) gently on the ground while the trimmer is running. This action will automatically extend the line. Do not manually pull the line.
Бул сүрөт жакындан тартууну камсыз кылат view of the trimmer's cutting head, showing the line spool and the protective guard.
7. Техникалык тейлөө
Үзгүлтүксүз техникалык тейлөө триммериңиздин узак иштөөсүн жана оптималдуу иштешин камсыз кылат.
7.1 Тазалоо
- Тазалоодон мурун ар дайым триммерди сууруп алыңыз.
- Триммердин сыртын жарнама менен сүртүңүзamp кездеме. Катуу химиялык заттарды же абразивдүү тазалагычтарды колдонбоңуз.
- Remove any grass clippings or debris from the cutting head and ventilation slots to prevent blockages and overheating.
7.2 Линияны алмаштыруу
When the cutting line is depleted, it needs to be replaced. Refer to the cutting head (4) section for instructions on opening the spool housing and winding new line. Use only line with a maximum thickness of 1.4 mm.
7.3 Сактоо
Store the trimmer in a dry, well-ventilated area, away from direct sunlight and extreme temperatures. Keep it out of reach of children.
8. Кыйынчылыктарды
If you encounter issues with your trimmer, refer to the table below for common problems and their solutions.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Триммер башталбайт | Электр энергиясы жок Бузулган электр кабели Ашыкча ысып кетүүдөн коргоо иштетилди | Check power outlet and connection Inspect cable for damage; replace if necessary Триммердин муздаганына уруксат бериңиз |
| Cutting line does not extend automatically | Line tangled or stuck Спуль бош Incorrect line thickness | Unplug and untangle line Линиянын катарын алмаштырыңыз Use correct 1.4 mm line |
| Начар кесүү көрсөткүчү | Worn or short line Too much resistance (thick weeds) Вентиляция тешиктери жабылган | Extend or replace line Cut in smaller passes Желдетүү тешиктерин тазалоо |
9. Техникалык шарттар
| Спецификация | Нарк |
|---|---|
| Модель номери | 530 |
| Бренд | Хехт |
| Power Source | Электр |
| Мотор күчү | 550 Вт |
| Жүк жок ылдамдык | 10,000 об/мин |
| Cutting Circle Diameter | 30 см (300 мм) |
| Max. Line Thickness | 1.4 мм |
| Салмагы | 2.6 кг |
| Пакеттин өлчөмдөрү | 44 x 31 x 26 см |
10. Кепилдик жана колдоо
Warranty information for your HECHT 530 Electric Grass Trimmer is typically provided with your purchase documentation. Please refer to these documents for details regarding warranty coverage and terms.
For technical support, spare parts, or any other inquiries, please contact your retailer or the manufacturer directly. Ensure you have your model number (530) and purchase date available when seeking support.
