Introduction
Thank you for choosing Hansgrohe. This Raindance Shower Set is designed to provide a superior showering experience with its advanced features and durable construction. Please read this manual thoroughly before installation and operation to ensure proper function and longevity of your product.
Камтылган компоненттер
The Hansgrohe Raindance Shower Set includes the following main components:
- Raindance Showerhead with RainAir spray mode and AirPower technology
- Handheld Shower with 3 Jet Rain AIR, Balance AIR, and Whirl Air Spray Modes
- Pressure Balance Valve Trim with Two-Function Diverter and Lever Handles
- iBox Universal Plus Rough with Service Stops
- Shower Arm (15 inches)
- Wallbar for Handshower
- Wall розеткасы
Орнотуу жана орнотуу
Installation of this shower system requires plumbing knowledge and should ideally be performed by a qualified professional. Ensure all local plumbing codes are followed.
1. iBox Universal Plus Rough Installation
The iBox Universal Plus Rough (Model 01850181) is the core component for water distribution and temperature control. It features rotationally-symmetric installation for flexibility. Install the iBox according to the manufacturer's instructions, ensuring it is securely mounted and properly plumbed to hot and cold water lines.

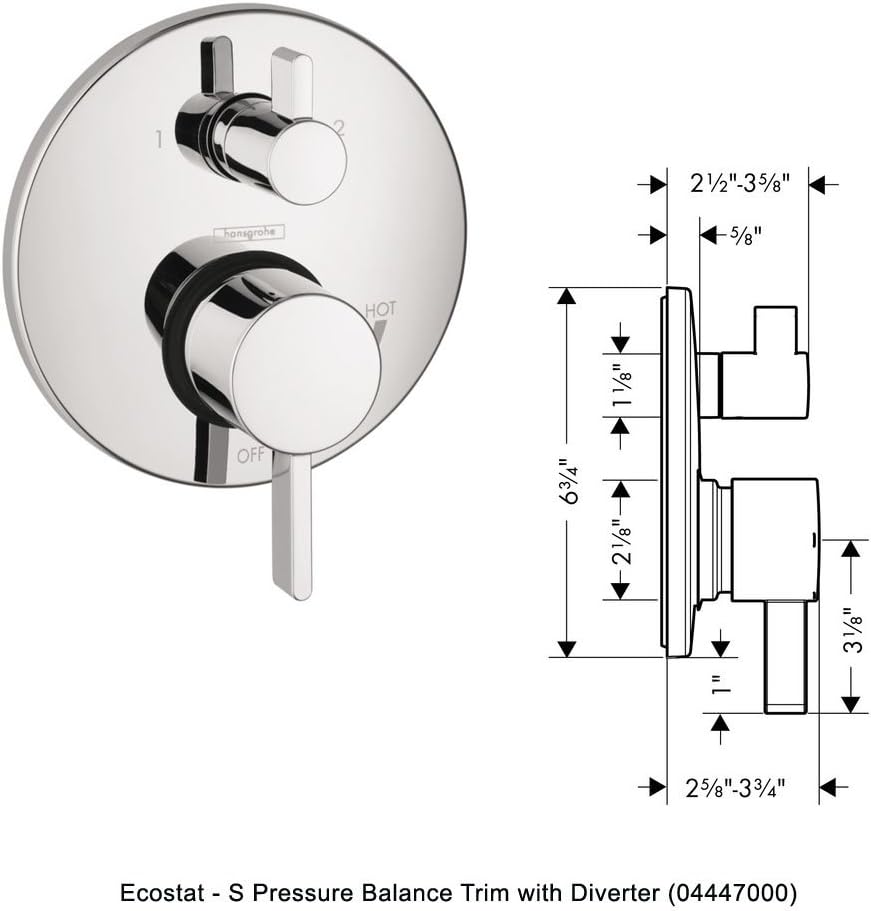

2. Pressure Balance Valve Trim Installation
Once the iBox is installed, the Pressure Balance Valve Trim with Diverter (Model 04447000) can be mounted. This trim controls water flow and temperature, and directs water to either the main showerhead or the handshower.
3. Shower Arm and Showerhead Installation
Install the 15-inch Raindance Showerarm (Model 27413001) into the wall outlet, ensuring a watertight seal. Then, attach the Raindance Showerhead (Model 27474001) to the shower arm. The showerhead features RainAir spray mode and AirPower technology for an enhanced experience.
4. Handheld Shower and Wallbar Installation
Mount the wallbar securely to the shower wall at a comfortable height. Connect the handheld shower to the wall outlet (Model 27454002) using the provided hose. The handheld shower offers three distinct spray modes: Rain AIR, Balance AIR, and Whirl Air.
5. Система бүттүview
A typical installation diagram for a 3-function shower system is shown below, illustrating the plumbing connections for the main showerhead, handheld shower, and valve.
Иштөө нускамалары
Your Hansgrohe Raindance Shower Set is designed for intuitive operation.
Суунун агымын жана температурасын көзөмөлдөө
The main lever handle on the Pressure Balance Valve Trim controls the water flow and temperature. Rotate the handle to adjust the temperature from cold to hot. Pull the handle outwards to increase water flow and push inwards to decrease or shut off the flow.
Кайтаруу функциясы
The smaller lever handle on the valve trim acts as a two-function diverter. Rotate this handle to switch water flow between the main Raindance Showerhead and the Handheld Shower.

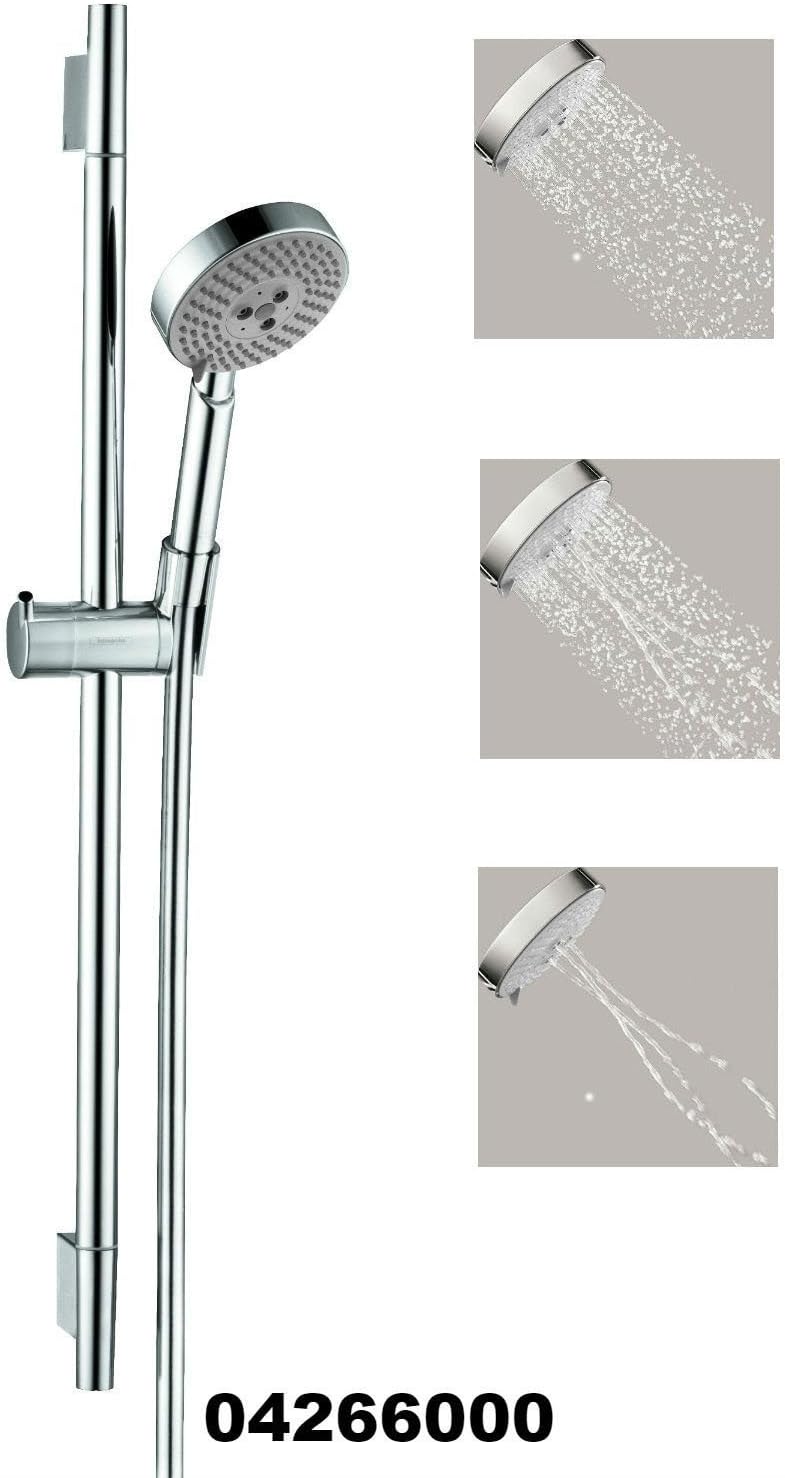

Handheld Shower Spray Modes
The handheld shower offers three distinct spray modes. To change the spray mode, rotate the spray face of the handheld shower. The available modes are:
- Rain AIR: A soft, voluminous rain spray enriched with air.
- Balance AIR: A balanced, invigorating spray.
- Whirl Air: A concentrated, massaging spray.
Тейлөө жана тазалоо
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Hansgrohe shower set.
Жалпы тазалоо
Clean your shower components with a mild soap solution and a soft, damp cloth. Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the chrome finish.
QuickClean технологиясы
The Hansgrohe Raindance showerhead and handheld shower are equipped with QuickClean technology. This feature allows for easy removal of limescale deposits. Simply rub the silicone nozzles on the spray face with your finger to dislodge any mineral buildup. This should be done regularly, especially in areas with hard water, to maintain optimal spray performance.
Проблемаларды чечүү
If you encounter issues with your Hansgrohe Raindance Shower Set, please refer to the following common solutions before contacting customer support.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Low water pressure from showerhead/handshower |
|
|
| Water temperature too hot or too cold |
|
|
| Өткөргүч туура эмес которулууда |
|
|
For issues not listed here, or if solutions do not resolve the problem, it is recommended to contact a qualified plumber or Hansgrohe customer service.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Hansgrohe |
| Модель номери | Complete Shower Set 00245 HGHG |
| Түс | Chrome |
| Аяктоо түрү | Жылмаланган |
| Туткалардын саны | 3 (1 for flow/temp, 1 for diverter, 1 for handshower spray mode) |
| Handle Material | Жез |
| Монтаж түрү | Дубалга орнотуу |
| Showerhead Spray Modes | RainAir (with AirPower technology) |
| Handheld Shower Spray Modes | Rain AIR, Balance AIR, Whirl Air |
| Душ колунун узундугу | 15 дюйм |
| Элемент Салмагы | Болжол менен 20.1 фунт (9.12 килограмм) |
| Пакеттин өлчөмдөрү | Болжол менен 33 x 20 x 11 дюйм |
| ASIN | B07FDMPQYK |
Кепилдик маалымат
Hansgrohe products are manufactured to high-quality standards and come with a manufacturer's warranty. Specific warranty terms and conditions are typically provided with your product documentation or can be found on the official Hansgrohe webсайт. Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
Кардарларды колдоо
For further assistance, technical support, or to inquire about replacement parts, please visit the official Hansgrohe website or contact their customer service department. Contact information can usually be found on the Hansgrohe webсайтында же таңгактоо материалдарында.
