Girmi PE36 Double Electric Hot Plate Instruction Manual

1. Маанилүү коопсуздук нускамалары

Шайманды колдонуудан мурун бардык нускамаларды кылдат окуп чыгыңыз. Бул колдонмону келечекте маалымат алуу үчүн сактаңыз.

• Электр коопсуздугу: Voltage indicated on the appliance matches your local power supply. Do not immerse the appliance, cord, or plug in water or other liquids. Always unplug the hot plate from the outlet when not in use and before cleaning.
• Ысык беттер: The hot plate surfaces become extremely hot during use and remain hot for a period after being turned off. Use oven mitts or pot holders when handling cookware. Do not touch the hot plate surfaces directly.
• Жайгашкан жери: Place the appliance on a stable, heat-resistant, and level surface, away from walls, curtains, and other heat-sensitive materials. Ensure adequate ventilation around the unit.
• Көзөмөл: This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure they do not play with the appliance.
• Зыян: Эч кандай шайманды зымы же сайы бузулган, же шайман иштебей калгандан кийин же кандайдыр бир түрдө бузулгандан кийин иштетпеңиз. Текшерүү, оңдоо же тууралоо үчүн кардарларды колдоо бөлүмүнө кайрылыңыз.
• No Automatic Shut-off: This model does not feature an automatic shut-off function. Always manually turn off the hot plates after use.

2. Продукт бүтүп калдыview

The Girmi PE36 is a powerful and compact double electric hot plate designed for versatile cooking. Featuring two cast iron plates with independent temperature controls, it offers flexibility for various culinary tasks. Its robust construction ensures durability and efficient heat distribution.

Негизги өзгөчөлүктөрү:

• Жалпы кубаттуулугу: 2500W (1500W for the large plate, 1000W for the small plate)
• Plate Diameters: Large plate 18.5 cm, Small plate 15.5 cm
• Температураны көзөмөлдөө: 5 levels of temperature adjustment for each plate
• Көз карандысыз операция: Separate power switches and indicator lights for each plate
• Материал: Durable cast iron plates for even heating
• Туруктуулук: Non-slip support feet
• Электр камсыздоо: AC 220-240V ~ 50 / 60Hz

2.1-сүрөт: Фронт view of the Girmi PE36 Double Electric Hot Plate, showing both heating elements and control knobs.

3. Компоненттер

Familiarize yourself with the main components of your Girmi PE36 hot plate:

1. Large Cast Iron Heating Plate (18.5 cm)
2. Small Cast Iron Heating Plate (15.5 cm)
3. Temperature Control Knob (for each plate)
4. Power Indicator Light (for each plate)
5. Негизги орган
6. Тайган эмес бут
7. Электр шнур жана сайгыч

3.1-сүрөт: Жогорку view of the hot plate, illustrating the two cast iron heating elements.

3.2-сүрөт: Detail of a temperature control knob, showing the 5 heat settings.

3.3-сүрөт: Close-up of an indicator light, which illuminates when the corresponding plate is active.

4. Орнотуу

4.1 Пакеттен чыгаруу

1. Carefully remove the hot plate from its packaging.
2. Бардык таңгактоочу материалдарды, чаптамаларды жана этикеткаларды алып салыңыз.
3. Шаймандын бузулуу белгилерин текшериңиз. Бузулган болсо, колдонбоңуз.

4.2 Орнотуу

• Place the hot plate on a dry, stable, heat-resistant, and level surface.
• Ensure there is sufficient space around the appliance for proper ventilation (at least 10-15 cm from walls and other objects).
• Keep the hot plate away from water sources, flammable materials, and heat-sensitive surfaces.

4.3 Initial Use (First Heating)

Before using for the first time, it is recommended to heat the plates without food to burn off any manufacturing residues. This may produce a slight odor or smoke, which is normal and will dissipate quickly.

1. Шайманды ылайыктуу электр розеткасына сайыңыз.
2. Turn both temperature control knobs to the maximum setting (5).
3. Allow the hot plates to heat for approximately 5-10 minutes.
4. Turn the knobs back to the 'OFF' position and unplug the appliance.
5. Allow the unit to cool completely before wiping it clean with a damp кездеме.

5. Иштөө нускамалары

5.1 Кубатка туташуу

Ensure the hot plate is placed correctly and the control knobs are in the 'OFF' position before plugging the power cord into a grounded 220-240V AC, 50/60Hz electrical outlet.

5.2 Selecting Cookware

The cast iron plates are suitable for all types of cookware, including stainless steel, cast iron, aluminum, and ceramic. Ensure the base of the cookware is flat and covers the heating plate as much as possible for efficient heating.

5.3 Температураны жөндөө

1. Place your desired cookware on the chosen heating plate.
2. Turn the corresponding temperature control knob clockwise from 'OFF' to your desired heat setting (1 to 5).
3. The red power indicator light for that plate will illuminate, indicating that the heating element is active.
4. Setting 1 is for keeping food warm or very low heat, while Setting 5 provides maximum heat for rapid boiling or searing.
5. The indicator light will cycle on and off as the hot plate maintains the selected temperature. This is normal operation.

5.4 Using Both Plates

Each heating plate operates independently. You can use both plates simultaneously, each with its own temperature setting, by adjusting their respective control knobs.

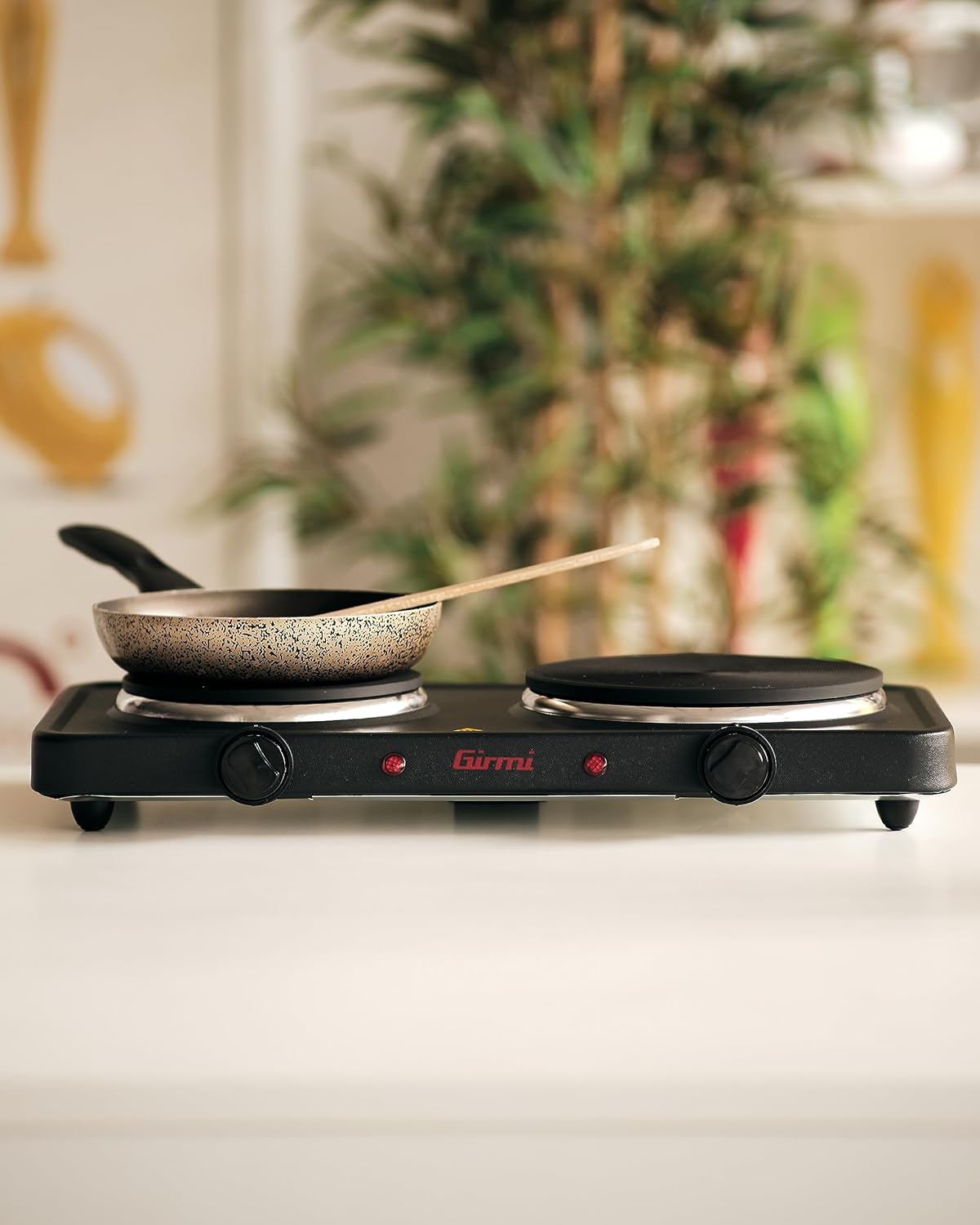

5.1-сүрөт: The Girmi PE36 hot plate in operation, demonstrating its use with a frying pan.

5.5 Өчүрүү

After cooking, turn the temperature control knob(s) counter-clockwise back to the 'OFF' position. The indicator light(s) will turn off. Unplug the appliance from the wall outlet once cooking is complete and the plates are no longer needed.

6. Тазалоо жана тейлөө

Proper cleaning and maintenance will extend the life of your Girmi PE36 hot plate.

6.1 Тазалоодон мурун

• Always unplug the hot plate from the electrical outlet.
• Allow the appliance to cool down completely before attempting to clean it. The cast iron plates retain heat for a significant period.

6.2 Cleaning the Cast Iron Plates

• For general cleaning, wipe the plates with a damp кездеме же губка.
• Do not use abrasive cleaners, steel wool, or harsh chemicals, as these can damage the plate surface.
• For stubborn food residues, you can add a small amount of water to the plate while it is still slightly warm (but unplugged) to loosen the residue, then wipe clean.
• Маанилүү: Avoid using soap on the cast iron plates, as it can strip away any seasoning and lead to rusting.
• Ensure the plates are completely dry before storing or reusing the appliance.

6.3 Cleaning the Main Body

• Wipe the exterior of the hot plate with a soft, damp кездеме.
• Абразивдүү тазалагычтарды колдонбоңуз же аппаратты сууга салбаңыз.

6.4 Сактоо

Store the clean and dry hot plate in a cool, dry place, away from direct sunlight and moisture.

7. Кыйынчылыктарды

If you encounter issues with your Girmi PE36 hot plate, refer to the following common problems and solutions:

If you experience any problems not listed here or if the issue persists after attempting the solutions, please contact Girmi customer support.

8. Техникалык шарттар

8.1-сүрөт: Diagram showing the dimensions of the Girmi PE36 hot plate.

9. Кепилдик жана колдоо

9.1 Кепилдик маалыматы

This product is covered by a manufacturer's warranty in accordance with local regulations. Please refer to the warranty card included with your purchase or visit the official Girmi webдеталдуу кепилдик шарттары жана шарттары үчүн сайт.

9.2 Кардарларды колдоо

For technical assistance, spare parts, or any questions regarding your Girmi PE36 Double Electric Hot Plate, please contact Girmi customer support. Contact details can typically be found on the official Girmi webсайтында же продуктунун таңгагында.

Please have your model number (PE36) and purchase date ready when contacting support.
