Samsung Series 7 UE43NU7400UXZT User Manual

1. Киришүү

This manual provides essential information for the setup, operation, and maintenance of your Samsung Series 7 UE43NU7400UXZT 4K UHD Smart LED TV. Please read this manual thoroughly before using your television to ensure safe and optimal performance.

Сиздин сыналгыңыздын негизги өзгөчөлүктөрү төмөнкүлөрдү камтыйт:

• Экрандын өлчөмү: 43 дюйм (108 см көрүнүүчү диагональ)
• Дисплей технологиясы: LED Panel with 4K Resolution
• Сүрөттү өркүндөтүү: HDR (High Dynamic Range) Technology
• Түнерлер: DVB-T2CS2 x 2
• Байланыш: Wireless (Wi-Fi) and Ethernet
• Аспект катышы: 16:9
• Энергия эффективдүүлүгү классы: A

2. Орнотуу

2.1 Кутудан чыгаруу жана жайгаштыруу

Carefully remove the television and all components from the packaging. It is recommended to have assistance due to the size and weight of the unit (approximately 15.1 kg). Place the TV on a stable, flat surface or mount it securely on a wall.

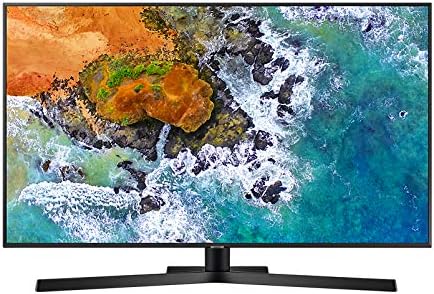

Сүрөт 2.1: Алдыңкы view of the Samsung Series 7 UE43NU7400UXZT television.

2.2 Connecting the Stand or Wall Mounting

Attach the included stand according to the separate assembly guide provided in the box. If wall mounting, ensure you use a compatible VESA mount and appropriate M8x45 bolts, as these are typically not included with the TV and may require separate purchase. The TV includes spacers for wall mounting.

2.3 Тышкы түзмөктөрдү туташтыруу

Connect your external devices such as set-top boxes, game consoles, or Blu-ray players to the available HDMI ports. This model features 3 HDMI inputs (one with ARC support) and 2 USB ports. It also includes 2 component RCA inputs (with connection cables) and an optical audio output.

2.2-сүрөт: Арткы view of the television displaying connection ports.

2.4 Баштапкы орнотуу устасы

After connecting the power cable and turning on the TV, the initial setup wizard will guide you through language selection, network connection (Wi-Fi or Ethernet), and channel scanning for DVB-T2CS2 tuners.

3. Телевизорду иштетүү

3.1 Алыстан башкаруу

The included remote control is compact and features voice control for convenient navigation. While minimal buttons are present, all essential functions can be accessed. An accompanying mobile application is also available for more comprehensive control.

3.2 Smart TV функциялары (Tizen OS)

Your television runs on Samsung's Tizen operating system, providing a user-friendly interface and access to various applications. Popular streaming services like Netflix and Prime Video are supported, offering excellent 4K HDR content. The system is designed for quick access to channel management and device control.

3.3 Сүрөт жана үн орнотуулары

Access the TV's menu to adjust picture and sound settings. For optimal viewing, it may be necessary to calibrate colors and disable certain digital artifacts by setting controls to "OFF" to achieve a more natural image. The menu offers extensive options for customization.

3.4 Connectivity Notes

Please note that this television does not include a headphone jack. Additionally, direct recording to an external hard disk or USB pen drive is not supported.

4. Техникалык тейлөө

4.1 Телевизорду тазалоо

To clean the screen, gently wipe it with a soft, dry, lint-free cloth. For the frame and stand, use a slightly damp cloth. Avoid using abrasive cleaners, waxes, or solvents as they can damage the finish.

4.2 Программалык камсыздоо жаңыртуулары

Periodically check for software updates through the TV's settings menu to ensure optimal performance and access to the latest features. Updates can improve stability and introduce new functionalities.

5. Кыйынчылыктарды

Бул бөлүмдө телевизоруңуз менен кездешиши мүмкүн болгон жалпы көйгөйлөр каралат.

• No Picture/No Sound: Ensure all cables are securely connected and the correct input source is selected. Check power connections.
• Тармакка туташуу маселелери: Verify your Wi-Fi password or Ethernet cable connection. Restart your router if necessary.
• Image Irregularities: If you observe white spots in the corners, especially on dark images, this may indicate backlight uniformity variations. If persistent or severe, contact customer support.
• File Ойнотуу маселелери: Note that the TV may not support all video formats, such as AVI. Ensure your media files are in compatible formats.
• Алыстан башкаруу пульту жооп бербей жатат: Check battery levels. Ensure no obstructions are between the remote and the TV's sensor.

For issues not covered here, please refer to the full digital manual available within the TV's internal memory or contact Samsung customer support.

6. Техникалык шарттар

7. Кепилдик жана колдоо

For information regarding warranty and return policies, please refer to the official Samsung warranty documentation included with your product or visit the Samsung support website. Amazon's return policy allows for returns within 30 days of receipt if you change your mind. For defective or damaged products, consult Amazon's help page on returns. Specific information for Marketplace purchases is also available on Amazon's help pages.

For technical assistance or further inquiries, please contact Samsung customer support directly.
